NICREW HyperReef Manual

What's in the Box

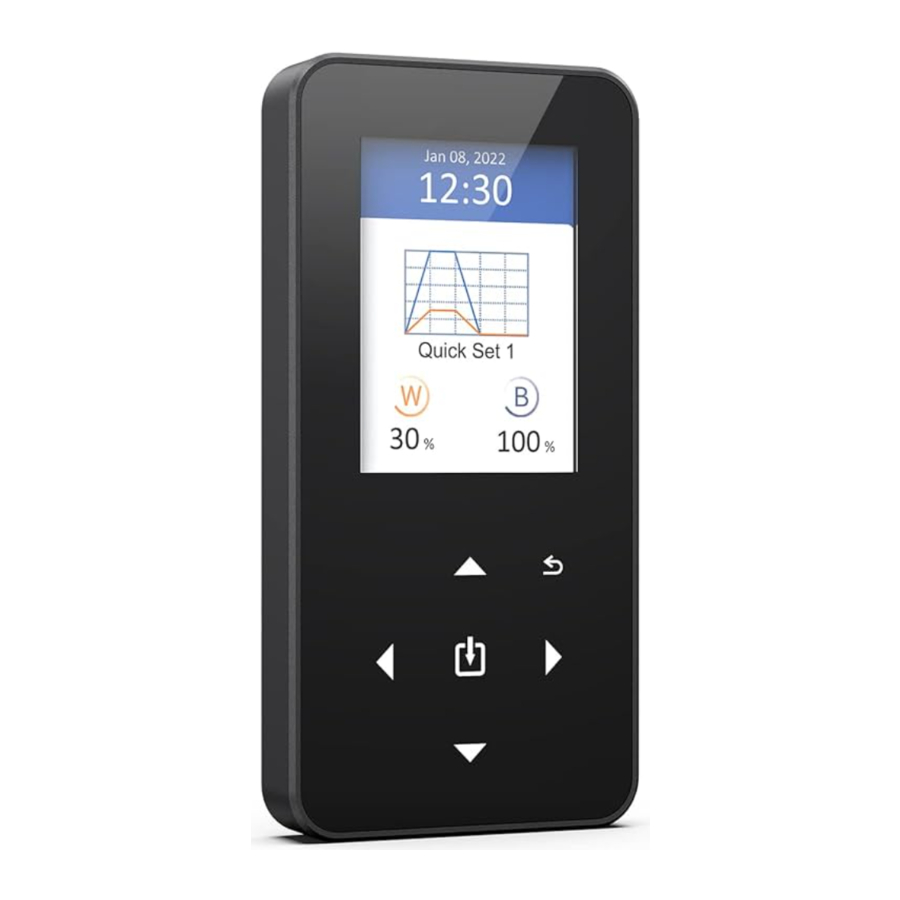

• 1 x HyperReef Controller
• 2 x Screws
• 2 x Nylon Anchors
• 1 x Magnetic Back Plate
• 2 x 3.5mm TRRS Cables

Navigation

Get Started

Power

• Insert the 3.5mm TRRS cable into the light fixture.
• Plug the other end to the controller port.

Alternative
For third party light fixture, plug the Type-C cable to the USB Type-C slot and to a 5V/1A USB power adapter. (USB power adapter and Type-C cable are not included.)
* The HyperReef controller can be powered off through HyperReef 50, 100 and 150 if the controller is not connected to a 5V/1A USB power adapter.

Set Up

• Use the Direction Pad to navigate to the Setting tab.
• Press to access the setting.
• Press to return to the Dashboard.

Manual Configuration

• Navigate to the Manual tab by pressing button.
• Press to access manual mode.
• Press to select the lighting bar, press to set the light intensity.
• Press to return to the tab options.

Program

• Navigate to the Program tab.
• Press to access the programs settings.
• Press to navigate between preset programs or new program and press to enter.
• Press to choose time point and press to enter for detail settings.
• Press to navigate between functional settings.
  Press and then press to adjust value.
• Press to return to the tab options.

NOTE: Make sure to save when finished.

Mode Set

• Navigate to Mode Set tab.
• Press to access lighting mode selection.
• Press to select the desired lighting schedule.
• Press to return to the tab options.

Mounting

• Use the screws provided to mount the magnetic back plate to a wooden surface.
• If mounting to a wall, pre-drill two 6mm holes and insert nylon anchors before screwing the plate in.

Safety Instructions

• DO NOT use a power supply outside the specifications.
• DO NOT use outdoors. This unit is intended for indoor use only.
• DO NOT expose the unit to an extremely humid environment or submerge the unit in water. This may lead to unit failure.
• DO NOT mount over open water.
• ENSURE that the back plate is correctly mounted to a steady surface. Incorrect mounting can result in detachment of the plate and controller.

If your product is within warranty and you require a replacement part or service, please contact us at support@nicrew.com.
For more information, please visit www.nicrew.com.
