BREEO X Series Manual

PRODUCT OVERVIEW

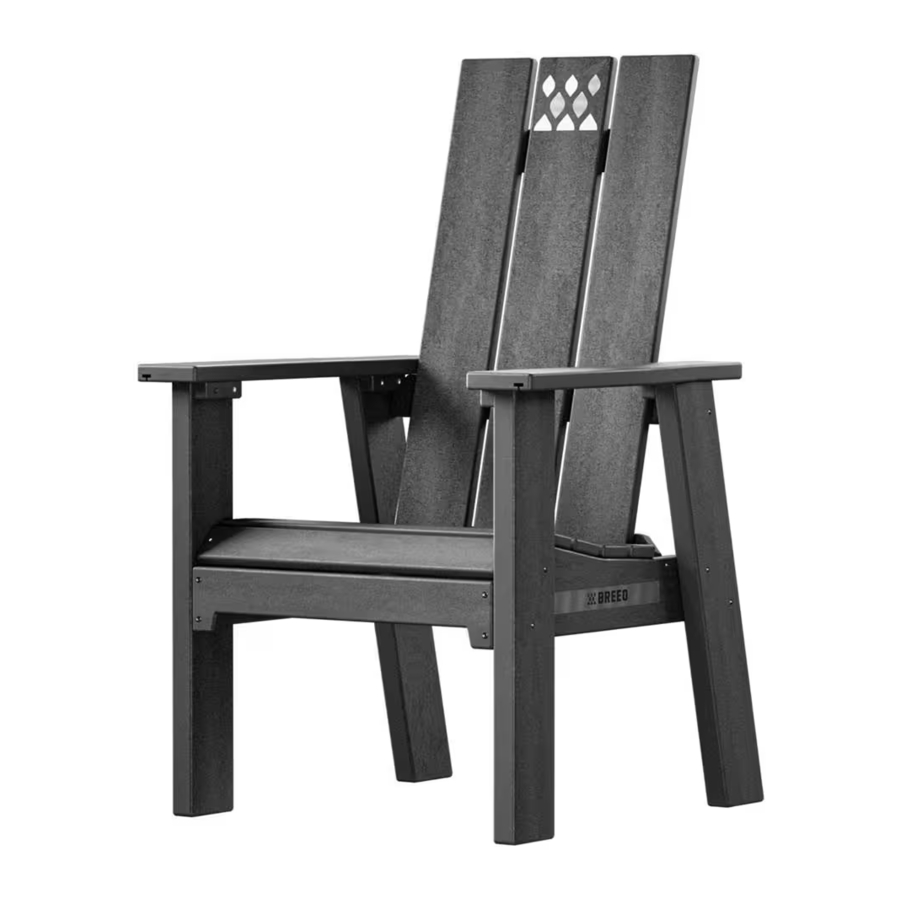

The Breeo X Series Chair is designed to give you the ultimate fireside experience. Built to last and engineered with a more elevated seating position so you can be closer to the fire and the conversation. Pair with the OutRig Tray and Cupholder to make enjoying a meal by the fire even easier.

FEATURES

SUSTAINABLE MATERIAL: Made in Lancaster, PA from sustainable poly lumber with 304 stainless steel accents. X Series Chairs are built to endure the elements and are warrantied against chipping, peeling, rotting, splintering, or cracking.

INTENTIONAL DESIGN: Elevated seating position keeps you in the warmth, and in the conversation. No more leaning too far back, or sitting on the edge of your seat. Compatible with Breeo OutRig^* accessories to customize your X Series Chair. *Sold separately
Breeo OutRig accessories

ASSEMBLY INSTRUCTIONS

PARTS INCLUDED

ATTACH BACK TO SEAT
Lay the Seat on the ground with the legs down. With the Breeo logo facing up, slide the Back into the two diagonal slots on the Seat.
Use the hex key tool provided and 2 of the hex bolts and bolt the Back to the Seat.
FLIP TO SIDE
Flip assembled Seat and Back on its right side to attach the Left Arm. The t-track system should be on the outside of the arm.

PLEASE NOTE:
To prevent cross-threading the bolts, start every bolt by hand till it turns freely and smoothly in the thread. Then use the hex key tool to tighten down.

ATTACH LEFT ARM
Use 4 of the hex bolts provided and thread through the Left Arm to the Seat. Finger tighten a lock nut provided to the end of the hex bolt on the inside. Place the box wrench tool provided around the lock nut and hold while tightening the hex bolt with the hex key.
(See hardware example below)
Use 1 of the hex bolts provided and secure the slanted leg of the Left Arm to the Back.
ATTACH RIGHT ARM
Flip the chair over to its left side and repeat the same steps as the other side. Repeat step 3 and use 4 of the hex bolts provided and bolt the Right Arm to the Seat.
Use 1 of the hex bolts provided and secure the slanted leg of the Right Arm to the Back.
TIGHTEN AND HAVE A SEAT
Finally, check all the bolts and make sure they are firmly tight. Set the chair on its legs, and your chair is ready to enjoy.

USE & CARE

For a quick clean, add dish soap and warm water to a bucket and wipe any dirt off the surface of the chair, rinse with clean water, and let it air dry.

WARNING

Do not stand on the chair for risk of falling or injury.

Do not exceed any weight of 400 lbs on the X Series Chair.

This product can expose you to nickel, which is known to the State of California to cause cancer and birth defects or reproductive harm. For more information go to www.p65warnings.ca.gov
