ShiftCam ProGrip SC-PG-SK-CH-EN Manual

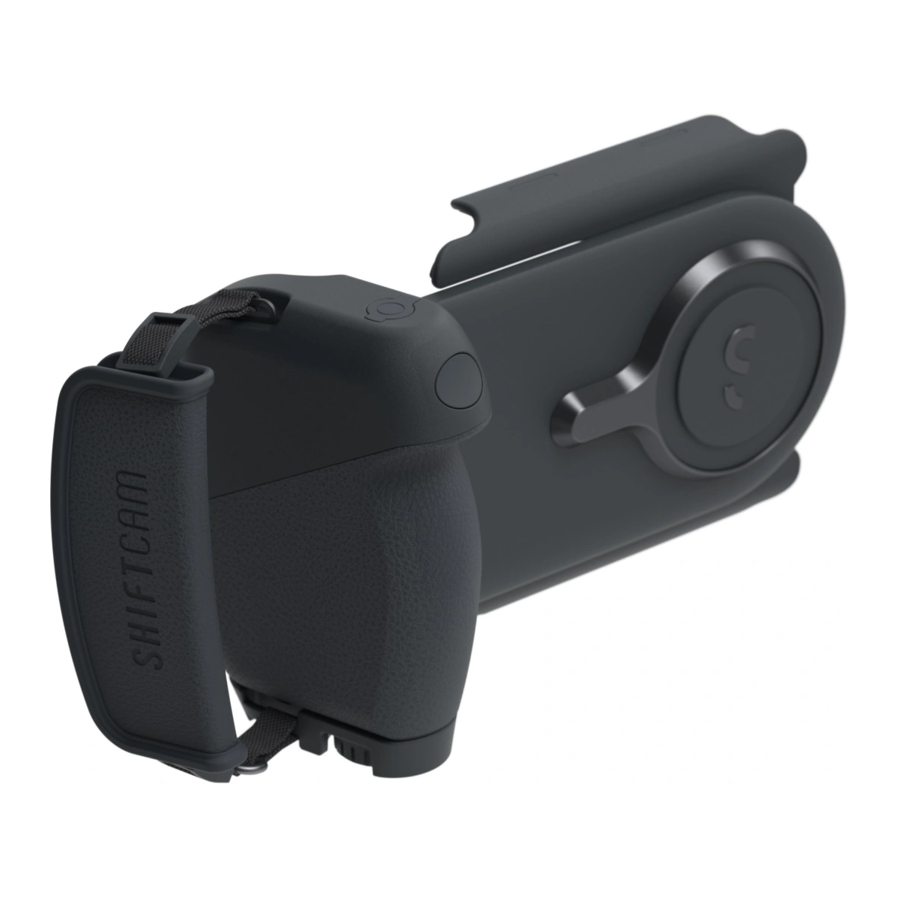

ProGrip Components

Front View

1. Shutter Button

Back View

2. Universal Clamp
3. Wireless Charging Plate
4. Bluetooth Button
5. Charging Button
6. LED Panel

Top View

7. Cold Shoe Slot
8. Hand Strap Loop

Bottom View

9. ¼'' Tripod Screw
10. USB-C Port

LED Panel

LED feedback indication

Charging ProGrip

Connect to power source through USB-C cable to charge.

Attaching ProGrip to Phone

Align your smartphone to the center of the clamp, push down the lower arm with your smartphone to open up clamp. Push your smartphone into the top arm and release to secure.

Ensure your smartphone is properly aligned to the center of the wireless charging plate for optimal charging capabilities.

For Smaller Phone Models

If your phone's width is <75mm, add the Rubber
In-lay Attachments onto the inside of the clamp to secure.

Connecting to Bluetooth Shutter

Press the shutter button and select "ShiftCam ProGrip" on your smartphone to pair. Short press to take photo, long press to take burst/video.

Wireless Charging

Press the Charging Button and attach your smartphone onto the ProGrip securely.

Portrait Mode

Rotate universal clamp to switch to portrait mode.

Power Bank

Charge other devices simultaneously with ProGrip using USB-C cable.

Hand Strap

Feed Hand Strap through loop and adjust length by pulling against the buckles. Screw in knob to secure.

1/4" Tripod Screw

Screw in accessories of your choice into the screw thread on the bottom.

Cold Shoe Mount

Open flap and place Cold Shoe Mount on opening. Screw in knob to secure.

Slide and attach accessories of your choice.

Cold Shoe Mount Adapter

If you want to adjust the angle the accessories face, add-on the rotatable Cold Shoe Mount Adapter.

Warranty

We offer a 2-Year Warranty that covers your products from any manufacturing flaws or defects.

2 Simple Steps to Get Your ProGrip Covered:

1. Scan the QR code and complete the warranty registration process.

2. In case of service required, please reach out to cs@shiftcam.com and send this warranty card along with your ProGrip back to us. We will get it fixed.

Safety Instructions

• Keep away from moisture and liquids. If ProGrip has been exposed to liquids, dry immediately with dry cloth or tissue
• Do not open, remove, crush, puncture, or short-circuit ProGrip
• Do not use if visible defects are observed on ProGrip. Do not attempt to service or disassemble
• Using ProGrip for long periods of time will result in production of heat radiating from the device. It is a normal condition. If you believe your
  ProGrip may be overly heated please turn off the device immediately

Battery and Power

Battery Specifications

• Battery: 18650 Lithium Ion Battery Cell x2 pcs
• Capacity: 3.65V / 6400mAh / 23.36Wh
• Total power output: 20W Max
• USB-C In: PD 18W Max, DC9V/2A, 5V/3A
• USB-C Out: PD 20W Max, DC12V/1.5A, 9V/2.22A, 5V/3A (Max)
• Wireless Charging: 15W Max, 5W(DC5V/1A), 7.5W(DC9V/0.85A) 10W(DC9V/1.12A), 15W(9V/1.65A)

Charging ProGrip To charge ProGrip:

1. Connect the USB-C cable included in the packaging to a power adapter plugged into a power outlet
2. Insert the USB-C cable to the USB-C port on the bottom of ProGrip

Wireless Charging

Turn on wireless charging function:

1. Press the Charging Button
2. A green LED light indicates the wireless charging function has been activated and entered into auto-detection mode
3. Attach your smartphone onto ProGrip securely, while aligning your smartphone centered to the wireless charging plate
4. ProGrip will auto-detect your smartphone once it is in place and begin charging. If fast charge mode is on, a red LED light will turn on simultaneously
5. Please double check your smartphone's battery indicator to ensure it is actively charging

Turn off wireless charging function:

1. Double-press the Charging Button
2. Green LED light will turn off, indicating that wireless charging function has been turned off
   Note: The wireless charging function only works with smartphones that support wireless charging. Wireless charging may not work if you have a case that is
   1. too thick,
   2. has a magnet or metal,
      or
   3. has built in charging function. If so, please remove the phone case before charging.

USB-C Charging

To access USB-C charging function:

1. Connect your accessory or smartphone to ProGrip using the USB-C cable
2. Plug in cable to USB-C port on ProGrip on one end, and connect the other end to your accessory or smartphone's power port
3. White LED lights will turn on, indicating that charging is active
4. Please double check your smartphone or accessory's battery indicatory to ensure it is actively charging

To turn off USB-C charging function:

1. Double-press the Charging Button
2. White LED lights will turn off, indicating that charging function has been turned off

Checking ProGrip's Battery Power Level

• The white LED lights on ProGrip indicates its battery level
• To check ProGrip's battery level: Press the Charging Button, LED light indicating power level will appear

Attaching ProGrip to Your Smartphone

To attach ProGrip to your smartphone:

1. Align your smartphone to the center of the clamp, indicated by the markings on the clamp arms
2. Push down the lower arm with your smartphone to open up the clamp
3. Push your smartphone into the top arm and release the clamp to secure
4. To release your smartphone from ProGrip, open the clamp and remove your smartphone

Note: For smaller phone models with width <75mm, add the Rubber In-Lay Attachments or Silicone Stoppers included in packaging onto the inside of the clamp to secure.

Connecting to Bluetooth Shutter

To connect bluetooth shutter:

1. Press the shutter button on ProGrip. The blinking blue LED indicates pairing mode is active.
2. Turn on the bluetooth pairing on your smartphone and select "ShiftCam ProGrip" to pair
3. A solid blue LED light indicates successful pairing
4. Click and shoot on your mobile using the shutter button

To reset bluetooth:

1. Press the bluetooth button and hold for 3 seconds to reset bluetooth.
2. Blue LED light will start blinking, indicating bluetooth is in pairing mode.

The shutter button mirrors the functions of the camera button of your phone's primary camera app. Short press to take photo, long press to take burst/video Sleep Mode: After 15 mins without pressing the shutter button, ProGrip will enter sleep mode. To reactivate, press the shutter button once

Hand Strap

To attach Hand Strap

1. Feed the end of the nylon strap from bottom up through the Hand Strap Loop, then feed the nylon strap back into the plastic buckle
2. Adjust length by pulling the nylon strings against the plastic buckles on top and bottom of the Hand Strap
3. Place the Hand Strap Attachment on the bottom of ProGrip aligned with openings, screw in knob to secure

Cold Shoe Mount

Mounting Accessories using Cold Shoe Mount / Cold Shoe Mount Adapter

1. Open the flap covering the Cold Shoe Slot on top of ProGrip
2. Place the Cold Shoe Mount above the opening then screw in knob to secure
3. To adjust the angle in which the accessory faces, add-on the rotatable Cold Shoe Mount Adapter by sliding it into the mount
4. Attach accessories of your choice to the Cold Shoe Mount / Cold Shoe Mount Adapter accordingly

¼" Tripod Screw

Screw in to attach accessories into the ¼" screw thread on the bottom of ProGrip

Need Assistance?

Got a question about our products? Scan the QR code to submit an inquiry, or email us at cs@shiftcam.com and we would be happy to assist you. Happy shooting!

To learn more about ShiftCam, visit our official website at ShiftCam.com
