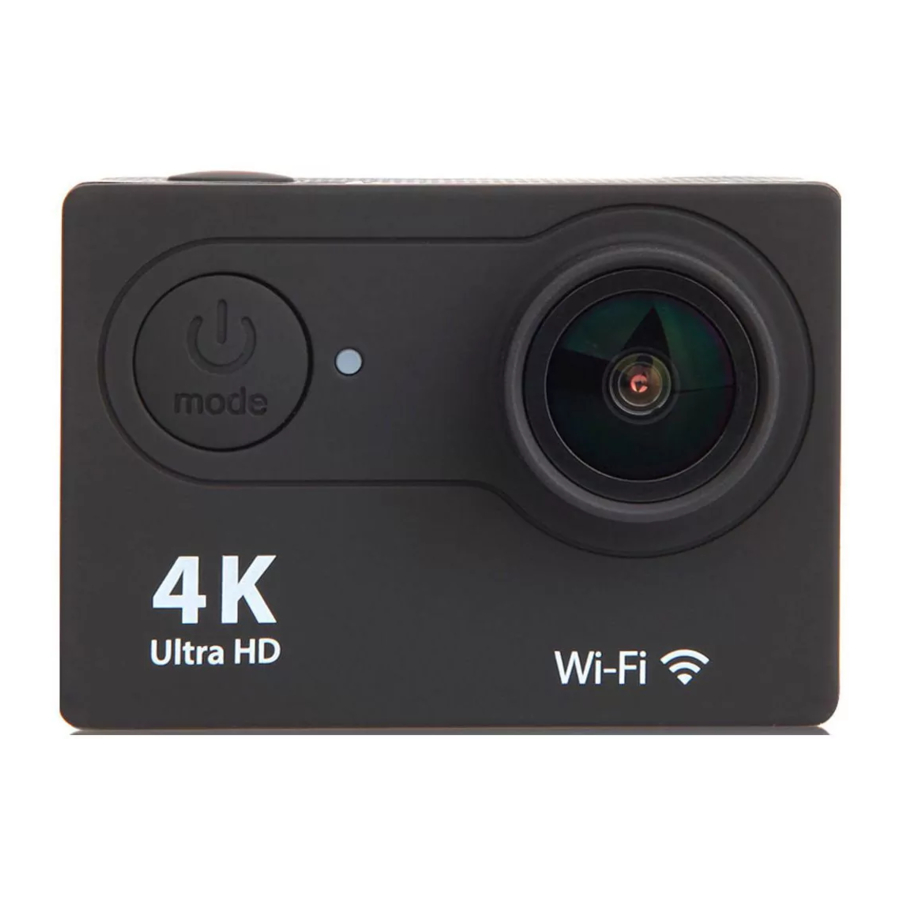

EKEN H9R Manual

GETTING STARTED

To power ON: Press the Power/Mode Button.

To power OFF: Press and hold the Power/Mode Button.

OVERVIEW

Turn camera ON and repeatedly press the Power/Mode Button to cycle through camera modes and settings. The modes will appear in following order:

Video: Record Video

Photo: Capture a sing e photo.

Burst Photo: Capture photo bursts

Time Lapse: Shoot a series of photos at set time intervals

Settings: Adjust camera settings, resolution and more.

SETTINGS

Pressthe Shutter/Select Button to enter the settings menu Repeatedly press the Power/Mode Button to cycle through options and press the Shutter/Select Button to select desired option or use the Up/Playback or Down/Wi-Fi Button to cycle through the various options.

Video Resolution:
4K25/2.7K30/1080p60/1080p30/720p120

Looping Video: Off/On (4K & 2 7K not supported)

Time Stamp: Off/Date/Date & Time

Exposure: + 2 0/+-1.7/+-1.3/+-1.0/+ 0.7/+-0.3/0

Photo Resolution: 12M/8M/5M/4M

Burst Photo: 3 Photos

Time Lapse: 2s/3s/5s/10s/20s/30s/60s

Continuous Lapse: Off/On

Power Frequency: 50Hz/60Hz/Auto

Language: English/Traditional Chinese/Italian/Spanish/Portuguese/German/ Dutch/France/Czech/Polish/Turkish/Russian/Japanese/Korean/Thai

Date & Time: MM/DD/YY, DD/MM/YY, or YY/MM/DD

Sound Indicator: Shutter On/Off, Start Up 1/2/3/ None, Beep On/Off, Volume 0/1/2/3

Upside Down: On/Off

Screen Saver: Off/1 min/3 min/5 min

Power Saver: Off/1 min/3 min/5 min

Format: No/Yes

Reset: No/ Yes

Version

VIDEO MODE

Video
To record Video, verify the camera is in Video mode. If the Video icon on your camera's LCD screen is not showing, press the Power/Mode Button repeatedly until it appears.

To start recording:
Pressthe Shutter/Select Button. The camera will emit one beep and the Camera Status Lights will flash while recording.

To stop recording:
Pressthe Shutter/Select Button. The Camera Status Lights stop flashing and the camera emits one beep to indicate recording has stopped

This camera automatically stops recording when the battery is out of power. Your Video will be saved before the camera powers OFF.

PHOTO MODE

To capture a Photo, verify the camera is in Photo mode. If the Photo icon on your camera's LCD screen is not showing, pres sthe Power/ Mode Button repeated y until it appears.

To take a photo:
Press the Shutter/Select Button. The camera will emit the camera shutter sound.

BURST PHOTO MODE

Burst Photo
To capture a Burst Photo series, verify the camera is in Burst Photo mode. If the Burst Photo icon on your camera's LCD screen is not showing, press the Power/Mode Button repeated y until it appears. In Burst Photo mode, your camera takes 3 photos in 1.5 seconds.

To take a Burst series:
Press the Shutter/Select Button. The camera will emit camera shutter sounds.

TIME LAPSE MODE

Time Lapse
To capture a Time Lapse series, verify the Continuous Lapse is ON and camera is in Time Lapse mode.
If the Time Lapse icon on your camera's LCD screen is not showing, press the Power/M0de Button repeatedly until it appears. In Time Lapse mode, your camera captures a series of photos at 2,3,5,10,20,30 or 60 second intervals.

To take Time Lapse:
Press the Shutter/Select Button. The camera initiates countdown and emits the camera shutter sound each time a Photo is taken.

PLAYBACK

Playing Back Videos and Photos

To enter the Playback menu:

1. Verify the camera is in Camera modes.
2. Press the Up/Playback Button to enter the Playback menu.
3. Repeatedly press the Power/Mode Button to cycle through Video and Photo.
4. Press the Shutter/Select Button to select desired option..
5. Use Up/Playback Button or Down/Wi-Fi Button to cycle through the various options.
6. Press the Shutter/Select Button.
7. To return to the Playback menu, press the Power/Mode Button.
8. To exit, hold down the Up/Playback Button for two seconds.

STORAGE/MICROSD CARDS

This camera is compatible with 16GB and 32GB capacity microSD, microSDHC, and microSDXC memory cards. You must use a microSD card with at least a Class10 speed rating. We recommend using brand name memory cards for maximum reliability in high-vibration activities.

BATTERY

To charge the battery
Use the 1A USB charger and USB cable

* Charging Time: 5 hours

COMPATIBILITY

* Compatibility varies by device Content playback, sharing and access to the camera s memory card might be not available on some devices.

CAMERA App

Connecting to the Ez iCamApp (4K& 2.7K not supported)

The Ez iCam App ets you control your camera remotely using a smartphone or tablet. Features include full camera control, live preview, photo playback and sharing of select content and more.

1. Download the Ez iCam App to your smartphone or tablet at the Google Play


   or Apple App Store.


2. Press the Power/Mode Button to power camera ON.
3. Make sure the camera is in Camera modes.
4. Press the Down/Wi-Fi Button to turn Wi-Fi*.
5. In your smartphone or tablet's Wi-Fi settings, connect to the network called "ICAM-H9(R)" followed by a series of numbers.
6. Open the Ez iCam App on your smartphone or tablet.

iOS / Android App Download

* Press and hold the Down/Wi-Fi Button for three seconds to turn OFF Wi-Fi. The EziCam App is compatible with smartphones and tablets listed below.

For Apple iOS
* iPhone 616s17
* iPad Air & Mini (iOS10)

For Android:
* Android 4X Quad-core devices

LIVE STREAMING

This camera supports Facebook Live and YouTube Live.

Stream to Facebook Live or YouTube Live.

1. Make sure you have paired the camera with the EziCam App.
2. Tap the camera icon in the bottom right corner Of the picture, then tap the Live Streaming icon .
3. Tap the red button, then tap the Facebook or YouTube icon for Apple iOS Tap the red button, tap the LIVE button, and choose Facebook or YouTube for Android.
4. Log in to Facebook Live or YouTube. Facebook or YouTube will open a browser window and request that you log in and grant certain permissions.
5. Tap the Facebook or YouTube icon to start Live Streaming.


2.4G REMOTE

Video
To record Video, verify the camera is in Video mode.

To start recording:
Press the Grey Video Button. The camera will emit three beeps and the Camera Light will flash while recording.

To stop recording:
Press the GreyVideo Button again. The Camera Light will stop flashing while recording.

To capture a Photo, verify the camera is in Photo or Video mode.

To take a photo:
Press the Red Photo Button. The camera will emit a camera shutter sound.

Burst Photo
To capture a Burst Photo series, verify the camera is in Burst Photo mode.

To take a Burst Photo series:
Press the Red Photo Button. The camera will emit camera shutter sounds.

Time Lapse
To capture a Time Lapse series, verify the Continuous Lapse is ON and camera is in Time Lapse mode.

To take Time Lapse:
Press the Red Photo Button. The camera initiates countdown and emits a camera shutter sound each time a Photo is taken.

*To power OFF camera: Press and hold the Red Photo Button.

ACCESSORIES

MOUNTING YOUR CAMERA

Attach your camera to helmets, gear and equipment.
