LaluceNatz 36LEDS RGB PAR LIGHTS Manual

INTRODUCTION

Unpacking: Thank you for purchasing the 36LEDs par lights by LaluceNatz. Every 36LEDs par lights have been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have arrived intact. In the event that damage has been found or parts are missing, please contact our toll free customer support number for further instructions. Do not return this unit to your dealer without first contacting customer support.

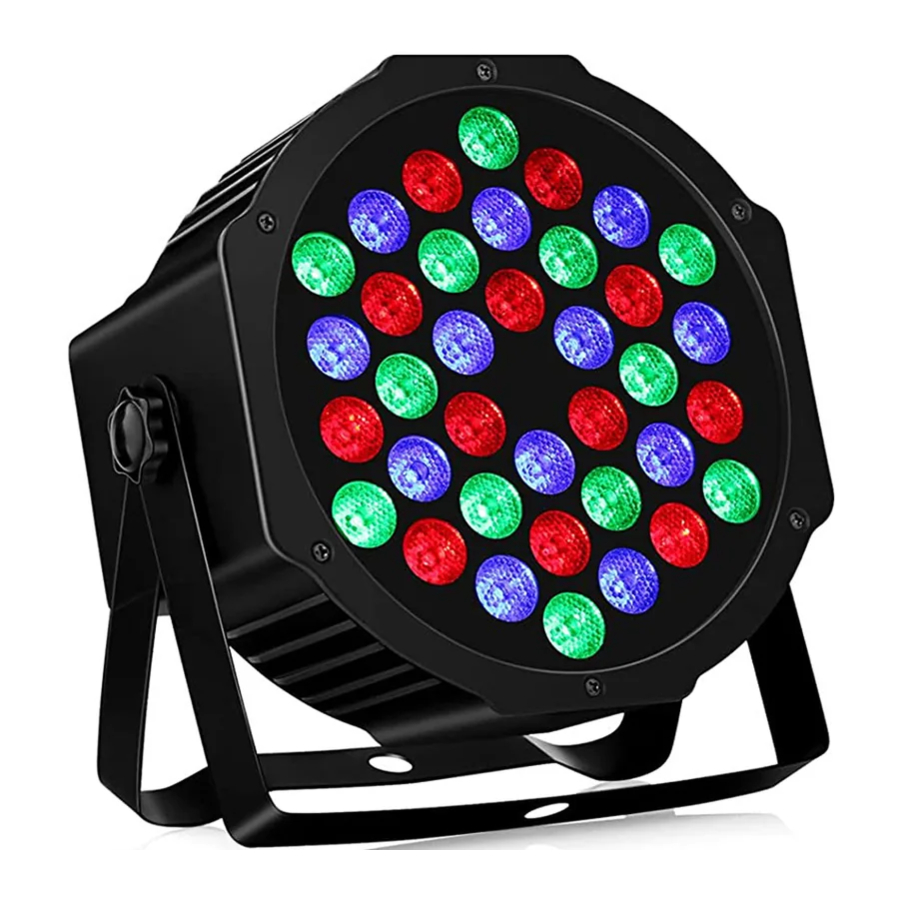

Introduction: The 36LEDs par lights are a DMX intelligent, LED par fixture. This fixture can be used in a stand alone mode or connected in a primary/ secondary configuration. This par has operating modes as below: Sound Active mode, Program mode, RGB Static Color mode, Strobe Mode and DMX control mode. The 36LEDs par lights have 6 DMX channel mode.

Customer Support: LaluceNatz provides a customer support line to provide set up help and to answer any question that may arise during your set up or initial operation. You may also visit us on the web at www.lalucenatzonline.com for any comments or suggestions. Service Hours are Monday through Saturday 9:00 a.m. to 6:00 p.m. Pacific Standard Time.

Voice: +86-180-9898-6330
E-mail: info@lalucenatzonline.com

To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.

There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, as doing so will void your manufacturer's warranty. In the unlikely event that your unit requires service, please contact LaluceNatz.

PLEASE recycle the shipping carton when ever possible.

FEATURES

• Multi-Colors
• Five Operating Modes
• Built in Microphone
• DMX-512 protocol
• DMX Mode: 6 Channel Mode.
• RF remote control compatible ( Included 1pc)

WARRANTY REGISTRATION

A brief description of the problem also be written down on a piece of paper by yourself included in the shipping carton. If the unit is under warranty, please provide order ID of purchase. You may contact our customer support team on our customer support number and email.

INSTALLATION

The unit should be mounted using a mounting clamp (not provided), affixing it to the mounting bracket that is provided with the unit. Always ensure that the unit is firmly fixed to avoid vibration and slippage while operating. Always ensure that the structure to which you are attaching the unit is secure. The equipment must be installed by a professional, and it must be installed in a place where it is out of the reach of people's grasp.mail.

SET UP

Power Supply: The 36LEDs par light supports wide voltage, which voltage range of 100 to 240 VAC,50/60 Hz, no need to worry about the correct power voltage, and this unit can be plugged in anywhere.

DMX-512: DMXis shortfor Digital Multiplex. This is auniversal protocolused as aform ofcommunication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA "IN"and DATA"OUT"XLR terminals located on all DMX fixtures.

DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible when linking several DMX fixtures. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation):
Data Cable (DMX Cable) Requirements (For DMX Operation):
The 36LEDs par light can be controlled via DMX protocol. The 36LEDs par light has 6 DMX channel. Your unit and your DMX controller can accept either a standard 3-pin XLR connector for data input and data output. Be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores). Your cables should be made with a male XLR connector at one end of the cable and a female XLR connector at the other.

Orientation:
The 36W LED RGB Par Light can be mounted in any position, however, make sure adequate ventilation is provided around the product.

Control Panel Operation

To access the control panel functions, use the four buttons located underneath the display.

Menu Map

OPERATING INSTRUCTIONS

Operating Modes: The 36LEDs par light has five operating modes:

• DMX control mode - This function will allow you to control each individual fixtures traits with a standard DMX 512 controller.
• RGB Mode - Choose one of the 3 colors to remain static or adjust the intensity of each color to create your own custom color.
• Sound Active Mode - The unit will react to sound, chasing through the built in programs. The sound sensitivity is adjustable.
• Program Mode - There are 5 built in programs to choose from. Color change and color fade speeds are adjustable.
• Static Color Mode - There are 7 colors to choose from.

DMX Mode: Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. The 36leds par light has 6 DMX Channel mode. See the DMX Traits section of this manual for detailed information.

1. This function will allow you to control each individual fixture's traits with a standard DMX 512 controller.
2. To run your fixture in DMX mode press the MODE button until "Axxx" is displayed. "xxx" represents the currently selected address. Use the UP or DOWN buttons to select your desired DMX address.

DMX Connection:
Set the product in DMX mode/A001 to control with a DMX controller.

• Connect the product to a suitable power outlet
• Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product.

Static Color Mode:

1. Plug the fixture in and press the MODE button until "Au-xx" is displayed. "xx" is the number of currently selected color.
2. There are 7 colors to choose from. Select your desired color by pressing the UP and DOWN buttons.

Program Mode: In this mode you can choose Hopping, Fade Changing, Pulse programs to run. The fade speed and program speed are both adjustable.

1. Hopping: Plug the fixture in and press the MODE button until "FF-xx" is displayed. "xx" is the currently selected program speed from "01-99".
2. Fade: Plug the fixture in and press the MODE button until "CC-xx" is displayed. "xx" is the currently selected program speed from "01-99".
3. Pulse: Plug the fixture in and press the MODE button until "EE-xx" is displayed. "xx" is the currently selected program speed from "01-99".

Sound Active Mode: In this mode the 36LEDs par light will react to sound, and chase through the different colors.

1. Plug the fixture in and press the MODE button until "Soud" is displayed. "uol1-9" represents the sound sensitivity level.
2. Use the UP and DOWN buttons to adjust the sensitivity. "01" is the lowest sensitivity, "09" is the highest.

Master-Slave Mode: In this mode the 36LEDs par light allows you to link units together, one unit will act as the controlling unit and the others will react to the controlling unit's built-in programs. Any unit can act as a Primary or as a Secondary, but only one unit can be programmed to act as the "Master"

RF REMOTE OPERATION

DMX TRAITS

Note: CH1 is the brightness adjustment for CH2-6.

SPECIFICATIONS

Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.

SAFETY PRECAUTIONS

•
  To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken.
•
  Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover for any reason. There are no user serviceable parts inside.
• Never operate this unit with the cover removed.
• Never plug this unit in to a dimmer pack.
• Always be sure to mount this unit in an area that will allow proper ventilation.
• Do not attempt to operate this unit if it has been damaged in any way.
• This unit is intended for indoor use only. Use of this product outdoors voids all warranties.
• During long periods of non-use, disconnect the unit's main power.
• Always mount this unit in a safe and stable matter.
• Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the point at which they exit from the unit.
• Cleaning - The fixture should be cleaned only as recommended by the manufacturer.
• Heat - The appliance should be situated away from heat sources, such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:
  1. The power supply cord or the plug has been damaged.
  2. Objects have fallen onto, or liquid has been spilled into, the appliance.
  3. The appliance has been exposed to rain or water.
  4. The appliance does not appear to operate normally or exhibits a marked change in performance.

LaluceNatz
Voice: +86-180-9898-6330
Email: info@lalucenatzonline.com
Website: www.lalucenatzonline.com
Amazon Store: https://www.amazon.com/LaluceNatz
