STEAMEMO POE Series Manual

Product description

This product is an Ethernet POE power supply switch independently developed by our company. It is table for terminal network connection and power supply projects such as supermarkets, offices, small hotels. Wireless AP and factory, etc. It supports VLAN function and ultra-long transmission mode (optional When the VLAN IS enabled, the POE power supply ports ace isolated from each other, and the data IS uploaded and downloaded through the UPLA port to effectively suppress network faults such as Network storms and virus attacks, etc. When applied to the monitoring network. you can turn on the ultra-far expansion function to achieve power supply and network transmission up to 250 meters

Features

• POE power supply mode, supporting the terminal equipment with IEEE 802BAF/AT:
• Support power supply line sequence 1236, each port has a maximum power of and an average power of 15W or more; Input voltage: 110V-240V, (Please refer to parameter sticker for power);
• Support over current, overvoltage, short circuit protection;
• Flow control mode: full-duplex adopts IEEE 802.3%, half-duplex adopts Back pressure; Support port automatic flip (Auto MOI/MO
• Switching system using store-and-forward;
• All ports support wire-speed switching and support jumbo frame transmission;
• Zero configuration feature, automatically supplied to adaptive devices;
• Panel indicator monitoring status and help failure analysts

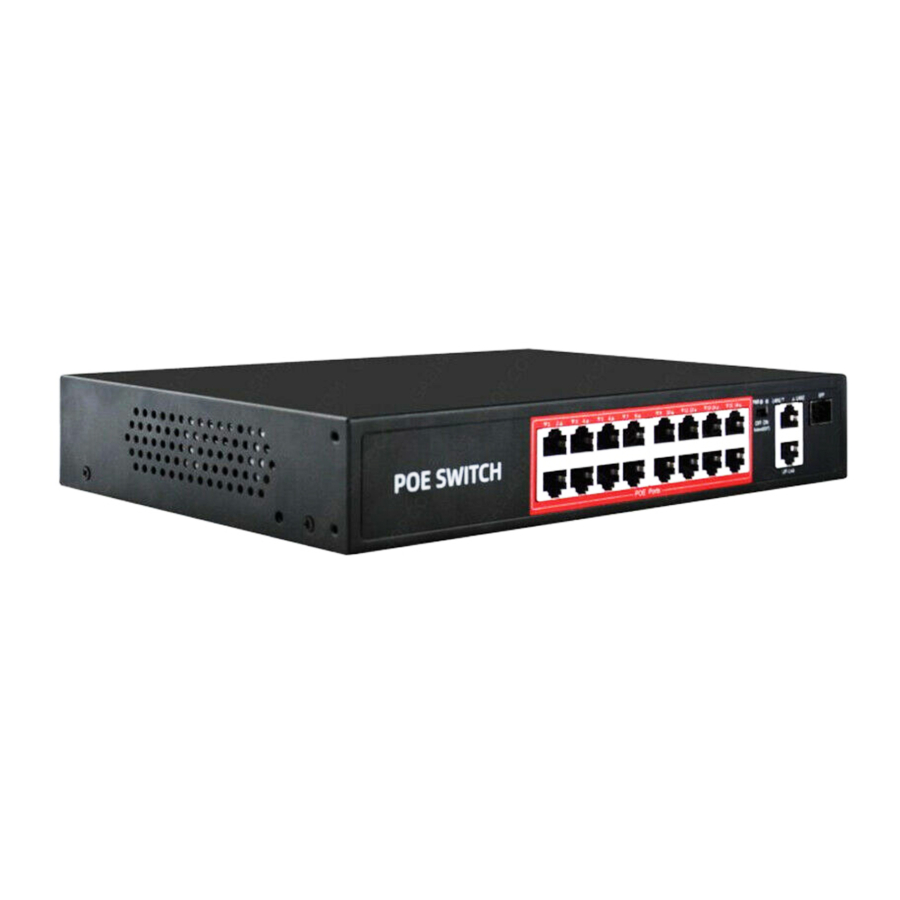

Product display

The display is representative of the product. the actual object may be different* but the function is the same

Function switch description

The optional function may be Extend or Extend±Vlan

Indicator definition

Product Application

The display is representative of the product, the actual object may be different, but It',e function is the same

FAQ

Which cameras can connect to this POE switch?

• POE camera with IEEE 8023AF/AT
• If it is not a POE camera, you can add a standard POE splitter to connect the switch to the camera.

The distance is only 50 meters, the camera is normal during the day, there is no image at night, and the monitor is black?

• This is a case where the typical camera is under powered. Please make sure that the network cable you are using is more than five international standards or connected to the Internet.
• It is recommended to use a multimer to measure the resistance of the network cable. The line of 10 meters and 0.9 ohms can run 100 meters, the line of IC meters and IS ohms can run SO meters, and the line of 10 meters and 3 ohms can only run more than 10 meters.

I used a super five network cable, but only after receiving more than 30 meters, there is no signal?

• Please make sure that the crystal head is crimped into the position It is recommended to use a line tester to test whether the network cable can communicate at both ends.
• Check the crystal head pressure wiring sequence, please use T568B connection method to cri mp the crystal head.

Can it support 4 -core network cable power supply, will it affect camera data transmission?

• Our company's POE switch supports 1236 li ne-sequence power supply, so it is very compatible with 4- core power supply.
• The network interface of the camera is a 100M network port. The transmission of the 100M network is only 1236 quad core, and the other four cores do not play or connect, so it will not affect the camera transmission.

When do I need to enable the Extend function?

• Extend is a super-long transmission function, generally more than 100 meters distance requirement.
• The camera signal is disturbed or insufficient in intensity, causing instability such as image transmission and intermittent.

Quality assurance

We strictly con trol the quality of products that have no opinions. so that customers can buy them with confidence and ease. SSC TECH has well-equipped laboratories, such as network analyzers, spectrum analyzers, high and low temperature testers, vibration testers and other complete testing and verification equipment. Each product will be tested for reliability and stability before it is officially mass-produced. Verification to ensure the quality of the mass production of the product.

Service

Our company provides free technical support to all buyers and provides a complete return service.
Support customization, OEM and ODM services. We are honored to be your quality supplier,
