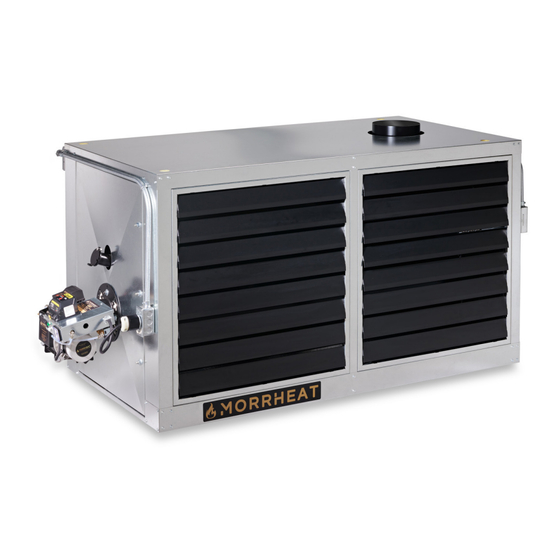

Summary of Contents for MorrHeat MH80
- Page 1 Waste Oil Fired Heat Installation, operation and service instructions 120v/240v Manual...
-
Page 2: Table Of Contents
Phone: 877-761-1673 Email: sales@morrheat.com Working Days/Hours: Mon - Fri / 7:00 AM - 5:00 PM PST Summer Days/Hours: Mon - Thurs / 8:00 AM - 4:00 PM PST MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 2... -
Page 3: Important Information
When taking delivery of your equipment, please be sure to check the shipment for any potential damages (MorrHeat is not responsible for any damaged shipments if signed for non-damaged). If any damage is identified upon delivery, either sign for as damaged goods specifically noting in detail the apparent damage / or / refuse the shipment completely and be sure to file a claim with the shipping company immediately regardless of the damage. - Page 4 RESTART. TOO MUCH OIL IN THE CHAMBER UPON RESTART CAN CAUSE A BACKFIRE IN THE COMBUSTION CHAMBER. IF TOO MUCH OIL IS PRESENT, IT IS RECOMMENDED TO CLEAN OR WIPE UP AS MUCH AS POSSIBLE BEFORE A RESTART TO AVOID THIS FROM HAPPENING. MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 4...
-
Page 5: Burner & Pump Specs
Total Operating Amperage (Burner Only) Run Amps Weight Burner Tube Dimensions Diameter 4 ¼ PUMP ASSEMBLY 240v Performance Ratings Voltage 240v Cycles 50Hz Total Operating Amperage (Pump Assembly Only) Run Amps Weight MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 5... -
Page 6: Heater Specs
L51" L56" L56" L65.5" L77.5" DIMENSIONS W30" W37" W41" W38.5" W47" L|W|H H24.5" H24.5" H31.5" H31.5" H39.5" HANGING WEIGHT Bi-Directional models available in MH320 & MH480 models only. MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 6... - Page 7 60Hz AIR FLOW 80 FT 100 FT CFM's 6000 8500 FLUE SIZE 8” 8” L65.5" L77.5" DIMENSIONS W47" W58" L|W|H H31.5" H39.5" HANGING 486 LBS 714 LBS WEIGHT MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 7...
-
Page 8: Hanging Or Mounting Of The Heater
ANSI/NFPA 70-2017 and the requirements of the inspection authorities having jurisdiction. 2. Output depends on viscosity of oil being burnt. 3. Air Pressure for all fuels 10 - 12 P.S.I Average (preset by MorrHeat). 4. Maximum outlet air temp. 180 degrees F. (93 degrees C). -
Page 9: Venting
Then Connected To The Insulated Class A High Temp Vent Pipe Before Venting Through Any Combustable Materials. All MorrHeat waste oil heaters are recommended to be vented off the top of the waste oil heating unit, straight up and out of the building and through the roof for optimal draft settings. - Page 10 NOT INCLUDED Chimney Kit Available Call (877) 761-1673 MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 10...
-
Page 11: Fuel Supply Lines
Make sure both pump and burner are in run mode for normal operation. Do not leave the pump in prime mode. Do not leave burner unattended in jump mode. MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 11... - Page 12 Fuel Filter Fuel Adjustment Dial Regulated Fuel Pump Includes Regulator With Gage Meter ON/OFF Switch Solenoid Fuel Pressure Valve Gauge Fuel Inlet Fuel Filter Fuel Pump (Filter Inside) MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 12...
-
Page 13: Wiring
Installation and use of this product shall be in accordance with the standard for oil burning equipment ANSI/NFPA 31-2016 along with the national electric code ANSI/NFPA 70-2017, the requirements of the inspection authorities having jurisdiction. MORRHEAT WIRING EXAMPLE MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 13... -
Page 14: Thermostat - Primary Reference
D o n o t l e ave jump er s w itch unat ten d e d in jump m o d e MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 14... -
Page 15: Schematic S
MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 15... - Page 16 MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 16...
-
Page 17: Oil Burner Technology
Oil Burner Technology MorrHeat’s waste oil burner technology improves the efficiency of the oil burn process by continuously burning the waste oil with little to no interuptions. The waste oil enters into the Oil Pre-Heater Block and is pre-heated to a specific temperature setpoint. -
Page 18: Parts And Components
Block and controls safety feature of not allowing burner to energize until oil has established operating temperature setpoint or shutdown burner if Pre-Heater Block temperature falls below shutdown temperature setpoint. MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 18... - Page 19 Power Indicator: Indicates when power is present at the burner. • Run Indicator: Indicates that the burner is ready for operation after the initial pre-heat, this process could take 3-4 minutes to pre-heat the system. MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 19...
-
Page 20: Initial Start Procedure
& fuel pressure gauge at the pump. The regulated fuel pump will have the fuel regulator and pressure gauge mounted to the heater with a secondary gauge at the pump. MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 20... - Page 21 Do not over-fire the heating unit or you risk cracking a weld, this would void the warranty. 500-degree temperatures are desired. Minor air band, air compressor & fuel adjustments may be needed. Call MorrHeat with any start up questions (877) 761-1673.
-
Page 22: Estimated Fuel/Air Pressure
Always call for support if adjustments are being made and help is needed to protect the warranty, 877-761-1673. MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 22... -
Page 23: Suggested Maintenance
• Check the vanes and carbon plates for any chips, cracks or wear within the onboard air compressor, replace vanes and carbon plates if needed. The cleaner the unit, the better it performs and longer it lasts! MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 23... -
Page 24: References (Nozzle|Electrode|Burner & Pump)
Jump Run Transformer Jump Run Switch Switch Air Regulator Air Filter Air Pressure Air Band Blower motor Standard Option - Shop Air System Upgrade Option - On-Board Air System MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 24... - Page 25 Yellow / White HR Meter Gauge Fuel Adjustment Dial Fuel Pump Fuel Filter with Housing (Filter Inside) Bleeder Valve Metered Pump Assembly Regulated Pump Assembly (Includes Fuel Regulator) MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 25...
-
Page 26: Troubleshooting
▼ Out of fuel is bright yellow not orange ▼ No oil to burner ▼ Refill storage ▼ Clean pump screen - remove pump cover. Using vent port, re-prime pump. MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 26... - Page 27 If a third party is involved MorrHeat is not responsible for any fee associated with the service provided by a third party.
-
Page 28: Warranty Information
Warranty is valid from the date of purchase and warranty card must be sent in to MorrHeat within 30 days of delivery date. MorrHeat is not responsible for damaged goods. Please check your shipment for any damages. If damages are apparent, either sign for the shipment as damaged goods and file a claim immediately or refuse the shipment and file a claim immediately. -
Page 29: Warranty Agreement
If return is deemed necessary for warranty evaluation and determination of repair or replacement, unit heater is to be sent to MorrHeat with freight prepaid. MorrHeat reserves the right to determine appropriate action for repair or replacement. -
Page 30: What Is Included
Phone: 877-761-1673 Email: sales@morrheat.com Working Days/Hours: Mon - Fri / 7:00 AM - 5:00 PM PST Summer Days/Hours: Mon - Thurs / 8:00 AM - 4:00 PM PST MorrHeat - Most Heat In The Industry - Rev 1/07/22 Page 30...
