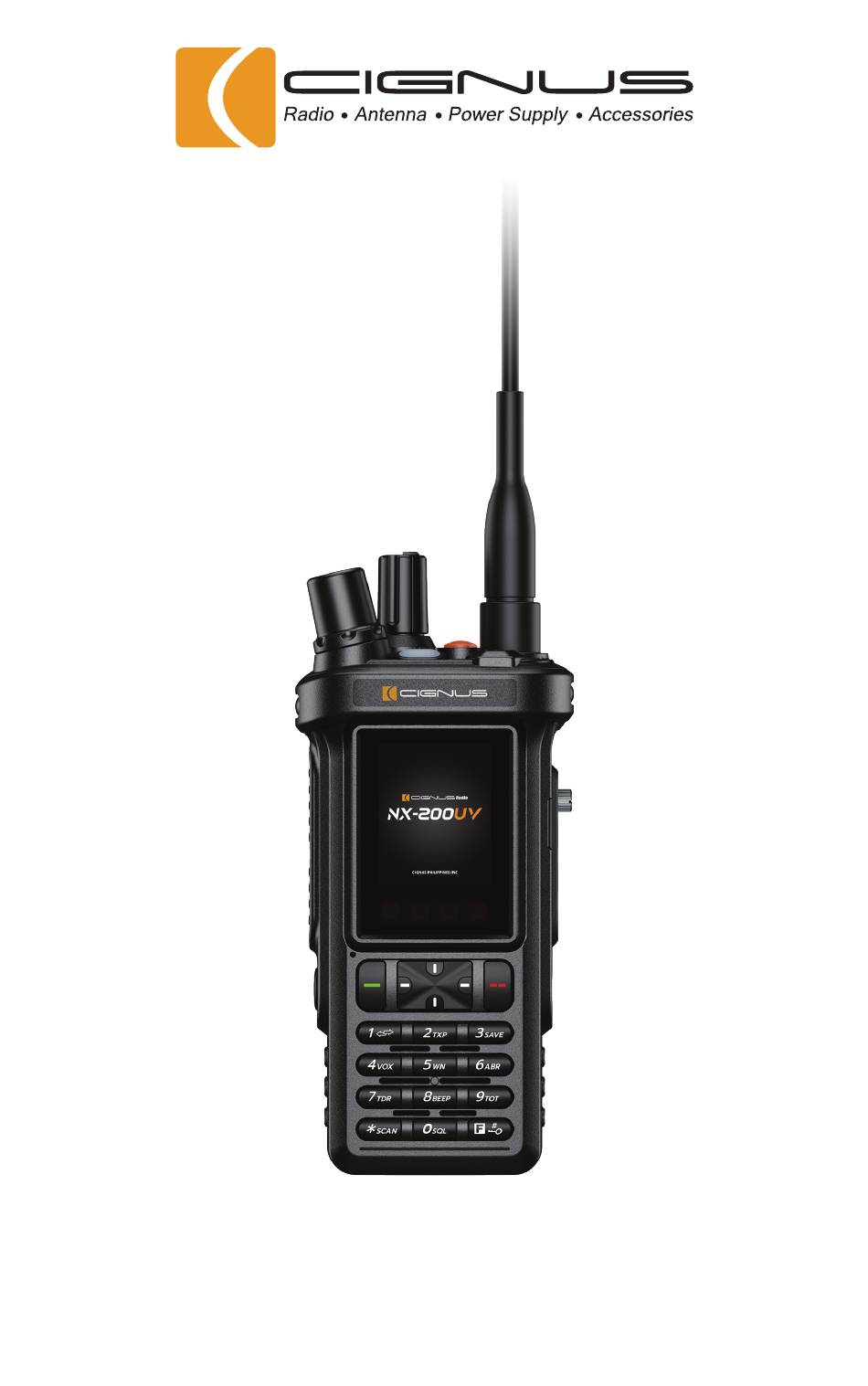

- Page 1 NX-200UV User Manual...
- Page 3 PREFACE Thank you for purchasing our two way radio. This easy-to-use radio will deliver you secure, instant and reliable communications at peak efficiency. Please read this manual carefully before use. The information presented herein will help you to derive maximum performance from your radio.
-
Page 4: Table Of Contents
Contents Supplied Accessories Product Overview Status Indicator Shortcut Key Operation Menu Operations POC Settings Group Selection (Group Call) Member Selection (Member Call) POC Set Power Saver Time Zone SIM Switch GPS Information Speaker Gain Csq Level Module Information Version Information Tone Volume Check Update Radio Set... -
Page 5: Supplied Accessories
Supplied Accessories Carefully unpack the transceiver. We recommend that you identify the items in the following table before discarding the packing material. If any item is missed or has been damaged during shipment, please notify your dealer. Item Quantity Antenna Li-polymer Battery Charger Adaptor... -
Page 6: Product Overview
Product Overview 3 4 5 Sjhiu Gspou Mfgu Cbdl... - Page 7 Product Overview Part Name Function Analog Antenna Receiving analog signals 4G LTE Antenna Receiving network signal Power On/Off / Rotate to turn on/off, adjust the volume Volume Knob Short press to customize functions, Top Button long press to activate SOS. Transmit: Red light is always on.
- Page 8 Product Overview Part Name Function Combined with the number keys to quickly enter the corresponding menu. Function Key/ In standby mode, long press to lock the Keypad Lock keyboard, long press again to unlock. PTT-1 Analog transmission PTT-2 Network transmission You can customize the corresponding functions Side Key of long press/short press.
-
Page 9: Status Indicator
Status Indicator LCD Display Analog Status Analog Display Network Status Member Network Display Group Idle Icon Description Icon Description Received signal strength Narrow Band Currently using SIM card 1 Wide Band Frequency difference direction Currently using SIM card 2 GPS function is turned on Dual standby is enabled Battery Indicator Keyboard is locked... -
Page 10: Shortcut Key Operation
Shortcut Key Operation In standby mode, short press the function key , after the letter F is displayed on the top of the display, short press the number key to quickly enter the corresponding function menu marked on the key. For function introduction, please see "Common Menu Function Introduction"... -
Page 11: Menu Operations
Menu Operations Note This machine provides an open menu, and the following functions can be set in the menu. POC Settings Group Selection( Group Call) Member Member Member Group Group Group Menu Poc Set Group 001/050 Group Group 001 Member Group 002 Poc Set Group 003... -
Page 12: Poc Set
Menu Operations POC Set Power Saver Member Member Member Group Group Group Poc Set Poc Set Power Save Group Power Save High Power Member Time Zone Normal Poc Set SIM Switch Power Saving GPS Info Super Saving The power save feature enables a reduction in the consumption of the battery when the radio is on standby. -
Page 13: Sim Switch
Menu Operations SIM Switch Member Member Member Group Group Group Poc Set Poc Set SIM Switch Group Power Save Card 1 Member Time Zone Card 2 SIM Switch Auto Card 1 Poc Set GPS Info Auto Card 2 With dual SIM slots equipped, it allows to insert a secondary SIM card to achieve redundant links between two service providers.It allows your radio to automati- cally switch between the two SIM cards, depending on when one has “better availability for calls and internet. -
Page 14: Csq Level
Menu Operations Allows you to adjust the external speaker loudness when accessories are connected to radio. Level 0 will set the external speaker again to minimum level and Level 10 will set the external speaker gain to maximum level. Csq Level Member Member Member... -
Page 15: Version Information
Menu Operations Version Information Member Member Group Group Poc Set Poc Set Group Speaker Gain Member Csq Level Poc Set Modeule Info Version Info To check Module version and POC version. Tone Volume Member Member Member Group Group Group Poc Set Group Tone Volume Group... -
Page 16: Radio Set
Menu Operations Radio Set Menu Radio Set Channel Set Vox Setting CTCSS DCS Radio Set Signaling Channel Settings CH-Memory Operation: Menu-Radio Set--Channel Set--CH-Memory In the channel memory menu, press UP/DOWN key to select the desired channel number you want to store , press Menu Key to confirm and press Exit key to return to standby. -
Page 17: Frequency Mode
Menu Operations Frequency Mode Step Frequency (In Frequency mode) Operation: Menu-Radio Set--Frequency Mode --Step The frequency steps selectable for this transceiver are as follows: 2.5KHz, 5.0KHz, 6.25KHz, 10.0KHz, 12.5KHz, 20.0KHz, 25.0KHz, 50KHz. Frequency Shift Direction(In Frequency mode) Operation: Menu--Radio Set--Frequency Mode --Direction There are three selections for the frequency shift direction setting: 1. -
Page 18: Transmitting Power
Menu Operations Transmitting Power Operation: Menu--Radio Set--Radio Setting --Trans Power This transceiver has HIGH and LOW transmitting power selectable: Operation: Menu--Radio Set--Radio Setting --Tx Over Time This function can automatically control the time we transmit each time you press PTT on the transceiver. This feature is very useful to avoid overheating exces- sive power transistors of the transceiver. -
Page 19: System Set
Menu Operations System Set Menu Channel Set Dual Receive Bluetooth Brightness System Set Voice Bluetooth Operation: Menu--System Set--Bluetooth This transceiver can connect to different Bluetooth devices according to the purpose 1. Select the Bluetooth working mode through the menu to turn on the Bluetooth function 2. -
Page 20: One Touch Frequency Search
Menu Operations One Touch Frequency Search 1. The radio will act as a receiver. Press and hold the programed key, and the screen will display “SEEK...” 2. If the transmitter continues to transmit and the unit receives an effective frequency (the strongest and stable signal), the received frequency will be displayed. -
Page 21: Troubleshooting
Troubleshooting Before assuming your transceiver is broken, please check your transceiver according to the following table; if the problem persists, you can reset the trans- ceiver, which sometimes. Fault Solution Check that the volume knob has been set to maximum. Reception prompt Please reset CTCSS/DCS to check whether remains but speaker is... - Page 22 Troubleshooting Fault Solution It might be casused by the system settings from the mobile network operators. The same radio is different standby time using the different systems from different mobile network operators. Battery is used up, and used in the high or low temperature, battery life might be shorten.
- Page 24 Disclaimer All the specifications and designs are subject to change without notice due to continuous technological development. No part of this manual may be copied, modified, translated, or distributed in any manner without the prior written consent of the Company.
