HUBBELL LIGHTING Columbia Lighting HD02R Instruction Manual

CRN2
WET LOCATION HIGH BAY
R EMOTE F OR D IM M A BL E SEN SO R S

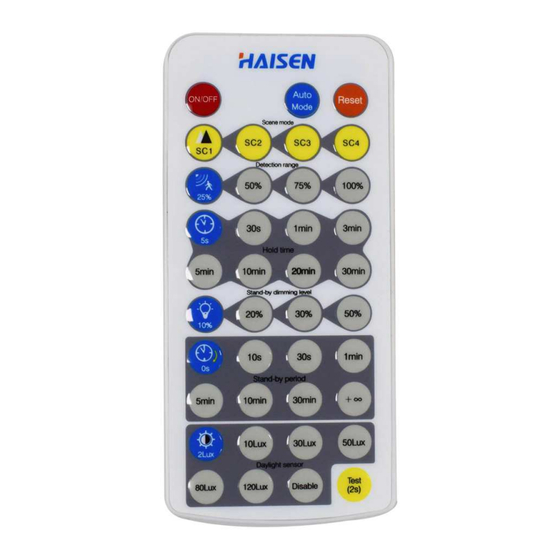

Model: HD02R
Attention
1. Light turns on when sensor is wired correctly.
2. When using ON/OFF button, the rest of the setting buttons don't work.
3. Press "Auto Mode", "Scene mode" or "Reset" button before setting
detection range, hold time, daylight threshold, standby dimming level and
standby period, sensor flickers after receiving signals.
4. Every change will be automatically saved.
Page 1/2 Rev. 09/24/20
COL-CRN2-remote-ins
© 2020 Columbia Lighting, a division of Hubbell Lighting, Inc. Specifications subject to change without notice.
701 Millennium Blvd • Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com

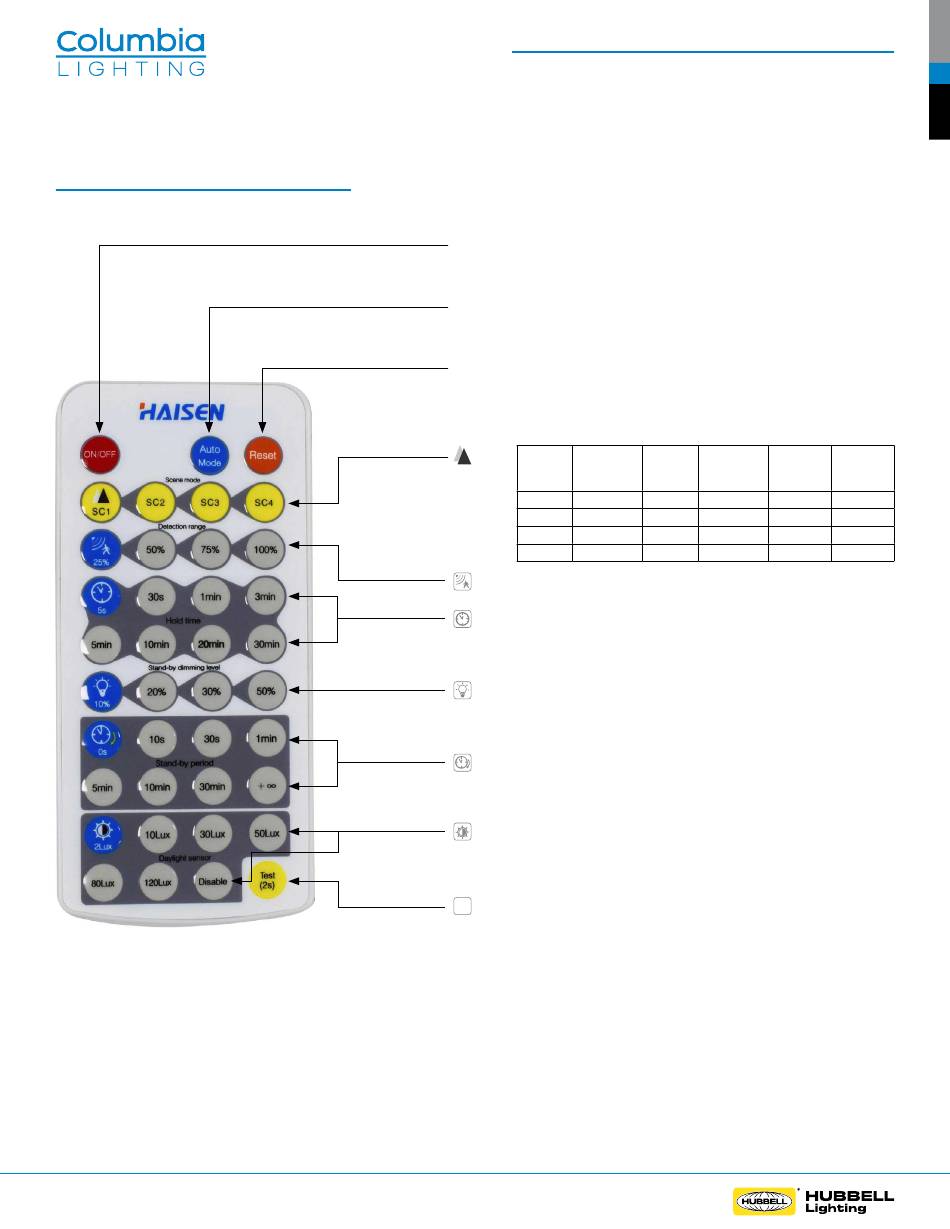

CRN2 Remote Instruction Manual
NOTE: Components shown in images are
representative only and may vary based
on the configuration ordered.
ON/OFF
Press the "On/off" button, the light keeps permanently on or off. Press "Auto
Mode", "Reset" or "Scene mode" buttons to quit from this mode.
Auto Mode
Press "Auto Mode" button, the sensor starts to work and all settings remain the
same before the light gets switched on/off.
Reset
Press "Reset" button, products with DIP switch will be controlled by DIP switches;
otherwise all the setting will be just initial, that is 100% detection range, hold time
5S, no stand-by time and daylight threshold disabled.
Scene Detection
Mode Area
Scene
Mode
SC1 100%
(locked)
SC2 100%
SC3 100%
SC4 100%
Detection area
Press to define detection area: 100%/75%/50%/25%
Hold time
Press to define hold time: 5s/30s/1min/3min /5min/10min/20min/30min
Stand-by dimming level
Press to define stand-by dimming level: 10%/20%/30%/50%
Stand-by period
Press to define stand-by period: 0s/10s/30s/1min/5min/10min/30min/+∞.
Note: "0s" means no standby period; "+∞" means unlimited standby period.
Daylight threshold
Press to define daylight level: 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Note: Disable means light will be turned on once sensor detects movement,
regardless of the ambient lux.
Test
2s
The button "Test (2s)" is for testing purpose after commissioning. Pressing this
button causes the sensor to go into test mode (hold time is only 2s).
Hold Daylight Stand-by
Time Threshold Period
30s 2 lux 1 min
5 min 10 lux 10 min
10 min 50 lux 30 min
30 min Disable + ∞
Stand-by
Dimming
Level
10%
10%
10%
10%
