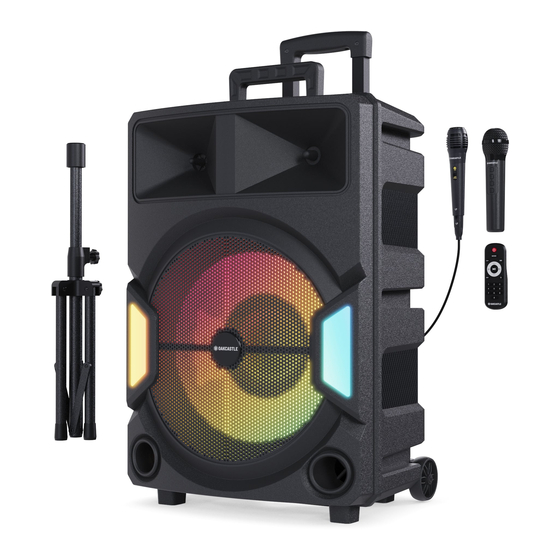

Box Contents What’s in the Box? Oakcastle PS500 Party Speaker Remote Control Wired Microphone USB Type-C Charging Cable Wireless Microphone User Manual Tripod Stand ...
Controls & Functions Front View Active Tweeters LED Lighting Speaker...
Page 5
Controls & Functions Back View & Control Panel 2 3 4 5 6 14 15 16 9 10 Power ON/OFF, Volume +/- Bass +/- USB Type-C Charging Port (DC5V) Wired Microphone Port Mode & Lighting Modes AUX-In Port Next /Forward ...
Page 6
Controls & Functions Remote Control Standby: Press the 'Standby' button to put your speaker in Sleeping Mode. Press again to turn on the speaker. Stop: Press the 'Stop' button once to stop playing. Volume +: Increase the volume. Previous: Press to skip and play the previous song or to the previous FM station in FM Mode....
Power ON/OFF Power on the Oakcastle PS500 speaker, and then press the 'Power On/Off' button on the microphone (Ref.31). The wireless microphone will then automatically connect with the party speaker. Wired Microphone ...
Tripod Stand The Tripod Stand At lowest extension, the Oakcastle PS500's tripod is 43.5cm high and at maximum extension is 76cm high. Once removed from the box, unfold the bottom three legs. Keep it stable and he • tripod won't wobble easily. ...
TWS The 'TWS' function can only be used when using two Oakcastle PS500 Party Speakers which you can connect and use as twin Bluetooth party speakers. ...
Bluetooth, USB & Micro SD Card Mode Bluetooth Mode The Oakcastle PS500 can be paired via Bluetooth with a phone or a tablet to play audio from your device via your party speaker. Press the 'MODE' button on the unit (Ref.3) or on the remote control (Ref.23) repeatedly to change the speaker mode in Bluetooth.
AUX-In Mode The Oakcastle PS500 can be connected with an MP3 player, CD player, phone, tablet or any other similar device, using an AUX audio cable of 3.5mm (not included). Insert one end of the audio cable of 3.5mm into the AUX-In port of the party speaker (Ref.14), and the other end into your audio source device's AUX output port.
You will now be able to play audio via your party speaker. Support If you require assistance with your new Oakcastle PS500, please contact our tech Support team by completing the form on our Oakcastle website: www.oakcastle.co.uk/support.
All products come with a standard 12-month warranty. All items must be registered within 30 days of purchase on www.oakcastle.co.uk for the warranty to be valid. Once on our website, use the menu to find ‘Register Your Product’. You will also be given...
Safety Information ADDITIONAL WARNINGS Read these instructions. Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping, available for download at www.majority.co.uk. splashing or objects filled with water. Heed all warnings. Follow all instructions. The main plug is used to disconnect the device. In Do no clean the apparatus near or with water.
Page 18
Inhalt Was ist in der Box?......................Steuerelemente und Funktionen.…………………………..…………………………………………..Anleitung Leitfaden.……………………………………………………………………………..... Mikrofone..…..……………………………………………………………………………………… Dreibein-Stativ.…………………………………………………………………………………… Grundlegende Bedienung.…………………………………………………………………… Bluetooth………………………………………………………………………......USB-Wiedergabemodus.…..…………………………………………………...…………… Micro-SD-Karten-Modus.….………………………………………………………………… FM-Radio-Modus..………………..…………………………………………………....Aux-In Modus.…………………………………………………………………………………….. Fehlersuche & Unterstützung.………………………………………………………………....Spezifikation.…………………………………………………………………………………......Garantie.………………………………………………………………………………………………………………. Informationen zur Sicherheit.……………………………………………………………………………..
Inhalt der Box Was ist in der Box? Oakcastle PS500 Party- Stativ-Ständer Lautsprecher Fernbedienung Kabelgebundenes Mikrofon USB-Typ-C-Ladekabel Drahtloses Mikrofon Benutzerhandbuch...
Steuerelemente und Funktionen Vorderansicht Aktive Hochtöner LED-Beleuchtung Lautsprecher...
Page 21
Steuerelemente und Funktionen Rückansicht & Bedienfeld 2 3 4 5 6 14 15 16 9 10 Strom ein/aus, Lautstärke +/- Bässe +/- USB-Typ-C-Ladeanschluss (DC5V) Anschluss für kabelgebundenes Modus & Beleuchtungsmodi Mikrofon Weiter/Vorwärts AUX-In-Anschluss Wiedergabe, Pause/TWS USB-Wiedergabeanschluss Zurück SD (TF)-Kartensteckplatz LCD-Display Stativgewinde und Schraube Bitte beachten Sie: Um die Beleuchtungsmodi LED-Licht zum Laden...
Page 22
Steuerelemente und Funktionen Fernsteuerung Standby: Drücken Sie die Taste 'Standby', um den Lautsprecher in den Ruhemodus zu versetzen. Drücken Sie erneut, um den Lautsprecher einzuschalten. Stop: Drücken Sie die Taste 'Stop' einmal, um die Wiedergabe zu beenden. Lautstärke +: Erhöht die Lautstärke. Zurück: Drücken Sie diese Taste, um den vorherigen Titel zu überspringen und abzuspielen oder im FM-Modus zum...
Sie über ein Mikrofon sprechen - männliche Stimme, weibliche Stimme, Babystimme und normale Stimme). Einschalten/Ausschalten Schalten Sie den Oakcastle PS500-Lautsprecher ein und drücken Sie dann die Taste 'Power On/Off' am Mikrofon (Ref.31). Das drahtlose Mikrofon wird dann automatisch mit dem Party-Lautsprecher verbunden. Kabelgebundenes Mikrofon Strom EIN/AUS Stecken Sie das kabelgebundene Kabelende in den MIC-Eingang auf der Rückseite...
Dreibein-Stativ Das Dreibein-Stativ Beim niedrigsten Auszug ist das Stativ des Oakcastle PS500 43,5 cm hoch und bei maximalem Auszug 76 cm hoch. Nach der Entnahme aus dem Karton klappen Sie die unteren drei Beine aus. • Halten Sie es stabil und das Stativ wackelt nicht so leicht.
Lautsprecher und beide werden drahtlos miteinander verbunden. Sobald beide Oakcastle PS500 gekoppelt sind, schalten Sie die Bluetooth-Verbindung auf Ihrem Telefon ein und suchen Sie nach 'Oakcastle PS500'. Wählen Sie die Lautsprecher aus und verbinden Sie sich mit ihnen. Sie können nun Audio auf beiden Lautsprechern abspielen.
Sobald sich der Lautsprecher im Bluetooth-Modus befindet, kann er gekoppelt werden. Aktivieren Sie Bluetooth auf Ihrem Gerät und suchen Sie nach 'Oakcastle PS500'. Wählen Sie den Lautsprecher aus und koppeln Sie ihn mit Ihrem Gerät. Sobald die Verbindung hergestellt ist, können Sie die Wiedergabe von Ihrem Gerät über Ihren Party-Lautsprecher starten.
Sie wiederholt die 'Mode'-Taste am Gerät (Ref.3) oder die Taste auf der Fernbedienung (Rem.23) drücken, bis auf dem LCD-Bildschirm des Lautsprechers 'AUX' angezeigt wird. Sie können nun mit der Audiowiedergabe von Ihrem Gerät über den Oakcastle PS500- Lautsprecher beginnen.
Sie eine Verbindung her, um die Geräte zu koppeln. Sie können nun Audio über Ihren Partylautsprecher wiedergeben. Unterstützung Wenn Sie Hilfe mit Ihrem neuen Oakcastle PS500 benötigen, wenden Sie sich bitte an unser technisches Support-Team, indem Sie das Formular auf unserer Oakcastle- Website ausfüllen: www.oakcastle.co.uk/support.
Garantie Auf alle Produkte gewähren wir standardmäßig eine 12-monatige Garantie. Alle Artikel müssen innerhalb von 30 Tagen nach dem Kauf auf www.oakcastle.co.uk registriert werden, damit die Garantie gültig ist. Wenn Sie auf unserer Website sind, wählen Sie im Menü den Punkt 'Registrieren Sie Ihr Produkt'. Sie haben auch die Möglichkeit, Ihre...
Informationen zur Sicherheit ZUSÄTZLICHE WARNHINWEISE Lesen Sie diese Anleitung. Bewahren Sie diese Anleitung auf. Die Das Gerät darf nicht tropfenden, spritzenden oder Anleitung kann auch unter www.majority.co.uk mit Wasser gefüllten Gegenständen ausgesetzt heruntergeladen werden. werden. Beachten Sie alle Warnungen. Befolgen Sie alle Anweisungen. Der Netzstecker dient zum Trennen des Geräts Reinigen Sie das Gerät nicht in der Nähe von vom Stromnetz.
Page 33
PS500 M A N U E L D E L ' U T I L I S A T E U R...
Page 34
Contenu Que contient la boîte?......................Contrôles et fonctions.…………………………..…………………………………………....... Guide d'instructions.……………………………………………………………………………....Microphones.…..…………………………………………………………………………………. Trépied….……………………………………………………………………………………………. Fonctionnement de base.………………….………………………………………………… Bluetooth………………………………………………………………………......Mode lecture USB.…..………………………….………………………...…………………… Mode carte micro SD.….……………………………………………………………………… Mode radio FM.………………..…………………………………………………....Mode Aux-In.………………………………………………………………………………………. Dépannage et assistance…………………………………………………………………......Spécifications…………………………………………………………………………………......Garantie.………………………………………………………………………………………………………………. Informations sur la sécurité……………………………………………………………….......
Contenu de la boîte Que contient la boîte ? Haut-parleur Oakcastle PS500 Télécommande Microphone filaire Câble de charge USB Type-C Microphone sans fil Manuel de l'utilisateur Trépied...
Contrôles et fonctions Vue de face Tweeters actifs Eclairage LED Haut-parlour...
Page 37
Contrôles et fonctions Vue arrière et panneau de contrôle 2 3 4 5 6 14 15 16 9 10 Marche/Arrêt, Volume +/- Aigus +/-* Port de charge USB Type-C (DC5V) Basses +/- Modes de fonctionnement et Port pour microphone filaire d'éclairage Port d'entrée AUX Suivant /Avant...
Page 38
Contrôles et fonctions Télécommande Veille : appuyez sur la touche 'Veille' pour mettre votre haut-parleur en mode veille. Appuyez à nouveau sur cette touche pour allumer le haut-parleur. Stop : Appuyez une fois sur le bouton 'Stop' pour arrêter la lecture. Volume + : Augmente le volume.
- voix d'homme, voix de femme, voix de bébé et voix normale). Marche/Arrêt Allumez l'enceinte Oakcastle PS500, puis appuyez sur le bouton 'Power On/Off' du microphone (Ref.31). Le microphone sans fil se connecte alors automatiquement à l'enceinte. Microphone filaire Alimentation ON/OFF Insérez l'extrémité...
Trépied Le trépied Le trépied de l'Oakcastle PS500 mesure 43,5 cm de haut à son extension la plus faible et 76 cm de haut à son extension la plus forte. Une fois sorti de la boîte, dépliez les trois pieds inférieurs. Maintenez-les •...
Veuillez noter que chaque paquet ne contient qu'une enceinte Party Oakcastle PS500 Bluetooth. Pour connecter deux Oakcastle PS500, vous devez d'abord vous assurer que les deux enceintes sont sous tension et qu'elles ne sont pas jumelées individuellement avec d'autres appareils via Bluetooth. Appuyez deux fois sur le bouton 'TWS' (Ref.3) de l'un de ces haut-parleurs et les deux se connecteront sans fil l'un à...
Page 42
Insérez la clé USB dans le port de lecture USB (Ref.15) et l'Oakcastle P500 commencera automatiquement à lire les fichiers audio de votre clé. Remarque : le port USB de l'Oakcastle PS500 ne peut pas être utilisé comme port de connexion avec d'autres appareils, car il ne sert qu'à la lecture.
été enregistrée précédemment. Mode AUX-In L'Oakcastle PS500 peut être connecté à un lecteur MP3, un lecteur CD, un téléphone, une tablette ou tout autre appareil similaire, à l'aide d'un câble audio AUX de 3,5 mm (non inclus).
Vous pourrez alors diffuser de l'audio via votre enceinte. Assistance Si vous avez besoin d'aide avec votre nouvelle Oakcastle PS500, veuillez contacter notre équipe d'assistance technique en remplissant le formulaire sur le site Web d'Oakcastle : www.oakcastle.co.uk/support.
Tous les produits bénéficient d'une garantie standard de 12 mois. Tous les articles doivent être enregistrés dans les 30 jours suivant l'achat sur www.oakcastle.co.uk pour que la garantie soit valable. Une fois sur notre site web, utilisez le menu pour trouver 'Enregistrer votre produit'.
Informations sur la sécurité AVERTISSEMENTS Lisez ces instructions. Conservez ces instructions. Les instructions SUPPLÉMENTAIRES peuvent également être téléchargées à L'appareil ne doit pas être exposé à des gouttes, l'adresse suivante : www.majority.co.uk. des éclaboussures ou des objets remplis d'eau. Tenez compte de tous les avertissements. Suivez toutes les instructions.
Page 50
Contenuti Cosa c'è nella scatola?....................... Controlli e funzioni.…………………………..…………………………………………......Guida alle istruzioni.……………………………………………………………………………..... Microfoni.…..……………………………………………………………………………………….. Supporto a treppiede…..……………………………………………………………………… Funzionamento di base.……………………………….……………………………………… Bluetooth………………………………………………………………………......Modalità di riproduzione USB….…..…………………………………………………...… Modalità scheda micro SD….….…………………………………………………………… Modalità radio FM….………………..…………………………………………....Modalità Aux-In…………………………………………………………………………………… Risoluzione dei problemi e assistenza..…………………………………………......Specifiche….…………………………………………………………………………………......Garanzia………………………………………………………………………………………………………………. Informazioni sulla sicurezza.….………………………………………………………….......
Contenuto della scatola Cosa c'è nella scatola? Altoparlante per feste Oakcastle Telecomando PS500 Cavo di ricarica USB Type-C Microfono a filo Manuale d'uso Microfono senza fili Supporto per treppiede...
Controlli e funzioni Vista frontale Tweeter attivi Illuminazione a LED Altoparlante...
Page 53
Controlli e funzioni Vista posteriore e pannello di controllo 2 3 4 5 6 14 15 16 9 10 Accensione/spegnimento, volume +/- Bassi +/- Porta di ricarica USB Tipo-C (DC5V) Porta per microfono cablato Modalità e modalità di illuminazione Porta AUX-In Avanti/successivo Porta di riproduzione USB Riproduzione, Pausa/TWS...
Page 54
Controlli e funzioni Telecomando Standby: premere il pulsante 'Standby' per mettere il diffusore in modalità di riposo. Premere nuovamente per accendere il diffusore. Stop: premere una volta il pulsante 'Stop' per interrompere la riproduzione. Volume +: aumenta il volume. Precedente: premere per saltare e riprodurre il brano precedente o la stazione FM precedente in modalità...
Accensione e spegnimento Accendere il diffusore Oakcastle PS500, quindi premere il pulsante 'Power On/Off' sul microfono (Ref.31). Il microfono wireless si collegherà automaticamente al diffusore. Microfono cablato Accensione e spegnimento Inserire l'estremità...
Supporto a treppiede Il treppiede Alla minima estensione, il treppiede Oakcastle PS500 è alto 43,5 cm e alla massima estensione è alto 76 cm. Una volta estratto dalla scatola, dispiegare le tre gambe inferiori. Mantenendolo • stabile, il treppiede non traballerà facilmente.
ON/OFF' (Ref.1) verso sinistra per diminuire il volume e spegnere il diffusore. TWS La funzione 'TWS' può essere utilizzata solo quando si utilizzano due diffusori per feste Oakcastle PS500, che possono essere collegati e utilizzati come diffusori gemelli Bluetooth. Nota bene: ogni confezione contiene solo un diffusore per feste Oakcastle PS500 Bluetooth.
Inserire la chiavetta USB nella porta di riproduzione USB (Ref.15) e l'Oakcastle P500 inizierà automaticamente a riprodurre l'audio dalla chiavetta. Nota bene: la porta USB dell 'Oakcastle PS500 non può essere utilizzata come porta di connessione con altri dispositivi, poiché serve solo per la riproduzione.
Modalità AUX-In L'Oakcastle PS500 può essere collegato a un lettore MP3, a un lettore CD, a un telefono, a un tablet o a qualsiasi altro dispositivo simile, utilizzando un cavo audio AUX da 3,5 mm (non incluso).
A questo punto sarà possibile riprodurre l'audio tramite il diffusore per feste. Assistenza Se avete bisogno di assistenza con il vostro nuovo Oakcastle PS500, contattate il nostro team di assistenza tecnica compilando il modulo sul nostro sito web Oakcastle: www.oakcastle.co.uk/support.
Tutti i prodotti sono coperti da una garanzia standard di 12 mesi. Tutti gli articoli devono essere registrati entro 30 giorni dall'acquisto su www.oakcastle.co.uk affinché la garanzia sia valida. Una volta sul nostro sito, utilizzare il menu per trovare 'Registra il tuo prodotto'.
Informazioni sulla sicurezza AVVERTENZE AGGIUNTIVE Leggere queste istruzioni. Conservare queste istruzioni. Le istruzioni L'apparecchio non deve essere esposto a gocce, possono essere scaricate anche dal sito spruzzi o oggetti pieni d'acqua. www.majority.co.uk. Seguire tutte le avvertenze. La spina principale viene utilizzata per scollegare Seguire tutte le istruzioni.
Page 66
Contenido ¿Qué hay en la caja?......................Controles y funciones..…………………………..…………………………………………...... Guía de instrucciones………………………………………………………………………......Micrófonos.…..……………………………………………………………………………………. Trípode……..………………………………………………………………………………………… Funcionamiento básico.………….…………………………………………………………… Bluetooth………………………………………………………………………......Modo de reproducción USB….…..………………………………………………………… Modo de tarjeta Micro SD….….……………………………………………….…………… Modo Radio FM.………………..……………………………………….………....Modo Aux-In………………………………………………………………………………………. Solución de problemas y asistencia…..……………………….……………………......Especificación…………………………………………………………………………………......Garantía.………………………………………………………………………………………………………………. Información de seguridad………………………………………………………………….......
Contenido de la caja ¿Qué hay en la caja? Altavoz para fiestas Oakcastle Mando a distancia PS500 Cable de carga USB tipo C Micrófono con cable Manual de usuario Micrófono inalámbrico Trípode...
Controles y funciones Vista frontal Tweeters activos Iluminación LED Altavoz...
Page 69
Controles y funciones Vista trasera y panel de control 2 3 4 5 6 14 15 16 9 10 Encendido/Apagado, Volumen +/- Bajo +/- Puerto de carga USB Tipo-C (DC5V) Puerto de micrófono con cable Modo y modos de iluminación Puerto AUX-In ...
Page 70
Controles y funciones Mando a distancia Standby: Pulsa el botón 'Standby' para poner el altavoz en modo de reposo. Vuelve a pulsarlo para encender el altavoz. Detener: Pulsa el botón 'Detener' una vez para detener la reproducción. Volumen +: Sube el volumen. Anterior: Púlsalo para saltar y reproducir la canción anterior o la emisora FM anterior en modo FM.
Encendido/Apagado Inserte el extremo del cable cableado en el puerto MIC In de la parte posterior del altavoz (Ref.13). Encienda el altavoz Oakcastle PS500 y, a continuación, pulse el botón 'Encendido/Apagado' del micrófono (Ref.32). Nota: Los micrófonos con cable e inalámbricos pueden utilizarse al mismo tiempo o...
Trípode El trípode En su extensión más baja, el trípode Oakcastle PS500 mide 43,5 cm de altura y en su extensión máxima mide 76 cm. Una vez sacado de la caja, despliegue las tres patas inferiores. Manténgalo • estable y el trípode no se tambaleará fácilmente.
útil de la batería. Reproducción El Oakcastle PS500 tiene una batería interna recargable. Una vez cargado por completo, el altavoz puede utilizarse con la batería durante un máximo de 6 horas. Nota: El tiempo de reproducción puede variar en función del nivel de volumen y de los modos de iluminación utilizados durante la reproducción con la batería.
PS500 indicando el modo. Una vez en modo Bluetooth, el altavoz está listo para emparejarse. Active Bluetooth en su dispositivo y busque 'Oakcastle PS500'. Selecciona el altavoz y emparéjalo con tu dispositivo. Una vez conectado, ya puedes empezar a reproducir audio desde tu dispositivo a través del altavoz.
Pulse los botones 'ANTERIOR' o 'SIGUIENTE' para reproducir la siguiente emisora de radio FM o la almacenada anteriormente. Modo AUX-In El Oakcastle PS500 se puede conectar con un reproductor de MP3, CD, teléfono, tableta o cualquier otro dispositivo similar, utilizando un cable de audio AUX de 3,5 mm (no incluido).
Ahora podrás reproducir audio a través del altavoz para fiestas. Support If you require assistance with your new Oakcastle PS500, please contact our tech Support team by completing the form on our Oakcastle website: www.oakcastle.co.uk/support.
30 días a partir de la fecha de compra en www.oakcastle.co.uk. Una vez en nuestro sitio web, utilice el menú para encontrar 'Registre su producto'. También tendrá la posibilidad de ampliar...
Información de seguridad ADVERTENCIAS ADICIONALES Lea estas instrucciones. Conserve estas instrucciones. Las El aparato no debe exponerse a goteos, instrucciones también están disponibles para salpicaduras u objetos llenos de agua. su descarga en www.majority.co.uk. Preste atención a todas las advertencias. El enchufe principal sirve para desconectar el Siga todas las instrucciones.
EU RP: AR Experts, P.O. Box 5047, 3620 AA Breukelen, The Netherlands US: iZilla Ltd, C/O A.N. Deringer, Inc., 19520 Wilmington Ave, Rancho Dominguez, CA, 90220 Oakcastle is owned and operated by iZilla Ltd. Registered in England with Company No: 08520738...
