Weightworld CIRCULATOR - Foot Massager Manual

Overview

Overview

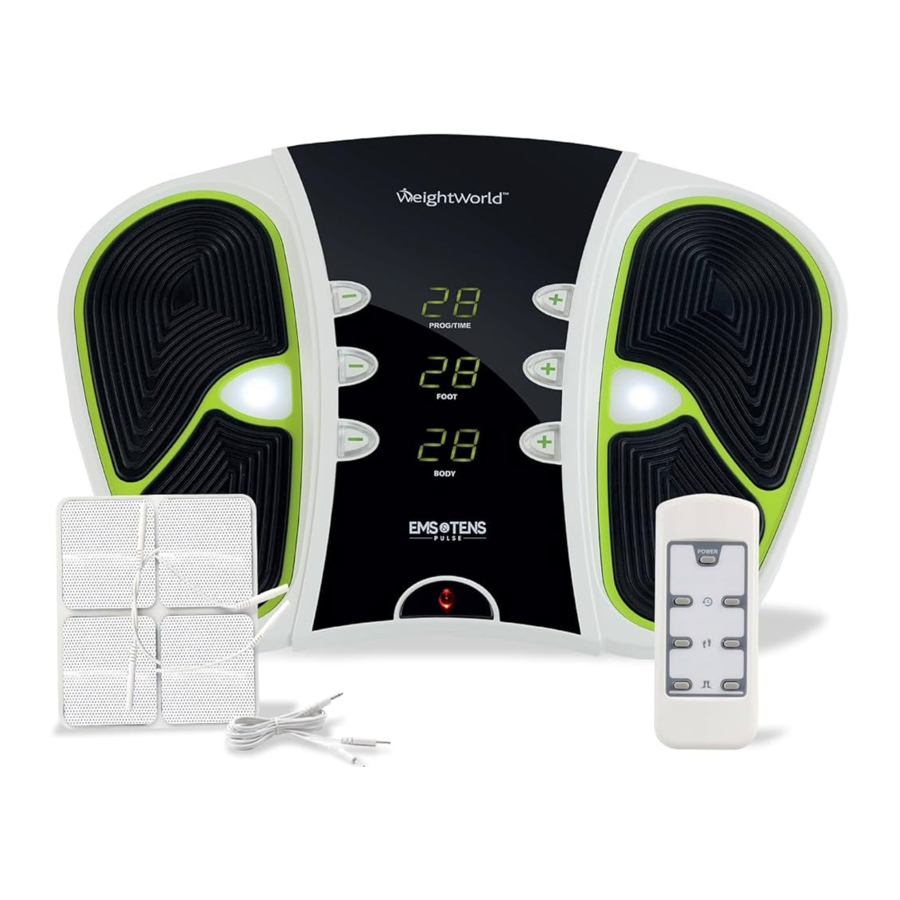

  1. Foot Pads
  2. Prog/Time Button Default time - 30 minutes Program- P1 (EMS) and P2 (TENS)
  3. Foot Intensity Level Button -/+ 1-99 (Foot Pads)
  4. Body Intensity Level Button -/+ 1-99 (Electrode Patches)
  5. Power Button Press to turn device on/off
  6. Power & Battery Sockets
  7. DC USB Cable
  8. Electrode Patches
  9. Remote Controller

Introduction

Intended User

Device can be used by persons aged 15 and above. Maximum Foot Size: UK-12 or EU-47.

Known Characteristics of Repeat Application of the device

The device can be used not more than 30 minutes, twice daily. The foot pads come in direct contact with the skin.

The electrode patches also come in direct contact with the skin and the patches can be used up to 30 applications.

Principle of Operation

The Circulator works on the two principles i.e. TENS (Transcutaneous Electrical Nerve Stimulation) and EMS (Electrical Muscle Stimulation).

  • Denotation: P1

    EMS is a protocol that elicits a muscle contraction using electrical impulses that directly stimulate motor neurons. This stimulation creates muscle contractions that can be quick and frequent, fast with long pauses, or contractions that are held for several (uncomfortable) seconds or minutes at a time. Normally, it is your body that fires your muscles by sending electrical impulses from brain through central nervous system (CNS). But an EMS device allows to engage in deep, intense, and complete muscular contractions without actually activating (or stressing) CNS.
  • Denotation: P2

    TENS is a method of electrical stimulation which primarily aims to provide relief by exciting sensory nerves and thereby stimulating either it's gate mechanism and/or the opioid system. The type of stimulation delivered by the TENS unit aims to excite (stimulate) the sensory nerves, and by doing so, activate specific natural relief mechanisms. The unit sends light electrical pulses into the body through the skin via footpads and electrode patches which are placed over peripheral nerves. This device is designed with specific pulse frequency and pulse length that are suitable for its intended use.

Remote Control

Remote Control

Contraindications

Circulator should not be used by following person:

Pregnant ladies.

Person with pacemaker, implanted defibrillator or other implanted electronic devices as this may cause electric shock, electric interference, burns or death.

Person with Deep Vein Thrombosis.

Person with cardiac condition.

Person with epileptic condition.

Adverse Reactions

Do not use the product if you experience skin irritation or burns on the skin surface, if you have experienced any adverse reactions, immediately contact your doctor.

Precautions


Consult with your physician before using Circulator in case of following:

  • If you are in care of physician.
  • If you have any medical or physical treatment ongoing.
  • Do not apply stimulation over the chest because introduction of electrical current to chest may cause disturbance to heart which could be lethal.
  • Do not apply stimulation over neck, there is a chance that using the electrode patches on neck may cause the closure of airway difficulty in breathing Stimulation over the neck could adversely impact hearing or blood pressure.
  • Do not apply stimulation or place the electrode patches around or on head. The effect of stimulation of the brain are unknown.
  • Use the electrode patches only on normal, dry, healthy and clean skin. Do not apply foot Electrode patches or electrode patches directly.
  • On open wounds or rashes, swollen, red, infected, or inflamed areas or skin eruptions (such as phlebitis, thrombophlebitis and varicose veins).
  • On or close to, cancerous lesions/tumours.
  • On areas treated with radiotherapy (within the past 6 months).
  • On reproductive organs.
  • On bones and joint (knee, elbow and shoulder joint).
  • The electrode patches are for single person use only. Do not share electrode patches with others.
  • Do not use while sleeping, or in or close to water (eg. bath, shower) or in environment of elevated humidity (eg. Sauna, hydrotherapy etc.).
  • You must use the device as indicated in this manual.
  • Avoid placing the Electrode patches over metal implants.
  • Do not use the device in oxygen rich environment.
  • Avoid areas of injury or restricted movement (eg. Fracture or sprains).
  • Do not make any kind of unauthorized modification in the Circulator Device as by doing so, risks like breakdown of the device/improper performance of the device might occur.
  • This Device is considered to be the home health care unit. So while doing any surgery or treatment please do not use this product.
  • Indicates a potential hazard situation or unsafe practice that, if not avoided, could result in serious personal injury.


Use caution when/ if:

  • After recent surgical procedures as stimulation may impede healing process. There is a tendency to hemorrhage following acute trauma or fracture.
  • After a long period of immobility or inactivity — use a low intensity and shorter time to avoid over-stimulation or muscle fatigue.
  • Circulator is not intended to be used by person with reduced physical, sensory or mental capabilities.

warning Precautions

  • Use the device when sitting down. Do not stand on the device.
  • Do not expose device to extreme heat (Extreme Heat - ≥ 65˚C).
  • Keep this device out of the reach of children.
  • Check Electrode Foot Pads, electrode patches, electrode patches cables periodically damage.
  • Do not spill liquid or water on the device.
  • Do not use this device with Electrode Patches Cable / Electrode Patches other than those provided by Comfort Click Ltd. The performance of the device has not been evaluated and may be compromised.
  • In the unlikely event your Circulator malfunctions, disconnect it from the power source and contact distributor.
  • Avoid opening the device or repairing it yourself. Doing so will void the warranty.
  • Contact the distributor if the device does not function properly.
  • After use, unplug the device from the socket.
  • Do not immerse the device in water or clean it with chemicals.
  • Clean the foot pads with a wet cloth and dry cleaning brush.
  • Place the electrode patches on the protective membrane after use.
  • Acoustic energies like infrasound and ultrasound do not affect the performance of the device.
  • There is no DC component preset. Because of we are using an H bridge and both will have the same DC value so differential voltage will be zero.

Package Content

The device packaging consists of the following inclusive content:

  • Circulator Device.
  • Electrode Patches.
  • Electrode Patches Cable.
  • DC USB Cable.
  • User Manual.
  • Circulator Bag.
  • Remote Control

Charging the Circulator

  • Place charger output pin in Circulator charging slot.
  • Plug the charger into any working 110V 50/60Hz or 220/240v 50/60Hz mains electrical outlet.
  • Blinking red light indicates that the charging is on, while green light remains static.
  • When the device is fully charged, it indicates the 'Solid Green' light.
  • Your device will be fully charged in couple of hours.
  • When the battery is low, it is indicated by short beep sound and when the battery is completely discharged it is indicated by a long beep sound.
  • Charging with any other types of DC USB Cable may damage the device.
  • Usage of any other attachment that is not with your charger may result in electric shock or injury to people.
  • Shortening the terminal of the charging socket or plug may cause permanent damage to the device.

Technical Specification

Name of product Circulator
Model Circulator
Dimensions 458 mm x 343 mm x 72 mm
Weight 2 kg
No. of Programs 2 (PI-EMS, P2-TENS)
Input Voltage 5VDC
Input Power 10 Watt
Chargeable Yes
Working Time 30 min
Mode of Machine 1
Operational Frequency 0-99Hz
Delay Frequency 300ms
Batteries Lithium ion batteries
Accessories Electrode Patches Cable, DC USB Cable and Electrode Patches
Operating conditions 41°F - 104°F (5°C - 40°C), 30% — 75% RH, 700 hPa - 1060 hPa atmospheric pressure
Transportation and storage environment 14°F - 122°F (-10°C - 50°C), 10% - 90% RH, 700 hPa - 1060 hPa atmospheric pressure
Fuse Resettable Poly Fuse (on board SMD 1812L150 LF150 Fuse)

Care Cleaning and Maintenance

Electrode patches

  • The electrode patches supplied with Circulator are self-adhesive and can be used to 30 times, when not in use the electrode patches should be concealed in a bag to keep them replaced once they lose its adhesiveness. Poor connection can harm and cause irritation and discomfort. Storage life of an unopen pack of electrode is 2 years.
  • Store these electrode patches in cool areas with temperature under 30°C in a dry and ventilated place. Avoid exposure to sunlight.
  • If these electrode patches get dry and lose their stickiness, then put a few drops of water on them and rub them evenly and gently to rehydrate them.
  • The electrode patches are latex free.

Circulator Device

  • Clean the foot pads with a wet clothe and dry cleaning brush. The foot pads are latex free.

warning Do not clean the device while charging.

Purchasing Consumables

  • Electrode Patches, electrode patches cable and USB cable can be purchased by calling Customer care on +447411139760.

Expected Service Life

  • The machine will often last for more than 5 years, but is warranted for 1 year.
  • Damage to the batteries is not covered by the warranty.
  • Lead life depends greatly on use. Always handle the lead with care.
  • Electrode patches should last 30 applications depending on skin condition and humidity.
  • Fully charged battery should last about 4 hours continuous use.

Troubleshooting

Problem Possible Cause Solution
Leg pain after use of device You may have set the intensity too high. Adjust and set the intensity at a lower level (where you can feel the mild electrical stimulation & it is comfortable).
You are using this device too frequently. Keep sufficient gap between two consecutive treatments to allow the muscles to recover. Reduce the duration until your muscles have acclimatized to the stimulation.
The device turns on, but does not generate electric impulse
The device is not being used correctly. Check whether your hands can feel the stimulation. To test this, place both your bare hands on both the footpads and increase the intensity. If you feel the stimulation then the device is working fine but if you do not feel it even at the highest intensity then please contact your authorised dealer.
Not placing both bare feet on the foot pads at the same time. Ensure that both your feet are bare and they are placed properly and simultaneously on the foot pads. Then increase the intensity until you feel the stimulation.
The intensity level may be too low. Keep increasing the intensity and take it to the maximum level until you feel the stimulation. Do not compare yourself with other people who feel the stimulation at lower level of intensity because everyone is different.
Electrodes patches cable broken. Replace the cable.
Electrodes patches cable not connected properly. Connect the cable properly.
The device turns on, but does not generate electric impulse Your feet may be dry. Moisturize the soles of your feet to improve conductivity and stimulation and try the procedure again. You may also have to increase the intensity level.
You may be dehydrated. Drink plenty of water before and after using the device. The device uses your body to create the electrical circuit. Water is an excellent conductor of electricity and if your body is less hydrated (below 60%) then the stimulation may be less, therefore it is important to always remain well hydrated.
The device does not turn on/ No indication of light Batteries not recharged. Recharge the batteries.
The device does not vibrate The device is not designed to vibrate.
The device turns on and then goes off again Batteries not recharged. Recharge the batteries.
The device does not turn on even after new batteries have been inserted contact the authorized dealer.
Blinking red light when trying to turn on the device. Low batteries. Recharge battery.
Remote control is not working Low battery life. Replace the batteries in your remote control with new ones.
Incorrect battery position Check that the + and - on your batteries correspond to the + and - in the battery slots in the remote.
The device does not produce heat The device is not designed to generate heat
The electrode patches do not stick properly to the skin. The electrode patches will undergo wear and tear with regular use. To improve their longevity, please ensure that the skin on which they are applied is dry, clean and free of lotions.
Put a few drops of water on the sticky side of the pad and rub it on the surface. This should improve its stickiness.
Also ensure that the electrode patches are stuck on the protective plastic after use.
If the electrode patches still do not stick then contact the authorized dealer to get them replaced.
Weak sensation, even on high setting. Electrode patches have been over-used, or are dry. Replace electrode patches.
Sensation is too strong Setting is too high. Press the button to decrease the setting.
Sensation is too weak Sensation is too low. Press the button to increase the setting.
No sensation Incorrect connection.
  1. Make sure that wires are connected and are not damaged.
  2. Verify that the device is turned on.
  3. Make sure both electrode patches are attached to the body.

EMC and Electrical Standard Requirement

  • Precautions with respect to electromagnetic compatibility are taken.
  • The Circulator must be installed and prepared to use as described in this manual.
  • Do not use accessories other than specified or sold by the manufacturer. Use of replacement parts may lead to increased emission or decrease the immunity of the unit.

Applicable Symbol

Symbol Description
Refer to instruction manual
The product is latex free
Direct Current
I P X X Ingress Protection The IP code (International Protection code) indicates the degree of protection provided by an enclosure.
  • IPX0: Protection against ingress of solid foreign objects is not specified, and no protection against ingress of water with harmful effects
  • IPX8: Protection against continuous immersion in water up to 1 meter or as specified by user
"ON" (power)
caution General Warning Sign
Country of manufacture (To identify the country of manufacture of products)
Do not use if packing is found damaged or opened
Follow Operating Instructions
Unique Device Identifier
General Prohibition Sign
Keep away from direct sunlight
Keep away from moisture
warning Caution, consult accompanying documents.
BF Type applied Part.
Non-sterile Product
The product is recyclable
Class II Equipment
The system cannot be disposed of as unsorted municipal waste.
Please contact your local distributor for unit disposal. Dispose of product at the end of its useful life according to local regulations.

Batteries

Battery Handling and Usage to prevent the risk of overheating, fire or explosion:

  • Do not puncture, crush, disassemble or modify the device.
  • Do not throw the device into fire.
  • Do not recharge, use, or leave the device in any high temperature environment such as in a location near a fire or in direct sunlight. The device contains a built-in rechargeable Lithium-Ion battery which must be disposed of properly. Dispose of the device according to applicable local government regulations. Do not disassemble the device by yourself.
  • The device contains a built-in rechargeable Lithium-Ion battery which must be disposed of properly. Dispose of the device according to applicable local government regulations. Do not disassemble the device by yourself.

Spillage of Liquid

The equipment is not protected against liquid ingress. Spillage of liquids which may bring live parts of the equipment into contact with conductive enclosures or direct contact with operator, other personnel or the patient, must be prevented. It's recommended to not use the device around any kind of water of particulate matter. Same information is also provided in the caution section. IP rating of the Circulator device is IP20.

Guide to Use Circulator for Feet

Although it is not mandatory, we recommend you to apply balm on your feet to improve its conductivity.

  • Please note that the optimal intensity level varies from person to person.
  • For optimum result, please do not lift your feet while the device is on.
  • The device should not be on the charging mode while in use.
  • Please fully charge the device before first use. It will take 6 hours to get fully charged.
  • Do not peel the electrode patches while the device is on.


Selected program will be displayed every 5 mins for 10 seconds during the therapy in the PROG/-TIME display segment. It makes a beep sound on pressing every key.

Step 1

Sit comfortably on a chair or sofa. Place your bare feet on the foot pad of the device.

Step 2

Switch ON by pressing the power button on remote or device.

Step 3

Select the program by pressing +/- Prog/Time button on remote or device.
Prog: Indicates the Selected Program.
P1 – EMS
P2 – TENS

Time: Indicates Timer.

Step 4

Adjust the intensity through +/- Foot button on remote or device.
Intensity Levels: 1 - 99.
+: Increases the Intensity.
-: Decreases the Intensity.

Step 5

Device is set on Auto Timer Moder For 30 Minutes. After 30 minutes, device will automatically switch off.

Guide to Use Electrode Patches

Step 1

Thoroughly clean the intended area and dry it with a towel.

Step 2

Connect the electrode patches with the electrode patches cable.

Step 3

Plug in the electrode patches cable into the accessories socket.

Step 4

Peel off the protective membrane from the electrode patches.

Step 5

Effectively place the electrode pads onto your skin.

Step 6

Adjust the Intensity through +/- Body button on remote or device.
Intensity Levels: 1 - 99.
+: Increases the Intensity.
-: Decreases the Intensity.

Step 7

Device is set on Auto Timer Moder For 30 Minutes. After 30 minutes, device will automatically switch off.

Step 8

Carefully peel the electrode patches and place it back on the protective membrane.

Step 9

Unplug the connecting wire and restore the accessories.

information Note
Circulator is designed to be used simultaneously on feet and other body parts.

Electrode Patch Placement

Firmly place the electrode patches onto your skin as shown below

Electrode Patch Placement

FAQs

Q. How long should I use it?
A. It is recommended that you use it for 30 minutes to begin with. You may then increase the duration and frequency depending on your comfort level.

Q. At what intensity level should I use it?
A. It is advisable to start with low intensity and increase it gradually depending on your comfort level or until you see or feel mild tingling sensation in your feet.

Q. Are there any side effects of using this product?
A. The mild current penetrates the body through the skin only to a depth of 1-2 inches. Such a small electrical impulse does not pose any danger nor does it cause any side effects.

Q. Can it cause skin irritation?
A. It is unlikely, but possible in case of certain sensitive skin types. If that happens, it is advisable to use it for a lesser duration and / or reduce the intensity. If the problem persists, please consult with your doctor.

Q. Are there any areas where I should not use the patches?
A. The patches should not be attached to the head, chest, throat, neck and face as it is unsafe.
Also, do not use them on open wounds, broken or bleeding skin and directly on the bones.

Q. Is there something wrong with me or the device if one foot feels a stronger stimulation than the other?
A. The impulses sent to both the feet are always of the same intensity. However, sensitivity of both the feet is never exactly the same. When one foot is discernibly more sensitive than the other, the user experiences a disparity in sensation. In such cases, the intensity should be kept at a level that makes the more sensitive foot comfortable. The other foot will be receiving the impulses irrespective of your feeling it.

Q. Earlier I could feel the stimulation at much lower intensity but now I have to increase the intensity a lot more. Is something wrong?
A. No, nothing is wrong. It is expected that with regular use as your feet condition improves, you will need slightly higher intensity of stimulation. However, you need to ensure that you are properly hydrated and your sole is not dry. So do not forget to apply the heel balm before using the device.

Q. Can I use foot pads and electrode pads at the same time?
A. Yes, you can use them simultaneously or independently. Follow the steps for using the foot pads and then follow the steps for using the electrode patches.

Comfort Click Limited
106, Lower Addiscombe Road, Croydon, CR0 6AD, UK.

No 7 Dr Croke Place
Clonmel, Co. Tipperary, Ireland

For Technical Support
Contact No.: + 44 203 322 7970
Email ID: info@weightworld.uk
Website: www.weightworld.uk

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Weightworld CIRCULATOR - Foot Massager Manual

Advertisement

Need help?

Need help?

Do you have a question about the CIRCULATOR and is the answer not in the manual?

Questions and answers

Related Manuals for Weightworld CIRCULATOR

Save Article as PDF

Table of Contents
