Summary of Contents for VES ecovent mini EVFC
-
Page 1: Contents

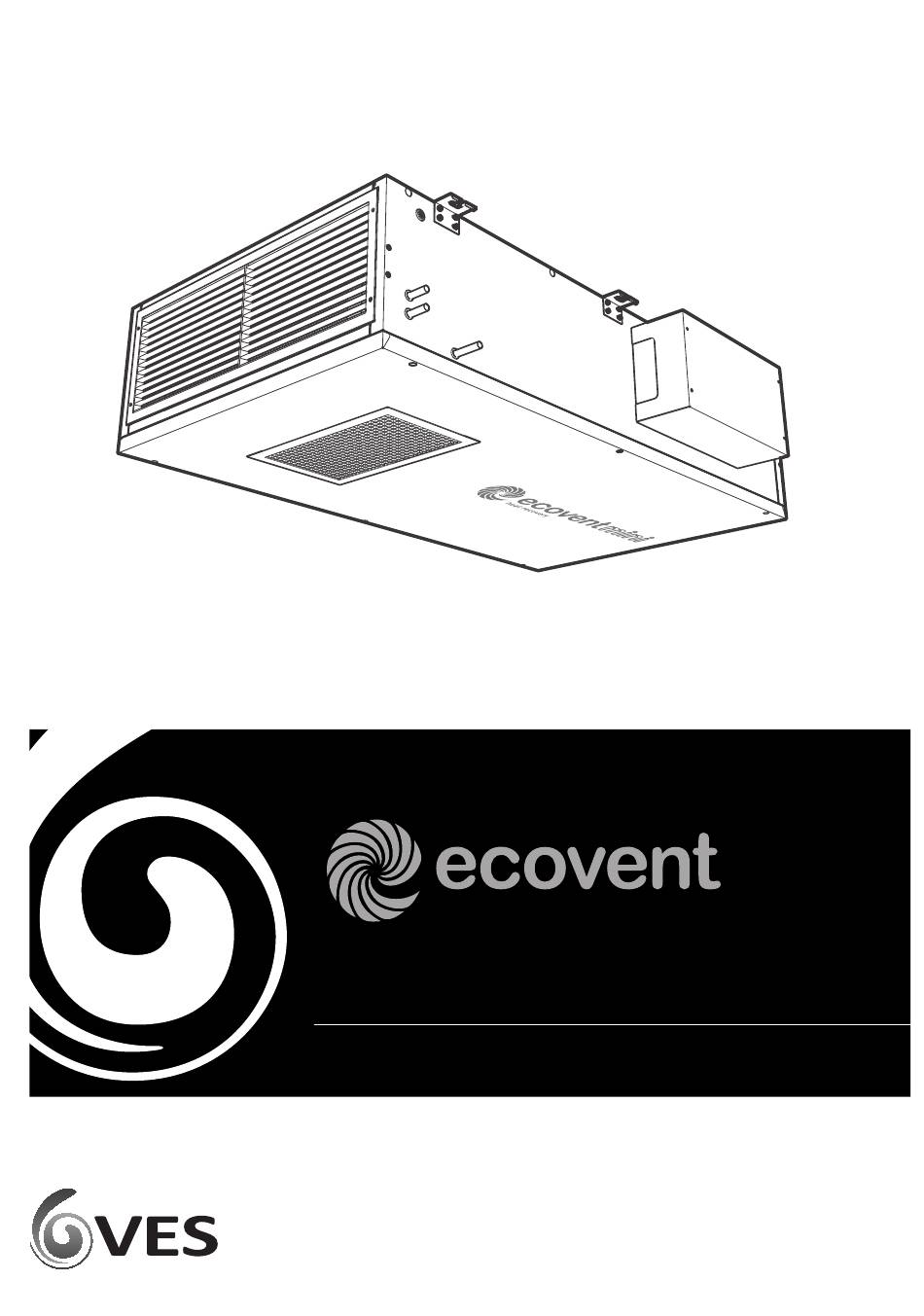

EVFC Fan Coil Units Operation & Maintenance Manual Eagle Close, Chandlers Ford Industrial Estate, Chandlers Ford, Eastleigh, Hampshire, SO53 4NF Tel: +44 (0) 2380 46 11 50 email: info@ves.co.uk web: www.ves.co.uk VES Ref. ID. VES-DSG-0028 Issue 01 April 2024 Original Instructions... -
Page 2: Table Of Contents
Please ensure that this document is passed to the end user. This manual forms an integral part of the product and should be kept for the working life of the product. Additional copies of this and supporting documents are available by contacting VES or by visiting www.ves.co.uk and following the 'Download O & M's' link. -
Page 3: Nomenclature
ecovent evfc Fan Coil Units Nomenclature Point Description Point Variants Details (as appropriate) Part Number Coding 1 Product Ecovent® Units 2 Heat Recovery type mini Series (Fan Coil Units) 3 Unit Size 0...3 Sequential see unit outline for details 4 Fan Type 3...5 Centrifugal EC fan 5 Fan Size... -
Page 4: Receipt Of Goods & Handling
In the event of any damage having occurred or if any item is found to be missing, it is essential to inform VES Andover Ltd. within 7 days of delivery quoting sales order number and the unit type, as found on the unit nameplate. After this period, VES would be unable to accept any claim for damaged or missing goods. - Page 5 EVFC units are supplied with feet suitable for ceiling-void mounting, by use of drop- rod mounting, in bottom access orientation, with airflow in the horizontal plane. For alternative mounting please consult your specific unit outline drawing as supplied or refer to VES customer Services for further information.
- Page 6 ecovent evfc Fan Coil Units Installation Continued Access When accessing the unit ensure the access panels are handled/opened in a controlled manner so as to avoid damage to the unit or injury to personnel. This is particularly important with Caution bottom access units.
- Page 7 The unit will have been supplied with connec ons either le or right-hand side looking in direc on of airflow. Please see order acknowledgement for confirma on of this handing. Should you need to alter this please consult VES as unit adjustment may invalidate your warranty.
- Page 8 ecovent evfc Fan Coil Units Installation Continued Condensation When the unit is used in conjunction with a chilled water system, comfort cooling is possible. In certain conditions this operation may produce condensate. To help deal with this the unit is fitted with a drain pan terminated to a Ø15mm internal drain spigot and a push fit elbow connector.
-
Page 9: Standard Wiring & Fan Installation
Fig. For all units with fitted controls and for ancillary items, please see the accompanying wiring diagram and accompanying O&M for full details or contact VES Customer Services Department on Important 02380 461150 , quoting the sales order (SO) number and , quoting the sales order (SO) number and unit type as found on the unit name plate. -
Page 10: Controls Setup
ecovent evfc Fan Coil Units Standard Wiring Continued & Fan Installation ecovent® EVFC outlet plenums including filters include an airflow pressure switch as standard terminated to a flying lead and molex plug (see fig. ). The EVFC unit is configured as standard to Key Components accept the pressure switch connection and a molex plug and socket is provided to suit. - Page 11 In general, this series of units require little maintenance. In the unlikely event of component failure, spares are available from stock at VES Andover Ltd. See Fig. When accessing the unit ensure the access panels are handled/opened in a controlled manner so as to avoid damage to the unit or injury to personnel.
- Page 12 ecovent evfc Fan Coil Units Maintainance Maintainance Continued Continued Key Components Cable Entry Point EVFC3 Controls Access Cover Fig. Inlet Mounting Foot Coil Connections Main Access Panel Optional Condensate Out Outlet Return Air Grille Control Section Supply Fans Shut-off Damper Damper Actuator Note: Unit shown LHS Bottom Access Condensate drain...
- Page 13 ecovent evfc Fan Coil Units Maintainance Maintainance Maintainance Continued Continued ecovent®EVFC units feature a bulkhead-mounted fan plate assembly. Ensure that special care is taken when removing/replacing components/assemblies from Important bottom-access units. For larger components this may require the use of two or more persons. It is important to keep the fan assembly supported at all times;...
- Page 14 Spare filters can be ordered from VES Spares Department. The filters may be accessed via dedicated access doors on the bottom of the unit. Tools should not be required for filter removal.
- Page 15 Spare replacement pipes can be obtained from VES. If a comprehensive service is needed, it may be necessary to dismantle the unit's casework to access certain components. If it is necessary to remove the damper, follow these steps: unscrew the spindle that holds it in place on the blade, slide the spindle/actuator out from the damper, and then remove the damper side fixings.
-
Page 16: Maintenance
EVFC Fan Coil Units Operation & Maintenance Manual ©VES Andover Ltd. 2024 VES is a trading name of VES Andover Ltd. Registered in England No. 02303719. Registered Office as above. Eagle Close, Chandlers Ford Industrial Estate, Chandlers Ford, Eastleigh, Hampshire, SO53 4NF Tel: +44 (0) 2380 46 11 50 email: info@ves.co.uk...
