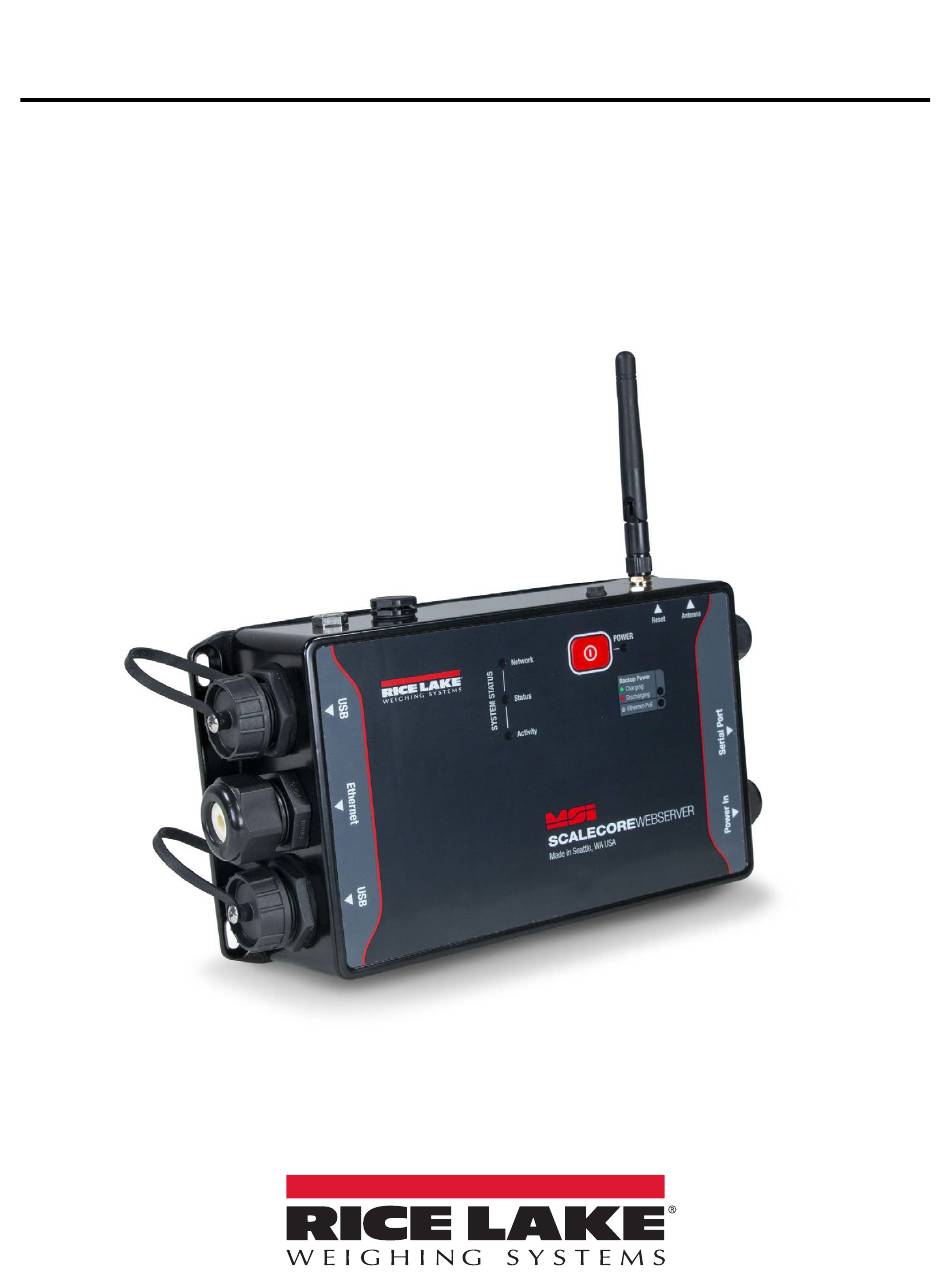

- Page 1 ScaleCore Webserver Compatible with all ScaleCore-based MSI Products Technical Manual December 13, 2024 PN 208738 Rev D...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Revision History
• Battery Removal Information • Troubleshooting Section Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. -
Page 4: Table Of Contents
ScaleCore Webserver with Wi-Fi Network ........ - Page 5 ScaleCore Webserver Mechanical Maintenance ........
- Page 6 ScaleCore Webserver Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars www.RiceLake.com Visit our website...
-
Page 7: Introduction
Introduction Introduction This manual is for configuration and service of the ScaleCore Webserver. The ScaleCore Webserver can be used to monitor and configure all MSI ScaleCore-based products. The ScaleCore Webserver provides a complete solution for ScaleCore family product networking and control. This manual supports all 3 available power supply options: •... -
Page 8: Fcc Compliance
ScaleCore Webserver FCC Compliance United States This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 9: Product Dimensions
Introduction Product Dimensions Figure 1-1. Product Diagram " " " " " " " " 8.540 8.091 4.700 3.967 3.474 0.167 0.246 2.30 Table 1-1. Product Dimensions © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 10: Overlay Layout
ScaleCore Webserver Overlay Layout Figure 1-2. ScaleCore Webserver Overlay Item No. Description – Ethernet RJ-45 (hardwire to TCP/IP connection) – System Status indicate system status with network, status and activity annunciators Power – Power button and Annunciator – Reset Reset button –... -
Page 11: Setup
ScaleCore Webserver supports interfacing from an HTML browser on any network enabled device to MSI ScaleCore products. The ScaleCore Webserver is capable of functioning an with an existing Wi-Fi network or as its own Wi-Fi router. The graphics below illustrate examples of the two setup options. Up to 7 devices can be connected directly to the ScaleCore Webserver in (Section 2.1.1), including any devices accessing the webserver through a web browser. -
Page 12: Quick Start
NOTE: Recommended browsers are Microsoft Edge, Google Chrome and Safari. Outdated Browsers may cause issues. 6. Enter the programmed IP address followed by a colon and port 8080 (for example: http://10.171.1.72:8080/scserver). NOTE: When PC, tablet, or smart phone is connected directly to the ScaleCore webserver wifi as in Figure 2-1 on page the default ip address is 192.168.1.1... - Page 13 Setup 7. The following prompt displays when the device is connected to the ScaleCore Webserver: Figure 2-4. ScaleCore Webserver Login 8. Enter User Name and Password. • Default User Name is admin • Default Password is admin0199 NOTE: Change Admin password during first log in to limit access to admin functions.
-
Page 14: Manual Network Scan
If the ScaleCore board is replaced or ScaleCore connected device has been serviced or the firmware is updated, radio settings of the updated device must be updated to be compatible with the ScaleCore Webserver. Contact Rice Lake Weighing Systems for ScaleCore assistance. -
Page 15: Configuration
Configuration Configuration This section provides an overview of ScaleCore Webserver software configuration. This section is a guide for setting up the product being read by the ScaleCore Webserver. ScaleCore Webserver Interface Each page of the ScaleCore Webserver has the same navigation. -
Page 16: Connected Devices
ScaleCore Webserver Monitors Menu The Monitors menu displays the three weight display options. Select Monitors in the ScaleCore Webserver menu. This section describes the Monitors menu and the three monitor options available. NOTE: Remote Displays are not supported as indicators and will not display weight in the monitor menu. -
Page 17: Single Indicator
Displays full indicator status of the selected indicator with a summary status of each of the connected indicators. The active scale is marked by a red triangle pointer. Click on a scale to change the active scale. Figure 3-5. Multi Indicator Scale Display © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: User Sum
ScaleCore Webserver 3.3.3 User Sum User Sum displays all available load cells. The following variations are available: • Sum Mode ― Displays Sum of all load cells toggled in the summed column • Single Mode ― Displays load of an selected single load cell... -
Page 19: Configuration Menu
Configuration Configuration Menu The Configuration menu displays the titles of the configurable options. Select Configuration in the ScaleCore Webserver menu. This section describes the Configuration menu and all configurable options of a selected scale. Selected scale/device is displayed in the top right corner of the screen. -
Page 20: Product Info
ScaleCore Webserver 3.4.1 Product Info Displays product information. IMPORTANT: Do not change these settings without consulting Rice Lake Weighing Systems or a local dealer. 1. Select to expand the configuration menu Figure 3-7 on page Configuration 2. Select Product Info. -
Page 21: Dac Configuration
Configuration 3.4.2 DAC Configuration ScaleCore Webserver provides controls for DAC (Digital to Analog) output functions in ScaleCore products. Controls include calibration and manual control. DAC configuration can only be used with products that have an analog output option installed Selected Scale Figure 3-9. - Page 22 ScaleCore Webserver 1. Select to expand the configuration menu Figure 3-7 on page Configuration 2. Select 3. Confirm device from drop down menu in upper hand corner of screen. 4. Make any necessary changes in the following parameters: Parameter Description...
-
Page 23: Rf Configuration
Only set Always On to Enabled when using Rugged Remote. Having this parameter set to Enabled will drain the battery even when the scale if off. Disconnect the battery when not in use. 5. Press to save. Power cycle the product to apply changes. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 24: Meter Features
ScaleCore Webserver 3.4.4 Meter Features Meter Features are only available for remote display devices. 1. Select to expand the configuration menu Figure 3-7 on page Configuration 2. Select Meter Features 3. Confirm device from drop down menu in upper hand corner of screen. -
Page 25: Scan Lists
Select a scan list number Remote Device ID Select a remote device ID number Source Sensor ID Select a source sensor ID number Table 3-8. Sensor Scan List Settings Parameters 5. Press to save. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 26: Load Cell Menu
ScaleCore Webserver Load Cell Menu Allows load cells parameters to be set for each load cell connected to any connected device. Figure 3-13. Load Cell Menu Option Description General General individual load cell configuration settings Section 3.5.1 on page 27... -
Page 27: General
Do not enable additional load cells for crane scales or dynanometers. IMPORTANT: All changes to Load Cell parameters affect scale operation. Load Cell parameters must only be changed by qualified personnel. 5. Press to save. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 28: Total
ScaleCore Webserver 3.5.2 Total 1. Select to expand the Load Cell menu Section 3.5 on page Load Cells 2. Select Total 3. Confirm device from drop down menu in upper hand corner of screen. Selected Scale Figure 3-15. Load Cell Total Configuration 4. -
Page 29: Math
4. Make any necessary changes in the following parameters: Parameter Description Enabled Select Enabled or Disabled Math Expression Enter math expression Table 3-12. Math Channel Settings Parameters 5. Press to save. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 30: Select Maintenance
ScaleCore Webserver 3.5.4 Maintenance IMPORTANT: Do not change these settings without consulting Rice Lake Weighing Systems or a local dealer. 1. Select to expand the Load Cell menu Section 3.5 on page Load Cells 2. Select Maintenance 3. Confirm device from drop down menu in upper hand corner of screen. -
Page 31: Inputs / Outputs
Setpoints Provides trip points for load values Section 3.6.1 on page 32 Total Provides output settings for streaming and printing Section 3.5.2 on page 28 Table 3-14. Load Cell Menu Options © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 32: Setpoints
WARNING: Safety systems with relay outputs for overload projection should utilize local relay outputs from load cell devices. Remote relays can be used, but will lose functionality in the event that the Scalecore Webserver loses power or communication with remote devices"... -
Page 33: Stream Print String
Configuration 3.6.2 Stream Print String NOTE: Do not change these settings without consulting Rice Lake Weighing Systems or a local dealer. Listeners Listeners feature controls the machine to machine communications interfaces. 1. Select to expand the Input/Output Menu Figure 3-18 on page 31 Inputs Outputs 2. - Page 34 ScaleCore Webserver Print String The edit print string, allows the mode, interval and composite for a listener to be configured. The mode can be configured to print on command, on stable load, continuous, or it can be disabled. Print provides information provided by the configured print formatters in a single print.
- Page 35 8 == Total count Example, T1 means following value field is for NET weight value; NOTE: If data type is not specified, default type is GROSS Table 3-18. Parameter Print Characters © Rice Lake Weighing Systems ● All Rights Reserved...
- Page 36 ScaleCore Webserver Character Definition Explanation Outputs real value Output value is based on leading print string data type T# from sensor ID field S##; Output precision is based on configured count-by d; Outputs integer value Table 3-18 on page 35...
- Page 37 M - Output 5-character data type string r - carriage return n - line feed Standard Rice Lake Serial Scale String: sPR7S0T7Aumtrn Output: 12345 lb GROSS <cr LF> String: S0T0MR7V_Urn Output: GROSS 12345 lb <cr LF> © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 38: Network
Table 3-20. Load Cell Menu Options IMPORTANT: Changing the Network Configuration settings may result in loss of connection to scales and displays.Wi-Fi Network settings for scales, indicators, and displays are not user configurable and may only be reset by Rice Lake Weighing Systems. -
Page 39: Network Setup
Subnet range is 30, the web server will search for devices with IP addresses between 192.168.1.2 and 192.168.1.32. NOTE: The subnet should be limited to cover only the address range being used by the network. A larger number increases Scan Device time both manually and at every power-up. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 40: Previously Paired Devices Setup
Previously Paired Devices Setup The ScaleCore Webserver adds all devices to the Previously Paired Devices Setup list when they are first detected during a scan for devices, either manually or automatically on power up. The Previously Paired Devices list includes all indicators, scales or remote devices. -
Page 41: User Group
Viewing Monitors Indicator Multi Indicator User Sum Configuration Product Info DAC Configuration RF Configuration Meter Features Scan Lists Date Time Load Cells General Total Math Maintenance Table 3-22. ScaleCore Webserver Permissions © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 42: Create User
Previously Paired Device Setup User Group Table 3-22. ScaleCore Webserver Permissions * Scale User can control scale functions, such as zero and tare. **Viewing is read-only and is not able to configure or control the scale. Viewing can be used to set an account that allows for a customer to view live weight without affecting the scale operation. -
Page 43: Edit User
1. Select User Group to display User Accounts. 2. Select Remove to the right of the user to be removed (Figure 3-27 on page 41). Confirmation box displays. Figure 3-30. Remove User Confirmation Box © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 44: Advanced Setup
This is a good spot for troubleshooting info Antenna Options NOTE: To meet FCC licensing rules, use only antennas supplied or recommended by Rice Lake Weighing Systems. Antenna placement is critical to problem-free use of the system. • Ensure a relatively clear transmission path exists between the devices to be connected; Radio signals travel primarily by line of sight (LOS), obstructions between stations may degrade the system performance •... -
Page 45: Server Updates
ScaleCore Webserver Mechanical Maintenance The ScaleCore Webserver does not need to be opened for normal operation and should only be opened to attach a custom power cable to the power terminal block, to replace the battery for the Real Time Clock or to remove the Ethernet cable Opening 4.4.1... -
Page 46: Reseal Enclosure
ScaleCore Webserver 4.4.2 Reseal Enclosure 1. Align enclosure gasket with the open lip of the enclosure. 2. Replace lid of enclosure. 3. Replace enclosure screws (Figure 4-1 on page 45) with a philips head screwdriver. 4. Torque screws to 5 in-lb. -
Page 47: Replace Battery
The ScaleCore Webserver utilizes a CR2016 coin-cell battery to maintain time and date while the ScaleCore Webserver is disconnected from a power supply. If the ScaleCore Webserver no longer updates the time and date while the power is disconnected from a power supply, the battery may need to be replaced. Battery life is approximately 5 years with a fresh battery. -
Page 48: Replacement Parts
ScaleCore Webserver Replacement Parts PART OF PART OF PART OF PART OF DETAIL A Figure 4-4. ScaleCore Webserver Replacement Parts www.RiceLake.com Visit our website... - Page 49 Advanced Setup Replacement parts for the three ScaleCore Webserver options include all common part numbers. Unique parts for each option can be found in Table 4-2, Table 4-3 Table 4-4 on page Item No. Part No. Description 203681 ScaleCore Webserver, Enclosure Machined Unique to each option;...
-
Page 50: Troubleshooting
Label, ScaleCore FCC, 5VDC 211450 ScaleCore Webserver A/C Power Adapter Table 4-4. ScaleCore Webserver, 85-265 VAC w/ Wall Adapter (PN 210817) Unique Replacement Parts Troubleshooting For troubleshooting information related to the scales and weighments, refer directly to the device Technical Manual. -
Page 51: Specifications
IP65, aluminum black powder coated (excludes 85-265 VAC power supply) Power 5-6 VDC 7-14 VDC 85-265 VAC, PoE Warranty One year limited Approvals NTEP CC 21-098 Classes III and IIIL at 10,000d © Rice Lake Weighing Systems ● All Rights Reserved... - Page 52 ScaleCore Webserver www.RiceLake.com Visit our website...
- Page 54 © Rice Lake Weighing Systems Content subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA USA: 800-472-6703 • International: +1-715-234-9171 December 13, 2024 PN 208738 Rev D www.ricelake.com...
