Jasco UltraPro - Outdoor Electrical Outlet Cover Manual

Introduction

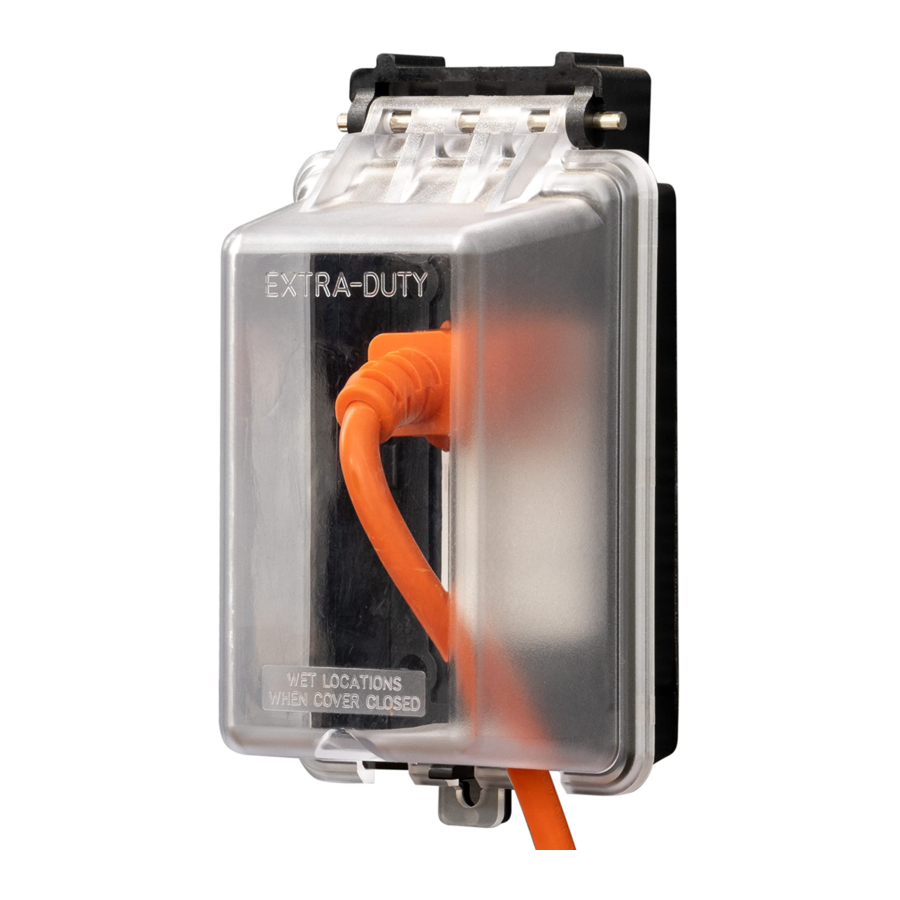

This single-gang, in-use weatherproof enclosure can be used outdoors or in wet locations (protects receptacles while in use for unattended applications). It is UL-listed, NEMA 3R-rated and meets National Electrical Code requirements covered by Section 406.9 (B) (1).

Contents

The following items are included:

• Weatherproof cover and base
• Gasket with slits for mounting screws
• Mounting hardware

Benefits

• Weatherproof while in use
• Installs in seconds
• Impact resistant
• UV stabilized
• UL listed

Installation Instructions

1. DISCONNECT POWER to the receptacle at the circuit breaker panel before installing.
2. If installing on an existing receptacle, remove and discard the existing cover, pole and gasket.
3. Position the gasket as required after removing the appropriate perforated sections. It can be temporarily held onto the back of the base using the mounting hardware provided.
4. Mount the base assembly on the receptacle to the junction box, using two of the long screws provided.
   NOTE: To ensure weatherproof protection, the hinges must be located at the top. If mounting to an outdoor junction box or FS box, use the remaining long screws to further secure the base assembly to the junction box, using the existing holes. For specially designed junction boxes, mounting holes should be drilled to line up with the hole in the box.
5. Be sure all screws are secure but not overly tightened. Install the remaining short screws into the receptacles as required.
6. To open, bend back the plastic latch while lifting the cover. A space is provided for padlocking.

NOTE:
FOR BEST PROTECTION FROM RAIN OR HUMIDITY, BE SURE TO MOUNT WITH KNOCKOUTS FACING DOWN THEN ROUTE THE CORDS THROUGH THE CORD KNOCKOUTS IN THE COVER AND PRESS THE COVER FIRMLY UNTIL IT SNAPS CLOSED OVER THE HASP.
This unit complies with NEC Section 406.9 (B) (1), new CSA C22.2 No.42.1-00

Receptacles in Wet Locations

A receptacle installed in a wet location where the product intended to be plugged into it is not attended while in use shall have an enclosure that is weatherproof (whether or not the attachment plug is inserted into the receptacle) and be marked "Extra Duty" (with the marking being visible after installation).

For Use With:

• Low-Voltage Lighting
• Holiday Lighting
• Portable Pools/Spas
• Sprinkler Controls
• Outdoor Signs
• Bug Zappers
• Vending Machines
