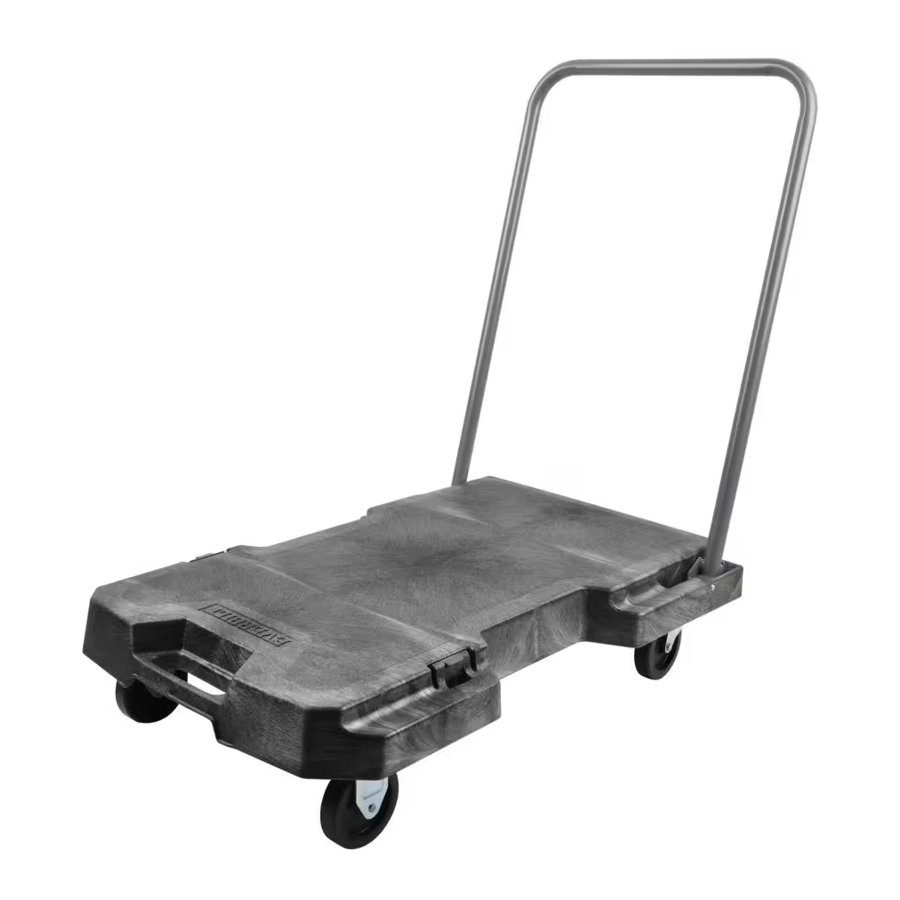

EVERBILT 690102 - Hand Dolly Manual

Package Contents

Hardware Contents

TOOLS REQUIRED

Assembly

Installing the Casters into the Fixed Position

Identify and locate the 2 fixed casters. (C).
Position the base (A) upside down against the ground.
Align the fixed caster (C) to 4 holes in the front part of the base (A). Use hardware (AA) to secure the caster (C) with a PH2 screwdriver.
Duplicate the process with other caster (C).

warning NOTE: Don't over tighten the screws.

Installing the Casters into the Swivel Position

Installing the Casters into the Swivel Position - Step 1

Identify and locate the 2 swivel casters. (B).
Align the swivel caster (B) spindle with the corresponding hole in the base (A). If necessary, tap swivel casters (B) into place using a mallet. The swivel casters (B) should freely rotate 360 degrees.

Do not use excessive force when installing the caster with a mallet. It can lead to damage and malfunction.

Ensure the swivel casters (B) are seated completely. The product may become unstable which may cause personal injury or product damage. (Fig.1)
Installing the Casters into the Swivel Position - Step 2
