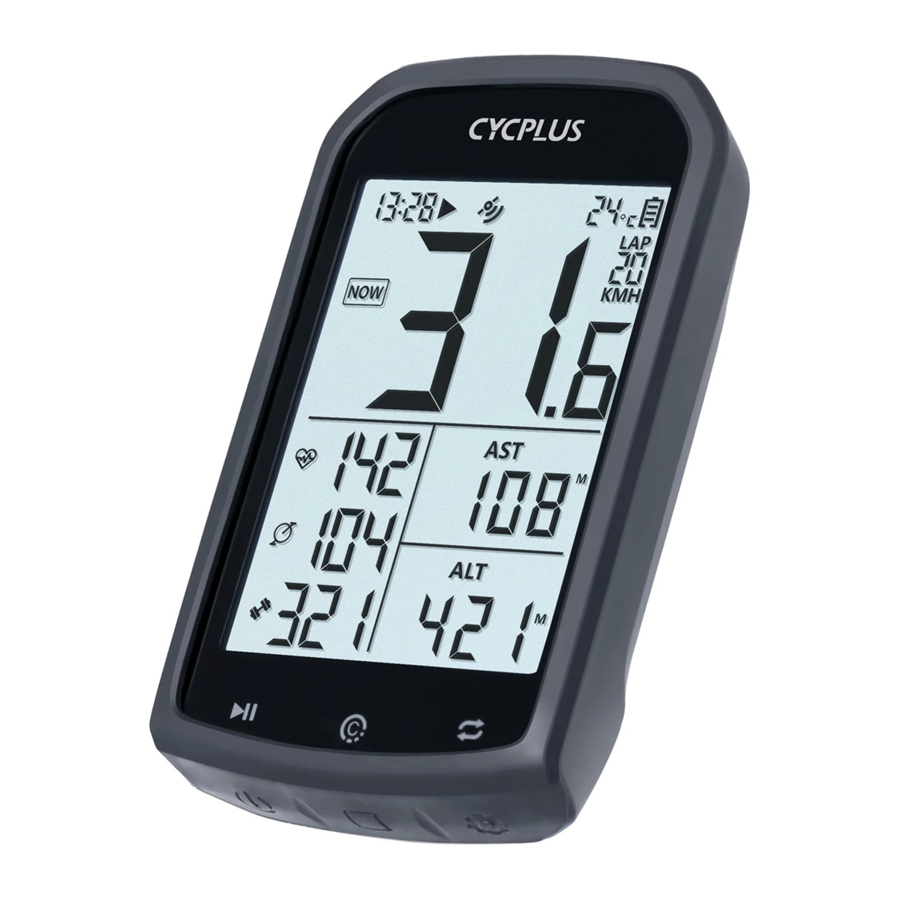

CYCPLUS M1 - GPS Wireless Bike Computer Manual

GPS Location - Quick Start Guide

To receive satellite signals, please remains static and make sure your device is used at open space and barrier-free area.

1. Press [left button ] to turn on.
2. Get GPS signal after start up takes a few minutes.
   appears to indicate the device is ready.
3. Press [left button ] again to start recording.
   appears when recording starts.
4. Long press [mid button ] to save the recording data.
   disappears when the recording data has been saved.
5. Long press [left button ] to turn off.

Introduction

NAME: Smart GPS bike computer
MODEL: M1
SCREEN SIZE: 2.9 inch LCD
PRODUCT SIZE: 90*53*20 mm
PRODUCT WEIGHT: 77.5 g
BATTERY: 1200 mAh 3.7 V
MEMORY CAPACITY: 150 hours
ENDURANCE TIME: 30-35 hours
CHARGING MODE: Type-C
CHARGING TIME: Nearly 3.5 hours
APP CONNECTION: Bluetooth 5.0
PERIPHERAL CONNECTION: ANT+
SUPPORTED PERIPHERALS: Speed sensor, Cadence sensor, Heart rate monitor, Powermeter.
WATERPROOF: IPX6 (Rain-proof, not soakable)

Current Data

Average Data

Max Data

About Settings

Long press [right button ] to enter setting.
Press [right button ] to switch 8 setting pages.

Long press [right button ] to return to home page after finish setting.

Ant+ Sensors Connection

Press left button to start searching the ANT sensor.

It will return to home page after 10 seconds.

Wheel Circumference Setting

Refer to Chart

Time Zone Setting

Press left button to start setting.

Press right button to modify the time zone.

Speed Unit Setting

Press left button to start setting.

Press right button to switch between KMH and MPH.

Temperature Unit Setting

Press left button to start setting.

Press right button to switch between ℃ and ℉.

Factory Reset

Press left button to start setting.

Long press mid button to restore factory settings, and the computer will turn off.

Odograph Setting

XOSS APP Connection

Scan QR code or download the APP from Google play or APP store, register by email. Then open the phone Bluetooth.

Connecting M1 Computer

Open "XOSS", choose CYCPLUS M1. Then click connect, choose the paired computer among the found devices.

Connecting STRAVA/Training Peaks

Find Strava / Training Peaks in your personal files and click connect. Log in Strava / Training Peaks with account and passwords (Google and Facebook account login is not supported).

Updating Data and Checking the Analysis

Click Sync, the record will be synced to APP. If Strava is connected, the data will be automatically synced to Strava. Choose the activity on the exercise page, you will see the cycling data.

Notes

1. Data recording: Long press left button to turn on, press the left button to start recording data. Don't forget long press the middle button to save the record after riding.
2. Memory: After the memory is used up, the computer will overwritethe previous records according to the chronological order.
3. Backlight: After setting the time zone, backlight will be automatically lighted every night from 18:00-9:00. The screen will light on with a press of any buttons, and light off 10s later.

Package List

After-sale E-mail
steven@cycplus.com
