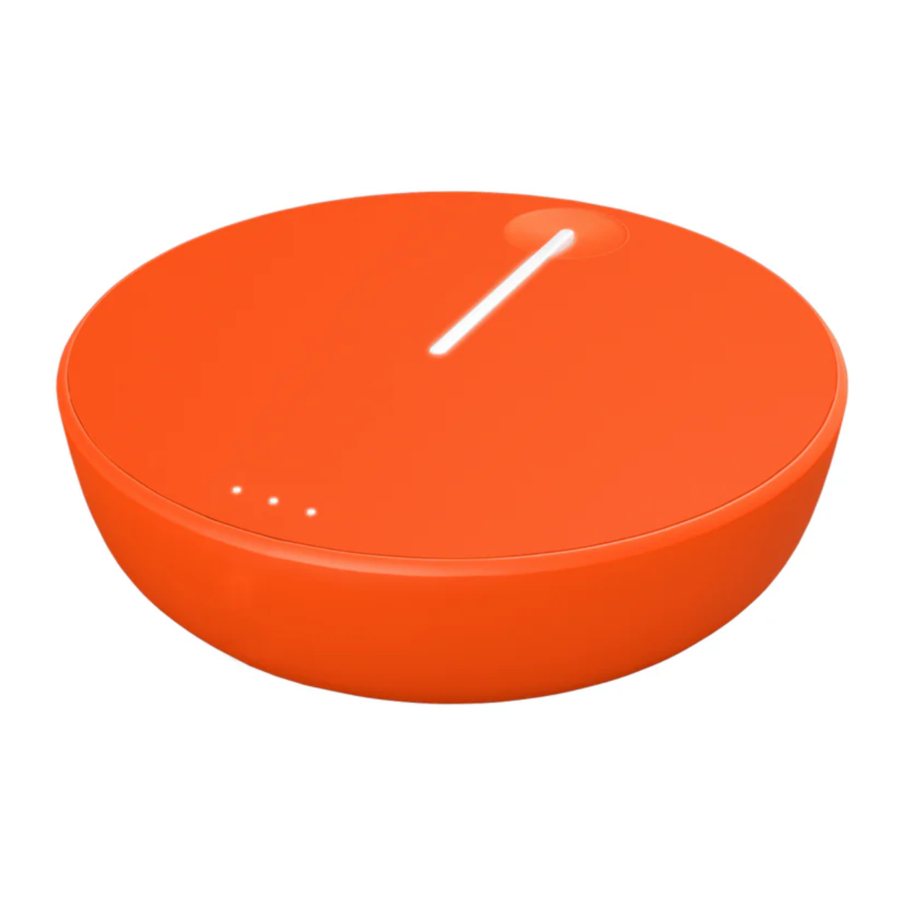

Skyroam SOLIS LITE - Access Point Manual

FEATURES

LIGHT STATUS

Charging in/out	LED bar animates in the direction of charging
Booting up	LED bar animates back and forth until boot up is complete
Ready to use	LED bar and the three indicator lights are white
Daypass waiting to be activated	LED bar flashes consistently until new Daypass is activated
No WiFi plan	LED bar is white with 1 red light at the end of the LED bar
Battery level	Length of LED bar represents the battery level
Firmware Update	The three indicator lights flash red consistently until update is completed
Failed to connect to cellular tower	Signal light is red solid

START

Charge
Charge hotspot with the provided charging cable. Plug the USB-C end into the USB-C port and the USB-A end into a 5V/2A power adapter (power adapter not included).
Power On
Press and hold onto the power button for 3 seconds to power on the hotspot.
Sign Up
Download the Solis WiFi App on your phone and create an account.

Add Hotspot
Launch Solis WiFi App and follow the setup instructions to add the hotspot onto your account.
Buy or Activate WiFi
On the Solis App. visit the 'Shop' page to select a data plan. If you have a prepaid code, you can redeem the code on the same page.

DAYPASSES
24-hours unlimited WiFi

GODATA
High speed data by the Gigabyte

UNLIMITED DATA SUBSCRIPTION
30 days unlimited WiFi. throttle limits apply

Connect Other Devices
If you want to connect other devices (e.g. laptops and tablets) to Solis WiFi, go to WiFi Settings on your devices and connect using the WiFi name and password printed on the back of the hotspot.

HOW TO USE POWER BANK

HOW TO USE POWER BANK
Charge Devices On-The-Go

Insert the USB-C to USB-A adapter into the charging port.
Plug your device's charging cable into the USB adapter.
Connect your device to the cable to begin charging!

TECH SPECIFICATIONS

Name: Solis Lite
Dimensions: Diameter: 88mm Thickness: 23mm
WiFi Connections: up to 10 devices simultaneously
Connectivity: WiFi
WiFi Network: 802.11 b/g/n/a
Networks: FDD-LTE, TDD-LTE, WCDMA
FDD-LTE: Band 1/2/3/4/5/7/8/12/17/18/19/20/25/26/28/71
TDD-LTE: Band 38/39/40/41
WCDMA: Band 1/2/4/5/8
Charging Port: USB Type C
Input Power: 5V/2A
Output Power: 5V/1A
Battery & Power: Built-in rechargeable Li-lon batteries, 4700 mAh total
Sensors: GPS
Certifications: FCC, CE, RoHS, WEEE, California Prop 65, SIRIM, PSE, RCM
Working Temperature: 14°F to 131°F (-10°C to 55°C)
