Parkside PAA 20-Li B3 (436778-2304) - CORDLESS BATTERY ADAPTOR Manual

Introduction

The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

All Parkside tools and the chargers PLG 20 A1/A4/C1/A2/C2/A3/C3/PDSLG 20 A1/PLGS 2012 A1 of the X20V Team series are compatible with the PAP 20 A1/A2/A3/B1/B3/PAPS 204 A1/ PAPS 208 A1 battery pack.

Charging times /
Charging currents
max. 2,4 A
Charger
PLG 20 A1/A4/C1
max. 3,5 A
Charger
PLG 20 A2/C2
2 Ah PAP 20 A1/B1
Battery pack
60 min
2,4 A
45 min
3,5 A
3 Ah PAP 20 A2
Battery pack
90 min
2,4 A
60 min
3,5 A
4 Ah PAP 20 A3/B3
Battery pack
120 min
2,4 A
80 min
3,5 A
4 Ah PAPS 204 A1
Battery pack
120 min
2,4 A
80 min
3,5 A
8 Ah PAPS 208 A1
Battery pack
210 min
2,4 A
165 min
3,5

Charging

max. 4,5 A
Charger
PLG 20 A3/C3
max. 4,5 A
Charger
PDSLG 20 A1
max. 12,0 A
Charger
PLGS 2012 A1
35 min
3,8 A
35 min
3,8 A
35 min
3,8 A
45 min
4,5 A
45 min
4,5 A
32 min
5,3 A
60 min
4,5 A
60 min
4,5 A
35 min
7,8 A
50 min
4,5 A
50 min
4,5 A
35 min
6,0 A
120 min
4,5 A
120 min
4,5 A
45 min
12,0 A

Intended use

The battery adapter can be used as a charging station or power source via the two USB ports (only in conjunction with a battery from the X 20V Team series). The cordless working light is not suitable for lighting rooms in houses.

Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. This appliance is intended for domestic use only.

Symbols on the appliance

Read the operating instructions before use.
The cordless working light is not suitable for lighting rooms in houses.
Protection class III (protection by extra-low voltage)

Do not stare at operating lamp. Possibly dangerous optical radiation emitted from this product.
Direct current

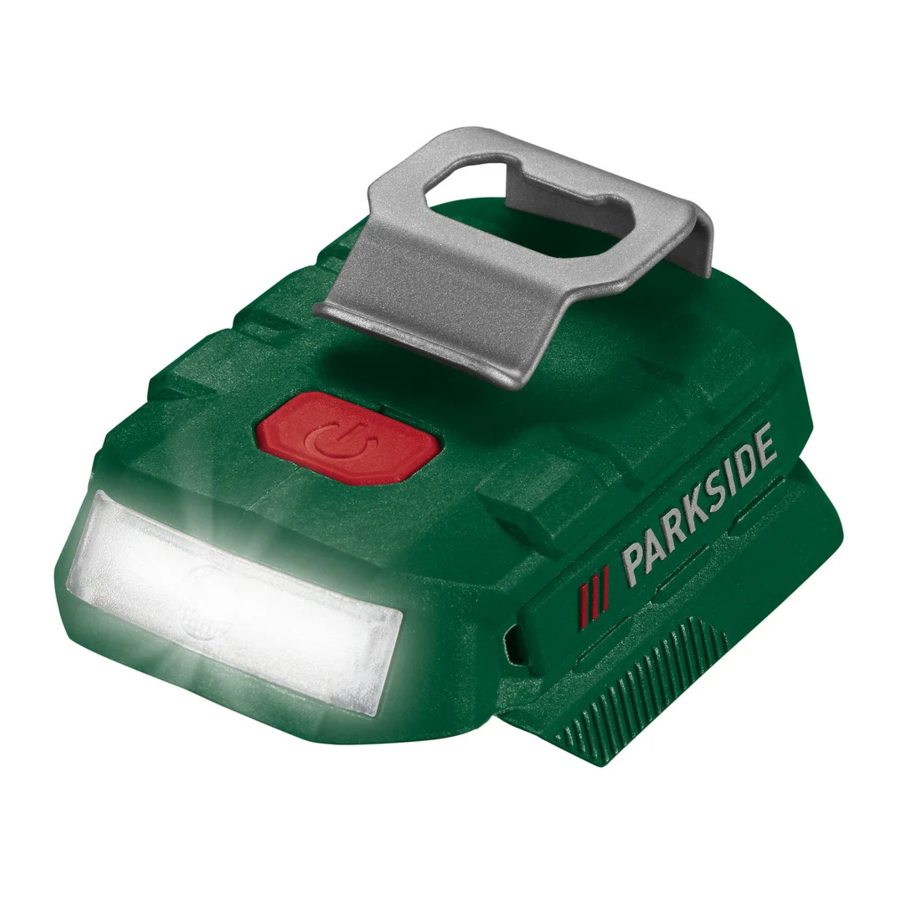

Features

  1. LED light
  2. ON/OFF switch
  3. Belt clip
  4. Control LED
  5. USB port
  6. B attery adapter
  7. Battery (not included)
  8. Release button (not included)

Package contents

1 cordless battery adaptor with light
1 set of operating instructions

Technical specifications

Input voltage: 20 V

Output:
2 xUSB Type A:
max. 5 V ; 2.4 A

Use

(see fig. A)

Use
fig. A

  • Slide the battery adapter onto a charged battery . It clicks into place audibly.

LED light

(see fig. B)

LED light
fig. B

warning NOTE:
With the LED light you can e.g. B. illuminate small dark areas so that you have an additional light source. The LED light may only be used as supplementary lighting.

Switching on

  • Press the ON/OFF switch to activate the battery adapter . The control LED flashes four times and then lights up.
  • Press the On/Off switch a second time to turn on the LED light .
    The control LED only lights up for a short time and can only be activated during this time.

Switching off

  • Press the ON/OFF switch again.
    The control LED goes out after a short time.

Charging/operating a USB device

(see fig. C)

Switching off
fig. C

warning NOTE:
If only a small current (<130 mA) is drawn, the battery adapter switches off after a short time. It is therefore not possible to charge or operate such a device.

  • Connect your USB device to the USB port of the battery adapter .
  • Press the ON/OFF switch to activate the battery adapter .
    The control LED flashes four times and then lights up. The control LED lights up permanently to indicate the power supply.
    Your device can now be charged or operated on the battery adapter .
  • To turn off the USB port , press the ON/OFF switch again for around two seconds.
    The control LED goes out after a short time.
  • If you are no longer using or charging your device, disconnect it from the battery adapter .

Use belt clip

  • With the belt clip you can use the battery adapter z. B. attach to a belt or the like.

Maintenance and cleaning


RISK OF INJURY! Disconnect the appliance from the battery before cleaning. Do not spray the appliance or place it in water. Risk of injury due to electric shock.

  • The appliance is maintenance-free.
  • Use a damp cloth or brush for cleaning.
  • Do not use cleaning agents or solvents. This could cause irreparable damage to the appliance.

warning NOTE:
Replacement parts not listed (such as switches) can be ordered via our service hotline.

Storage

  • Store the appliance in a frost-free, dry and dust-protected place, out of the reach of children.

Service

Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk

www.lidl-service.com

Ordering a replacement batteryand charger

You can easily order a replacement battery or charger on the Internet at www.kompernass.com.

  • Scan the QR code with your smartphone/tablet. You can use this QR code to go directly to our website to view and order the available replacement parts.




warning NOTE

  • If you have problems with your online order, you can contact our service centre by phone or email.
  • Always quote the article number (IAN) 436778_2304 in your order.
  • Please note that online ordering of replacement parts is not possible for all countries.

Safety information

warningATTENTIONwarning

  • Observe the safety instructions given in the operating manual of your X 20V Team series battery.
  • The operating instructions are an integral part of this appliance. They contain important information about safety, usage and disposal. Before using the appliance, please familiarise yourself with all operating and safety instructions. Use this appliance only as described and for the areas of applications specified. Keep the operating instructions in a safe place and hand over all documents when passing the appliance on to any future owner.

Personal safety

  • Do not aim the light beam of the LED into the eyes of people or animals.
    This could be harmful to the eyes.
