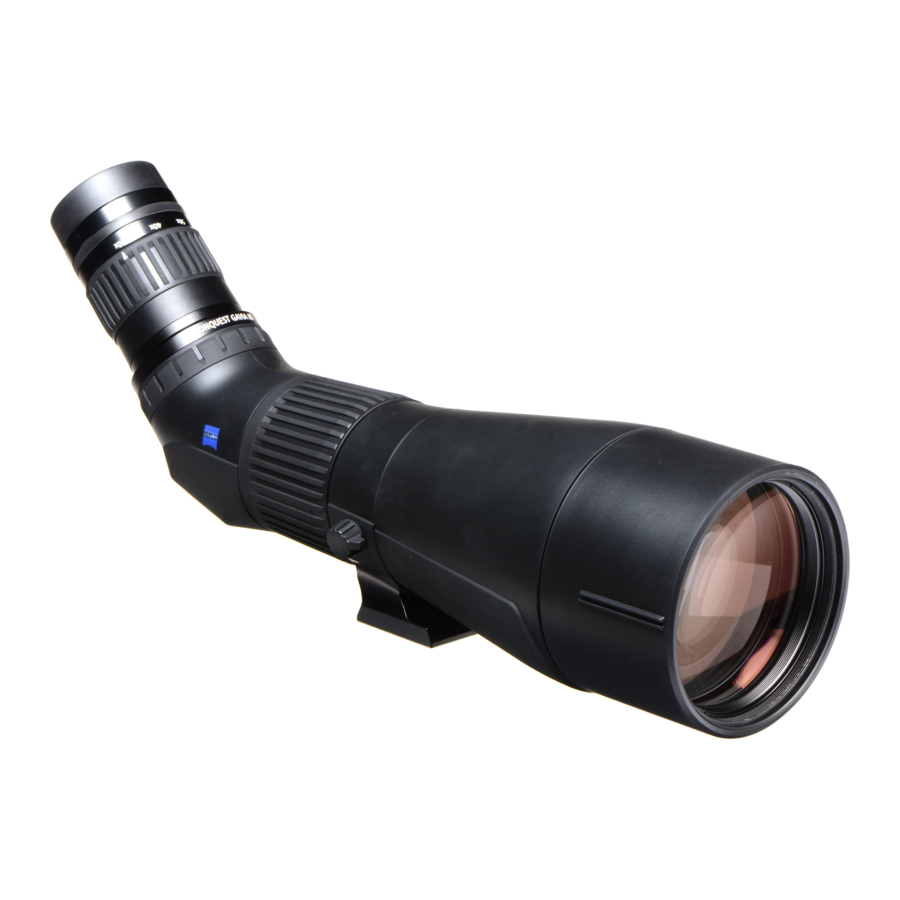

ZEISS CONQUEST GAVIA 85 - Spotting Scopes Manual
- Instructions for use manual (44 pages) ,
- Instructions for use (3 pages)
Advertisement
INSTRUCTIONS FOR USE
Inserting and removing the eyepiece
Remove the protective cap from the eyepiece (A) and the protective bayonet cover from the spotting scope. To insert the eyepiece, the white dot on the eyepiece (H) must align with the white dot on the eyepiece holder of the spotting scope (I). Make sure that the safety ring (S) on the spotting scope is located on the left stop by turning it to the left. Now insert the eyepiece and turn it to the right (clockwise) until it stops. Next turn the safety ring (S) on the spotting scope to the right to the secured stop position.
To remove the eyepiece, first turn the safety ring (S) on the spotting scope until it stops. Now turn the eyepiece to the left (counterclockwise) until it stops. Pull the eyepiece gently out to remove it.
Tripod mounting
Because of the high magnification, observation without a tripod is not recommended. The tripod shoe of the ZEISS CONQUEST GAVIA 85 (F) has 3/8" and 1/4" threading (via integrated threaded insert) that allows the ZEISS CONQUEST GAVIA 85 to be mounted onto all conventional tripods. But the tripod shoe of the ZEISS CONQUEST 85 fits directly onto all tripod heads except for the standard plate 200PL.
The tripod ring (C) on your ZEISS CONQUEST GAVIA 85 enables you to turn the spotting scope around the lengthways axis, so that you can change the viewing direction of the angled eyepiece where required. To do this, release the clamping screw (K) on the tripod holder (turn counterclockwise) and then turn the spotting scope in the desired direction. The best locking is achieved in the locking positions that are available every 45°.
Observation with and without glasses
For observation without glasses, use the eyepiece with the eyecup (G) unscrewed. To unscrew the eyecup, turn it to the left.
Cleaning and changing the eyecup
The eyecup can be unscrewed completely for cleaning or changing. Unscrew the eyecup until it stops and continue through the threading in the same direction. To put it back, follow the reverse order.
Focusing
The ZEISS CONQUEST GAVIA 85 has a focus ring (B) that you can use to focus your image depending on the distance. Turn it to the left to focus towards infinity and to the right towards close range.
Sun shield
The sun shield (E) keeps bright sunlight out and at the same time protects from the rain. The direction finder (D) on the lens hood makes it easier to focus on an object.
CARE AND STORAGE
The ZEISS CONQUEST GAVIA 85 does not need special care. Do not wipe off coarse dirt particles (e.g. sand) from the lenses, rather blow them away or use a fine brush to remove them. Fingerprints can affect the surfaces after a while. The easiest way to clean optical surfaces is to breath on them and rub them softly with a clean lens cleaning cloth.
Storing in a dry place with good ventilation will help prevent fungus from forming on the lens.
Eveready cases, which are available as an accessory, are particularly well suited for storage and transport.
SPARE PARTS
Should you require spare parts for your spotting scope, e.g. a protective cover, please contact your specialist retailer or our after-sales service. You can find the aftersales addresses for your country at: www.zeiss.com
ACCESSORIES FOR YOUR PRODUCT
*Accessory is not included in the scope of delivery
TECHNICAL SPECIFICATIONS
| Magnification | 30x – 60x |
| Focal length in mm | 493 |
| Effective objective lens diameter in mm | 85 |
| Field of view m / 1000 m (ft / 1000 yds) | 33.2 – 22.7 (99.62 – 68.10) |
| Filter thread on objective lens side | M 86 x 1 |
| Closest focusing distance in m (ft) | 3.5 (11.5) |
| Exit pupil distance in mm | 15.5 – 16.7 |
| Nitrogen-filled | Yes |
| Watertightness in mbar | 400 |
| Operating temperature C° (F°) | - 20 / + 63 (- 4 / + 145) |
| Height in mm (in) | 161 (6.4) |
| Width in mm (in) | 101 (3.9) |
| Length in mm (in) | 398 (15.7) |
| Weight in g (oz) | 1700 (60) |
INFORMATION FOR YOUR SAFETY
Environmental influences
- Never look directly into the sun or laser light sources with the spotting scope, as this can result in severe damage to your eyes.
- Do not expose the device to the sun for longer periods of time without a protective cover. The objective lens and the eyepiece can act as a magnifying glass and damage the inner components.
- Do not drop the device and avoid direct impact to it.
- Avoid touching the metal surface after solar radiation or cold.
Choking hazard
- Keep the removable exterior parts of the device out of the reach of children (choking hazard).
- Allow only authorized workshops or employees of Carl Zeiss Sports Optics GmbH to perform repairs. Allowing the device to be repaired by unauthorized workshops or opening it improperly will render the warranty void.
Carl Zeiss
Sports Optics GmbH
ZEISS Group
Gloelstraße 3 – 5
35576 Wetzlar
www.zeiss.com
