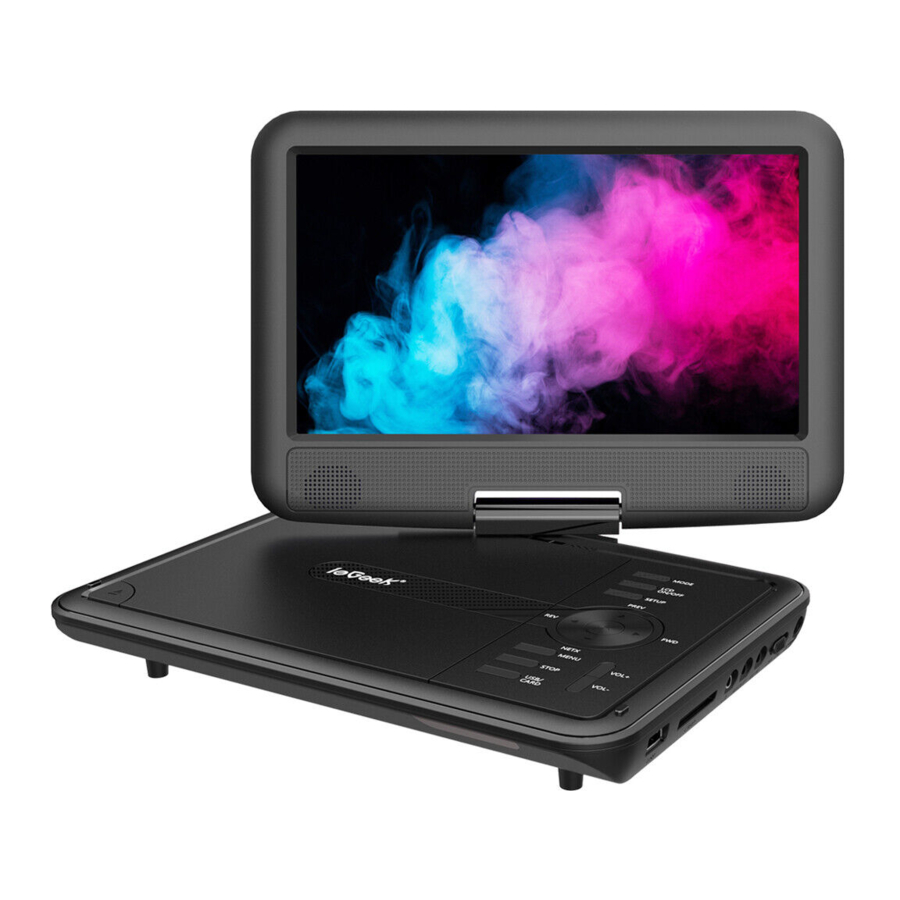

ieGeek IK-902 - Portable Video Player Manual

USEFUL TIPS

1. Battery. Please recharge the Battery for at least 6 hours before the initial use. If you connect this player with AC power, you can use it directly.
   Note: Make sure you switch off the unit before charging. The charging indicator LED will change from RED to OFF to indicate that the battery has been fully charged. When the unit is on, the LED turns GREEN.
2. LCD Screen. If you find scratches on the screen, just remove the screen protector.

3. Laser Pickup. There is a yellow card inside the player. Before you insert a disc, please remove the card. Please DO NOT touch the laser pick up or other parts with your hand.

4. Disc Format

   Disc Format Supported	CD, DVD, DVD + R/-R, DVD + RW/-RW, VCD, SVCD, CD-R/RW
   Disc Format NOT Supported	Blu-ray, HD DVD, Discs recorded in the AVCHD format, DVD-Audio, Version 1.0 of DVD-RW, DVD-ROM, CD-ROM, CDV, CD-G, SACD, Photo CD, DVD-RAM that cannot be removed from their cartridges, 2.6-GB and 5.2-GB DVD-RAM, PAL discs.

5. Language Settings. Press key [SETUP] —+[OSD language]. Change the display language. It is the same procedure for Audio, Subtitles and Menu.
6. About the Game. If you want to play games on our device, please check the free drop box link below:
   https://sourl.cn/XVcBpM
   • Wipe with a soft, dry cloth to clean this unit.
   • Use eyeglass cleaner to remove stubborn dirt from the LCD.
   • Do not use alcohol, paint thinner or benzine to clean it.
   • Do not press onto the LCD screen or drop the product from a high place.
   • This unit is not waterproof. To prevent a fire, do not place any container filled with liquid near this unit (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.


PRODUCT DESCRIPTION

Package Contents

Button Introduction

Remote Control Instruction

1. CARD / USB
2. POWER
3. TITLE MENU
4. PROG
5. SETUP
6. DIRECTION BUTTON
7. ENTER
8. MENU
9. VOL
10. PLAYER/PAUSE
11. Fast Forward/Fast Rewind
12. 0-10+ Number Keys
13. GOTO

1. CARD/USB: Switch between DVD, CARD and USB modes
2. POWER: Turn the unit on and off
3. TITLEMENU: All program titles can be displayed
4. PROG: Program a loaded disc to play chapters and titles or tracks in a specified order
5. SETUP:Show Setup menu directly (except the AV mode)
6. DIRECTION BUTTON
   Selection/Enter, Frame-by-frame
   • To select: Press up, down, left, or right ([])
   • To enter: Press [OK]
   • Frame forward/ Frame backward: (while paused) press left or right
7. ENTER: Press to confirm option
8. MENU: View the main menu on a loaded DVD
9. VOL -: Decrease volume, minimum to 0
10. PLAYER/PAUSE: Play or pause the audio/ movie playback. Confirm the selection or press it to select the file to play
11. Fast Forward/Fast Rewind: Select fast forward/rewind speed
12. 0-10+Number Keys: Press number to input a DVD chapter or CD track(invalid for some discs)
13. GOTO: Press to go to a specific time index/title/chapter
14. RETURN:During DVD play, press this key, to main menu
15. AUDIO: Press to swith left and right channels
16. SUBTITLE:Change subtitle mode
17. LCD ON/OFF: Press it and shut down the LCD screen
18. PREV/NEXT: Press to play previous chapter/title/track
19. VOL +: Increase volume, maximum to 20
20. PAUSE: Stop the audio/video/photo playback
21. MODE: Select "DVD" mode or "AV IN" mode
22. REPEAT: Repeat the loaded disc
23. OSD: Display audip and video information such as title, play time, etc.
24. MUTE: Mute the sound (Press again to activate the sound)
25. ZOOM: Short press to select 2X, 3X, 4X, 1/2, 1/3

CONNECTION

Enjoy Fun with a Game Controller
You can play multiple classic games with a game controller(not included in the package). Before playing, please download games via this website below.
https://sourI.cn/XVcBpM
Here are the instructions about how to play games on a DVD player:

1. Use your PC to download games from the attachment file.
2. Unzip the NES file folder to your PC, and copy the folder to a USB stick (16GB to 32GB).
3. Plug the USB stick into the right-side USB slot and plug the game joystick into the backside USB slot.
4. Turn on the player and press "USB/SD card", choose "USB" mode.
5. Find "NES_game" from the "menu" then select the game to start playing.
6. If you want to play other games, press the "SELECT" and "START" buttons for the joystick to exit back to the game menu.

Enjoy Fun with a Television

SETUP

Menu Operation

1. Press [SETUP] on the remote control or on the unit to show the setupmenu.
2. Press [LEFT] / [RIGHTI to select an item. The submenu of the selected item will be instantly shown.
3. Press [UP] / [DOWN] to select an item in the submenu, then press [OK]/ [ENTER] to enter. Use [UP] / [DOWNI to select an option, then press [OKI / [ENTER] to confirm it or press [LEFT] to cancel.
4. Press [UP] / [DOWNI to continue to set other items in the submenu.
5. Press [LEFT] to go back to the superior menu of the current one.
6. Press [SETUP] again and press [ENTERI / [OK] to exit the setup menu.

SYSTEM SETUP

[TV System]
Set TV Type to PAL, AUTO, or NTSC.

[LAST MEMORY]

• ON: Each time you turn or the unit or stop the disc, it will memorize the last play duration. Next time you turn on the unit and play the same disc, the unit will play from that memorized point.
• OFF: Disable the last memory function.

[SCREEN SAVER]

• ON: If the image remains motionless on the screen, for example the disc is paused, stopped etc., for several minutes, a screen saver will appear on the screen. You can press any key or button to wake it up.
• OFF: Turn off the screen saver function.

[TV Type]
Setup panel display to 4:3PS, 4:3LB, 16:9

• 4:3 Normal / PS PANSCAN
  If the unit is connected to a conventional TV set, the wide-screen image will be displayed on the screen in its native aspect ratio with some part on the left and right cut off.
• 4:3 Normal / LB LETTERBOX
  If the unit is connected to a conventional TV set, the wide-screen image will be displayed in its native aspect ratio with black borders on the top and the bottom side.
• 16:9 wide
  Select this option if the unit is connected to a wide-screen TV set. The wide-screen image will be displayed in full screen in its native aspect ratio while the 4:3 image will be stretched out horizontally to fit in the screen.

[Password]
Enter the default password "0000" then set your password.
[Rating] When setting a rating level, a password screen is shown. Follow the on-screen instructions. Do not forget your password.
[Default] Return the portable DVD to factory default beyond the maximum output of the speaker in sound effects processing

LANGUAGE SETUP

[OSD LANGUAGE] Set this on-screen display language in this item.
[Audio LANGUAGE] Set the default audio language.
[Subtitle LANGUAGE] Set thesubtitle language.
[Menu LANGUAGE] Set the menu language.

AUDIO SETUP
[Key] Adjusts the key of the audio from+4 to .

VIDEO SETUP

[Brightness] Adjusts the screen brightness.
[Contrast] Adjusts the screen contrast.
[Huel Adjusts the screen hue.
[Saturation] Adjusts the screen saturation.
[Sharpness] Adjusts the screen sharpness between 0-8

SPECIFICATIONS

DIVX Playback
DIVX is a video (movies and video) recording format, which commonly known as AVI. DIVX disc features high quality that is comparable with the DVD's and larger capacity. For example:

Difference among MPEG 1, MPEG 2 and MPEG 4

TROUBLESHOOTING

Before contacting the customer service, please kindly check by yourself with the following chart.
