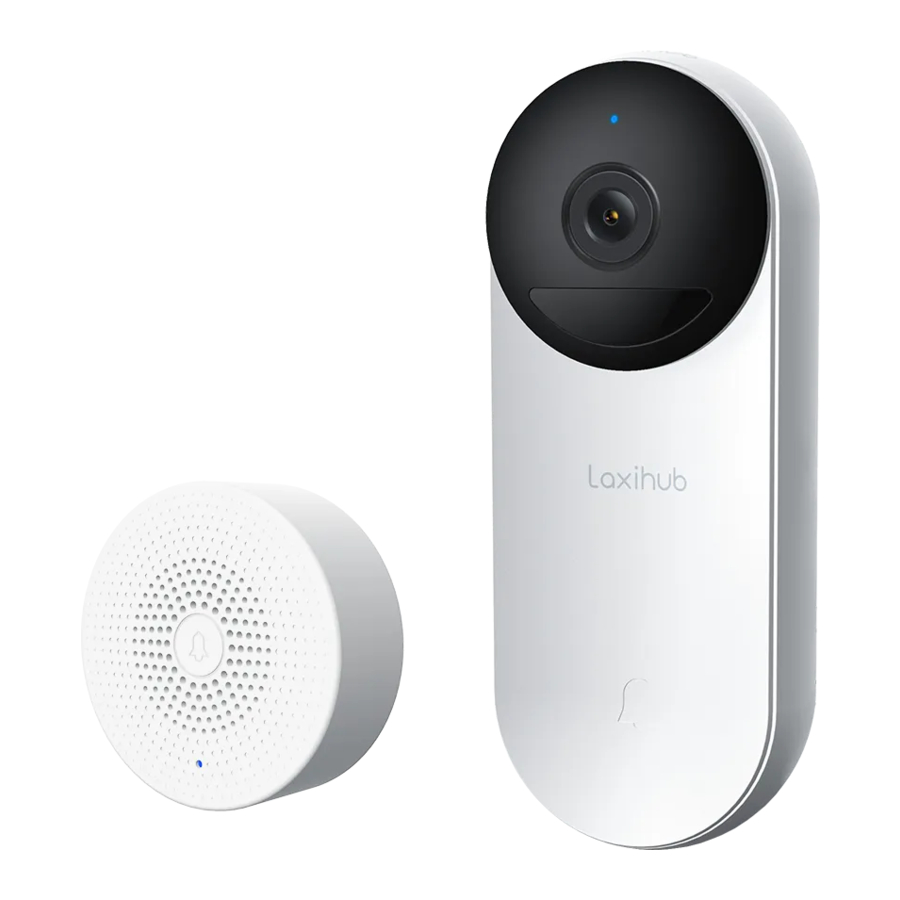

Laxihub BellCam - Video Doorbell Manual
Quick start guide
- Packing list
- Product description
- Installation
- Product configuration
- Legal notice
Packing list
* The bracket is attached to the camera.
Product description
- Microphone
- Lens
- PIR
- Doorbell button
- Speaker
- LED indicator
- SD card slot
- Reset
- DC5V USB
- Device ON/OFF
- Speaker
- LED indicator
- Power interface
- Reset
Notice
To reset the device, press and hold the reset button for 5s. The camera beeps when the operation is complete.
| LED indicator of camera: | |
| Flashing red light (slow) | Wait for network config |
| Flashing red light (fast) | Connecting the network |
| Fixed red light | Network is malfunctional |
| Fixed blue light | Camera is working correctly |
| LED indicator of chime: | |
| Flashing blue light | Wait for pairing |
| Fixed blue light | Succeed to pair |
Installation
Installation with screws
- Fix the bracket to the wall with the mounting screws.
- Install the camera in the bracket and lock it with the screw.
Product configuration
- Turn on your camera.
- Connect your smartphone to the Wi-Fi network.
- Download Arenti app from the App Store or Google Play depending on your device.
- Launch the App and sign up for the first use.
- Follow the on-screen instructions to add your camera.
For more information, scan the QR code.
Notice
If you have multiple cameras, please follow step 5 again to add devices one by one.
To change Wi-Fi network, please restore the camera to factory settings and follow step 5 to add the camera.
Chime Pairing
- Power on your chime and doorbeell.
![Chime Pairing - Step 1 - Power on your devices]( "Laxihub - BellCam - Chime Pairing - Step 1 - Power on your devices")
- Enter the setting page of your doorbell added, go into "Basic Function > Wireless Chime".
- Click the "RESET" button of chime, the blue light blinks and enter the configuration mode.
![Chime Pairing - Step 2 - Click reset]( "Laxihub - BellCam - Chime Pairing - Step 2 - Click reset")
- Press "Chime Pairing" button, the device will be connected about 2s.
- Select the ringtone, adjust the volume.
![]()
- Complete the configuration, the blue light is on.
Specifications
| Sensor type | 1/2.9" CMOS |
| Min. brightness | Color 0.1Lux@F2.0 |
| Black and white 0.01Lux@F2.0 | |
| Resolution | 2 Mega pixels |
| Lens | 3.2 mm F2.0 |
| Shutter | 1/15-1/10,000 per second |
| Infrared | High power LED with ICR |
| Infrared distance | 5 meters |
| FOV | 130° |
| Video compression | H.264 |
| Bit rate | 32Kbps - 2Mbps |
| Max resolution | 1920 x 1080 |
| Framerate | 1-25 per second |
| Picture settings | Support HD/SD; support flip |
| Storage | SD card (Max 256GB) |
| Audio | Two-way audio |
| Protocols | HTTP, DHCP, DNS |
| WiFi standard | IEEE802.11b/g/n/ac |
| Frequency | 2.4 GHz; 5 GHz |
| WiFi encryption | WPA-PSK/WPA2-PSK |
| Security | AES128 |
| Working temperature | -20℃~50℃ |
| Power | DC5V,1A |
| Consumption | 4.5W MAX |
| Size(mm) | 56 x 40 x 135 |
| Battery | 6700mAh |
| Standby consumption | 600µA (average) |
| Work consumption | 192mA (IR off) |
| Standby time | 10 months |
| Working time | 3 months (10 times wake up per day) |
| PIR Detection Rangle | 7m (Max.) |
| PIR Detection Angle | 100° |
Legal notice
Support
www.laxihub.com
Symbols
Direct current (DC)
