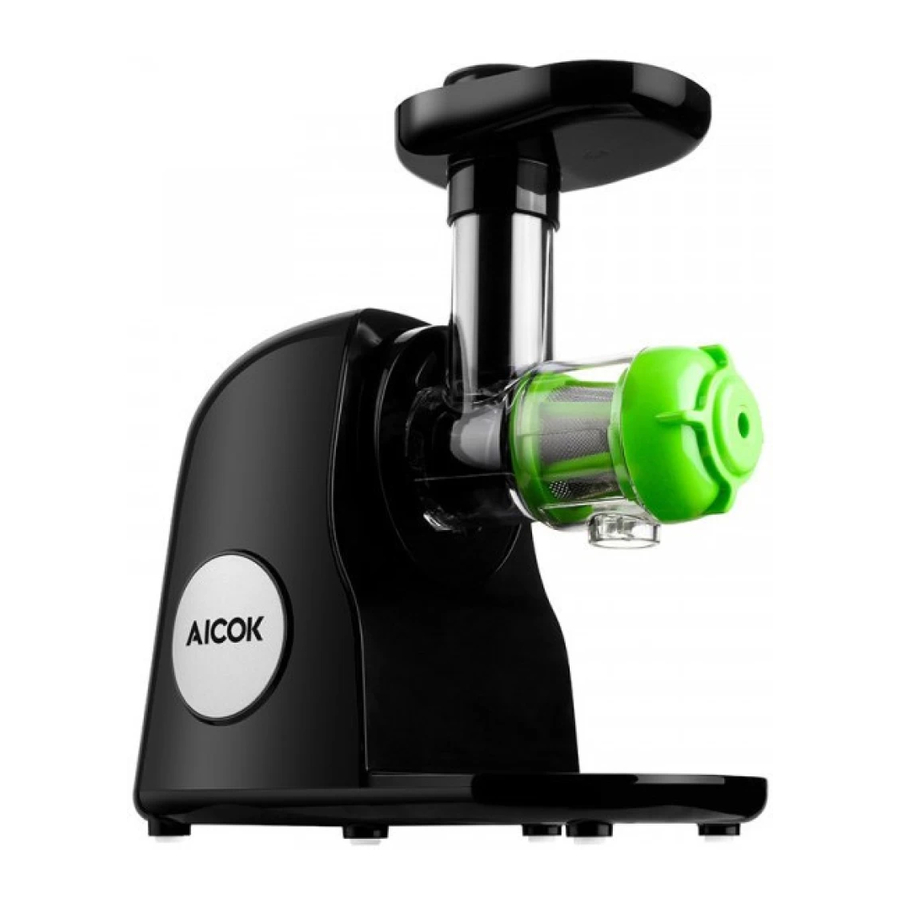

Aicok AMR521 - Slow Juicer Manual

Components and Functions

Usage

Specifications for the key operation:

• "" key: normal use key
• "0" key: close, stop
• "R" key: used in case of blocked pomace discharge or stalling.

(Note: In case of blocked pomace discharge or stalling, press and hold the "R" key lightly for 3 seconds, the screw propeller begins to reverse, loosen the key and it stops reserving; at that time, press the " " key and the machine recovers to rotate in forward direction and work on.

9. Product Usage
   Please install and use product according to the following steps:
   1. Juicing

      	1	Connect the container for juicing to the body of machine: Align the central position of the feeding hole of the container for juicing with the "unlocking triangle marker" on the body of machine and put it into the body of machine (three buckles of the container for juicing will be aligned) Rotate counterclockwise, and the "click" sound indicates correct connection.
      	2	Align the hexagonal shaft of screw propeller with the hold on the body of machine, and push into horizontally until the bottom. (In case of misalignment, rotate the screw compeller slightly to reach alignment easily)
      	3	Set the end of juice net with large hole in the screw propeller from the tail, and align the three buckles of juice net with three card slots in the container for juicing and push into. (This juice net is used only coordinating with the back juicing button for juicing)
      	4	Stagger the three buckles on the cover of the container for juicing and the three buckles on the container for juicing, push into horizontally, and then rotate counterclockwise to tighten the cover of the container for juicing and the container for juicing securely.
      	5	Put the juice glass near the body of machine, and align the opening of the cup with the bottom of juice nozzle of the container for juicing.
      	6	Put the pomace cup under the pomace outlet, near the juice glass (keeping the high-end surface close to the pomace outlet is more conducive to taking the pomace).
      	7	Put the tray on the upper end of feeding barrel of the container for juicing. The tray can facilitate the feeding of material, especially when processing the food material with small particles, such as grapes and strawberries.
      	8	Switch on and ready to work. (Ensure the switch is in off state before switching on)
      	9	Wash the fruit and vegetable, cut into pieces suitable for the feeding hole, put on the tray and set aside. The core, hard seed, thick peel or hard shell of the fruit and vegetable shall be removed first.
      	10	The product begins to work after pressing the " " key, and the working time is not more than 10 minutes. It is forbidden to touch the power switch with wet hands for avoidance of electric shock, electric leakage and fire.
      	11	Put the food material into the feeding hole of the container for juicing, and push into with the pushing rod. Push the food material lightly, and just cutting off the food material is suitable. (It is forbidden to stretch your fingers or other objects into feeding hole of the container for juicing! If the pomace cup or juice glass is full, disconnect the power and use after clearing.)
      	12	After processing the food material, shut down the switch, disconnect the power when no juice discharges from the juice nozzle any longer, and take the juice glass away from the juice nozzle after the screw propeller and juice net stop rotating completely. (Drink the juice squeezed just immediately, and its taste and nutritive value are influenced by being exposed to the air for a while.) The residual shall not be stored for a long time. It is forbidden to touch the power switch with wet hands for avoidance of electric shock, electric leakage and fire.

13. In case the motor stops and cannot reverse automatically by virtue of current-limiting protection or stalling during operation, at that time, shut off the power switch and make the switch in the state of "0" key, start the "R" key of power switch to withdraw the food material, and then start " " key of power switch to make the machine work normally. In the event stalling occurs again, it is recommended to remove the food material in the screw propeller and then use this machine again. This method is a protection to the motor.
14. After use, detach the detachable components of the machine after the motor, screw propeller, shredding knife/slicing knife/screw rod for mincing meat stop rotating, and ensuring disconnecting the power.
15. All accessories of this product cannot be sterilized by hot water higher than 80 C or microwaves because the accessories may be deformed or damaged by hot temperature. Materials of the components that touch food materials are all clean, healthy and reliable and meeting food hygiene standards.
16. Do not place the body of this machine into water or other liquids or wash it with water or other liquids for avoidance of damaging the body of this machine.
17. Do not use steel wool, abrasive cleaner or corrosive liquids (such as petrol or acetone)to clean this product.
18. This product should be stored in places out of reach of children and do not let persons with physical impairment, feeling or mental abnormalities or persons lacking related experience or knowledge (including children) to use or play with this product.
19. This product only applies to personal use or home use.
20. This product is a class I electrical appliance, so the socket ground wire shall be grounded well.
21. Turn on the switch, the machine will start in 3 seconds, please wait patiently.
22. This product is not suitable for crushing fiber-rich fruits and vegetables and dried nuts, such as sugar cane, ginger, soybean, etc.
23. In order to balance your nutrition, please try to extract the juice according to the recipe we provide.
24. It is the normal situation when the machine presses carrots, Fresh Carrot Juice will dye the machine's screw green. Please feel free to use, and don't worry.
25. After squeezing lemon and orange, please clean the juicer and filter in time.
