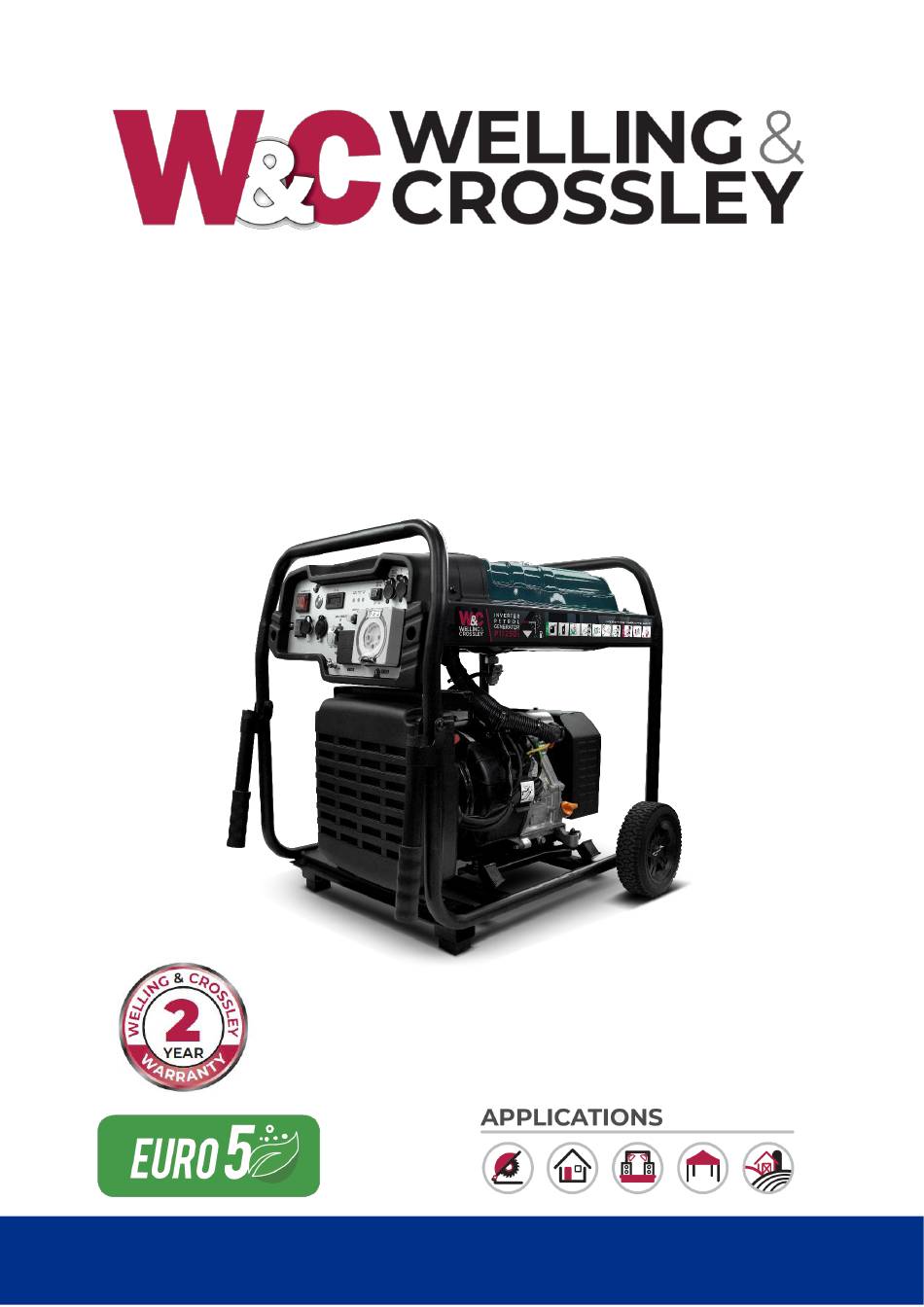

- Page 1 Open Frame Inverter Operation Manual WC P11250i • 811986 Welling & Crossley WC-P11250i Generator Operators Manual...
-
Page 2: Introduction
It can also handle power tools at construction sites and ensure small businesses stay operational when the power goes out. The W&C P11250i throttles back under light load to reduce noise and conserve fuel. It delivers clean power efficiently and is always ready for anything life throws your way! -
Page 3: Table Of Contents
15d. Oil Changes ......................19 15e. Valve Clearance ......................20 15f. Cleaning the Spark Arrestor ..................20 16. Storage and Transportation ................20 17. Trouble Shooting Guide ..................21 18. Warranties – Terms and Conditions ..............23 Welling & Crossley WC-P11250i Generator Operators Manual... -
Page 4: Know Your Generator
5. Know your generator Fuel Tank and Filler Fuel Tap Muffler with heat shield Oil Filler Oil Drain Handles Control Panel Carburettor Spark Plug Cap Valve Cover Battery Air Cleaner Welling & Crossley WC-P11250i Generator Operators Manual... - Page 5 12: USB Outlets 1 x USB-A 18W 5: 2 wire start enable / disable 1 x USB-C 15W 6: Two wire start connector 13: ATS connector 14: Low idle – ECO mode 7: PCB connector Welling & Crossley WC-P11250i Generator Operators Manual...
-
Page 6: Eco Mode - Low Idle Switch
Allow the engine rpm to stabilize. Repeat step 2 to plug in each additional device. Avoid plugging in or starting multiple devices at the same time. 9. Connecting the battery Welling & Crossley WC-P11250i Generator Operators Manual... -
Page 7: Electrical Safety
MUST consult a qualified electrician and install a transfer switch. Such connections must comply with local electrical laws and codes. Failure to comply can create a back-feed, which may result in serious injury or death to utility workers. 11. Generator Specifications Welling & Crossley WC-P11250i Generator Operators Manual... - Page 8 Recoil, eStart and wireless starting 1 x IP44 15 Amp 3 pin socket 1 x IP66 32 Amp socket Electrical Outlets (230V) 1 x USB Type A (18W) 1 x USB Type C (15W) Battery 12V 10Ah Welling & Crossley WC-P11250i Generator Operators Manual...
-
Page 9: Warnings
▪ DO NOT operate generator with covers, shrouds, or guards removed. ▪ DO NOT wear loose-fitting clothing, dangling drawstrings or items that could become caught. Tie up long hair and remove jewellery. Welling & Crossley WC-P11250i Generator Operators Manual... - Page 10 ▪ DO NOT operate the generator while directly exposed to wet weather. Keep the generator dry. ▪ DO NOT handle generator or electrical cords while standing in water, while barefoot, or while hands or feet are wet. Welling & Crossley WC-P11250i Generator Operators Manual...
-
Page 11: Operators Checklist
• DO NOT move or tip the generator during operation. Use generator only for intended uses. If you have questions about intended use, ask your local dealer. DANGER: Failing to correct problem(s) before operation could result in property damage, serious injury or DEATH. Welling & Crossley WC-P11250i Generator Operators Manual... -
Page 12: Getting Started
To avoid the inconvenience of an unexpected shutdown, fill to the upper limit and check the oil level regularly. Changing the oil after the first 5 hours of operation is strongly recommended Welling & Crossley WC-P11250i Generator Operators Manual... -
Page 13: 14B. Check The Fuel Level
Effects of old, stale or contaminated fuel may void your warranty. CAUTION: To minimise gum deposits in your fuel system and to ensure easy starting, do not use fuel left over from the previous season. Welling & Crossley WC-P11250i Generator Operators Manual... -
Page 14: 14D. Starting The Generator
• If the engine fails to start after 3 attempts or stops after starting; inspect and ensure that the generator is placed on horizontal surface and check the fuel and engine oil levels. Welling & Crossley WC-P11250i Generator Operators Manual... -
Page 15: 14E. Maximum Electrical Capacity
Add the surge wattage requirement on top of the expected constant load requirement to determine the size required. Factoring in 30% more output than you expect to use is good practice to ensure the generator is not stressed. This will ensure longevity. Welling & Crossley WC-P11250i Generator Operators Manual... -
Page 16: Stopping The Generator
If this approach is frequently taken, make sure to drain your carburettor before any long storage periods. Important: Always ensure that the fuel tap and the engine switch are in the “OFF” position when the engine is not in use. Welling & Crossley WC-P11250i Generator Operators Manual... -
Page 17: Maintenance
Tampering with the factory set governor will void your warranty. NEVER alter the governed speed. Any unapproved adjustment will damage your engine and/or your electrical devices and void your warranty. Consult your local authorised service agent for advice. Welling & Crossley WC-P11250i Generator Operators Manual... -
Page 18: 15A. Air Filter
Thread the plug into the engine by hand. Once the spark plug is seated, tighten to the recommended torque the attach the spark plug cap to the plug. Replace the spark plug yearly. The engine will start and run better Welling & Crossley WC-P11250i Generator Operators Manual... -
Page 19: 15C. Cleaning
Fill the engine with oil until it reaches the HIGH (H) level on the oil filler cap. Reinstall the oil cap. Be careful not to overfill. Overfilling with oil could cause the engine to not start or hard starting. Welling & Crossley WC-P11250i Generator Operators Manual... -
Page 20: 15E. Valve Clearance
15 to 20 minutes, allowing the fuel stabilizer to mix with the fuel and circulate through the carburettor, and then top off with fuel. Filling the fuel tank full reduces the amount of air in the tank and helps fight deterioration of fuel. Welling & Crossley WC-P11250i Generator Operators Manual... -
Page 21: Trouble Shooting Guide
WARNING: Turn off the generator before starting any maintenance work. Remove the spark plug cap and secure away from the spark plug. Work methodically eliminating the most simple, basic and obvious potential causes first. The W&C P11250i can be serviced by any small engine mechanic FAULT POSSIBLE CAUSE REMEDY Welling &... - Page 22 RCD, check that it hasn’t tripped The fault may be with the Check any power cords for damage and power cords may be faulty. continuity. Appliance may be defective Try another appliance Welling & Crossley WC-P11250i Generator Operators Manual...
-
Page 23: Warranties - Terms And Conditions
Proof of purchase is required before consideration under warranty is given. Record your date of purchase in the space below and retain this copy for your records. Date of Purchase ..........Model Purchased ..........Welling & Crossley WC-P11250i Generator Operators Manual... - Page 24 For any queries regarding use of the contained information please feel free to contact White International Pty Ltd. Welling & Crossley WC-P11250i Generator Operators Manual...
