Summary of Contents for Adexa BD650

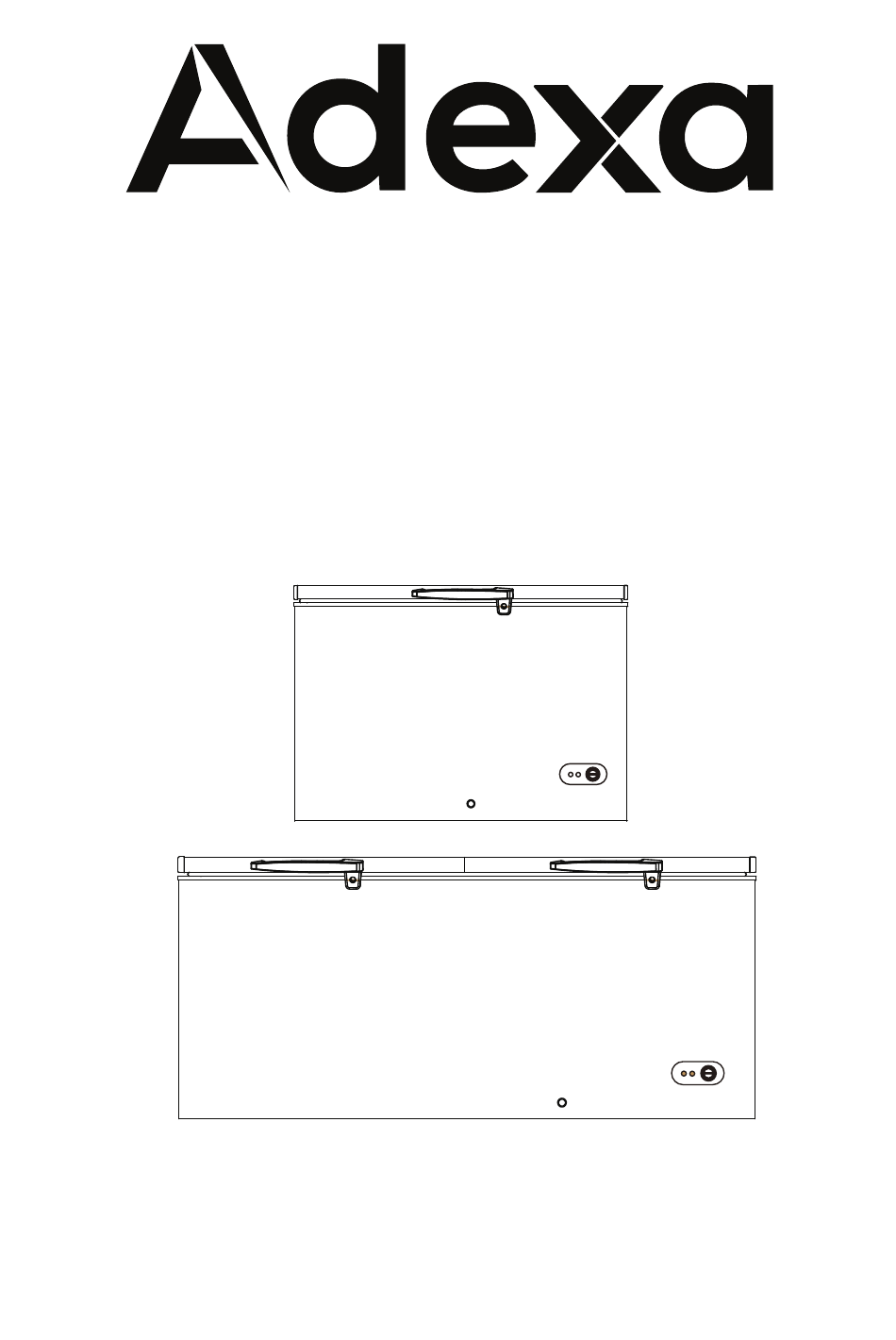

- Page 1 CHEST FREEZER INSTRUCTION MANUAL BD650 BD750SS BD850SS Imported by: Adexa Direct Limited Unit 1 Swi� Point, Cosford Lane, Swi� Valley Industrial Estate, Rugby, CV21 1QN, UK service@adexa.co.uk , T:+44 1788 222 410...
- Page 3 Thank you for buying this high quality appliance This handbook is designed to help you through each step of owning your new appliance, from installation to use. Please read through this handbook carefully before you start using your appliance, as we have endeavoured to answer as many questions as possible, and provide you with as much support as possible.
- Page 4 Before Using Your Appliance Safety Instructions After installation make sure that the power cable is not trapped underneath appliance. Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and use. If this appliance is to replace an old one equipped with a lock, break or remove the lock as a ...
-
Page 5: Installation
Installation Install and level the appliance on a floor able to take its weight and in a place suitable for its size and use. Insert the plug into a socket which is appropriate. This appliance has a plug already fitted – if ... -
Page 6: Temperature Adjustment/Operation
Temperature Adjustment/Operation The appliance temperature can be adjusted by turning the thermostat on the Control Panel. The thermostat should be adjusted according to different environment temperature and the and the quantity of food being stored by adjusting the knob of the thermostat. The knob rotates clockwise from”1”... - Page 7 Defrosting and Cleaning Defrost twice a year or when a frost layer of around 7 mm (1/4") has formed. To start defrosting procedure switch off the freezer at the socket outlet and pull out the mains plug. All food should be wrapped in several layers of newspaper and stored in a cool place (e.g. ...
-
Page 8: Troubleshooting Guide
Trouble Shooting Guide Trouble Possibilities Check up Solutions Remarks Compressor Power is off The fuse is broken Check the fuse Replace the fuse If it is necessary does not please contact The connection Check the socket Repair or replace work between plug and the socket after-sales... - Page 9 Installa�on manual for handle Step 1: Fix the handle on the door with four screws. Step 2: Insert the one side of handle cover into the handle pedestal. Step 3: Insert the other side of handle cover into the handle pedestal. Step 4: Press the cover into the handle pedestal.
- Page 10 Installation manual of latch hook 1.Take off the gummed tape covered on the hole. 2. Make the latch hook aimed at hole and fix it with two screws. 3. Installation of latch hook is finished.
-
Page 11: Declaration Of Conformity
BD650, BD750SS, BD850SS Application of Territory Legislation & Council Directives(s) This Declaration of Conformity is issued under the sole responsibility of the importer: Adexa Direct Limited. For the object of this declaration, the essential requirements and principal safety objectives have been demonstrated.
