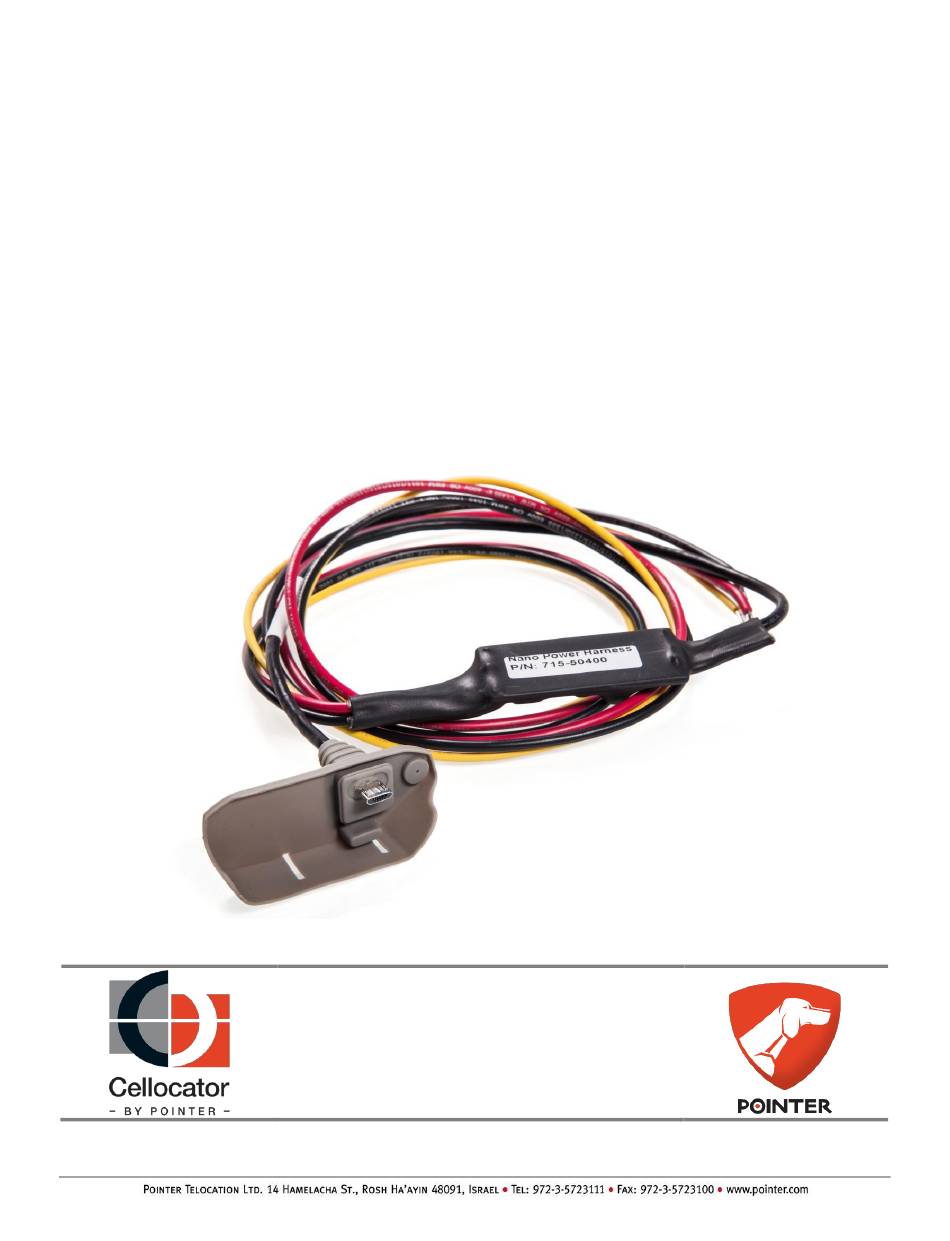

CelloTrack™ Nano
Power Harness
Product Overview
Proprietary and Confidential
Version 1.2
Revised and Updated: July 17, 2019
Copyright © 2016 by Pointer Telocation, Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CelloTrack Nano Power Harness and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pointer CelloTrack Nano Power Harness

  • Page 1 CelloTrack™ Nano Power Harness Product Overview Proprietary and Confidential Version 1.2 Revised and Updated: July 17, 2019 Copyright © 2016 by Pointer Telocation, Ltd.
  • Page 2 Customers of Pointer Telocation Ltd. Using, integrating, and/or selling the product for use in such applications do so at their own risk and agree to fully indemnify Pointer Telocation Ltd. For any resulting loss or damages.
  • Page 3 Product Overview Intellectual Property Copyright in and to this document is owned solely by Pointer Telocation Ltd. Nothing in this document shall be construed as granting you any license to any intellectual property rights subsisting in or related to the subject matter of this document including, without limitation, patents, patent applications, trademarks, copyrights or other intellectual property rights, all of which remain the sole property of Pointer Telocation Ltd.

  • Page 4: Table Of Contents

    Installation ....................... 8 Connecting the Nano Power Harness to the Nano Cradle ........... 8 Pinout Scheme of Nano Power Harness ................. 10 CelloTrack Nano Power Harness with Lighter ..............11 Installation guideline ....................13 Working with the Dry-contact input ................18 Technical Specifications ..................

  • Page 5: Introduction

    User Guide Revision History Version Date Description 9/06/2016 Initial version 17/9/2018 Added warning in section 3.2 17/7/2019 Added Nano Power Harness with Lighter variant CelloTrack™ Nano Power Harness Product Overview Page 5 of 19 Copyright © 2019 by Pointer Telocation, Ltd.

  • Page 6: Solution Overview

    Solution Overview Overview The CelloTrack Nano Power Harness is intended for use as a robust connectivity to power source for the CelloTrack Nano hub, while also providing one dry contact outlet. The Power Harness is an add-on to the CelloTrack Nano family, ensuring its compatibility with existing models and part numbers belonging to the CelloTrack Nano family.

  • Page 7: Nano Power Harnes Components

    CelloTrack Nano Power Harness 715-50402 CelloTrack Nano Power Harness with lighter connector 805-60903 CelloTrack Nano Cradle KIT Table 1: CelloTrack Nano Power Harness Components CelloTrack™ Nano Power Harness Product Overview Page 7 of 19 Copyright © 2019 by Pointer Telocation, Ltd.

  • Page 8: Installation

    1. Remove the silicon enclosure of the micro USB connector on the Nano hub by pressing on the slot with a screwdriver, as shown below. CelloTrack™ Nano Power Harness Product Overview Page 8 of 19 Copyright © 2019 by Pointer Telocation, Ltd.
  • Page 9 The connector end attached to the Nano hub should then slot into the bottom of the cradle, as shown in the following images. CelloTrack™ Nano Power Harness Product Overview Page 9 of 19 Copyright © 2019 by Pointer Telocation, Ltd.

  • Page 10: Pinout Scheme Of Nano Power Harness

    You can now install the Power Harness and connected Nano cradle into the relevant vehicle, as described in the following section. Pinout Scheme of Nano Power Harness The following image shows the Power Harness pinout scheme. CelloTrack™ Nano Power Harness Product Overview Page 10 of 19 Copyright © 2019 by Pointer Telocation, Ltd.

  • Page 11: Cellotrack Nano Power Harness With Lighter

    CelloTrack™ Nano Power Harness Product Overview CelloTrack Nano Power Harness with Lighter This special harness variant (P/N 715-50402) is for installing inside the vehicle. The harness is connected in the same way to the Nano as the Cellocator Nano Power harness, but instead of having a three-wire connection, it has a vehicle lighter connection, which connects to the vehicle’s cigarette lighter socket.
  • Page 12 Cellocator approved accessories (such as the Nano Power harness). Using any other accessories may harm the unit and invalidate the Cellocator warranty. --------------------------------------------------------------------------------------------------- CelloTrack™ Nano Power Harness Product Overview Page 12 of 19 Copyright © 2019 by Pointer Telocation, Ltd.

  • Page 13: Installation Guideline

    Using two coin magnets to attach the hub to a metallic surface. Using three screws to attach to non-metallic surfaces. Using double-sided adhesive tape. Using cable ties. CelloTrack™ Nano Power Harness Product Overview Page 13 of 19 Copyright © 2019 by Pointer Telocation, Ltd.
  • Page 14 2. Thread the Nano Power Harness and the connected Nano hub through the Nano cradle, ensuring the Power Harness is securely connected to the Nano unit. 3. Attach to the required metallic surface. CelloTrack™ Nano Power Harness Product Overview Page 14 of 19 Copyright © 2019 by Pointer Telocation, Ltd.
  • Page 15 3. Thread the Nano Power Harness and the connected Nano hub through the Nano cradle, ensuring the Power Harness is securely connected to the Nano unit. CelloTrack™ Nano Power Harness Product Overview Page 15 of 19 Copyright © 2019 by Pointer Telocation, Ltd.
  • Page 16 2. Thread the Nano Power Harness and the connected Nano hub through the Nano cradle, ensuring the Power Harness is securely connected to the Nano unit. 3. Attach to the required surface. CelloTrack™ Nano Power Harness Product Overview Page 16 of 19 Copyright © 2019 by Pointer Telocation, Ltd.
  • Page 17 3. Thread the Nano Power Harness and the connected Nano hub through the Nano cradle, ensuring the Power Harness is securely connected to the Nano unit. CelloTrack™ Nano Power Harness Product Overview Page 17 of 19 Copyright © 2019 by Pointer Telocation, Ltd.

  • Page 18: Working With The Dry-Contact Input

    See the following excerpts from the wireless protocol doc: There is a set of PL parameters related to the configuration of this input (aka GP1): CelloTrack™ Nano Power Harness Product Overview Page 18 of 19 Copyright © 2019 by Pointer Telocation, Ltd.

  • Page 19: Technical Specifications

    30 cm between the board to the micro- USB connector 90 cm from the board to contactless cable Connector type Micro-USB Table 2: Technical Specifications CelloTrack™ Nano Power Harness Product Overview Page 19 of 19 Copyright © 2019 by Pointer Telocation, Ltd.
