Jefferson JEFPMPDIESET12V User Manual

INTRODUCTION
This is a 12V diesel pump set designed for transfering diesel and refuelling
vehicles and equipment in garages, construction sites or agricultural
environments. The pump set is reliable, easy to operate and maintain. This
set is not suitable for commercial use.
FEATURES:
•
12V Rotary Vane Self-Priming Pump
•
Up to 40L/Min / 10GPM Flow Rate
•
10m Lift Distance & 5m Suction Distance
•
Suitable for Diesel, Biodiesel & Kerosene
INCLUDES:
•

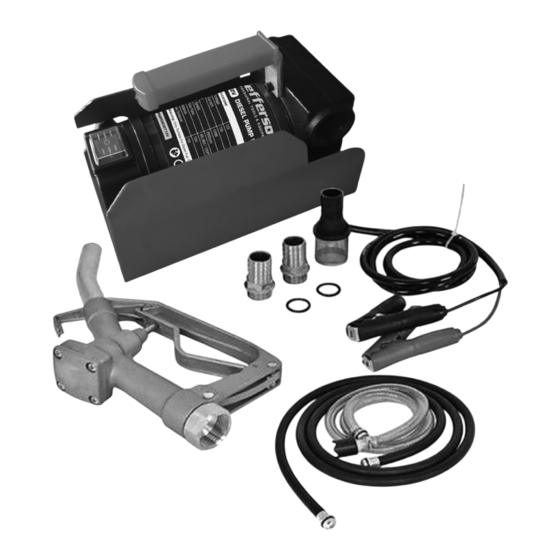

12V Cast Iron Pump
•
Fuel Nozzle (¾" Swivel Connection)
•
2m Suction Hose with Filter and ¾" Fitting
•
4M Rubber Delivery Hose
SPECIFICATIONS
Rated Voltage: 12V
Rated Current: 13A
Power: 150W
Motor Speed: 2800rpm
Max Flow Rate: 40L/Min / 10GPM
Lift Distance: 10m
Suction Distance: 5m
SAFETY GUIDELINES
Ensure that you check the equipment thoroughly to ensure it is safe and fit for purpose before each use. It is important that you inspect all plugs,
sockets, power cables and electrical fittings for wear and damage and repair or replace any defective components. Ensure that the power cable is
kept away from heat, oil and sharp edges.
The Electricity at Work Act 1989 includes legislation that places legal
implications on employers to ensure the safety of electrical devices in the
workplace. The regulations dictate that all portable equipment must be
inspected regularly and tested to ensure that it is safe for use. 'Portable
equipment' means any electrical item that can be moved and this is often
referred to as Portable Appliance Testing (PAT). PAT testing should be
carried out regularly on this equipment by trained, authorised personnel, as
required by the legislation.
The Health and Safety at Work Act 1974 states that it is the responsibility
of the owner of electrical appliances to ensure that both the equipment
and working environments are maintained to ensure safe operation at all
times.
Ensure that the power supply matches voltage requirements specified
on the equipment and that the plug is wired correctly and fitted with
the correct fuse. If the electrical fuse blows, ensure it is replaced by an
identical type of fuse with the same rating.
Do not operate or connect to the electrical supply when the cable is in a
coil. Disconnect from the power supply before making any adjustments or
carrying out any maintenance or repair.
•
Information on Disposal for Users of Waste Electrical &
Electronic Equipment (WEEE)
www.jeffersontools.com
Important: Please read all information carefully
before use and keep these instructions in a safe
place for future reference.
Please note: This equipment is not suitable for
transfering petrol fuel. Suitable for Diesel only.
Warning: This equipment can only be operated
from a 12V DC supply. Contact a qualified
electrician for advice on any issues relating to
electrical safety in your working environment prior
to use.
This symbol on the product(s) and / or
accompanying documents means that used
electrical and electronic products should not be
mixed with general household waste.
For proper treatment, recovery and recycling,
please take this product(s) to designated collection
points where it will be accepted free of charge.
USER GUIDE
v.1.1
JEFPMPDIESET12V
12V DIESEL PUMP SET
