OPERATION MANUAL

GARDEN

PRODUCTS

60V

CHAINSAW

EV CS1

Table of Contents

Need help?

Do you have a question about the EVmow EV CS1 and is the answer not in the manual?

Questions and answers

Summary of Contents for G-Force EVmow EV CS1

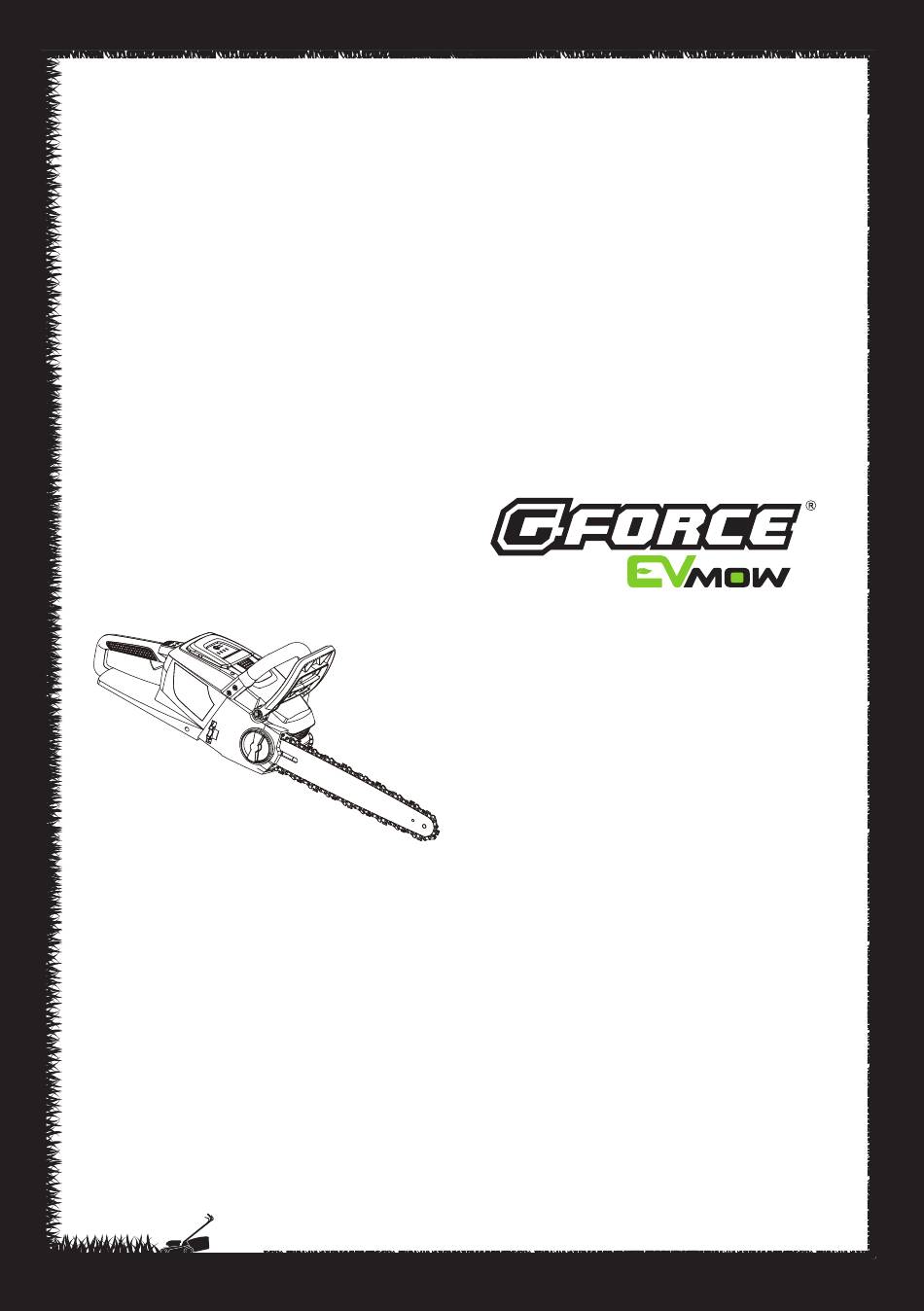

Page 1 OPERATION MANUAL GARDEN PRODUCTS CHAINSAW EV CS1...
Page 2 WARNING! Read this manual carefully before using your chainsaw and keep it in a safe place for future reference.
Page 3: Table Of Contents
TABLE OF CONTENTS DESCRIPTION OF PRODUCT PARTS TECHNICAL SPECIFICATIONS INTENDED USE SAFETY INFORMATION OPERATION CLEANING, MAINTENANCE TROUBLESHOOTING WARRANTY...
Page 4: Description Of Product Parts

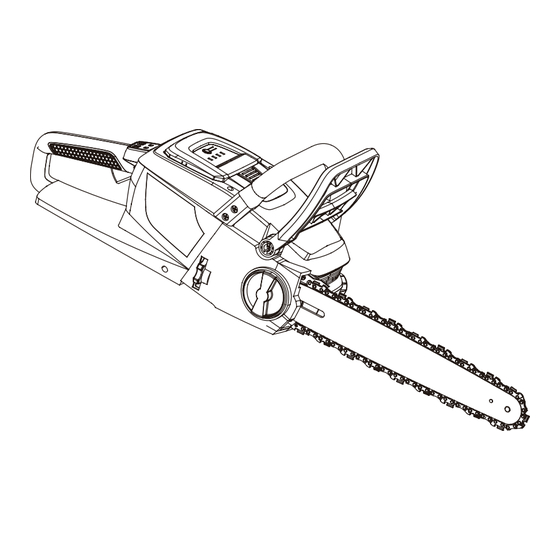

DESCRIPTION OF PRODUCT PARTS Parts description (Fig. A) Side cover knob Front guard / chain brake Guide bar ON/OFF trigger switch Safety button Saw chain Oil tank cap 10. Battery pack compartment Indicator panel 11. Front handle Chain tension dial...
Page 5: Package Content List
PACKAGE CONTENT LIST PACKAGE CONTENT LIST a. Chainsaw b. Guide bar c. Saw chain d. Manual e. Guide bar cover • Remove all packing material. • Check the completeness of the package content. • Check the chainsaw and its accessories for transportation damages. WARNING: Packing materials are not toys! Children must not play with plastic bags! Danger of suffocating! If any parts are missing or damaged, please contact your dealer.
Page 8: Technical Specifications
Your power tool should only be passed on together with this instruction manual. WARNING! To reduce the risk of injury, only use G-FORCE battery packs. Other types of battery packs may burst causing personal injury and damage.
Page 9: Safety Information
SAFETY INFORMATION SAFETY INFORMATION The following symbols are used in this manual and/or on the chainsaw . Warning Read the instruction manual before using the appliance Wear ear protection Wear eye protection Do not expose to rain Wear breathing protection Sound power level label Dispose of the appliance according to the regulations and requirements of your local council...
Page 10: General Safety Warnings
GENERAL SAFETY WARNINGS GENERAL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"...
Page 11 GENERAL SAFETY WARNINGS inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
Page 12 GENERAL SAFETY WARNINGS Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
Page 13 GENERAL SAFETY WARNINGS operating chainsaws may cause entanglement of your clothing or body with the saw chain. Always hold the chainsaw with your right hand on the rear handle and your left hand on the front handle. Holding the chainsaw with a reversed hand configuration increases the risk of personal injury and should never be done.
Page 14 GENERAL SAFETY WARNINGS Causes and operator prevention of kickback: Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.
Page 15: Installing The Guide Bar And Saw Chain
ASSEMBLY ASSEMBLY WARNING: Before performing any assembly and adjustment. Always ensure that the battery pack has been removed. Installing the guide bar and saw chain Position the chainsaw on its side with the side cover facing upwards. Turn the side cover knob anti-clockwise to remove the side cover and then loosen the chain tensioning knob as much as possible.
Page 16: Operation
OPERATION NOTE: If a saw chain is tensioned when it is warm, it may be too tight when it cools down. Check the tension when it is cool before next use. OPERATION WARNING: Before inserting or removing the battery packs into the chainsaw, make sure the chainsaw is switched off.
Page 17: Cutting Techniques
OPERATION Starting/stopping the chainsaw (Fig. L, M and N) WARNING: Do not attempt to start the saw when the saw chain is in a cut. WARNING: Always remove the battery pack from the chainsaw during work breaks and after finishing work. NOTE: Before starting the chainsaw, check the oil level, and make sure that the chain brake lever can work properly.
Page 18: Notching Undercut
OPERATION line, the company should be notified immediately. The chainsaw operator should keep on the uphill side of the terrain as the tree is likely to roll or slide downhill after it is felled. An escape path should be planned and cleared as necessary before cuts are started.
Page 19: Limbing A Tree
OPERATION illustrated in Fig. P. Keep the felling back cut parallel to the horizontal notching cut. Make the felling back cut so enough wood is left to act as a hinge. The hinge wood keeps the tree from twisting and falling in the wrong direction. Do not cut through the hinge.
Page 20 OPERATION diameter from the top (overbuck). Then make the finished cut by underbucking the lower 2/3 to meet the first cut. When cross-cutting/bucking on a slope always stand on the uphill side of the log, as illustrated in Fig. U. When "cutting through", to maintain complete control, release the cutting pressure near the end of the cut without relaxing your grip on the chainsaw handles.
Page 21: Cleaning, Maintenance
CLEANING, MAINTENANCE AND STORAGE Cross-cutting/bucking a log Fig. U CLEANING, MAINTENANCE AND STORAGE WARNING! Always remove the battery pack from the chainsaw before carrying out any cleaning, maintenance and storage. WARNING: The chainsaw shall only be repaired by an authorised service centre. Cleaning 1.
Page 22 DISPOSAL DISPOSAL Dispose of appliances according to the regulations and requirements of your local council. If appliances are disposed of in landfills or dumps, hazardous substances may leak into the groundwater and get into the food chain, damaging your health and well-being.
Page 23: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Fault Possible cause Possible solution Battery pack not installed Remove and insert the battery pack properly again Battery not charged Charge the battery Cannot start Internal damage or wear e.g. Repair by an authorised service motor is damaged centre Pull the chain brake lever backward Chain brake is engaged...
Page 24: Warranty
WARRANTY WARRANTY This product is covered by a 2 year parts and labour warranty against manufacturing defects. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
