Summary of Contents for ATECH LCS 100

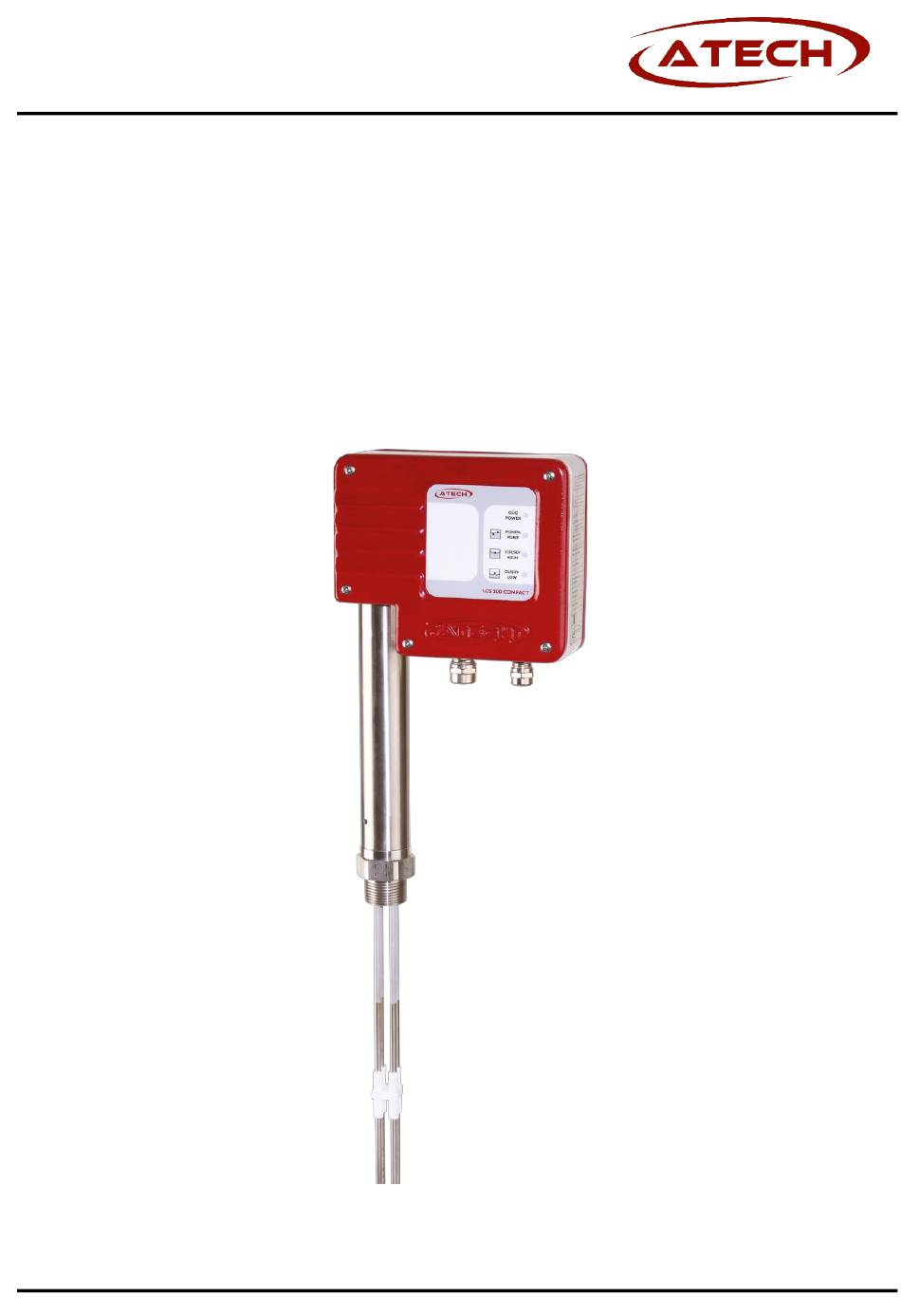

- Page 1 LCS 100 COMPACT ON-OFF LEVEL CONTROL "Steam & Control Technologies" Installation Instructions Compact Level Control System LCS 100 IM-LCS10023I-en www.atech-ltd.com...
-
Page 2: Table Of Contents
4.4 Factory Default Settings 5. WIRING 6. COMMISIONING 7. MAINTENANCE ATECH INDUSTRIAL PRODUCTS LTD İPKAS San. Sitesi 16A Blok No: 37 İkitelli/İstanbul - Turkey P : +90.212.438 42 38 F: +90.212.438 42 58 E : servis@atech-ltd.com W : www.atech-ltd.com IM-LCS10023I-en www.atech-ltd.com Page... -
Page 3: Safety Informations
LCS 100 COMPACT ON-OFF LEVEL CONTROL "Steam & Control Technologies" 1. SAFETY INFORMATIONS Safety! Installation, commissioning and maintenance of this device must be done by a qualified person in compliance with the operating instructions. Otherwise device and related equipments may be damaged and personnel may be injured. -
Page 4: Description And Function
LCS 100 COMPACT ON-OFF LEVEL CONTROL "Steam & Control Technologies" 2. DESCRIPTION & FUNCTION The compact level control system LCS 110 works according to the conductivity measurement principle and four levels can be signalled. The comapct Level System LCS 110 consists of level controller and four level probes. - Page 5 LCS 100 COMPACT ON-OFF LEVEL CONTROL "Steam & Control Technologies" 2. DESCRIPTION & FUNCTION The compact level control system LCS 110 works according to the conductivity measurement principle and four levels can be signalled. The comapct Level System LCS 110 consists of level controller and four level probes.
- Page 6 For details on the conformity of our equipment with European Directives, please refer to our Declaration of Conformity or our Manufacturer's Declaration. The current Declaration of Conformity / Declaration of Manufacturer are available in the Internet under www.atech-ltd.com s or can be requested from us. IM-LCS10023I-en www.atech-ltd.com...
-
Page 7: Installation
LCS 100 COMPACT ON-OFF LEVEL CONTROL "Steam & Control Technologies" 4. INSTALLATION Highly recommended that only qualified staff should carry out installation work in accordance with these installation instructions. 4.1 Selection of the Switching Levels Firstly determinite the required switching levels for the boiler then cut each tips to length before installation. -
Page 8: Installation To Level Tube
LCS 100 COMPACT ON-OFF LEVEL CONTROL "Steam & Control Technologies" 4.2 Installation to Level Tube PTFE tip supports provide lateral support as well as insulation between the tips. The probe is not suitable for outside installation without additional environmental protection. - Page 9 LCS 100 COMPACT ON-OFF LEVEL CONTROL "Steam & Control Technologies" During assembly, PTFE tape or copper sealing ring should be used to ensure sealing. It is tightened by connecting a 41 mm key thread to the flange placed on the level tube or on the boiler body.
-
Page 10: Functions And Configurations
LCS 100 COMPACT ON-OFF LEVEL CONTROL "Steam & Control Technologies" 4.3 Functions and Configurations With the DIP switches, located on the electronic bord, following functions can be selected: • Alarm functions • Turbulence filter time (Alarm Delay Time) • Pump functions Undo the housing screws and remove the housing lid. -
Page 11: Factory Default Settings
Pump On (discharge control) Electrode 3 Pump Off 4.4 Factory Default Settings Factory default settings DIP switch positions of LCS 100 On-Off Level Control System are : 1st Alarm : High Alarm 2nd Alarm : Low Alarm Turbulence delay time... - Page 12 LCS 100 COMPACT ON-OFF LEVEL CONTROL "Steam & Control Technologies" 5. WIRING Multi-core flexible control cable with a min. conductor size of 0.75 mm² can be used as mains and control cables. Provide level switch and control circuit with a slow-blow 2.5A fuse.
-
Page 13: Maintenance
It is recommended to make function tests regularly. If scale or corosion occurs on the probs, please get some information about this situtotion with expert for water conditions. When any fault situation occurs or maintenance is necessary, please contact with “Atech Service Departmen t ”. IM-LCS10023I-en www.atech-ltd.com... - Page 14 LCS 100 COMPACT ON-OFF LEVEL CONTROL "Steam & Control Technologies" NOTES IM-LCS10023I-en www.atech-ltd.com Page...
- Page 15 LCS 100 COMPACT ON-OFF LEVEL CONTROL "Steam & Control Technologies" NOTES IM-LCS10023I-en www.atech-ltd.com Page...
- Page 16 LCS 100 COMPACT ON-OFF LEVEL CONTROL "Steam & Control Technologies" ATECH INDUSTRIAL PRODUCTS LTD İPKAS San. Sitesi 16A Blok No: 37 İkitelli/İstanbul - Turkey P : +.90.212.438 42 38 F: +.90.212.438 42 58 E : servis@atech-ltd.com W : www.atech-ltd.com IM-LCS10023I-en www.atech-ltd.com...
