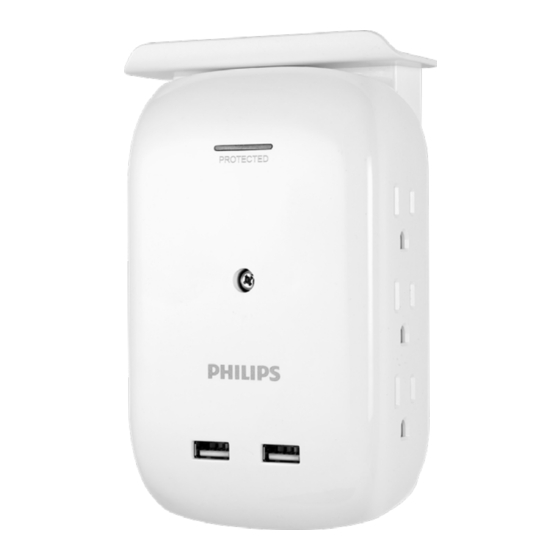

Philips SPS6022WA/37 User Manual

Surge Protector
Home Power
User manual
Temporary installation:
1. Remove the mounting screw from the surge protector needed for
permanent installation.
2. Plug the surge protector into a standard grounding duplex wall
receptacle, covering both outlets, by fully inserting the plug and
ensure there are no exposed conductors.
3. The surge protector will provide power and surge protection.
4. Make sure electronic equipment is turned off before plugging into
the surge protector outlets. Do not use extension cords to connect
equipment to the surge protector.
5. Connected equipment can be turned on.
6. Hold the surge protector firmly against wall when removing plugs to
prevent it from pulling loose.
Permanent installation:
1. Disconnect power to the receptacle at the service panel.
2. Remove wallplate mounting screw from existing grounded duplex
wall outlet and discard. DO NOT remove wallplate.
3. Plug surge protector into wall outlet and secure with center
mounting screw provided.
4. Restore power at service panel.
5. The surge protector will provide power and surge protection.
6. Make sure electric equipment is turned off before plugging into
the surge protector outlets. Do not use extension cords to connect
equipment to the surge protector.
7. Connected equipment can be turned on.
USB charging
• 2.4 Amp total output allows you to charge one tablet or two
smartphones at full capacity at the same time. Recharge your device
at a maximum speed of 2.4 Amps when connected to a single port.
• USB charging ports may not charge all devices. Some devices require
proprietary USB power supply.
• The USB ports are used to charge portable electronic devices only.
There is no data transfer capability.
NOTE: Check the blue "PROTECTED" indicator light periodically. A
glowing blue indicator light shows that surge protection is being
provided. If the blue "PROTECTED" indicator light stops glowing, the
surge protective components have expired — though power will still be
supplied to the outlets, now unprotected. To ensure the protection of
your electronics the surge protector should be replaced.
Surge protector — limited-lifetime warranty
Jasco Products Company warrants this surge protector to be free of
defects in workmanship and/or materials for the life* of the surge
protector. If such a defect should arise during the life of the surge
protector, Jasco will, at our option, either repair or replace the surge
protector without charge. This warranty does not cover damage caused
by lightning, accident, misuse, or alterations to the surge protector.
* This surge protector, like all surge protectors, has a finite lifespan.
Even under normal circumstances and in the absence of defects,
the product's life will expire when the surge protector's component
capacity has been exceeded, thereby ceasing to provide protection
from surges.
Warranty replacement procedure
1. Call our U.S.-based Consumer Care at 1-844-816- 0320 to get a
Return Authorization Number (RA#), shipping instructions and a
prepaid return address label.
2. Return the said surge protector, freight prepaid, to Jasco. Surge
protectors returned to us must have an RA# included in the mailing
address to be accepted.
3. The original purchaser will be asked to send the surge protector, a
copy of the sales receipt for the product, your name, address, phone
number and a description of the problem.
Connected equipment warranty
Equipment replacement guarantee for
surge model: SPS6022WA/37
Maximum warranty amount: $25,000(USD)
NOTE: This device is not a lightning arrestor, so it will not afford
protection when lightning strikes nearby power lines, the house,
service entrance or antenna. The warranty is void if a power
disturbance damages your equipment through the coax, phone
or network lines.
Please visit byjasco.com/cew for more information on the
connected equipment warranty.
FCC Statement
Suppliers Declaration of Conformity | Model #: SPS6022WA/37 |
Jasco Products Co., 10 E. Memorial Rd., Oklahoma City, OK 73114,
www.byjasco.com
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC NOTE: The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user's authority to operate
the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Any changes of modifications not expressly approved
by the grantee of this device could void the user's authority to
operate the equipment. This device complies with Part 15 of the
FCC rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that
may cause undesired operation.
CAUTION:
TO REDUCE THE RISK OF
ELECTRIC SHOCK, USE ONLY INDOORS.
UNIT SHOULD BE PLUGGED INTO AN INTERIOR GROUNDED PARALLEL DUPLEX
RECEPTACLE. NOT FOR USE WITH GROUND-FAULT CIRCUIT-INTERRUPTER
RECEPTACLES OR RECEPTACLES WITH INDICATOR LIGHTS OR CONTROL.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS DEVICE
WITH A RECEPTACLE IN WHICH THE SLOT OPENINGS DO NOT ALIGN WITH
THE BLADES.
THANK YOU FOR YOUR PURCHASE!
Product
instructions
made easy
Scan to watch a step-by-step Get exclusive, web-only deals and
more! Scan here, or visit
instructional video, or visit
https://byjasco.com/51824i byjasco.com/deals
Need USB
accessories?
Discover more
Philips charging
cables, surge
protectors and
cool mobile
device accessories
by visiting
byjasco.com/power
WARNING WARNING
RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK
• DO NOT USE IN WET LOCATIONS • DO NOT USE IN WET LOCATIONS
• KEEP CHILDREN AWAY • KEEP CHILDREN AWAY
• USE INDOORS ONLY • USE INDOORS ONLY
• FULLY INSERT PLUG • FULLY INSERT PLUG
RISK OF FIRE RISK OF FIRE
• DO NOT EXCEED • DO NOT EXCEED
ELECTRICAL RATINGS ELECTRICAL RATINGS
NOT FOR USE WITH NOT FOR USE WITH
• AQUARIUMS OR OTHER • AQUARIUMS OR OTHER
WATER-RELATED PRODUCTS WATER-RELATED PRODUCTS
• GENERATORS, POWER INVERTERS, • GENERATORS, POWER INVERTERS,
HEATERS, SUMP PUMPS, OR HEATERS, SUMP PUMPS, OR
CAR, MOTORCYCLE, OR GOLF CAR, MOTORCYCLE, OR GOLF
CART BATTERY CHARGERS CART BATTERY CHARGERS
• MEDICAL LIFE-SUPPORT PRODUCTS • MEDICAL LIFE-SUPPORT PRODUCTS
MADE IN CHINA
Philips and the Philips Shield Emblem are registered trademarks
of Koninklijke Philips N.V. and are used under license. This
product has been manufactured by and is sold under the
responsibility of Jasco Products Company, and Jasco Products
Company LLC, 10 E. Memorial Rd., Oklahoma City, OK 73114 is
the warrantor in relation to this product.
This product comes with a limited-lifetime warranty.
Visit www.philips.com/support for warranty details.
Questions? Contact our U.S.-based Consumer Care at
1-844-816-0320 between 7AM-8PM, M-F, Central Time.
For product patent information, visit www.byjasco.com/patents.
Register
your Philips
product
Like our product?
Leave us a review on
Amazon.com or your favorite
retailer website!
Having issues and need
support?
Call our U.S.-based
experts Monday–Friday, from
7AM–8PM (Central)
1-844-816-0320
SPS6022WA/37
v1 11/22
