SolarDrive S2E Manual

Mounting kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

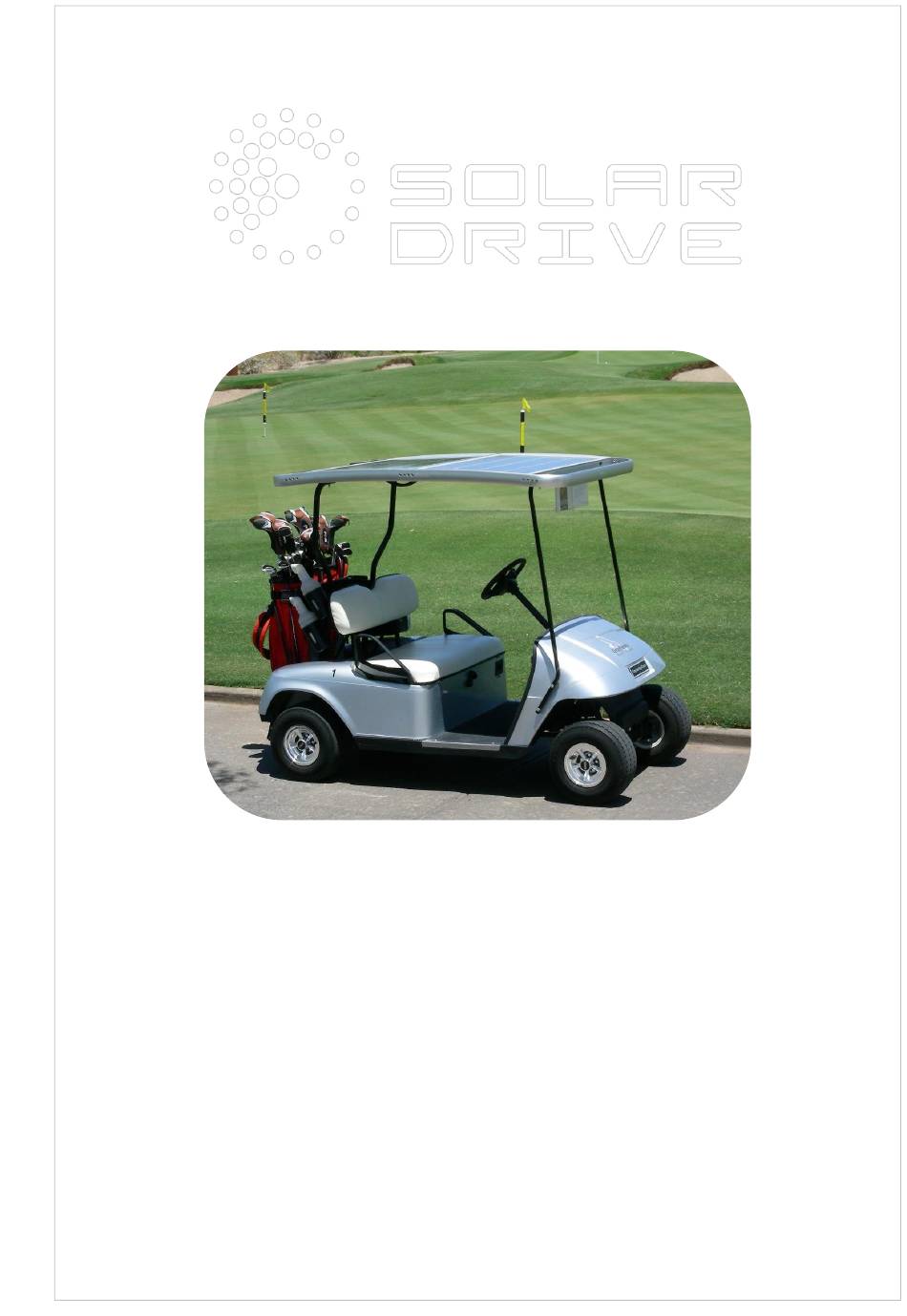

01-1-0010-01
S2E & S2F Mounting Kit
Version 1.9
1/29
www.solardrive.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S2E and is the answer not in the manual?

Questions and answers

Related Manuals for SolarDrive S2E

Summary of Contents for SolarDrive S2E

  • Page 1 01-1-0010-01 S2E & S2F Mounting Kit Version 1.9 1/29 www.solardrive.com...

  • Page 2: Introduction

    Please find an updated list of agents on our homepage www.solardrive.com We appreciate your opinion. Feel free to write or call if you have any suggestions and please share with us and other users your SolarDrive experiences at info@solardrive.com Sharing is caring for a greener world.

  • Page 3: Table Of Contents

    01 step Content of the S2E/S2F box 02 step Preparing the strut brackets 03 step Sliding the struts into position 04 step Mounting the S2E/S2F on the front struts 05 step Mounting the S2E/S2F on the rear struts 06 step Mounting the lower strut reinforcement...

  • Page 4: Owner's Manual

    4. Do not spray or high pressure clean, with water, the roof or any parts hereof. 5. Dry the S2E or S2F with a dry micro fibre cloth should it get damp or wet. 6. During long-term storage of the S2E or S2F without solar exposure, the golf cars batteries should regularly bee charged to avoid damage to the batteries.

  • Page 5: Warranty

    SolarDrive warrants the power output of the S2E/S2F System as follows: SolarDrive warrants that if, (a) within the first two (2) years from the date of sale to the Customer the S2E/S2F System exhibits a...
  • Page 6 3) Any uninstalled S2E/S2F System or parts shall become the property of SolarDrive when replaced on warranty. SolarDrive shall have the right to deliver another type of S2E/S2F System (different in size, color and shape but of the same or stronger power performance) if SolarDrive has discontinued manufacture of the S2E/S2F System in question at the time the warranty claim is accepted.
  • Page 7 JURISDICTION. F. Validity This Limited Warranty shall be valid from Jan 1st. 2014 and shall apply to all S2E/S2F Systems sold to a Customer on or after this date. This Limited Warranty shall be valid until a new revision is issued by SolarDrive.
  • Page 8 Metric screw/nut torque (Replacement inch screw/nut) M6 7.4 Nm (1/4" 8 lbf ft) M8 17.9 Nm (5/16" 17 lbf ft) Note The S2E/S2F box might contain additional parts for different car models please look up your model on www.solardrive.com our webpage or contact your local dealer if you have any questions ITEM NO.
  • Page 9 01-0-0027-00 M8 A2 DIN 125 Form B Washer 01-0-0168-00 M8x23,5x23,5x4,5 A2 Nut Squared 01-0-0014-00 M8 A2 DIN 985 Lock Nut 01-0-0211-00 M8x20 A2 DIN 913 Pinole Screw Würth Art. No. 0259 8 20 01-0-0053-01 M8 Plastic Nut Cap 01-0-0063-01 Mounting Angle 9/29 Size: A3 www.solardrive.com...
  • Page 10 Sliding the strut brackets into position 03. Step - Assembly: 10/29 www.solardrive.com...
  • Page 11 Sliding the strut brackets into position 03. Step - Assembly: Size: A3 11/29 www.solardrive.com...
  • Page 12 Mounting the S2E/S2F on the front struts 04. Step - Assembly: ITEM NO. PART NUMBER QTY. 01-0-0215-00 M6 9.8 Black Zink DIN 6923 Flange Nut 01-0-0222-00 M6x40 9.8 Black Zink DIN 6921 Flange Bolt 12/29 Size: A3 www.solardrive.com...
  • Page 13 Mounting the S2E/S2F on the rear struts 05. Step - Assembly: 13/29 Size: A3 www.solardrive.com...
  • Page 14 06. Step - Assembly: Reuse Club Car screw ITEM NO. PART NUMBER QTY. 01-0-0213-02 M8x55 9.8 Black Zink DIN 6921 Flange Bolt 01-0-0216-00 Club Car Precedent Support Bracket Left 103795401 01-0-0217-00 Club Car Precedent Support Bracket Right 103795402 14/29 www.solardrive.com...
  • Page 15 01-0-0214-00 M6x70 9.8 Black Zink DIN 6921 Flange Bolt 01-0-0215-00 M6 9.8 Black Zink DIN 6923 Flange Nut 01-0-0185-00 25 x 25 mm Pipe End 01-0-0244-00 Ø 20 mm Pipe End 01-0-0245-00 8x70 Black Zink - Hex Flange Tapping Screw 15/29 www.solardrive.com...
  • Page 16 Adjusting voltage to 48 volts 08. Step - Connecting: 36 Volt ~ 48 Volt  90˚ Note! For controllers, up 2016. The new controllers automatically adjust to battery voltage. 16/29 www.solardrive.com...
  • Page 17 Connecting the positive (+) wire: Battery compartment Front of vehicle Blade terminal for positive (+) connection Connecting the negative (-) wire: Connection is located either in battery compartment or behind electrical component mounting plate (accessed through panel in bag storage area) 17/29 www.solardrive.com...
  • Page 18 Battery compartment Front of vehicle Negative (-) connection Negative (-) connection Electrical component mounting plate View through rear access panel 18/29 www.solardrive.com...
  • Page 19 Connecting models with 4x12 V batteries 10. Step Connecting: Connecting the positive (+) wire: Precedent vehicles manufactured after Jan 2, 2008 (4x12volt battery configuration) Battery compartment Front of vehicle Positive (+) connection 19/29 www.solardrive.com...
  • Page 20 After January 2, 2008: Negative connection at rear of battery compartment (Option 1) After January 2, 2008: Negative (-) connection access through rear access panel (Option 2) Electrical component mounting plate as viewed through rear access panel 20/29 www.solardrive.com...
  • Page 21 Plugging in the S2E/S2F 11. Step Connecting: Alternative fuse and battery connector 21/29 www.solardrive.com...

  • Page 22: Step Mppt & Charge Controller

    S2E MPPT and charge controller 12. Step - MPPT and charge controller: S2E – S2F MPPT (Maximum Power Point Tracker) Battery charge control Perspective view  Display Front view Rear View Connect to PV Connect to battery 22/29 www.solardrive.com...
  • Page 23 LCD display Version identification: Photo Voltaic voltage BATT: Battery voltage xxxW: Charge power in Watt xx.xA: Charge current in Amps Low solar radiation: CO2 SAVE: Accumulated carbon dioxide (CO ) savings ACC POWER: Accumulated power production in KWh 23/29 www.solardrive.com...
  • Page 24 Battery fully charged, the MPPT will stop charging. The MPPT automatically reduces charging power when batteries are close to full. PREPARE CHARGE: MPPT will start charging in a few seconds CHARGING: Solar power is delivered to batteries BATT 00.0V 00.0A: Battery is disconnected. 24/29 www.solardrive.com...

  • Page 25: Assembly Complete

    Assembly complete Last step: Enjoy 25/29 www.solardrive.com...

  • Page 26: Troubleshooting

     If you should ever encounter problems with the power production or charging functionality of the SolarDrive S2E please use the following troubleshooting steps to rule out any easily solved causes. Not all steps may seem relevant in your given situation but please check them anyway.
  • Page 27 Check wiring, including the wires and connectors inside the roof system. In case the above steps does not reveal the cause, before you contact your supplier or the SolarDrive Service Team, please make a note of your results, the serial no. of the product as well as purchase information.

  • Page 28: Spec

    Solar panels Teflon/Polymer lamination or hardened glass - see spec on solar panel Controller Charge controller MPPT (Maximum Power Point Tracker) Output for 24 V, 36 V, 48 V, 60 V and 72 V (S2F version) ©® PATENTED PRODUCT 28/29 www.solardrive.com...

  • Page 29: Dimensions

    Dimensions 29/29 Size: A3 www.solardrive.com...
