- Page 1 OPERATOR'S MANUAL EGO Diagnostic Tool MODEL NUMBER DT001E...
-
Page 2: Safety Instructions
It must not be used for any other purpose because of the increased risk of accidents and damage to the tool. Never attempt to modify the product in any way since this may result in accidents or damage to the product. Only use the original EGO battery. Do not test damaged or deformed batteries &... -
Page 3: Specifications

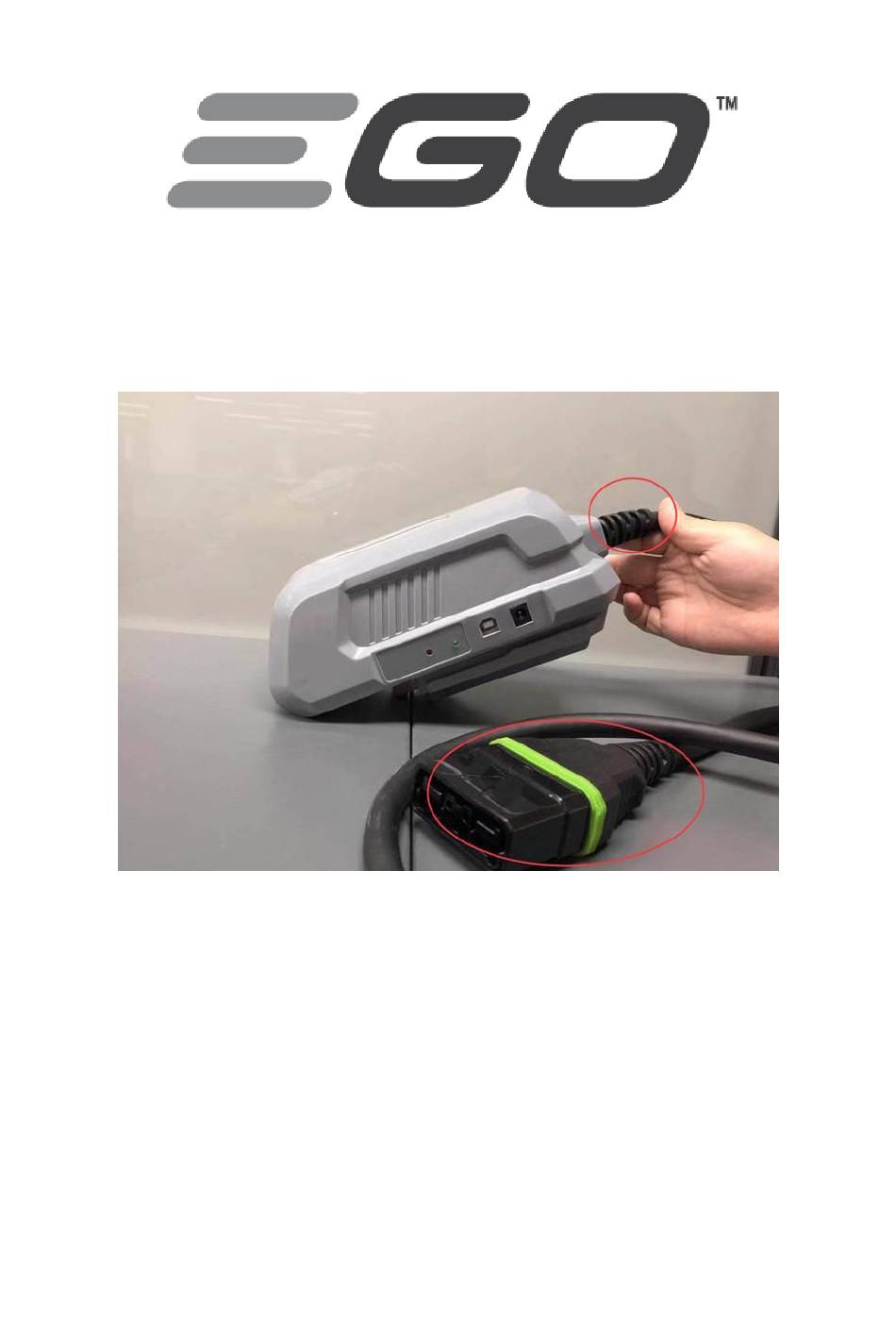

About EGO Diagnostic Tool The EGO Diagnostic Tool is a service tool for EGO Tools and Battery. It is intended to be used with a computer (PC/MAC) which is not included. Note: The compatible computer system must be Windows 7 or above. - Page 4 1.Diagnostic tool 2.Data cable 3.Power cable Adaptor(ADB1000) 4. EGO 1. Diagnostic Tool 2. Data cable: Connection between a diagnostic tool and PC for transmitting data. 3. Power cable: Used to power diagnostic tools. 4. Adaptor (ADB1000): Used when connect with Residential Range Tool.
- Page 5 Light 5.Tool Diagnostic Port Operation Install EGO Diagnostic Tool Software (Fig.C1&C2&C3&C4&C5) Note：EGO Diagnostic Software will work with Windows system version Win7 or above. . from your local Ego Power Plus website. Download the installation software package Double click the file you downloaded, then follow the steps to finish installation, carefully choose your install language.
- Page 8 When the installation is done, the EGO Diagnostic Tool folder is created in the computer's start menu. It also creates a shortcut on the desktop. Update EGO Diagnostic Tool Software & Firmware Update EGO Diagnostic Tool Software EGO Diagnostic software will notify user to update when there is a new software version available if computer is connected to internet.
- Page 9 Note: Update diagnostic tool firmware in time is critical for it’s accuracy and compatibility with most recent product, make sure your computer is connected to Internet occasionally for it able to receive new update. Using the EGO Diagnostic Tool Warning: Fixed and stable workstations are recommended to avoid the risk of battery pack/tool slipping.
- Page 10 Ready to diagnose FLASH Diagnostic in progress Notice: if the diagnostic tool can’t work, please try to power off and restart it or contact EGO service center. Tool & Battery Diagnostic Notice: Connect a healthy battery with sufficient power to battery port. This battery will provide power for product to be diagnosed when tool diagnostic is ongoing..
- Page 11 2. Place the commercial range tool and diagnostic tool on the workstations as fig. H. 3. Open diagnostic software, follow the steps as software leads . Notice: Plug tool diagnostic port to EGO Adaptor (ADB1000), then connect EGO Adaptor to product to be diagnosed...
- Page 12 Commercial Backpack battery 1. Connect the commercial backpack battery to the EGO diagnostic tool (Fig. J) 2. Place the commercial range tool and diagnostic tool on the workstations as fig.J 3. Open diagnostic software, follow the steps as software leads .
-
Page 13: General Maintenance
3. Should there be any issue during the update please do contact your EGO Technical Support.. GENERAL MAINTENANCE GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. -
Page 14: Warranty
WARRANTY EGO WARRANTY POLICY Please visit the website egopowerplus.com for full terms and conditions of the EGO Warranty policy. EN (The original declaration of conformity ) EC DECLARATION OF CONFORMITY We, EGO Europe GmbH.
