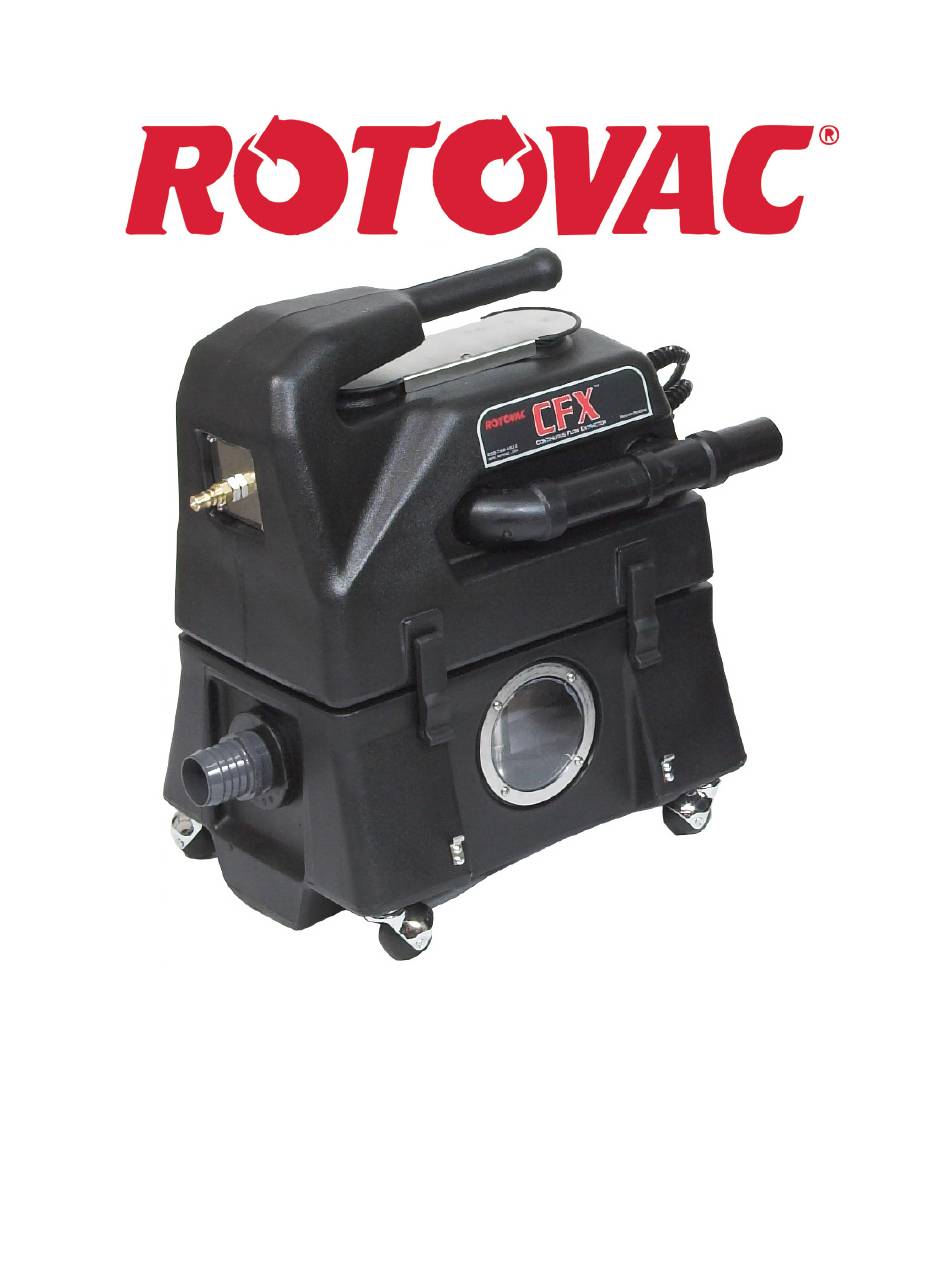

- Page 1 CFX – Power Pod CONTINUOUS FLOW EXTRACTOR Owner’s Manual Revised 09/09/11...
-
Page 2: Before Using Your
Rotovac toll-free for valuable tips and pointers. 1-888-768-6822. (8:00 am to 5:00 pm Monday - Friday PST) Training... - Page 3 Rotovac Page 2 * WA R NING * * A l l ow ing yo u r e qu ip m ent t o f r eez e w il l vo i d yo u r w arra nt y * Thoroughly remove as much moisture from all lines and tanks in the equipment system before storing in cold climates.
- Page 4 $50.00 charge. Under exceptional circumstances, equipment may be returned after the seven (7) day period, only with prior approval by Rotovac Corporation and will be subject to a 25% restocking fee. Issues of defect should be addressed within the warranty process.
-
Page 5: Operator's Responsibility
Power Pod therefore extremely important that the training video is watched and this operations manual is read and completely understood before operating. The training video is also available online at www.rotovac.com Learning Curve Power Pod Your first job using the will take longer than normal because of the “learning... -
Page 6: Operation
Rotovac Page 5 PUMP OUT SWITCH RV-501 VACUUM 1 SWITCH RV-501 VACUUM 2 SWITCH RV-501 MANUAL PUMP OUT BUTTON RV-645 PIG TAILS RP-338 2 PIG TAILS FOR 3 STAGE MODELS 1 PIG TAIL FOR 2 STAGE MODELS Operation Attach solution hose to faucet:... - Page 7 Rotovac Page 6 Operation Power Pod 2) Attach 50’ clear empty hose to the Secure the discharge end to sink or toilet making sure it will not fall out and flood the area with dirty water. SUPER IMPORTANT: Make sure to secure your clear empty hose into a toilet or drain so that it will not accidentally fall out.
-
Page 8: Daily Maintenance
Rotovac Page 7 Daily Maintenance Keep recovery tank clean so that debris does not build up and cause empty pump float switch to get stuck. Always make sure that the screen filter on the end of the empty pump hose is clean and resting at the very bottom of the recovery tank to prevent it from pumping air instead of water. - Page 9 Rotovac Page 8 SUPER IMPORTANT Always make sure the end of the dirty water empty hose does not fall out of the drain or toilet by running hose under toilet seat or securing to faucet. Also check to make sure your clean water hose connection at the faucet is not leaking above or below the sink.
- Page 10 Rotovac Page 9 Precautions Make sure your diffuser tube in the recovery tank is screwed in with the holes facing to the sides for proper separation of air and water and filter bag is clean. If the diffuser tube is not properly aligned, water will get sucked up into the vacuum motors and shoot out the exhausts.
- Page 11 Rotovac Page 10...
- Page 12 Rotovac Page 11 ITEM NO. PART NUMBER DESCRIPTION QTY. RC-69 16INCH 1/2" clear vinyl hose RC-69 2INCH 1/2" clear vinyl hose RC-76 3.5INCH 1 1/2" ABS pipe RC-76 5.25INCH 1 1/2" ABS pipe RC-94 24INCH 1/4" clear vinyl hose RP-258...
- Page 13 Rotovac Page 12 ITEM NO. PART NUMBER DESCRIPTION QTY. RV-509 2 stage Vacuum motor RV-515 Magnum Terminal Block TB100-05 RV-518 3/8" 8 32 pan head Phillips Screw RV-519 5/8" 1 1/2" 1/4" Pump out gasket washer RV-520 2" Diffuser tube plug RV-521 2"...
- Page 14 Rotovac Page 13 CFX TROUBLE SHOOTING GUIDE 1) Empty Pump not working: Always prime the empty pump before cleaning. Instructions to prime the empty pump: o Attach the clean water solution hose female quick connect to male Power Pod quick connect on top front of .
-
Page 15: Warranty
Rotovac Page 14 WARRANTY Rotovac Corporation products are warranted to be free of defects in material for 1 year as noted below: During this warranty period, we will repair or replace, at our sole option, free of charge, any parts shown to be defective in either material or workmanship.
