Thermasol Harvia Legend User Manual

Hide thumbs

Advertisement

Table of Contents

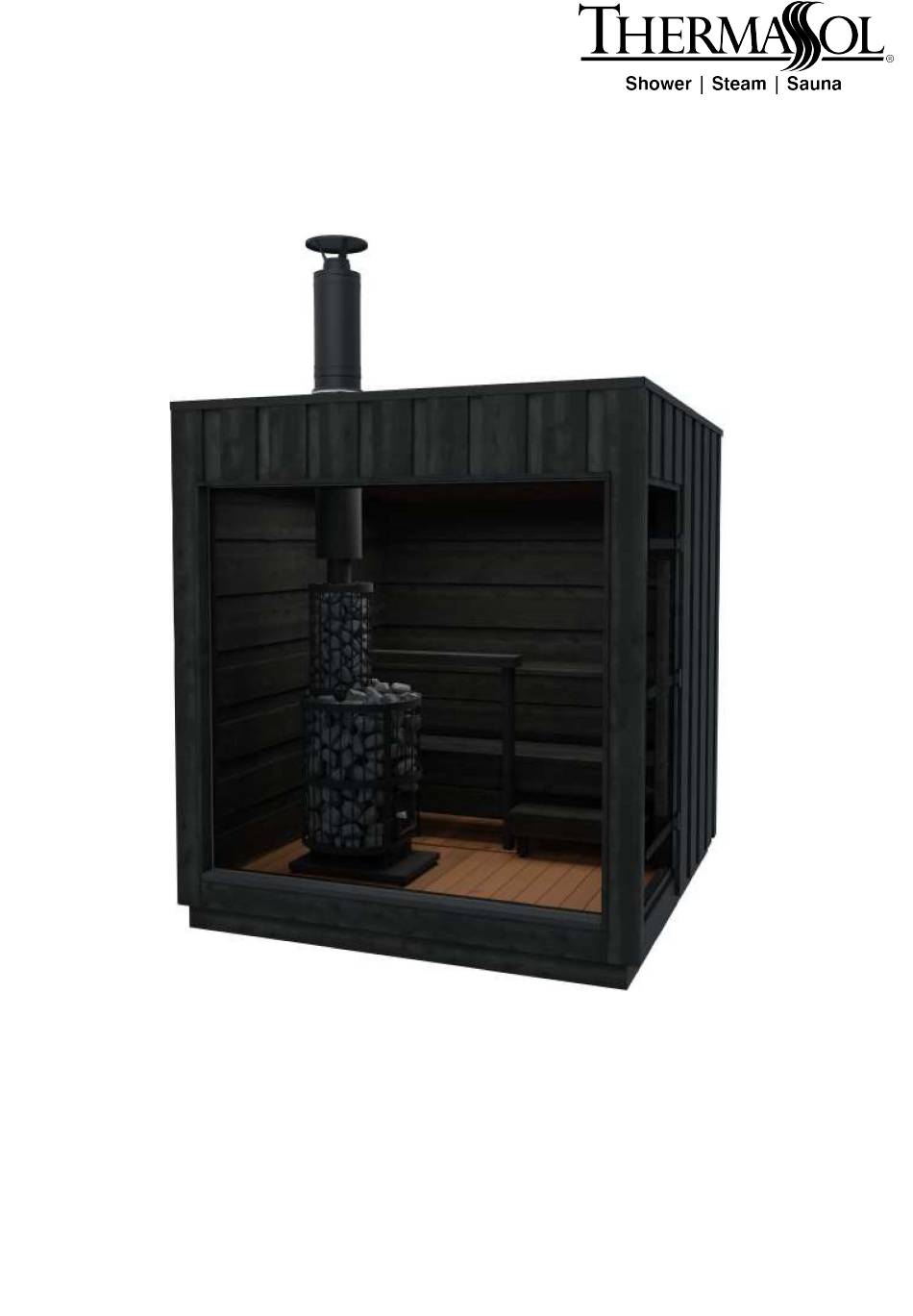

USERMANUAL
Harvia Legend sauna
Check the contents af the delivery without delay!
Study the instructions carefully and keep them for future reference.
07/2024
Versio: 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Harvia Legend and is the answer not in the manual?

Questions and answers

Related Manuals for Thermasol Harvia Legend

Summary of Contents for Thermasol Harvia Legend

  • Page 1 USERMANUAL Harvia Legend sauna Check the contents af the delivery without delay! Study the instructions carefully and keep them for future reference. 07/2024 Versio: 2.0...
  • Page 2 Kirami FinVision -sauna Original, contents of the delivery Harvia Legend sauna 1 pc The following parts are packed inside of the sauna Cover strip for pallet (front and back) 2 pc Terrace screws RST 4,2 x 55 mm Wubau TX20...
  • Page 3 Sauna heater stones (small) 2 pcs Sauna heater stones (large) 4 pcs Contents of the delivery with wooden heater 1 pc Harvia Legend 240 / Harvia Legend 240 GreenFlame Harvia WL300 smoke pipe guard 1 pc 1 pc Protective bedding Hearth plate...
  • Page 4 1 pc Steel Chimney 1 pc Steel Pipe Smoke pipe 1 pc 2 pcs Lead-through flange Screws for Lead-through flange 8 pcs 4,2x13 wronic Lead-through insulation 2 pcs Clamp for insulation 1 pcs Silicon 1 pc Rain flange 1 pc 12 H.

  • Page 5: Checking The Delivery

    CHECKING THE DELIVERY We recommend that you always check that you have received two intact pallets before signing the waybill. If you notice later that there is something missing from the contents of the sauna, please contact the party that delivered the sauna. GENERAL INFORMATION The surface area of the sauna is 2.3 by 2.25 metres, and the building height including the eaves is 2.55 metres.
  • Page 6 TRANSPORTING THE SAUNA AND LIFTING IT INTO PLACE When transporting the sauna, the lifting slings, forklift tines or long pallet trucks must be placed under the sauna so that those supports the elements as well as possible throughout the lift and the sauna remains straight and the lifting capacity constant.
  • Page 7 The sauna must be lifted from the side of the wall whe- re this sign can be found. Straps / forklift tynes must be aligned with the marks. Lifting with the slings Do not ever lift the sauna with slings set Set the slings from front of the sauna to from side to side the back.
  • Page 8 Foundations Pay attention to potential maintenance activities when choosing where to install the sauna. The warranty does not cover any indirect costs, such as the demolition or construction of terraces. Before building a foundation, it is also good to prepare for the drainage of water from the sauna to its final location (the sauna already has its own drainage installed).
  • Page 9 Foundations - Concrete slabs Under the sauna, we recommend placing concrete slabs on top of the hard surface to lift it high- er and putting roofing felt (bitumen roofing) on top of the slabs throughout the width of the slab. When the base of the sauna is clearly up in the air, it has ventilation and dries well.
  • Page 10 Removing Transport protection The sauna is delivered already assembled except for the sauna heater, flue, door handle, which are installed by the customer. During transport, the sauna’s own base acts as the pallet, which means that the sauna can be placed directly on top of the founda- tion prepared by the customer.
  • Page 11 Drainage Small amounts of water are used in the sauna, ei- ther for cleaning the sauna or washing up. Choose the location of the sauna so that the drainage of water will not cause any problems. There is a sewer in the sauna floor, and a water discharge pipe has already been attached to the sauna base.
  • Page 12 SAUNA DOOR - ATTACHING AND LOCKING Locking The lock set includes a latch, padlock and 2 keys. The sauna is only locked when the sauna is not in use. The lock stops the door from opening during rough weather and keeps children out of the sauna when adults are not around The sauna door must be locked when not in use.
  • Page 13 HARVIA LEGEND PRO PE11 -ELECTRIC HEATER INSTALLATION AND USAGE Note! Do not connect the sauna to the main power before you have installed heater. The connecting cable to the sauna must be 5x2.5mm² and the fuses 3x16A. Harvia Cilindro is delivered in a separate package (the heater package can be found inside the sauna).
  • Page 14 Connect the main power to the sauna. The connection can be found behind the sauna on the heater side. The Cable must be 5x2.5mm² and the fuses must be 3x16A. 6. Finally, install the cover strips on the transport supports at the front and rear with the 6 bro- wn terrace screws.
  • Page 15 HARVIA CILINDRO - USAGE THE SAUNA HEATER MUST NOT BE USED WITHOUT STONES. IF THE SPACE RESERVED FOR STONES IS NOT FULL, IT WILL CAUSE A FIRE HAZARD! When the control unit is connected to the power supply the control unit is in standby mode and ready for use.
  • Page 16 Heater Off The heater turns off and the control unit switches to standby-mode when: • the I/O button is pressed • the on-time runs out or • an error occurs. NOTE! It is essential to check that the control unit has cut off power from the heater after the on-time has elapsed, the dehumidification has ended or the heater has been switched off ma- nually.
  • Page 17 SEE MORE DETAILED INSTRUCTIONS WITH THE CONTROL PANEL FROM THE CONTROL PANELS INSTRUCTIONS OR THE ATTACHED LINK https://mediabank.harvia.com/catalog/Harvia/r/320/viewmode=previewview/qs- r=xenio%20...
  • Page 18 INSTALLATION AND USAGE OF LEGEND HEATER AND STEEL CHIMNEY Harvia Legend -burning heater and steel chimney are delivered in a separate package (found inside the sauna). You will find more detailed instructions for use inside the package. BEFORE INSTALLING THE HEATER BEFORE USING THE SAUNA AND PUTTING THE STONES INTO PLACE, A WOOD-BURN- ING SAUNA HEATER IS PREHEATED OUTDOORS ON A NON-COMBUSTIBLE BASE.
  • Page 19 1. Legend heater has 4 chimney outlets. Check 2. Place the Protective bedding on the floor that the chimney outlet on top of the heater is according to the dimensions of the picture. free and the other three are blocked. Place heater on top of the Protective bedding.
  • Page 20 12 E 12 F 6. Take 2 pcs of insulation wool and fix them Place stool in place front of the bench. together using the clamp for insulation. 8. Insert the insulation into the roof from the inside so that the insulation is on the same level as the sauna ceiling.
  • Page 21 12 A 12 L 9. Attach the upper end to the steel pipe with Only in Finland and Sweden three self-tapping screws. The screws are dril- led through the plate. Place smoke damper on top of the smoke pipe. NOTE! The upper end must be positioned so that the screws hit the grooves in the outer casing below.
  • Page 22 Always make sure the smoke damper is open before lighting a Always make sure the smoke damper is open before lighting a fire in the fireplace. It must not be closed until the charcoal has fire in the fireplace. It must not be closed until the charcoal has completely ceased to burn.
  • Page 23 12 C 12 G 17 D 14. Attach 2 pcs of the lead-through flange 15. Put silicone on the tin roof around the to the ceiling of the sauna around the steel hole. chimney. The components will overlap. 4 pcs 4,2x13 wronic screws are needed for each flange.
  • Page 24 12 K 12 I 19. Lock the rain cap in place by turning it 18. Slide the clamp around the top of the slightly clockwise. chimney onto the top edge of the rain flange. NOTE! Do not tighten the rain cap too tightly. Tighten and lock the clamp firmly so that there The rain cap must be removed during the clea- are no gaps left in the top edge of the rain...
  • Page 25 HARVIA LEGEND - USAGE Lighting a fire in a wood-burning sauna heater Only natural kindling and dry hardwood or softwood should be used for lighting a fire in a wood-burning sauna heater. The moisture content of the wood should be less than 20%. Good firewood consists of split wood with a diameter of around 5 cm, length of approx.
  • Page 26 GENERAL Preheating before using the sauna Before the first heating, it is a good to wipe the dust off the sauna with a moist cloth or spray water with a garden hose, for example (Make sure that the sauna dries properly if you don’t use it after washing).
  • Page 27 Recommended accessories We recommend the following accessories to make sauna bathing an easy and enjoyable experience. Wa- ter bucket and ladle are necessary: they can be used to throw a suitable amount of water on the sauna heater. Thermometer makes it easy to monitor the temperature both while heating up the sauna as well as maintaining the heat.
  • Page 28 The characteristics of wood and surface treatment Wood is a natural material, and you should know the following about its characteristics. Normal- ly, wooden materials gain a grey tint in roughly one year, depending on the amount of sunlight (care instructions below). Sometimes resin may be exuded from knots, but it can be removed from the knots with a steel trowel and the area treated with knotting solution.
  • Page 29 Other safety issues Ensure the safety of children in the sauna and in its vicinity. Children must not be left unsuper- vised in the sauna. When the sauna is not in use, its door should be kept closed and locked, if necessary.

  • Page 30: Warranty

    In Finland, used LED lights can be returned for free and without an obligation to buy a new product to shops where lamps are a part of the usual selection, or alter- natively they can be taken to a recycling point. HARVIA LEGEND PRO PE11 https://harvia.fi/wp-content/uploads/2016/10/PO5FFISV.pdf CONTROL UNIT https://mediabank.harvia.com/catalog/Harvia/r/320/viewmode=previewview/qsr=xenio%20...
  • Page 31 11111 11111 (37)64...
