WPMW, WPMS
Heat-pump managers for
heating-system heat pumps.
Operating and installation instructions
06/02
Assembly as well as the initial start-up and maintenance of the device may be carried out by
authorised skilled personnel only, in accordance with these instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WPMW and is the answer not in the manual?

Questions and answers

Summary of Contents for STIEBEL ELTRON WPMW

  • Page 1: Systemdrawing

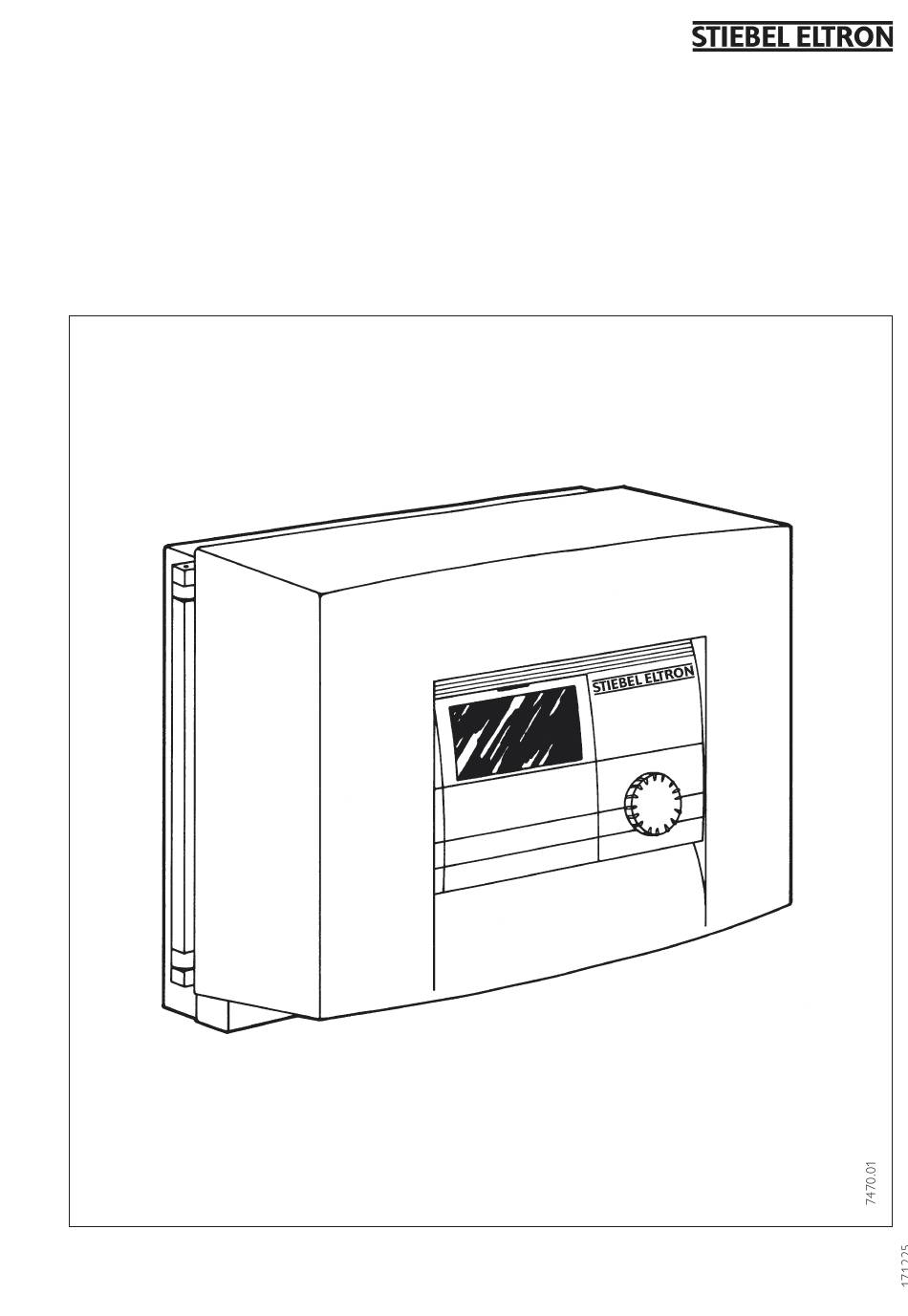

    WPMW, WPMS Heat-pump managers for heating-system heat pumps. Operating and installation instructions 06/02 Assembly as well as the initial start-up and maintenance of the device may be carried out by authorised skilled personnel only, in accordance with these instructions.

  • Page 2: Table Of Contents

    Checking IHC configuration Electrical connection Electrical lines Fuses Mains supply Tables Temperature sensor Technical data Circulation pump and mixer Default settings BUS connection Heater and hot-water FE 6 remote control programs WPMW connection field WPMS connection field Systemdrawing 1 Systemdrawing 2...

  • Page 3: About These Instructions

    Operation and functions The WPM heat pump manager is supplied in two versions. The first is the WPMS control cabinet model and the second the WPMW in a wall-mounted housing. At the point of installation a BUS line is laid between the heating heat pumps and the WPM to establish communication between the two.

  • Page 4: Operating Instructions

    Operating instructions (For operator and skilled personnel) 1 Unit overview System status display A Display Thermostat mixer opens B Rotary control Thermostat mixer closes C Reset / Auto rotary control Circulation pump heater circuit 2 “Mixer circuit” D Programming key Circulation pump heater circuit 1 “Radiator circuit”...
  • Page 5 Display (with all display elements) The meaning behind the display elements is dependent upon the control level: 1. Control level 2. Control level 3. Control level (Operating modes) (Start-up) Weekday Weekday Number of BUS subscribers Time time, Code, parameter, Temperatures, temperature, Party hours, time interval,...

  • Page 6: Control Sequence

    2 Control sequence In order to change the system parameter, press the -key and the Operation is split up into 3 control levels. The red indicator lamp above the -key 1st. and 2nd. control levels are accessible will go on. You can now use the to both the user and skilled technician.

  • Page 7: Settings

    3 Settings 3.1 Operating modes (1st. control level) The operating modes can be altered when the control panel is closed by pressing the - button . Description Application Explanation Standby mode System is switched off, but not During the holiday period. de-energised;...

  • Page 8: Room Temperature

    3.2 Room temperature (2nd. control level ... ) The room temperature 1 and room temperature 2 system parameters enable you to set a specific room temperature for the heater circuit 1 and heater circuit 2 for both daytime and set-back operating modes.

  • Page 9: Hot-Water Temperature

    3.3 Hot-water temperature Using the hot-water temperature system parameter enables you to assign a daytime and a set- back value to the storage water heater’s temperature. -button until the Open the control flap and turn the indicator symbol lights up on the hot-water temperature Specified hot-water -key shows the specified and actual hot-water Pressing the...

  • Page 10: Weekday And Timer

    3.4 Weekdays and timer The Weekday/timer system parameter enables you to set the weekday and the time. 1. represents the weekday Monday. Weekday Open the control flap and turn the -button until the indicator symbol lights up on the weekday/timer. The weekday and time appear on the display.

  • Page 11: Holiday And Party Program

    3.5 Holiday and party programme 3.5.1 Holiday programme In the holiday program the heat-pump system runs in set-back mode. The holiday period is entered in days. The start and end time for the holiday program is always 12 noon. If the holiday period is entered in the morning, the system will enter the holiday program at 12 noon on that day.

  • Page 12: Temperature Information

    3.5.2 Party program In the party program you can extend the daytime mode by several hours. At the end of the specified time (hours) the heat-pump system will resume operation according to the heater pro- gram. Open the control flap and turn the -button until the indicator symbol lights up on the holiday/party program.

  • Page 13: Sensor Temperature

    Sensor temperature Outside temperature Actual room temperature (H2) (If the FE6 remote control is missing the display shows a – –) Specified room temperature (H2) Actual water-heater temperature Specified water-heater temperature Actual heat-pump return line temperature (H1) Specified heat-pump return line temperature (H1) for set value controls the set-value temperature is displayed Actual mixer flow temperature (H3) Specified mixer flow temperature (H2)

  • Page 14: Heating Curves

    3.7 Heating curves The system parameters for the heating curves enable you to set a heating curve each for heater circuits 1 and 2. Only if the correct heater curve is used for each particular building will the room temperature remain constant for every outside temperature. The correct choice of heating curve is therefore of particular significance! Note: Your skilled service technician has set a building and system-specific ideal heating curve for each heater circuit.
  • Page 15 The heating curve can be set for heater circuit 1 and heater circuit 2. Ex-factory for heater circuit 1 heating curve 06 and for heating circuit 2 heating curve 02 is pre-selected. The heating curves depend to 20°C room temperature. [°C] Outside temperature [°C] Correct heating curve selection:...

  • Page 16: Heater Program

    3.8 Heater program Using the heater program system parameter enables you to set for heater circuits 1 and 2 the respective heater programs H1 and H2. It is possible to specify three on/off time pairs (I, II, III) for each single day of the week or for the weekdays (Mon – Fri) and the weekend (Sat – Sun) or for the entire week.
  • Page 17 You can use the -button to configure the desired starting time for the daytime operation’s 1st. "on" time. Press the -key (indicator lamp goes out) and the set value is stored. Start of set-back operation (End of daytime operation) Press the -button until the starting time for the set-back operation (parameter 12) appears in the display.
  • Page 18 Now you can set the heater program for the Sat - Sun weekend. Turn the -button until the weekend days from Saturday to Sunday(6 7) appear in the display with the respective parameter 09. Start daytime mode Press the -key and the display will then show, in addition to the weekdays, the starting time for the daytime operation with the parameters 11 and the "on"...

  • Page 19: Hot-Water Program

    3.9 Hot-water program Using the hot-water program system parameter you can set the times of the daytime and set-back temperatures of the hot-water heater. It is possible to specify two on/off time periods (I, II,) for each single day of the week or for all weekdays (Mon – Fri) and the weekends (Sat – Sun) or for the entire week.
  • Page 20 Water heating start up Press the -key and the display will show the start time for the hot-water heater. Pressing the -key again causes the indicator lamp above the -key to be illuminated. button can be used to change the desired starting time. Press the -key (indicator lamp goes out) and the set value is stored.

  • Page 21: Fe 6 Remote Control

    4 FE 6 remote control For heater circuit 2 only The FE 6 remote control enables the specified room temperature for the thermostat mixer circuit and the operating mode to be changed by approx. ± 5 °C. It is equipped with the following control ele- ments: ! a rotary switch for changing the specified room temperature...

  • Page 22: Installation Instructions

    – 18 wedges for strain relief – WPM 2 Wall assembly (WPMW) The WPMW is intended solely for wall installa- tion. Care should be taken to ensure that when installed, the rear panel of the casing is not accessible. The device is to be protected against humidity, dirt and damage when in operation.

  • Page 23: Electrical Connection

    4 Electrical connection 4.3 Mains supply When connecting the mains supply the The electrical connection is to be made in protective conductor is to be installed in accordance with each electrical connection accordance with specifications. Mains and low diagram. voltage supplies are to be discretely installed in the wall-installation casing, the mains cables are The supply voltage at terminal L and the phase to be routed above the supply platform into...

  • Page 24: Temperature Sensor

    Temperature information system parameter AVF 6 clip-on probe Order no.: 16 53 41 by calling up the corresponding temperature value. Assembly notes: Clean pipe thoroughly. Apply thermal- conduction paste. AFS 2 outside sensor Fasten sensor using Order no.: 16 53 39 retaining band.

  • Page 25: Bus Connection

    Do not connect the BUS line until start up. The correct BUS connection is important to the operation of the heat-pump system (see X2. 9 X2. 10 for WPMW Section 5.1 and 6.1). X14. 1 X14. 2 X14. 3 for WPMS Required temperature sensor...

  • Page 26: Wpmw Connection Field

    2 3 4 5 6 7 8 9 10 11 12 13 14 15 Wedge The WPMW connection field is categorised in accordance with the valid safety requirements/ standards into an low voltage and a mains supply voltage range. All cables are routed into the guide channels and fastened to the wall detachable housing using the red wedges.

  • Page 27: Wpms Connection Field

    4.9 WPMS connection field * Internal circuit The connection at the WPM is to be conducted in accordance with the illustrated connection field. To this end the enclosed connectors are to be plugged in for final assignment to the WPM as follows: Low voltage range Supply voltage range X10 1-2...

  • Page 28: Start-Up Wpf-M, Wpl

    5 Start-up – Install the BUS lines successively to the individual heat pumps. An address is issued WPF-M ; WPL 13/18/23 when the heat pump has a voltage supply applied to it and if the BUS line is connected. The system can be started up after all the This enables the heat pump to be necessary components for heater operation controlled by the WPM.

  • Page 29: System Configuration

    If incorrectly initialised – Bridge sensor terminals 1 and 2 on the all IHCs have to be reset, i.e. they have to be terminal block initialised again (see Section 5.4.1). – Switch on heat-pump supply voltages for 30 seconds If the BUS line between the WPM and –...

  • Page 30: Start-Up List As An Overview

    5.5 Start-up overview When starting up the heat-pump system the system-specific parameters have to be defined along with the configuration in the 2nd. control level. These are set in the 3rd. code protected control level. The parameters are to be checked successively. Configured values should be entered in the columns provided (system value) for the start-up list under Section 5.7 on pages 42 and 43.
  • Page 31 Max. heat-pump return line temperature [°C] If this temperature is reached at the buffer return line, the WPM will switch off all the compressors. This safeguard function serves to prevent the high-pressure control being invoked. An error message is not issued when this value is reached. Parameter 7 can be requested via theTemperature information system parameter.
  • Page 32 Enable mode for 2nd. heat generator. (disabled ex-factory) Unter diesem Menüpunkt wird die Einbindung des 2. Wärmeerzeugers (2.WE) für den Heizbetrieb definiert. Er wird nur angezeigt, wenn der Drehschalter auf der IWS der Wärmepumpe von 1 auf 9 umgestellt wurde, d. h. der Betrieb mit einem anderen zweiten Wärmeerzeuger als dem DHC (interner 2.
  • Page 33 In the event that the 2nd. heat generator should be blocked during the utility company’s idle period, the appropriate time will be given in hours (positions 1, 2, 3). If the heat-pump system is correctly configured the 2nd. heat generator need not start during the idle period.

  • Page 34: Anti-Legionella

    Hot water with 2nd. heat generator (disabled ex-factory) Dieser Menüpunkt wird nur angezeigt, wenn der Drehschalter auf der IWS der Wärmepumpe von 1 auf 9 umgestellt wurde, d. h. der Betrieb mit einem anderen zweiten Wärmeerzeuger als der Elektr. Zusatzheizung (interner 2. WE) ge- wünscht wird.

  • Page 35: Room Influence

    Minimum de-icing time (for WPL only) Pre-select capable time [min] for de-icing procedure on IHC The set time is valid for the manual or demand-dependent de-icing. Observe WPL Assembly instructions. This time should not be set too high, as the de-icing procedure would thus be completed too late.

  • Page 36: Immediate Start

    Immediate start When starting up, the heat-pump functionality can be inspected by initiating an immediate start for all the heat pumps. When moving to the parameter a value of 60 appears in the right-hand side of the display. Pressing the PRG-key will trigger an immediate start: the heater circuit pump for heater circuit 1 and the source pump are switched on;...

  • Page 37: System Analysis

    WPM device code Display of current software status in WPM. IHC software states SOFT Pressing the PRG key results in the software states for the individual IHCs being displayed. IHC configuration Pressing the PRG key enables the ex-factory IHC configuration to be requested. The function can be exited by pressing the PRG key.

  • Page 38: Measures In Event Of Malfunctions

    5.6 measures in event of malfunctions Malfunctions, which occur in the system or the heat pump, are shown in the display as code numbers. The Start up and Temperature information system parameters can be used to read all the necessary parameters, which are required to conduct a comprehensive system analysis.
  • Page 39 04 ERROR HIGH PRESSURE / LOW PRESSURE Heat-pump high-pressure or low-pressure monitor triggered. Remedy High-pressure monitor Check Parameter 20 (max. return-line temperatur). Check flow rate and temperature on heater side Check coupling of flow and return line sensors Remedy Low-pressure monitor (WPF-M and TTF-M): Check flow rate and source side temperature Has refrigerant escaped? Remedy Low-pressure monitor (WPL und TTL):...
  • Page 40 Further parameters, which are available for system analysis: Parameter 70: Check all heat pump compressors by means of immediate start Parameter 71: Relay test of all relays in WPM Parameter 76: Check on software side of rotary control configuration (IHC) Parameter 77: System analysis for checking of all existing BUS subscribers and of active compressor stages Parameter 78: IHC reset, in order to delete the stored faults again...
  • Page 41 5.6.3 Heat pump inoperable Heat pump in standby mode Remedy: Change in program mode Idle period applied; standby symbol flashes Remedy: Wait, at end of idle period the heat pump starts up again automatically. A heat requirement has not been issued Remedy: Temperature information system parameter Temperature control, set and actual value comparison BUS line incorrectly connected...

  • Page 42: Inbetriebnahmeliste

    5.7 Start-up list During start up the control device should be set to standby mode . This serves to prevent the heat pump from starting up inadvertently. No. Parameter Adjustment range Default system value Enter code number 0000 to 9999 1000 10 Freezing-up protection 00 / 01...
  • Page 43 50 Minimum de-icing time (for WPL only) 1 to 20 min 1 min 51 Manual de-icing (for WPL only) 00 / 01 60 Control dynamic 1 / 20 61 Room influence 0 /20 62 Mixer operating period 30 to 240 s 210 s 63 Idle period after switching off compressor 1 to 120 min...

  • Page 44: Checking Ihc Configuration

    5.8 Checking IHC configuration...

  • Page 45: Rotary Switch

    Rotary switch Red LED: Flashing or static: The rotary switch can be used to pre-select If a fault occurs once only for a heat pump the LED will flash. The system is switched off. the various compressor systems. If more than 5 heat-pump faults occur within For the WPF - M the rotary switch must a period of 20 service hours, the red LED always be on 9.

  • Page 46: Start-Up

    6 Start-up – Install the BUS lines successively to the individual heat pumps. An address is issued WPWE 5... 14 KW when the heat pump has a voltage supply WPL 10/15/20/25/30 KW applied to it and if the BUS line is connected. This enables the heat pump to be The system can be started up after all the controlled by the WPM.

  • Page 47: System Configuration

    If incorrectly initialised 6.4 IHC reset capabilities all IHCs have to be reset, i.e. they have to be initialised again (see Section 6.4.1). 6.4.1 Initialise 1 IHC If the BUS line between the WPM and This must be done as follows: the heat pump is interrupted, the heat-pump system as a whole will shut –...

  • Page 48: Start-Up List As An Overview

    6.5 Start-up overview When starting up the heat-pump system the system-specific parameters have to be defined along with the configuration in the 2nd. control level. These are set in the 3rd. code protected control level. The parameters are to be checked successively. Configured values should be entered in the columns provided (system value) for the start-up list under Section 6.7 on pages 62 and 63.
  • Page 49 Max. heat-pump return line temperature [°C] If this temperature is reached at the buffer return line, the WPM will switch off all the compressors. This safeguard function serves to prevent the high-pressure control being invoked. An error message is not issued when this value is reached. Parameter 7 can be requested via theTemperature information system parameter.
  • Page 50 Lower heat pump application limit [°C] If the outside temperature lies outside the lower application limit the heat pump is switched off. At a setting of OFF there is no lower heating limit for heat-pump operation. This value is extremely important when starting up bivalent systems. Below this outside temperature the 2nd.heat unit is solely responsible for heating.
  • Page 51 generator and reaching the specific boiler temperature the mixer then regulates to the specific mixer flow temperature (heat pump return line temperature + heating curve distance). The 2nd. heat generator switches off when the max boiler temperature is reached (see MSM Assembly instructions): Behaviour of 2nd heat generator at utility company idle period As the heat pump is unable to meet heating requirements during a utility company idle period, one should specify the behaviour of a 2nd.

  • Page 52: Water-Heater Operation

    Water-heater operation If there is no storage water heater sensor, nothing will be displayed at this point. Hot-water priority mode Water heater Water heater flow return line Only the heat pump pre-selected for the water heater Buffer flow Buffer return line is switched on or remains on.
  • Page 53 Hot water with 2nd. heat generator In position 1 of the circulation pump output and in position 2 of the outputs a circulation pump + water heater charging pump are switched on for the purpose of switching the 2nd. heat generator where demand for hot-water exists. Setting 0: The 2nd.
  • Page 54 Minimum de-icing time (for WPL only) Pre-select capable time [min] for de-icing procedure on IHC The set time is valid for the manual or demand-dependent de-icing. Observe WPL Assembly instructions. This time should not be set too high, as the de-icing procedure would thus be completed too late.
  • Page 55 Mixer operation time [sec.] To ensure that mixer regulation functions reliably and quickly the mixer operation period [sec.] has to be entered for the mixer. The default value must be maintained for Stiebel Eltron mixers. Idle period [min] After a heat pump is switched off an idle period is set, in order to safeguard the compressor. The preset idle period of 20 minutes should not be exceeded.

  • Page 56: Measures In Event Of Malfunctions

    Error list ErrL The 1st. error code is displayed by pressing the PRG key. The error list displays the 10 most recent system fault occurrences. The most recent fault is designated by 1. The fault codes are given on the left of the display. The centre shows the IHC numbers (1…6), or 7 for the mixer MSM module and the fault code at the right: 01 Error, source temperature not 07 Error, relay level...
  • Page 57 IHC configuration Pressing the PRG key enables the ex-factory IHC configuration to be requested. The function can be exited by pressing the PRG key. Left-hand display: Consecutive IHC: numbers 1 to 10 (digits 1 and 2) Right-hand display : Machine type as under defined code (digits 5 and 6) The following machine types are possible: 1 compressor with hot-gas de-icing (position for all WPWEs too) 1 compressor with inverse de-icing...
  • Page 58 6.6 measures in event of malfunctions Malfunctions, which occur in the system or the heat pump, are shown in the display as code numbers. The Start up and Temperature information system parameters can be used to read all the necessary parameters, which are required to conduct a comprehensive system analysis.
  • Page 59 03 ERROR LOW PRESSURE Heat-pump low-pressure monitor triggered Remedy: Check flow rate and source side temperature Is the evaporator iced up? ⇒ Initiate manual de-icing ⇒ Check de-icing process Has refrigerant escaped? ⇒ Notify customer service 04 ERROR HIGH PRESSURE Heat-pump high-pressure monitor triggered Remedy: Check parameter 20 (max.
  • Page 60 Further parameters, which are available for system analysis: Parameter 70: Check all heat pump compressors by means of immediate start Parameter 71: Relay test of all relays in WPM Parameter 76: Check on software side of rotary control configuration (IHC) Parameter 77: System analysis for checking of all existing BUS subscribers and of active compressor stages Parameter 78: IHC reset, in order to delete the stored faults again...
  • Page 61 6.6.3 Heat pump inoperable Heat pump in standby mode Remedy: Change in program mode Idle period applied; standby symbol flashes Remedy: Wait, at end of idle period the heat pump starts up again automatically. A heat requirement has not been issued Remedy: Temperature information system parameter Temperature control, set and actual value comparison BUS line incorrectly connected...

  • Page 62: Inbetriebnahmeliste

    6.7 Start-up list During start up the control device should be set to standby mode . This serves to prevent the heat pump from starting up inadvertently. No. Parameter Adjustment range Default system value Enter code number 0000 to 9999 1000 10 Freezing-up protection 00 / 01...
  • Page 63 50 Minimum de-icing time (for WPL only) 1 to 20 min 1 min 51 Manual de-icing (for WPL only) 00 / 01 60 Control dynamic 1 / 20 61 Room influence 0 /20 62 Mixer operating period 30 to 240 s 210 s 63 Idle period after switching off compressor 1 to 120 min...

  • Page 64: Checking Ihc Configuration

    6.8 Checking IHC configuration...

  • Page 65: Light-Emitting Diodes

    Rotary switch S3 slide control position Switch ON : SERVICE mode The rotary switch can be used to pre-select Corresponding compressors (specified by the the various compressor systems. These position of the rotary switch) are switched on settings were made ex-factory dependent in intervals of seconds.

  • Page 66: Tables

    7 Tables 7.1 Technical data WPMW WPMS Supply voltage 230 V ~ ± 10 %, 50 Hz Power consumption max. 8 VA EN 60529 IP 21 degree of protection IP 20 degree of protection EN 60730 Protection class I Protection class II...

  • Page 67: Default Configurations

    7.2 Default configurations The heat-pump manager (WPM) is pre-programmed ex-factory according to the following default configurations: on/off times for heater circuit 1 and heater circuit 2 H1 / H2 (daytime mode) Monday - Friday - 22 Saturday - Sunday - 23 Room temperature 1 / 2 Room temperature in daytime operation 20 °C Room temperature in set-back operation 15 °C...
  • Page 68 7.3 Heating and hot-water programs You can enter your programmed individual values in this table. Heater circuit 1 on/off time period I on/off time period II on/off time period III Mon. Tue. Wed. Thur. Fri. Sat. Sun. Mon. - Fri. Sat.

  • Page 69: System Schematic

    System schematic 1...
  • Page 70 System schematic 2...
  • Page 71 Notice...
  • Page 72 Internet www.stiebel-eltron.com Internet www.stiebel-eltron.at Polska Belgique Stiebel Eltron sp.z. o.o Stiebel Eltron Sprl / Pvba ul. Instalatorów 9 PL-02-237 Warszawa Rue Mitoyenne 897 B-4840 Welkenraedt 022-8 46 48 20 Fax 022-8 46 67 03 087-88 14 65 Fax 087-88 15 97 E-Mail stiebel@stiebel-eltron.com.pl...
