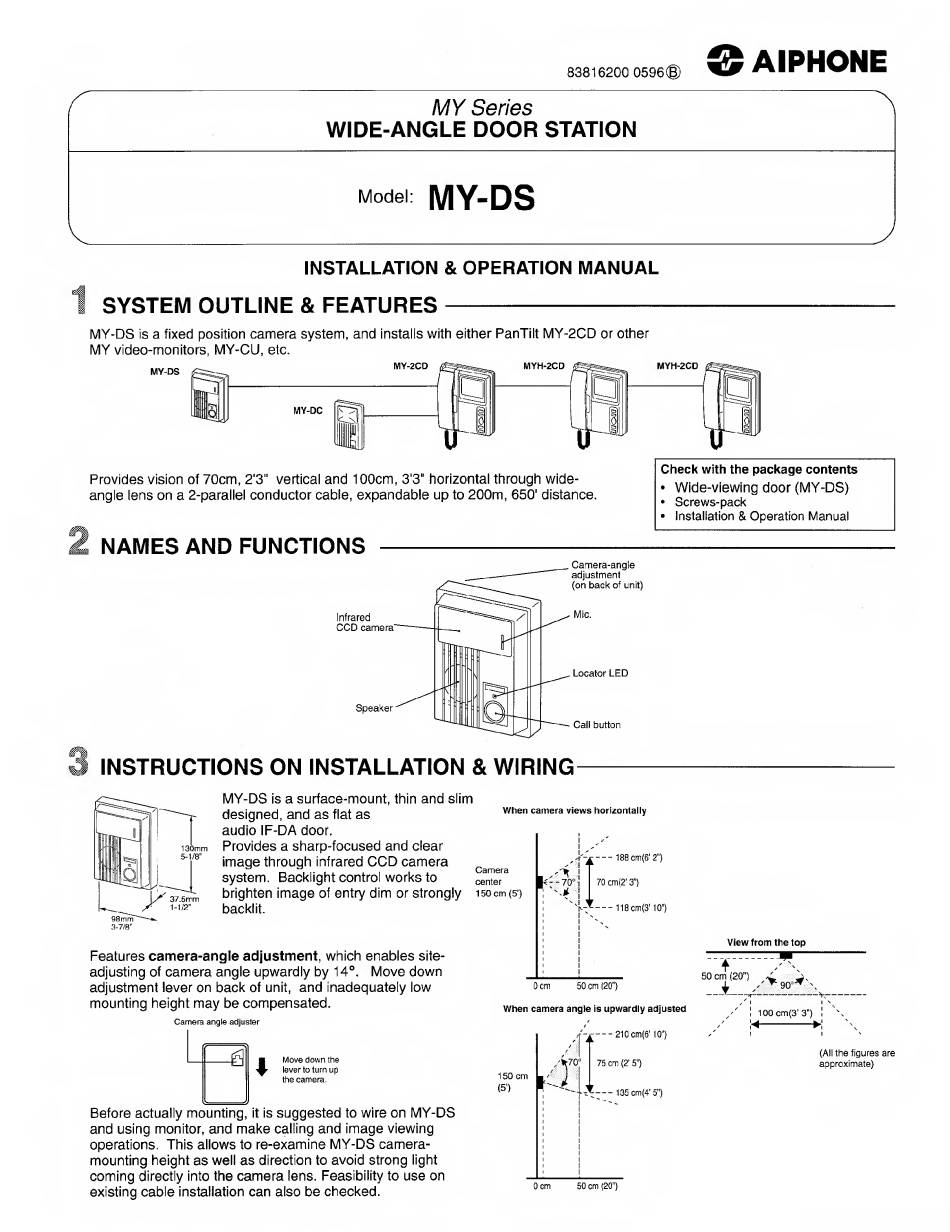

Aiphone MY Series Installation & Operation Manual

83816200 0596®
® AlPHONE
WIDE-ANGLE DOOR STATION
Model:
MY-DS
INSTALLATION & OPERATION MANUAL
SYSTEM OUTLINE & FEATURES-
MY-DS is a fixed position camera system, and installs with either PanTilt MY-2CD or other
MY video-monitors, MY-CU, etc.
Provides vision of 70cm, 2'3" vertical and 100cm, 3'3" horizontal through wide-
angle lens on a 2-parallel conductor cable, expandable up to 200m, 650' distance.
NAMES AND FUNCTIONS
Check with the package contents
• Wide-viewing door (MY-DS)
• Screws-pack
• Installation & Operation Manual
Camera-angle
adjustment
(on back of unit)
Mic.
Locator LED
Cali button
INSTRUCTIONS ON INSTALLATION & WIRING
MY-DS is a surface-mount, thin and slim
designed, and as flat as
audio IF-DA door.
Provides a sharp-focused and clear
image through infrared CCD camera
system. Backlight control works to
brighten image of entry dim or strongly
backlit.
When camera views horizontally
Camera
center
150 cm (5')
-188 cm(6' 2")
I
> I
70 cmf2' 3")
I
I
118cm(3'10")
Features camera-angle adjustment, which enables site¬
adjusting of camera angle upwardly by 14®. Move down
adjustment lever on back of unit, and inadequately low
mounting height may be compensated.
0 cm 50 cm (20")
When camera angle is upwardly adjusted
Camera angle adjuster
Move down the
lever to turn up
the camera.
Before actually mounting, it is suggested to wire on MY-DS
and using monitor, and make calling and image viewing
operations. This allows to re-examine MY-DS camera¬
mounting height as well as direction to avoid strong light
coming directly into the camera lens. Feasibility to use on
existing cable installation can also be checked.
View from the top
50 cm (20") ^
\
100cm(3'3") 1
! ◄ -
(All the figures are
approximate)
