Summary of Contents for AUTONE ATE-NTFT7-2CH-T3

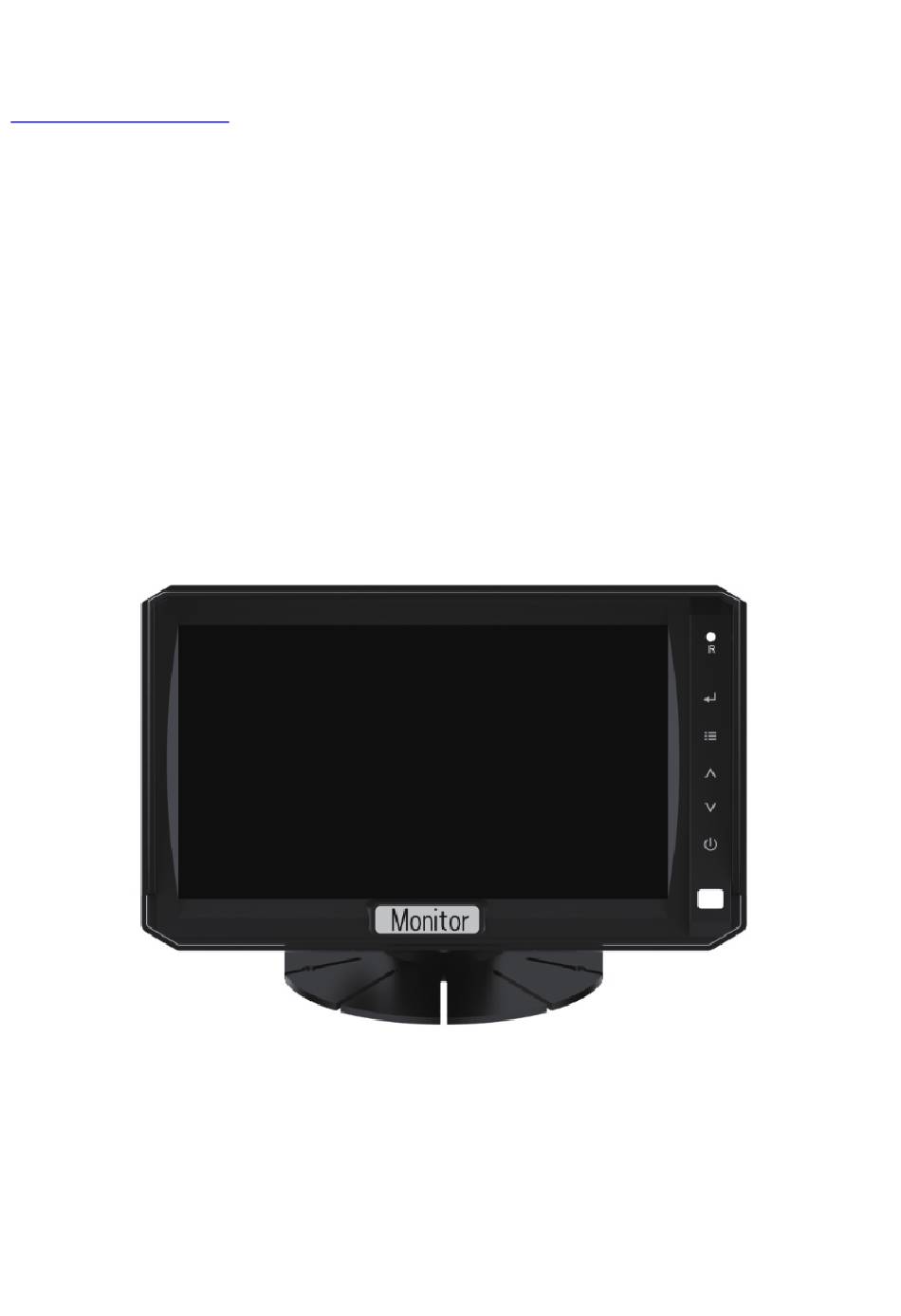

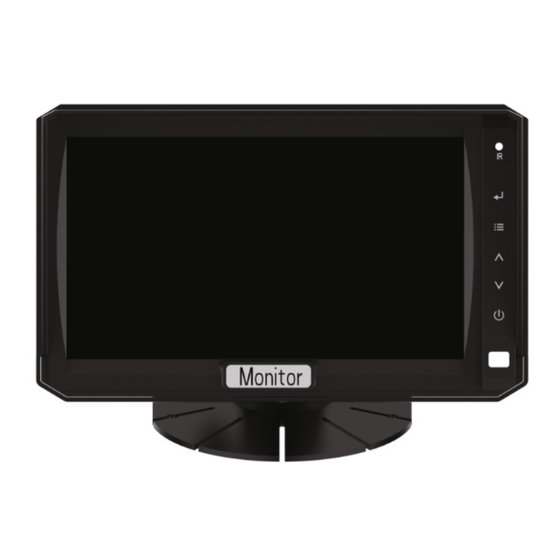

- Page 1 Manufactured in China for: DELTA-OPTI Monika Matysiak, 60-713 Poznan, 10 Graniczna St., Poland www.shopdelta.eu USER MANUAL ATE-NTFT7-2CH-T3 / ATE-NTFT7-4CH-T3 ATE-NTFT07-T1 The contents of this manual are subject to change without prior notice...
- Page 2 Record Monitor Buttons Description Description Location Operation Answer IR Led Light For Monitor Remote Control Playback Live Video Image Short Button Press =>Recorded Video Playback Menu Playback Playback Menu Long Button Press =>Playback checked record video Video Mode Switch Live Video Image Long Button Press =>...
- Page 3 Record Monitor Menu Operation Brightness Contrast Color Reset 1.1.Brightness Setup: Setup each channel video image brightness Brightness AHD1 AHD2 AHD3 AHD4 1.2.Contract Setup: Setup each channel video image Contrast Contrast AHD1 AHD2 AHD3 AHD4...
- Page 4 1.3.Color Setup: Setup each channel video image Color Color AHD1 AHD2 AHD3 AHD4 1.4.Reset Setup: Reload Brightness, Contrast and Color default Value 2.Volume Setup: Adjust Monitor speaker Volume Volume Volume 3.Monitor Function Setup Mirror Flip Trigger Delay Video List Light...
- Page 5 3.1.Mirror Flip Setup: Setup Video Image Left-Right Mirror Function Mirror Flip Camera1 Camera2 Camera3 Off Camera 4 Off 3.2.Trigger Delay:When the IO Lines trigger off, How long time to delay to shut off the IO triggers Trigger Delay Camera1 Camera2 Camera3 Camera 4 Mutilchannels...
- Page 6 3.4.Light Sensor setup: ON:Enable Light Sensor to auto adjust monitor screen brightness Off:Disable Light Sensor Function 4. Settings Setup Settings Rotate Blue Screen 2hrs Shrink Video Record Time 5Min Guide Line Trigger Mode Mutil Mode 4.1: Rotate: It has 01,02,03,04 4 kinds of rotation mode to roate 4-CH Video image at the same time 4.2: Blue Screen: ON: it will auto show Blue background color Off: it will auto show Black background color...
- Page 7 5. System Setup System English Language S-Saver Mode Clock Off Screen Save Time Stamp Off Time Setting Format 5.1:Language Setup: Default English 5.2:S-Saver Mode: Recorded videos OSD clock time 5.3Time Stamp: Off: Monitor Screen will not show Real time ON: Monitor Screen will show Real time 5.4: Time Setting: Setup correct time Time Setting 2024 / 06 /18...
