TECHNICAL SPECIFICATIONS

BRI064 - Brilagi - outdoor wall lamp Triangle LED/20W/230V/CCT
IP65 black
BRI065 - Brilagi - outdoor wall lamp Triangle LED/20W/230V/CCT
IP65 anthracite
Input voltage: 220-240V, 50Hz
Color temperature (CCT): 3000K/4000K/6500K
Power consumption: 20W
Luminous flux: 1800lm
BRI066 - Brilagi - outdoor wall lamp Triangle LED/20W/230V/4000K
IP65 black
BRI067 - Brilagi - outdoor wall lamp Triangle LED/20W/230V/4000K
IP65 anthracite
Input voltage: 220-240V, 50Hz
Color temperature (CCT): 4000K
Power consumption: 20W
Luminous flux: 1800lm
BRI068 - Brilagi - outdoor wall light with sensor Triangle
LED/20W/230V/4000K IP65 black
BRI069 - Brilagi - outdoor wall light with sensor Triangle
LED/20W/230V/4000K IP65 anthracite
Input voltage: 220-240V, 50Hz
Color temperature (CCT): 4000K
Power consumption: 20W
Luminous flux: 1800lm
Microwave sensor: detection range: 5-8m
BRI070 - Brilagi - outdoor wall lamp Triangle 1xE27/60W/230V/IP65
black
BRI071 - Brilagi - outdoor wall lamp Triangle 1xE27/60W/230V/IP65
anthracite
Input voltage: 220-240V, 50Hz
only with E27 socket, without bulb
USER MANUAL
BRI064 BRILAGI - OUTDOOR WALL LAMP TRIANGLE LED/20W/230V/CCT IP65 BLACK
BRI065 BRILAGI - OUTDOOR WALL LAMP TRIANGLE LED/20W/230V/CCT IP65 ANTHRACITE
BRI066 BRILAGI - OUTDOOR WALL LAMP TRIANGLE LED/20W/230V/4000K IP65 BLACK
BRI067 BRILAGI - OUTDOOR WALL LAMP TRIANGLE LED/20W/230V/4000K IP65 ANTHRACITE
BRI068 BRILAGI - OUTDOOR WALL LIGHT WITH SENSOR TRIANGLE LED/20W/230V/4000K IP65 BLACK
BRI069 BRILAGI - OUTDOOR WALL LIGHT WITH SENSOR TRIANGLE LED/20W/230V/4000K IP65 ANTHRACITE
BRI070 BRILAGI - OUTDOOR WALL LAMP TRIANGLE 1XE27/60W/230V/IP65 BLACK
BRI071 BRILAGI - OUTDOOR WALL LAMP TRIANGLE 1XE27/60W/230V/IP65 ANTHRACITE

ASSEMBLY MANUAL

Electrical installation work may only be performed by a qualified
worker according to the ČSN. If you have made sure that the
electricity is safely turned off, you can start installing the light fixture
itself.
For assembly, proceed according to the attached original instructions
from the manufacturer.
1. Turn off the fuses before installing the fixture.
2. Remove the mounting frame from the light fixture.
3. Mark and drill the frame installation holes, install the frame.
4. Pass the guide cable through the cable hole in the lamp base and
connect to the terminal block.
5. Fit and fix the light fixture to the installation frame.
6. Turn on the fuses.
7. Choose the desired light color temperature 3000K, 4000K or
6500K. Applies only to BRI064 and BRI065 luminaire models.
8. Disassemble the front frame of the lamp, unscrew the shade and
screw the bulb into the E27 socket. Then screw the shade back on
and snap the transition frame onto the lamp body.

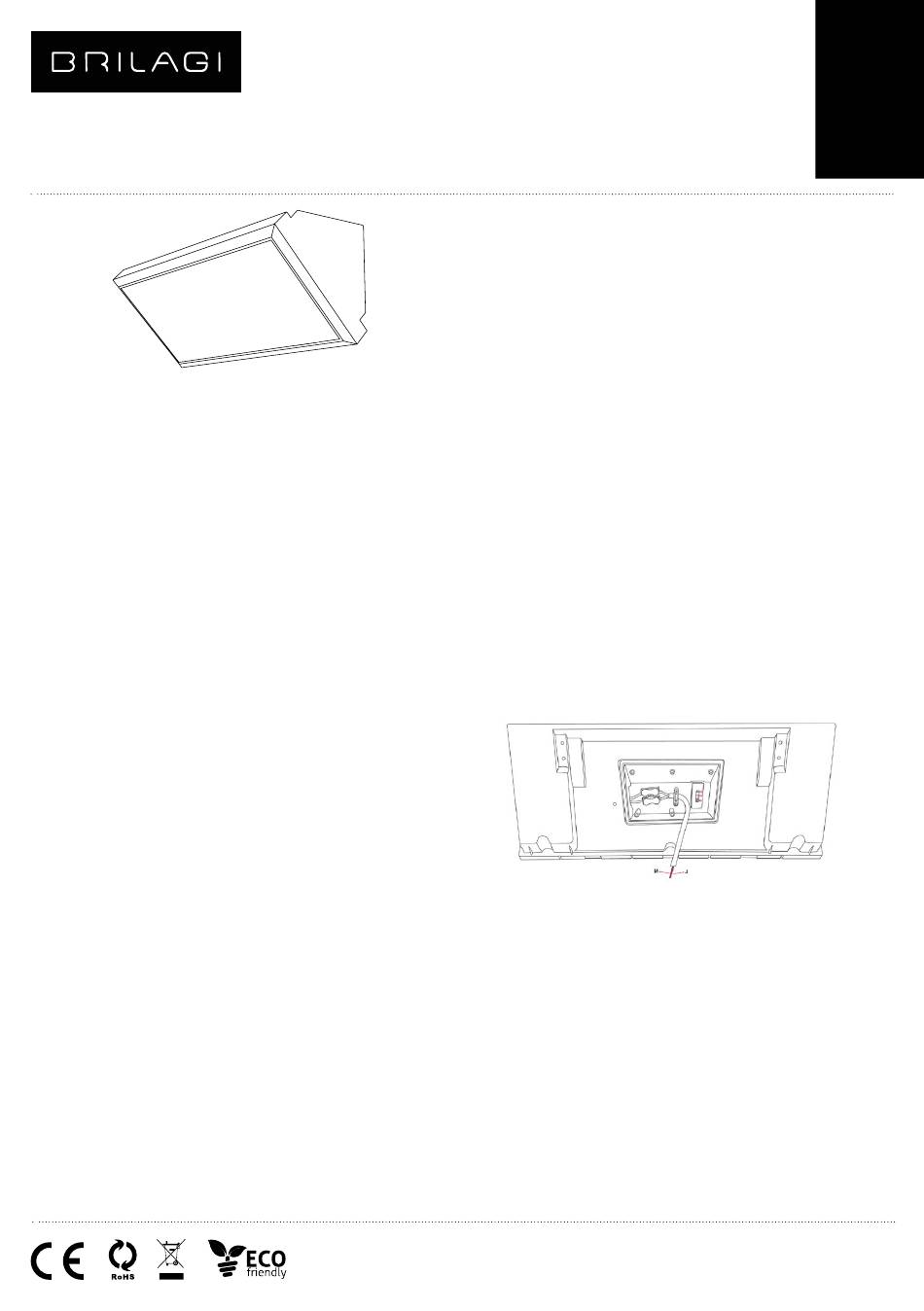

LUMINAIRE MODEL WITH CCT CHANGE FUNCTION (ONLY
APPLIES TO BRI064 AND BRI065 MODELS)
Unscrew the back cover of the lamp and use the switch to select the
desired light color temperature of 3000K, 4000K or 6500K. Put the
cover back and screw it.
Manufacturer: IMMAX, Pohoří 703, 742 85, Vřesina, Czech Republic, EU
Distributor: Donoci s. r. o., Pražská 2532/4, 678 01 Blansko, Czech Republic, EU
BRI064
BRI065
BRI066
BRI067
BRI068
BRI069
BRI070
BRI071
Made in P.R.C
