Summary of Contents for Robertson ELEMENTi FH101

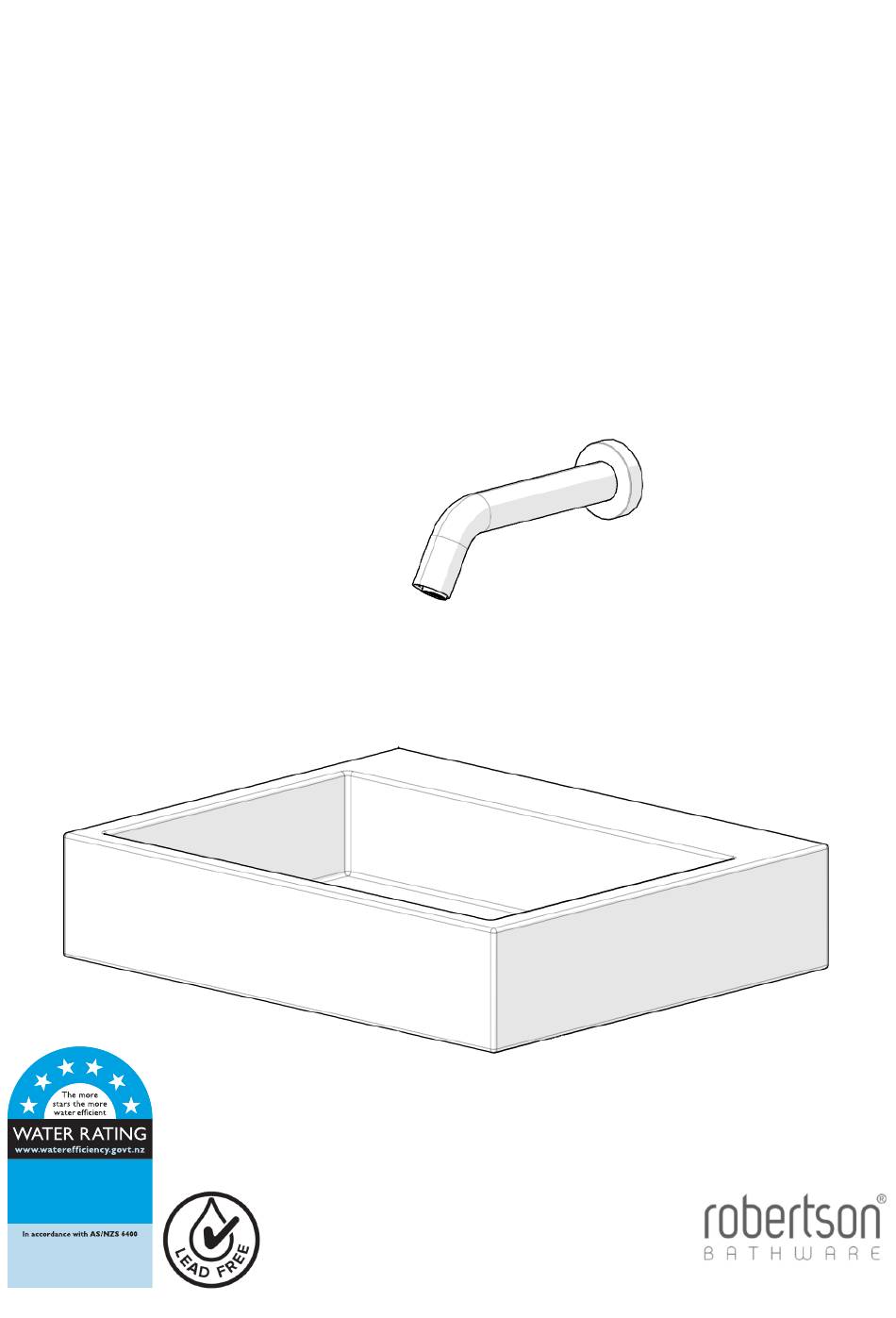

- Page 1 ELEMENTi SURGE CBS SENSOR FAUCET Installation instructions Reference: FH101 litres per minutes ROBERTSON ELEMENTI www.robertson.co.nz...
- Page 2 FAUCET CONFIGURATION Fastner Brass Fastner Screws Power adapter Sensor Cover Aerator Aerator Water inlet M15x1 Battery holder 4xAA...
-
Page 3: Before You Begin
BEFORE YOU BEGIN INSTALLATION • The faucet can be installed on any sink material (ceramic or stainless steel). • Read this instruc�on manual carefully before beginning installa�on. • Drain and clean the water pipes before installing the faucet. • Make sure there are only electronic cer�fied products (CE, UL…) near the faucet to achieve op�mum performance. -
Page 4: Installation Overview
Installation overview • Sensor detec�on as a maximum of 15cm, it is not affected by any light reflec�ons Nor by shiny surfaces, We advise to not install the faucet too high for user comfort and avoid water splashes. MAX 200mm. - Page 5 Installation overview 1- Insert the filter inside the electronic valve. 2- Connect the hose and tighten it. 3- Insert flat seal, and screw the electronic valve on 4- Purge and clean pipes before connecting hoses. the faucet hose. Tighten with wrench. 5- Fix the hose on the water main and tighten it 6- Connect 2 sensor wires to the micro valve.
- Page 6 Installation overview 4xAA, 4xLR6 7- Use the pad to secure the electric cable on the wall. 8- Install 4 AA batteries (not included) in the holder, pay attention to battery sides 9- Fix the holder in position, keep in mind the max 10- Wiring overview, cable length (~ 800mm).
- Page 7 Installation overview 14- Wait 6 seconds for calibration, the red LED will 13- Connect the battery holder. Flash during this time. 15- Enjoy your touch-less faucet!
- Page 8 Faucet specifica�on’s Model: FH001 Body: Brass tube OD28mm (no water contact) Finish: Chrome (No direct water contact to comply with lead free requirement) Aerator: Neoperl Cache TT 1.2GPM (4.5L/min) Fixa�on: OD 35mm, Brass nut with screw lock. Micro valve: DF301_B00A Media: Potable water only ( filter usage mandatory) Materials compa�bility: ACS, WRASS, KTW/W270, FDA...
-
Page 9: Operation
Usage, setup and maintenance OPERATION • Automa�c open and closing with hand presence. • An�-waste: a safety �me guarantees shut-off of water flow a�er 30 seconds. Must remove hands to launch a new cycle. • The LED located on the sensor in the spout will flash when the product is power ON for calibra�on, or if the ba�eries are low and need to be changed.
