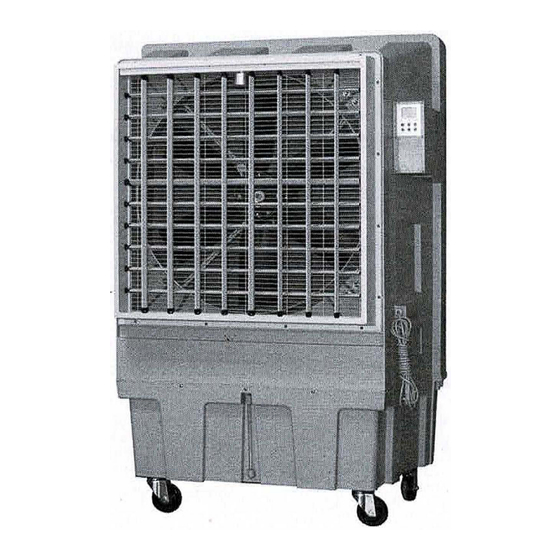

- Page 1 EVAPORATIVE AIR COOLER CAZ1380 User Manual...
- Page 2 CAZ1380--INTRODUCTION Thank you for purchasing our product. We trust it will give you long and trouble free seryice. The cooler is a high-tech product, showing simplicity and outstanding reliability, due to its European design origin. Its working principle is that water evaporation uses up the surrounding heat and causes the temperature to cool down.
- Page 3 CAZ1380--TECHNICAL SPECIFICATION MODEL CAZ1380 Max Airflow (CFM) 14,000 Power supply/Frequency (V /HZ) 110-120/60 Power Consumption (y./) 1,1_ 0 0 Fan Style Axial Water Consumption (L/H) 15-20 Water Capacity (L) Dimension (L*W*H) (in) 44x24x65 Weight(lb.) Effective Cooling Area (ft 2100 CAZ1400 -- TECHNICAL FEATURE New evaporative cooling pad, energy 3 levels fan speed (low, medium &...
- Page 4 CAZ1380-IMPORTANT REMINDERS Please read the manual carefully before operating the cooler. A) Operating conditions: 1- Temperature: 64.4 °F to 113 °F; Water Temperature: < 113 °F. 2- Power supply must not exceed the required voltage ( +/-) 5%. Air supply must be largely free of dust or extra cleaning is required. B) Protect the power cable from vehicle or foot traffic.
- Page 5 CAZ1380-K E Y COMPONENTS SWING MOTOR LCD PANEL AIR DIFFUSER PLASTIC FAN WATER INLET WATER TANK WATER GAUGE BACK WHEEL WITH LOCK FRONT WHEEL BACK NET OOUNG PAD -04-...
- Page 6 CAZ1380--OPERATION INSTRUCTION WARNING 1. All electrical repairs must only be carried out by a suitably qualified electrician, after all power is disconnected. 2. This cooler is not intended for use by children or persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge. 3.
- Page 7 CAZ1380-CONTROL PANEL □ --..:.__ COol Wind SWlng Power Cool Blaat: Timer Laic.olwatar Timer Speed CAZ1380-REMOTE CONTROL COOL SPHD TIMER SWJNG -06-...
- Page 9 CAZ1380-TROUBLESHOOTING Reason Remedy/Solution Malfunction -No power -Check unit is plugged in -Mam control board -Operating screen -Change control board failure -Change fuse stays dark -Fuse is blown -Change panel -Panel failure -Check ensure there -The fan is jammed nothing preventing free -Display is normal -Cooling pad or dust...
