ORIGINAL INSTRUCTIONS>EN

LOCAL AIR CONDITIONER

FCPR4100

(With R290 refrigerant)

USER GUIDE

CAUTION：Read the instructions before using !

BUILDER SAS

ZI - 32, RUE ARISTIDE BERGES, 31270 CUGNAUX, FRANCE

MADE IN PRC

Table of Contents

Need help?

Do you have a question about the FCPR4100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Feider Machines FCPR4100

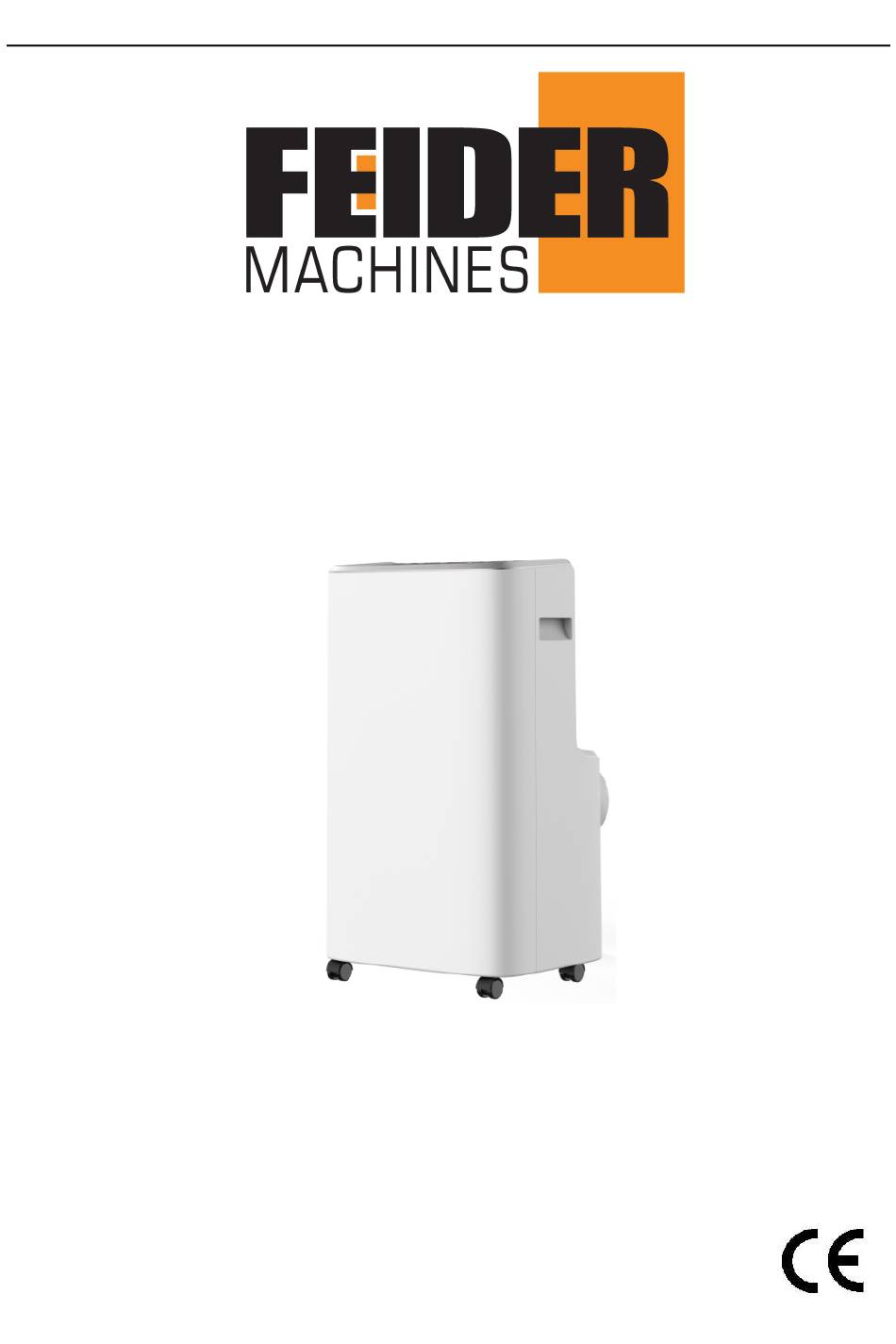

Page 1 ORIGINAL INSTRUCTIONS>EN LOCAL AIR CONDITIONER FCPR4100 (With R290 refrigerant) USER GUIDE CAUTION：Read the instructions before using ! BUILDER SAS ZI - 32, RUE ARISTIDE BERGES, 31270 CUGNAUX, FRANCE MADE IN PRC...
Page 2: Table Of Contents
CONTENTS 1. BEFORE YOU BEGIN 2. FOR YOUR SAFETY 3. PRODUCT OVERVIEW 4. INSTALLATION 5. OPERATION 6. CLEANING AND CARE 7. TROUBLESHOOTING 8. DECOMMISSIONING 9. TECHNICAL INFORMATION 10. WARRANTY 11. PRODUCT FAILURE 12. WARRANTY EXCLUSIONS...
Page 3: Before You Begin
1. BEFORE YOU BEGIN 1.1 PRODUCT DESCRIPTION Our powerful portable air conditioners are great cooling solutions for single rooms, creating a comfortable atmosphere in your space. It also has ventilation and dehumidifying function for circulating air and removal of moisture. They're self-contained systems that do not require any permanent installation allowing you to move to the space in which it is most needed.
Page 4: The Following Should Always Be Observed For Safety
1.3 THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY  This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Page 5 do not allow untrained personnel to attempt to find the cause.  The propane gas used in the unit has no odor.  The lack of smell does not indicate a lack of escaped gas.  If a leak is detected, immediately evacuate all persons from the store, ventilate the room and contact the local fire department to advise them that a propane leak has occurred.
Page 6: For Your Safety
2. FOR YOUR SAFETY Your safety is the most important thing we concerned! WARNING!Please read this manual carefully and fully understand before operating your appliance. 2.1 OPERATIONAL PRECAUTIONS WARNING- to reduce the risk of fire, electric shock or injury to persons or property: ...
Page 7  Unplug the power cord when cleaning or when not in use.  Do not operate with wet hands. Prevent water from spilling onto the unit.  Do not immerse or expose the unit to rain, moisture or any other liquid. ...
Page 8  The unit shall be installed in accordance with national wiring regulations.  Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacture.  The appliance shall be stored in a room without continuously operation sources (for example: open flames, an operating gas appliance or an operating electric heater).
Page 9  The appliance shall be stored in a well- ventilated area where room size corresponds to the room area as specified for operation.  The device must be stored in such a way as to avoid any mechanical damage.  WARNING: The appliance must be stored in a room free from open flames (such as a gas appliance in operation) and sources of ignition (for example, an electric heater).
Page 10: Work Procedure
other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. If you don't understand something or need help, please contact the dealer services. 2.2 SAFETY PRECAUTIONS ON SERVICING Please follow these warnings when to undertake the following when servicing an appliance with R290.
Page 11 REFRIGERANT The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. nons parking, adequately sealed or intrinsically safe.
Page 12 2.2.8 CHECKS TO THE REFRIGERATION EQUIPMENT Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt consult the manufacturer’s technical department for assistance.
Page 13: Repairs To Sealed Components
temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include: that capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; that there no live electrical components and wiring are exposed while charging, recovering or purging the system;...
Page 14: Repair To Intrinsically Safe Components
2.2.11 REPAIR TO INTRINSICALLY SAFE COMPONENTS Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
Page 15: Removal And Evacuation
refrigerant used. Leak detection equipment shall be set at a percentage of LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.
Page 16: Charging Procedures
Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place.
Page 17 being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced. a) Become familiar with the equipment and its operation. b) Isolate system electrically.
Page 18 k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked. 2.2.18 LABELLING Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.
Page 19 The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant.
Page 20: Product Overview
3. PRODUCT OVERVIEW 3.1 PRODUCT DIAGRAM Control panel Castors Air Exhaust Air outlet with Drain opening Recessed adjustable with sealing handle plug flap Air intake with washable filter Note: The appearance is only for reference. Please see the real product for detailed information.
Page 21 FEATURES High Capacity in a compact size with cooling, heating,  dehumidifying and ventilating function. Temperature setting and display  LED Digital display  Electronic control with built-in timer, sleep mode  Self-evaporating system for better efficient  Auto shut off when tank full ...
Page 22: Installation
4. INSTALLATION 4.1 UNPACKING Unpack the carton and take the appliance and accessories out.  Check the device after unpacking for any damage or scratches on  Accessories:  1. Exhaust hose  2. Hose connector  3. Window kit adapter ...
Page 23 2 Choose your location If tipped more than 45°, allow the unit  to set upright for at least 24 hours before start up. Place the unit on a firm, level surface  in an area with at least 50cm of free space around it to allow for proper air circulation.
Page 24 may provide additional information about the refrigerant odour. 4.3 ATTACH THE EXHAUST HOSE The air conditioner requires being vented outside so that the exhaust air can escape the room which coming from the appliance contains waste heat and moisture. Do not replace or extend exhaust hose which will result in decreased efficiency, even worse shut down the unit due to low backpressure.
Page 25 Step 4: Close your window to secure the kit in place. It needs to hold the windows kit firmly in place, secure the window kit with duct tape if required. It is recommended that the gap between the adapter and the sides of the window should be sealed off for maximum efficiency.
Page 26 Step 6: Adjusting the length of the flexible exhaust hose, and avoid bends in the hose. Then place AC near an electrical outlet.
Page 27: Operation
5. OPERATION 5.1 CONTROL PANEL AND DISPLAY 5.2 REMOTE CONTROL...
Page 28 5.3 FUNCTION KEYS AND INDICATORS POWER Press to switch the machine ON/OFF (LED) Mode button Press to switch the operation mode MODE between cool, fan, dry and heat. LED for four operation modes selecting by press indicators mode button. Decreasing the desired temperature (16℃ ～ DOWN 32℃) or timer setting.
Page 29 5.4 SETTINGS 5.4.1. Start-up and Shutdown Press POWER to turn the unit on. When the first starting, the appliance runs in FAN as default. Press MODE button to select the desired operation mode. Press the POWER button again to turn off the device (the device goes into standby if it is not unplugged).
Page 30 Note： The air conditioner stops if the room temperature is lower than selected temperature. B. Heating your room (Optional for Heating Function Unit only) Press MODE button repeatedly until the LED of HEAT operation lights Press the UP/DOWN button to set the temperature. Note: The drainage hose should be attached to the unit for continuous operating.
Page 31 1 ℃. In heat mode (Optional for Heating Function Unit only)  After 1 hour the preset temperature is decreased by 1 ℃, after another hour the preset temperature will again be decreased by 1 ℃. Then the temperature is kept constant for 10 hours. And all the indicators dim to dark.
Page 32 5.4.4. Automatic Defrost At low room temperatures, frost may build up at the evaporator during operation. The unit will automatically start defrosting and the POWER LED blinking. The defrost control sequence is as follows: A. When the unit operates in the cooling operation and in the drying operation, the ambient temperature sensor senses the evaporator coil temperature is below -1°C.
Page 33 container is full, stuff the water outlet with the water plug as soon as possible to prevent water from flowing to the floor or the carpet. 4）When the water is discharged, stuff the water plug. Notes: 1. Restart the machine after the water plug and drainage cover are installed, otherwise condensate water of the machine will flow to the floor or the carpet.
Page 34 Switch unit before  operating. Remove the plug of the water  outlet opening, and keep it in safe area. Securely and properly connect  the drain hose and make sure it is kinked clear obstruction. Place the outlet of hose over a ...
Page 35: Cleaning And Care
6. CLEANING AND CARE 6.1. CLEANING THE AIR FILTER (every two weeks) Dust collects on the filter and restricts the airflow. The restricted airflow reduces the efficiency of the system and if it becomes blocked it can cause damage to the unit. The air filter requires regular cleaning.
Page 36 6.2 CLEANING UP OF REFRIGERANT General Measures: 1. Gas/vapor heavier than air. May accumulate in confined spaces, particularly at or below ground level. 2. Eliminate every possible source of ignition. 3. Use appropriate personal protection equipment (PPE). 4. Evacuate unnecessary personnel, isolate, and ventilate area. 5.
Page 37: Troubleshooting
7. TROUBLESHOOTING Symptom Inspection Solution  Check the power  Insert the power cord securely connection in securely. into the wall outlet. The unit is  Check if the water level  Empty the drain pan by indicator lights up? removing the rubber plug.
Page 38  Communication faults  Check the wire harness of the between main PCB and display PCB for damage. display PCB.  Check connection or replace  Ambient temperature it. To clean or replace the sensor failure Error temperature sensor. Codes ...
Page 39: Decommissioning
8. DECOMMISSIONING 8.1 STORAGE Long-Term Storage -If you will not be using the unit for an extended period of time (more than a few weeks) it is best to clean the unit and dry it out completely. Please store the unit per the following steps: Unplug the unit and remove exhaust hose and window kit.
Page 40 8.2 DISPOSAL Releasing refrigerant into atmosphere is strictly forbidden! WARNING!!! Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
Page 41: Technical Information
9. DECOMMISSIONING Information to identify the model(s) to which the information relates to: EZCPR4100 Description Symbol Value Unit Rated capacity for cooling 3.517 rated cooling Rated capacity for heating 2.784 P for heating Rated power input 1.337 P EER cooling Rated power input...
Page 42: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.
Page 43: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
Page 44: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
