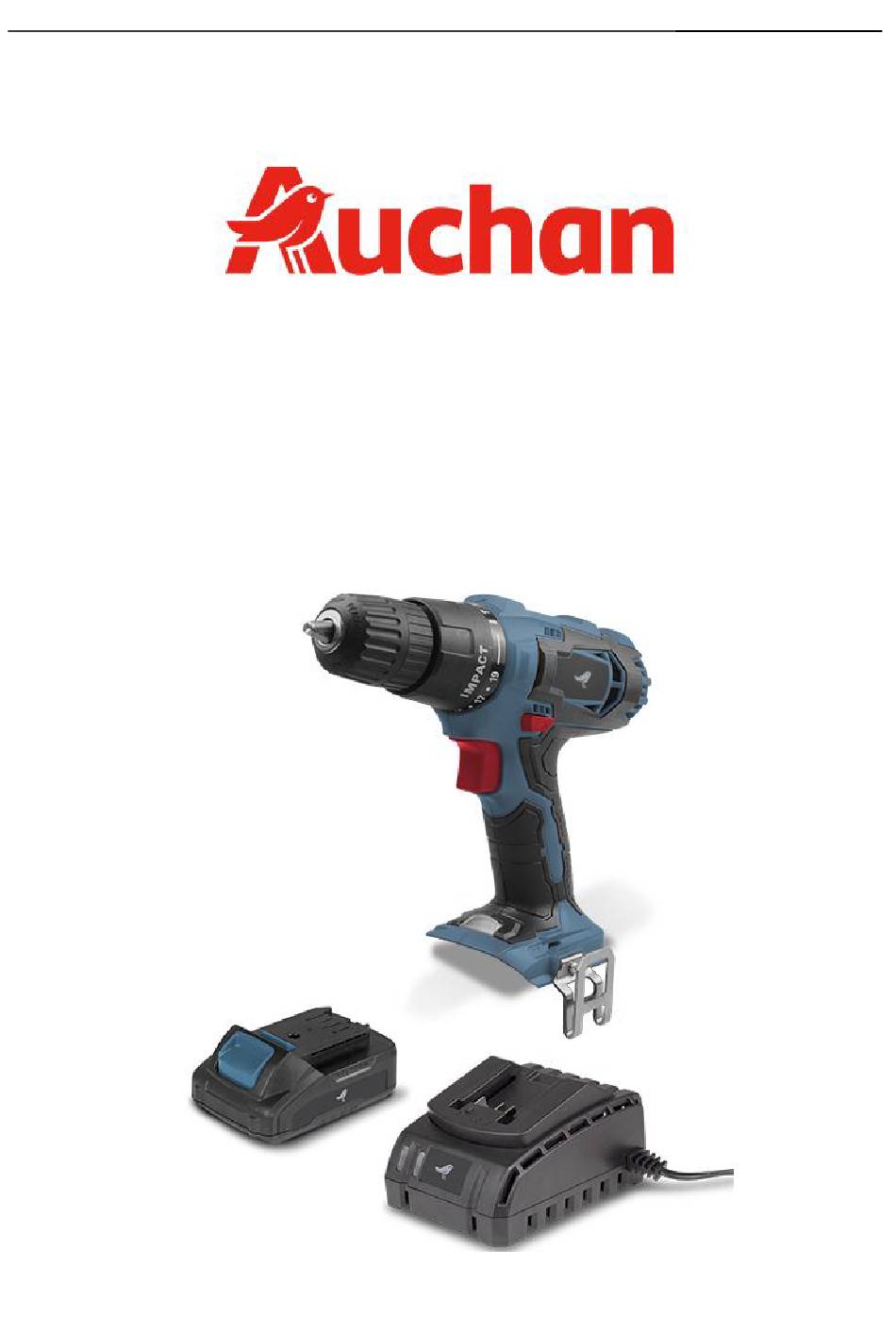

- Page 1 ORIGINAL INSTRUCTION CORDLESS DRILL Model: 600125964 (MAP20V2A) USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1... INTENDED USE............................3 2... SAFETY INSTRUCTIONS........................3 3... YOUR PRODUCT............................. 8 4... FEATURES..............................8 5... OPERATION..............................9 6... CLEANING AND MAINTENANCE...................... 12 7... TECHNICAL DETAILS.......................... 12 8... DISPOSAL...............................13 9... DECLARATION OF CONFORMITY....................14 10. WARRANTY............................15 11. PRODUCT FAILURE..........................16 12. WARRANTY EXCLUSIONS.........................17... -
Page 3: Intended Use
1. INTENDED USE The power tool is intended for driving and drilling through wood, metal, plastics and masonry. Not suitable for professional use. WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions. - Page 4 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 5: Drill Safety Warnings
NOTE The temperature 130°C can be replaced by the temperature 265°F. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. - Page 6 Immediately rinse with water. Neutralize with a mild acid such as lemon juice or vinegar. In case of eye contact, rinse abundantly with clean water for at least 10 minutes. Consult a physician. Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery.
- Page 7 2.5 SYMBOLS Conforms to relevant safety standards To reduce the risk of injury, the user must read and understand this manual before using this product. Wear ear protectors. Exposure to noise can cause hearing loss. Wear eye protection. Class II, double isolation. (only for charger) Do not dispose of old appliances with domestic rubbish.
-
Page 8: Your Product
3. YOUR PRODUCT Keyless chuck Battery pack release button Torque adjustment ring Battery capacity indicator Two speed selector 10. Button for battery capacity indicator On/off switch trigger 11. Belt clip Battery pack 12. Charger Forward/reverse knob 13. LED indicator LED work light 4. -
Page 9: Operation
4.4 FORWARD/REVERSE SELECTOR (RIGHT/LEFT ROTATION SELECTOR) (6) The drill has a forward/reverse selector located above the switch trigger. CAUTION: To prevent damage to the gearbox, always allow the chuck to come to a complete stop before changing the direction of rotation or selecting another speed (HI-LO). To stop, release the trigger switch. 4.5 VARIABLE SPEED Your cordless drill has a variable speed switch. - Page 10 1) Remove the battery: press the battery release latch in and at the same time pull the battery pack off. 2) To insert the battery: position it on the base, then slide while pressing until the end of the battery pack of the tool.
-
Page 11: Speed Selector
Turn the function mode selector and let the pointer align to the screwdriver mode that selects the screwdriver mode of action. 5.11 SPEED SELECTOR The drill has a two-speed gear train designed for drilling at 1 (LOW) or 2 (HIGH) speed. A gear selector is located on top of the drill to select either low or high speed. -
Page 12: Cleaning And Maintenance
When drilling large holes in metal, it is recommended that you drill with a small bit at first, then finish with a large bit. Also, lubricate the bit with oil to improve drilling action and increase bit life. (4) Driving screw -For maximum performance, use good quality bits for driving screws, turn the function mode selector on the screwdriver mode position “21”. -
Page 13: Disposal
Charging time 50-60min Torque 45Nm (MAX.) LpA =85dB(A) Acoustic pressure level LpA Uncertainty: K=5 dB(A) =96dB(A) Acoustic power level LwA Uncertainty: K=5 dB(A) Drilling model:<2.5m/s , K=1.5m/s aw (Vibration) Impacting drilling mode: 5.3m/s , K=1.5m/s Information that the declared vibration total value(s) and the declared noise emission value(s) have been measured ... -
Page 14: Declaration Of Conformity
SAS OIA 3665257365844 600125964 Ref / Code : 600105065 600123625 3665257351540 3665257365844 Ref fournisseur / Supplier ref : 3665257256562 AUC IMPACT DRILL 20V Description : CORDLESS ANGLE GRINDER 115MM 20V WITHOUT B CORDLESS SABER SAW Directive 2014/30/UE (EMC) Directive 2011/65/UE+ (EU) 2015/863 (ROHS) Directive 2006/42/CE (MACHINE) EN 55014-1: 2017 EN 55014-2 : 2015... -
Page 15: Warranty
10. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 16: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 17: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 18 NOTES...
- Page 19 NOTES...
- Page 20 SAS OIA, 200, rue de la Recherche,Le Colibri BP 169, 59650 Villeneuve d’Ascq, France Tel: 00 800 5922 5922 Made in China(09/2022) - Réf. 600125964 (MAP20V2A)
