Summary of Contents for Feider FFBE5T

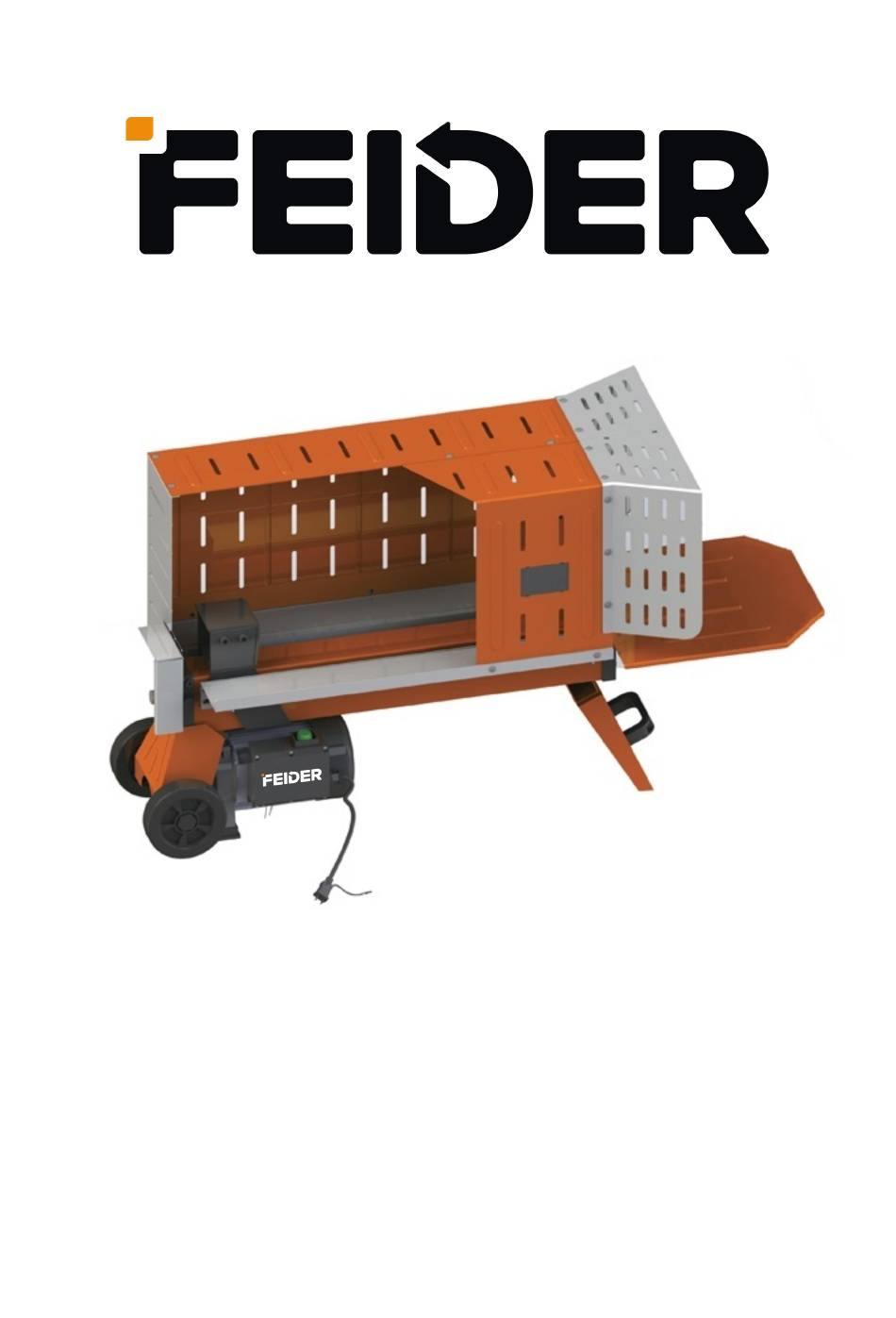

- Page 1 ORIGINAL INSTRUCTIONS >EN ELECTRIC LOG SPLITTER FFBE5T USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. DESCRIPTION............................8 3. ASSEMBLY.............................8 4. OPERATION............................11 5. MAINTENANCE...........................14 6. TROUBLE SHOOTING........................15 7. DISPOSAL............................15 8. DECLARATION OF CONFORMITY....................16 9. WARRANTY............................17 10. PRODUCT FAILURE........................18 11. WARRANTY EXCLUSIONS......................19... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS UNDERSTAND YOUR CUTTER Read and understand the owner’s manual and labels affixed to the log splitter. Learn its application and limitations as well as the specific potential hazards peculiar to it. DRUGS, ALCOHOL AND MEDICATION Do not operate the log splitter while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. - Page 4 Avoid use of free and inadequately insulated connections. Connections must be made with protected material suitable for outdoor use. AVOID ELECTRICAL SHOCK Check that the electric circuit is adequately protected and that it corresponds with the power, voltage and frequency of the motor. Check that there is a ground connection, and a regulation differential switch upstream.
- Page 5 DISCONNECT POWER Unplug when not in use, before making adjustments, changing parts, cleaning, or working on the log splitter; Consult technical manual before servicing. PROTECT THE ENVIRONMENT Take used oil to an authorized collection point or follow the stipulations in the country where the log splitter is used.
- Page 6 Use work gloves Wear eye protection Use hearing protection No trespassing No smoking in the working area Only the operator may stand within the operating range of the machine. Keep non-involved persons, as well as domestic and farm animals, out of the hazard area (minimum distance: 5m) Keep your work space tidy! Untidiness can lead to accidents Only the operator may stand within the operating range of the machine.
- Page 7 SPECIFICATIONS Model FFBE5T Motor 230V~ 50Hz 1500W S3 50% IP54 Diameter 5 - 25cm Log Capacity Length 52cm Splitting Force Hydraulic Pressure 20Mpa Hydraulic Oil Capacity 3.3L Length 1360mm Overall Size Width 480mm Height 670mm Weight 59kg Operating speed 2800min-¹...
-
Page 8: Description
2. DESCRIPTION 1. Log Pusher 8. Wheels for Minor Moving ONLY. 2. Work Table 9. Hydraulic Control Lever. 3. Shield 10. Control Lever Guard 4. Support Leg 13.Bleed Screw 5. Switch 14.Oil Drain Bolt with Dipstick 6. Motor 15. Max Pressure Limiting Screw 7. - Page 9 FAILED TO LOOSEN THE BLEED SCREW WILL KEEP THE SEALED AIR IN HYDRAULIC SYSTEM BEING COMPRESSED AFTER BEING DECOMPRESSED. SUCH CONTINUOUS AIR COMPRESSION AND DECOMPRESSION WILL BLOW OUT THE SEALS OF THE HYDRAULIC SYSTEM AND CAUSE PERMANT DAMAGE TO THE LOG SPLITTER. Screw the handle and the foot with the 2 screws and the bolts, nuts, washers as below: ...
- Page 10 Insert the tray extension by inserting the 2 hooks on the legs as below Position the side plastic protections by inserting the 10 fixing clips by force. ...
-
Page 11: Operation
Position the rear plastic protection by inserting the 5 fixing clips by force. 4. OPERATION This log splitter is equipped with “ZHB” control system that requires to be operated by both hands of the user – Left hand controls the hydraulic control lever while right hand controls the pushbutton switch. - Page 12 Before the job, the splitter should be placed on the platform 850mm minimum above the ground, as shown in the figure below Trigger type lock-out device is adopted to avoid accidental Hydraulic Control Lever pushdown. To operate the Hydraulic Control Lever, draw the Trigger backward with the index finger before push the Hydraulic Control Lever forward.
- Page 13 Break log in the direction of its growing grain. Do not place log across the log splitter for splitting. It may be dangerous and may seriously damage the machine. Do not attempt to split 2 pieces of logs at the same time. One of them may fly up and hit you. FREEING A JAMMED LOG ...
-
Page 14: Maintenance
5. MAINTENANCE REPLACING HYDRAULIC OIL Replace the Hydraulic oil in the log splitter after every 150 hours of use. Take following steps to replace it. Make sure all moving parts stops and the log splitter is unplugged. Unscrew Oil Drain Bolt with Dipstick to remove it. ... -
Page 15: Trouble Shooting
6. TROUBLE SHOOTING PROBLEM PROBABLE CAUSE REMEDY SUGGESTED Overload Protection Device Contact a qualified Electrician for opening Motor Stops to disengaged to protect the log the Pushbutton Box to engage the Start splitter from being damaged Overload Protection Device inside * Refer to “... -
Page 16: Declaration Of Conformity
Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 Declare that the following machine ELECTRIC LOG SPLITTER FFBE5T Serial number: 20240604135-20240604174 Is in conformity with the Directive Machine 2006/42/EC and to the regulations transposing it; Also in conformity with the European Directives:... -
Page 17: Warranty
9. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. It can be extended by one year if the user subscribes to website of myswap. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 18: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 19: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 20 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Made in PRC...
