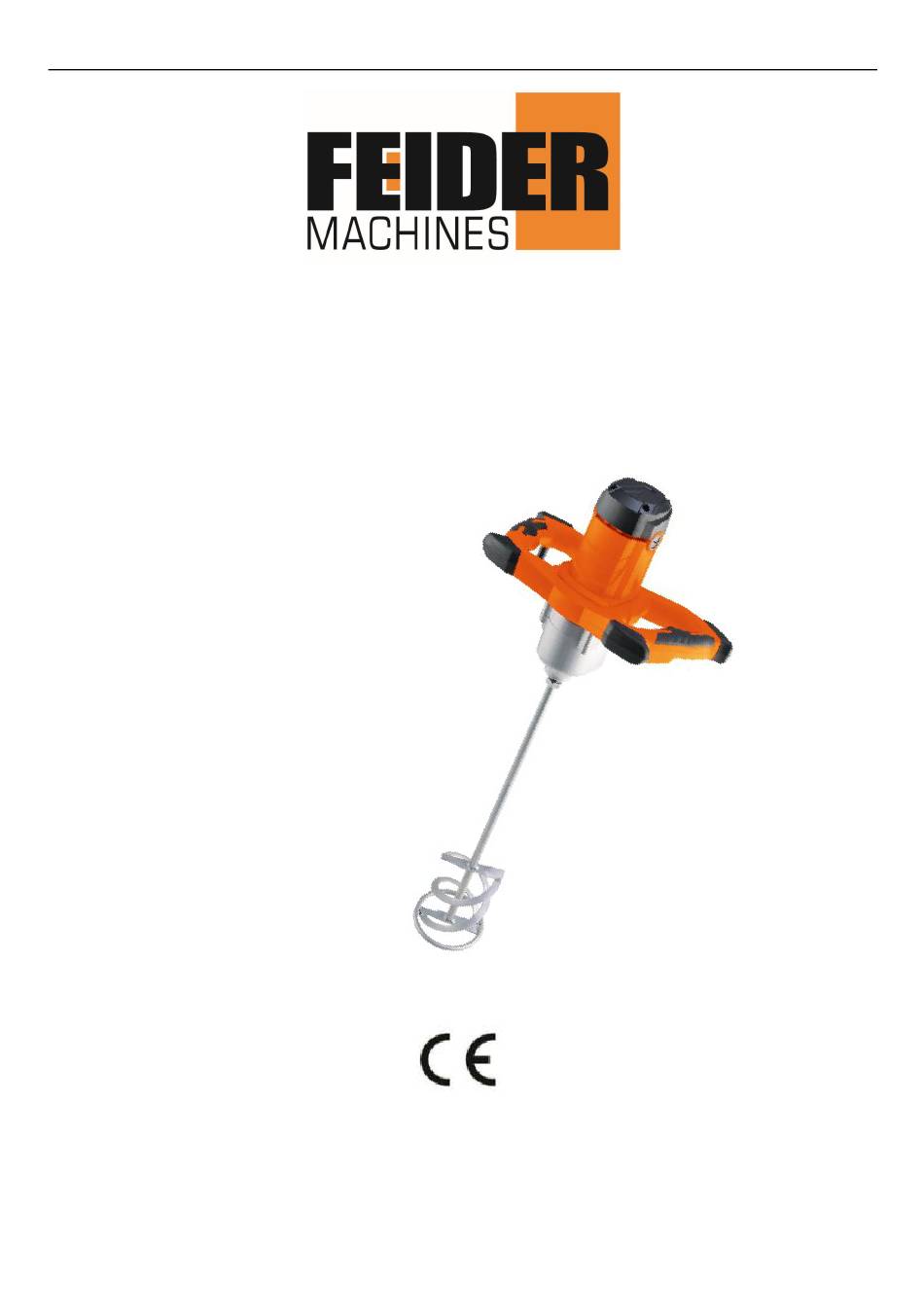

- Page 1 ORIGINAL INSTRUCTION>EN INSTRUCTION MANUAL ELECTRIC MIXER Model :FM1800 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC:2021 Warning: To reduce the risk of injury, please read instruction manual before use.
-
Page 2: Table Of Contents
CONTENT 1. INTRODUCTION....................3 2. SAFETY WARNINGS.....................3 3. PROPER USE......................5 4. THE PRODUCT.......................5 5. BEFORE FIRST USE....................7 6. OPERATION......................7 7. MAINTENANCE CLEANING AND STORAGE............7 8. DISPOSAL......................8 9. EC DECLARATION OF CONFORMITY..............9 10. WARRANTY......................10 11. PRODUCT FAILURE....................11 12. WARRANTY EXCLUSIONS..................12... -
Page 3: Introduction
1. INTRODUCTION Please make sure you familiarize yourself fully with the way the device works before you use it for the first time and that you understand how to handle electrical power tools correctly. To help you do this please read the accompanying operating instructions. - Page 4 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 5: Proper Use
j) Start up and run down the tool in the mixing container only. The mixer basket may bend or spin in an uncontrolled manner. The following pictograms may be used in these operating instructions / on the device: WARNING—To reduce the risk of work with material... -
Page 6: Before First Use
Included items 2 wrenches 1 Operating instruction Technical data Nom. Voltage: 230 -240V ~ 50 Hz Rated Power: 1800W No-load speed: I: 180-400/min,II:300-700/min Spindle size Whisk ø 160 mm Weight 4.45 kg Protection class: II / Degree of protection IPX0 Noise and vibration data: Values determined in accordance with EN 62841 The sound pressure level (L... -
Page 7: Operation
WARNING! DANGER OF INJURY! Switch the device off and pull the plug out of the mains socket before carrying out any work in the device. Placing a whisk NOTE: Use only whisks in conformity the specified diameter. Screw the whisk with thread (M14) as far as possible in the tool. ... -
Page 8: Disposal
Loosen carbon brush cap first, Pull out and replace the carbon brush (Always replace the two brushes at the same time), screw carbon brush caps. Service centre WARNING! Have your device repaired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use. WARNING! If the supply cord of this power tool is damaged, it must be replaced by a specially prepared supply cord available through the service organization. -
Page 9: Ec Declaration Of Conformity
EC Declaration of conformity BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France declare that the machine Designation: ELECTRIC MIXER Model: FM1800 Serial number: 20210523981-20210525180 Is in conformity with the European Directives: Machine Directive 2006/42/EC EMC Directive 2014/35/EU... -
Page 10: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 11: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 12: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
