Auchan MASSB20V User Manual

Cordless reciprocating saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

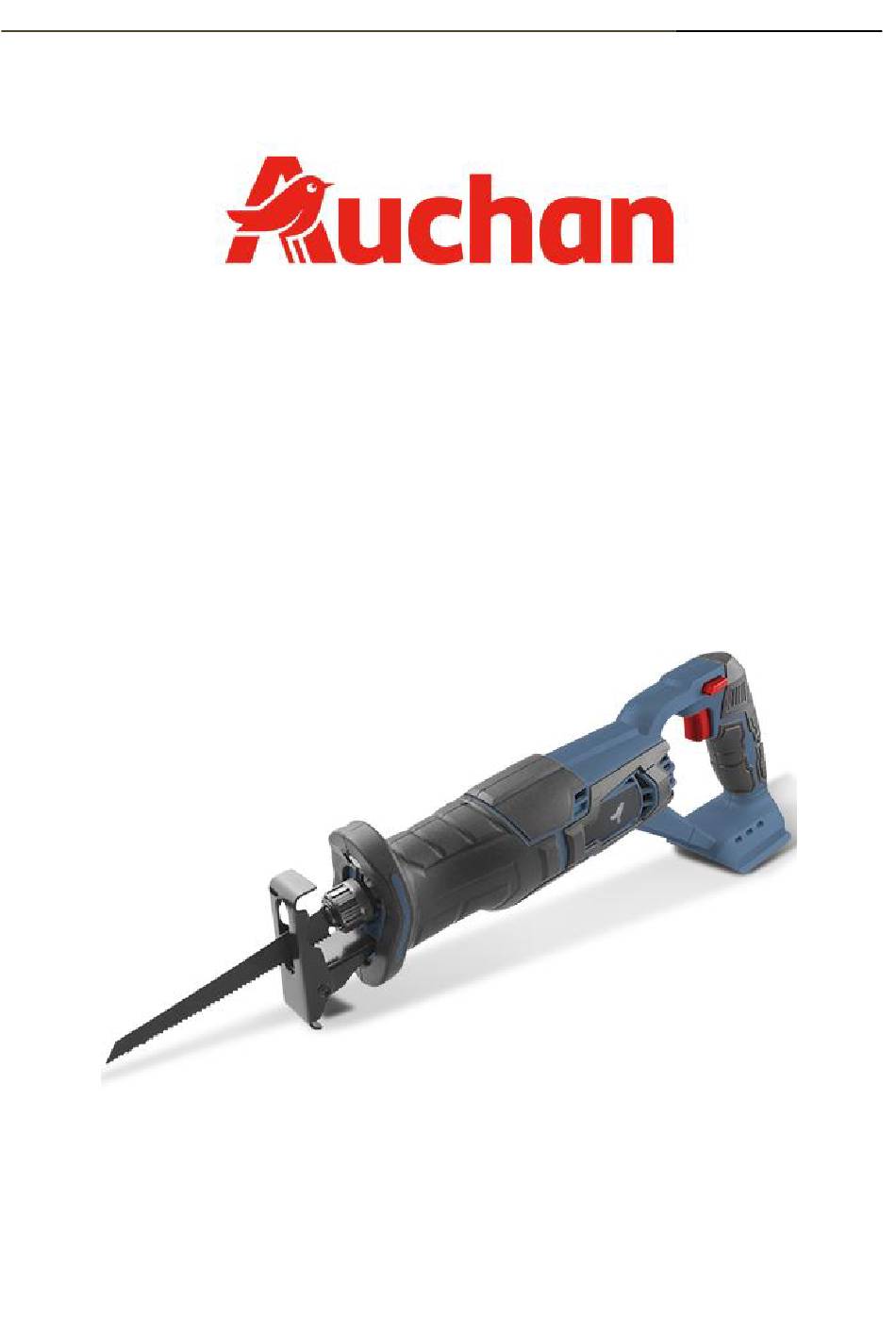

ORIGINAL INSTRUCTION
CORDLESS
RECIPROCATING SAW
MODEL: 600123625
(MASSB20V)
USER GUIDE
CAUTION: Read this manual before using this machine!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MASSB20V and is the answer not in the manual?

Questions and answers

Summary of Contents for Auchan MASSB20V

  • Page 1 ORIGINAL INSTRUCTION CORDLESS RECIPROCATING SAW MODEL: 600123625 (MASSB20V) USER GUIDE CAUTION: Read this manual before using this machine!

  • Page 2: Table Of Contents

    CONTENTS 1... INTENDED USE............................3 2... SAFETY INSTRUCTIONS........................3 3... YOUR PRODUCT............................. 6 4... OPERATION..............................7 5... CLEANING AND MAINTENANCE...................... 10 6... DISPOSAL...............................10 7... DECLARATION OF CONFORMITY....................11 8... WARRANTY............................12 9... PRODUCT FAILURE..........................13 10. WARRANTY EXCLUSIONS.........................14...

  • Page 3: Intended Use

    1. INTENDED USE This saw intended to be used for cutting wood with the provided blade; that includes plywood, panelling, composition board and hardwood. Use this blade only for cutting wood. Cutting others material can create accidents and injuries. Others type of blades can be used in this machine, such as blades for cutting drywall, plastics, metals, etc. You can purchase them in specialized stores.
  • Page 4 finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach.
  • Page 5 g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

  • Page 6: Your Product

    3. YOUR PRODUCT 3.1 DESCRIPTION 1) Saw blade 5) Lock-off button for 7) Blade clamp and release 2) Soleplate ON/OFF switch mechanism 3) Led light 6) Battery platform 8) Handle 4) ON/OFF switch 9) Grasping surface 3.2 TECHNICAL DATA Tension 20V d.c.

  • Page 7: Operation

    4. OPERATION 4.1 CHARGING THE BATTERY PACK Battery and charger not included, you can buy the energy pack 600105097 (MABC 20V 2A) from Auchan. IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them, thoroughly read all of the safety instructions.
  • Page 8 Warning! Always remove the battery from the tool when assembling accessories, making adjustments, during transport or when the tool is not in use. Remove the battery will prevent accidental starting which could cause severe personal injury. NOTE: To avoid serious personal injury, always remove the battery and keep your hands away from the lock button while transporting the tool.

  • Page 9: Starting And Stopping

    4.4 STARTING AND STOPPING a) The reciprocating saw is equipped with a lock button (3) which reduces the possibility of accidental starting. The lock button (3) is located on the handle above the on/off switch trigger. You must depress the lock button in order to pull the switch trigger. The lock button resets each time the trigger is released.

  • Page 10: Metal Cutting

    4.7 METAL CUTTING You may cut metal such as sheet steel, pipe, steel rod, aluminium, brass and copper with this tool by using the appropiate cutting blade (do not use the provided blade but buy a blade for metal cutting matching with this tool).

  • Page 11: Declaration Of Conformity

    SAS OIA Ref / Code : 600105065 600123625 3665257351540 Ref fournisseur / Supplier ref : 3665257256562 Description : CORDLESS ANGLE GRINDER 115MM 20V WITHOUT B CORDLESS SABER SAW 2014/30/UE (EMC)Directive 2011/65/UE+(EU)2015/863 (ROHS) Directive 2006/42/CE (MACHINE) EN 55014-1: 2017 + A11: 2020 EN 55014-2 : 2015 EN 62841-1:2015 EN 62841-2-11:2016/A1:2020...

  • Page 12: Warranty

    8. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 13: Product Failure

    9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •...

  • Page 14: Warranty Exclusions

    10.WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
  • Page 15 NOTES...
  • Page 16 SAS OIA, 200, rue de la Recherche,Le Colibri BP 169, 59650 Villeneuve d’Ascq, France Tel: 00 800 5922 5922 Made in China(09/2022) - Réf. 600123625(MASSB20V)
