Summary of Contents for Hyundai power products HPF710

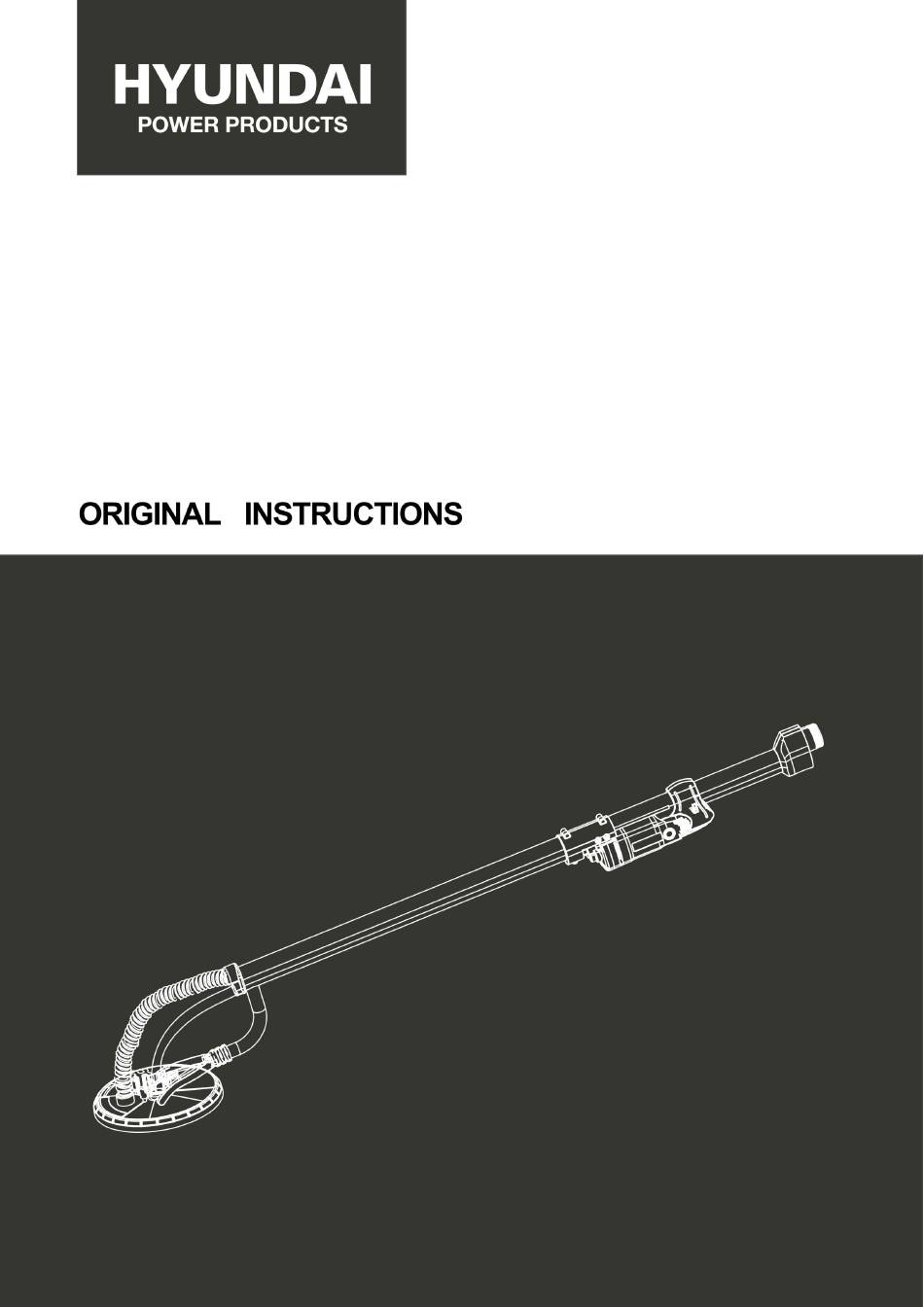

- Page 1 DRY WALL SANDER HPF710 WARNING: Read thoroughly the instruction manual before use.
- Page 2 1, GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool 1) Work area a) Keep work area clean and well lit.
- Page 3 c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.
- Page 4 2. SAFETY INSTRUCTION FOR ALL OPERATION a)This power tool is intended to function as a sander. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
- Page 5 i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation. j) Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.
- Page 6 b) Never place your hand near the rotating accessory. The accessory can perform a bounce on your hand. c) Do not place you in the area where power tool will move if kickback. The rebound pushes the tool in the opposite direction to movement of the wheel in point hooking. d) Take special care when working corners, sharp edges etc.
- Page 7 DESCRIPTION: Vacuum pipe adaptor hook Sanding paper Sanding head shaft Motor Support pipe 7, TECHNICAL SPECIFICATIONS Voltage supply： 230-240V~ Power： 710W Frequency 50Hz Speed: 1000-2200/min Protection class: Disc Diameter： Ø225mm N.W: 4.1KGS Sound pression level : Lpa = 79.9 dB(A) ； K = 3 dB(A) Sound power level : Lwa = 90.9 dB(A) ；K...
- Page 8 operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). Wear hearing protection. 8. OPERATING INSTRUCTIONS The Drywall Sander is designed for sanding walls and ceilings made of drywall or plaster. The Sander provides superior finish and is faster than conventional finishing methods for both new construction and renovation work.
-
Page 9: Installation
Replacement of sanding paper Before installing the new paper, first the grinding wheel must be clear from dirt, for instance due to the use of brush. The grinding surface of the adhesive disc has a lint layer, that can quickly and easily be installed flocking self-adhesive sandpaper. - Page 10 FIG.1 FIG.2 FIG.3 FIG.4 FIG.5 FIG.6...
- Page 11 FIG.7 10. STARTING AND STOPPING THE DRYWALL SANDER Make sure power circuit voltage is the same as shown on the specification plate on the Sander, and that the Sander switch is OFF. Connect Sander to power circuit. The wall sander is equipped with a “rocker” type switch. the switch button shows the OFF and ON mark .
- Page 12 12. SANDING OF GYPSUM JOINTS The Drywall Sander has a special sanding head: the head can rotate in multiple directions, allowing the abrasive pad to adjust to the work surface. This enables the operator to sand the top, middle and bottom of a wall or ceiling joint without changing its position. 1).
-
Page 13: Maintenance
The output shaft is inserted at the centre of the adhesive disc with six angle wrench with clockwise rotation angle in the six hexagonal holes, and at the same time, the hands hold the adhesive disc. The grinding disc can be remove adhesive. LARGE BRUSH A large brush surrounds the abrasive pad. - Page 14 15. ENVIRONMENT CAUTION! This product has been marked with a symbol relating to removing electric and electronic waste. This means that this product shall not be discarded with household waste but that it shall be returned to a collection system which conforms to the European WEEE Directive. Contact your local authorities or stockist for advice on recycling.
- Page 15 Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 States that the designated below machine: Product: 710 Watts Drywall Sander Model: HPF710 Serial number: 20210922725-20210923024 Developed, designed and manufactured in accordance with the requirements of directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EC...
-
Page 16: Warranty
17. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 17: Product Failure
18. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 18: Warranty Exclusions
19. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
