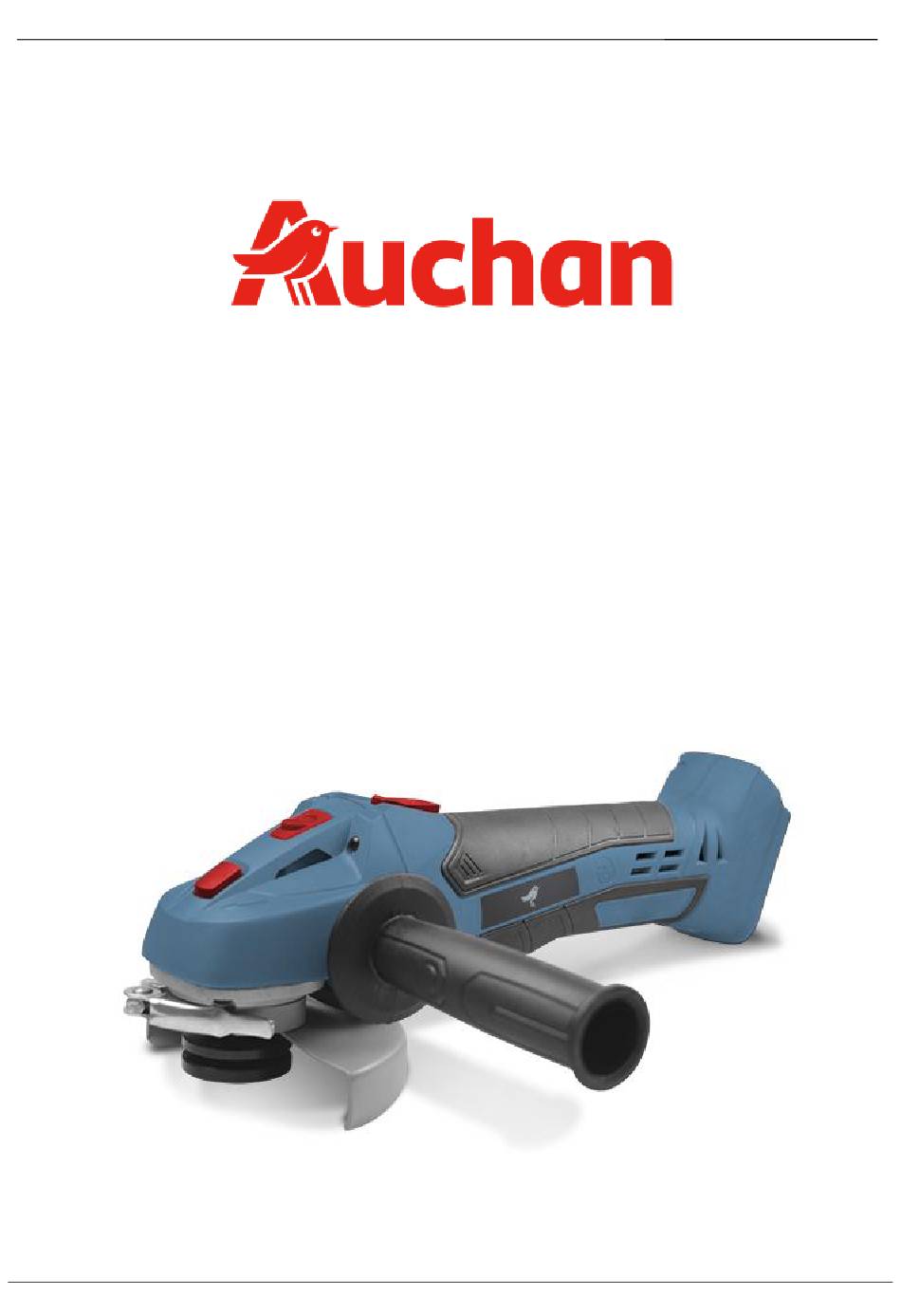

- Page 1 ORIGINAL INSTRUCTIONS CORDLESS GRINDER Model:600105064 (MAME20V) USER GUIDE CAUTION: Read the instructions before using the machine!
-
Page 2: Table Of Contents
CONTENTS 1.INTENDED USE ........................... 3 2.SAFETY INSTRUCTIONS ......................3 3.YOUR PRODUCT ......................... 8 4.PACKAGE CONTENT LIST ......................8 5.OPERATION ..........................9 6.CLEANING AND MAINTENANCE ..................... 12 7.TECHNICAL DETAILS ....................... 13 8.SERVICE DEPARTMENT ......................13 9.STORAGE ..........................13 10.DISPOSAL ..........................13 11.DECLARATION OF CONFORMITY .................. -
Page 3: Intended Use
1. INTENDED USE This machine is developed for grinding and roughing of metal and stone. It is not designed for commercial use. WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions. - Page 4 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 5: Safety Instructions For All Operations
NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. -
Page 6: Further Safety Instructions For All Operations
k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory. Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control. -
Page 7: Specific Safety Instructions For Angle Grinders
to these wheels may cause them to shatter. e) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges. -
Page 8: Your Product
1 x auxiliary handle 1 x pin spanner 1 x instruction manual Note: If any parts are missing or damaged, please contact your dealer. Note: Battery and charger not included, you can buy the energy pack 600105097 (MABC 20V 2A) from Auchan. -
Page 9: Operation
5.1 CHARGING THE BATTERY PACK Note: Battery and charger not included, you can buy the energy pack 600105097 (MABC 20V 2A) from Auchan. IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them, thoroughly read all of the safety instructions: Charge only at ambient temperatures between 4°... - Page 10 ASSEMBLY THE PROTECTIVE GUARD (FIG. 2 – 3) 1) Loosen the clip of the protective guard (7) by pulling lock lever of protective guard (1) outward. 2) Turn the protective guard so that uncovered part of the disc is as far apart as possible from the hand on main handle (3).
- Page 11 5.5 SWITCHING ON / OFF (FIG. 5) Before engage the ON/OFF switch button, check that the grinding disc is properly fitted and run smoothly, the outer flange is well tightened. The wheel continues to rotate after the tool is switched off! 1) Connect the battery pack onto the angle grinder body.
-
Page 12: Operaton Modes
5.6 OPERATON MODES Grinding Hold the handle (3) and auxiliary handle (6) firmly and switch on. Avoid blocking the ventilation slots with your hand, as this may cause the grinder to overheat. Let the disc reach full speed. Apply the grinder to the item. Maximum effect is achieved when the grinder is held at an angle of 15-30°... -
Page 13: Technical Data
7. TECHNICAL DATA Rated voltage (direct current) 20V d.c. Rotation speed 8500/min Max. diameter and thickness of grinding wheels: Ø 115 x 6 mm Type 27 for grinding Type of disc: Drive spindle thread: M 14 ENERGY PACK 600105097 (MABC20V2A) Battery type 20V d.c. -
Page 14: Declaration Of Conformity
SAS OIA 600105064 Ref / Code : 600105065 Ref fournisseur / Supplier ref : 3665257256562 Description : CORDLESS ANGLE GRINDER 115MM 20V WITHOUT B Directive 2014/30/UE (EMC) Directive 2011/65/UE + (UE) 2015/863 (ROHS) Directive 2006/42/CE (MACHINE) EN IEC55014-1:2021; EN IEC55014-2 :2021 EN 60745-1:2009+A11:2010 EN 62841-1:2015/A11:2022 EN 60745-2-3:2011+A2:2013+A11:2014+A12:2014+A13:2015... -
Page 15: Warranty
12. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 16: Product Failure
13. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 17: Warranty Exclusions
14. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 18 NOTES...
- Page 19 NOTES...
- Page 20 SAS OIA, 200, rue de la Recherche,Le Colibri BP 169, 59650 Villeneuve d’Ascq, France Tel: 00 800 5922 5922 Made in China(09/2022) - Réf. 600105064 (MAME20V)
