Desktop Installation

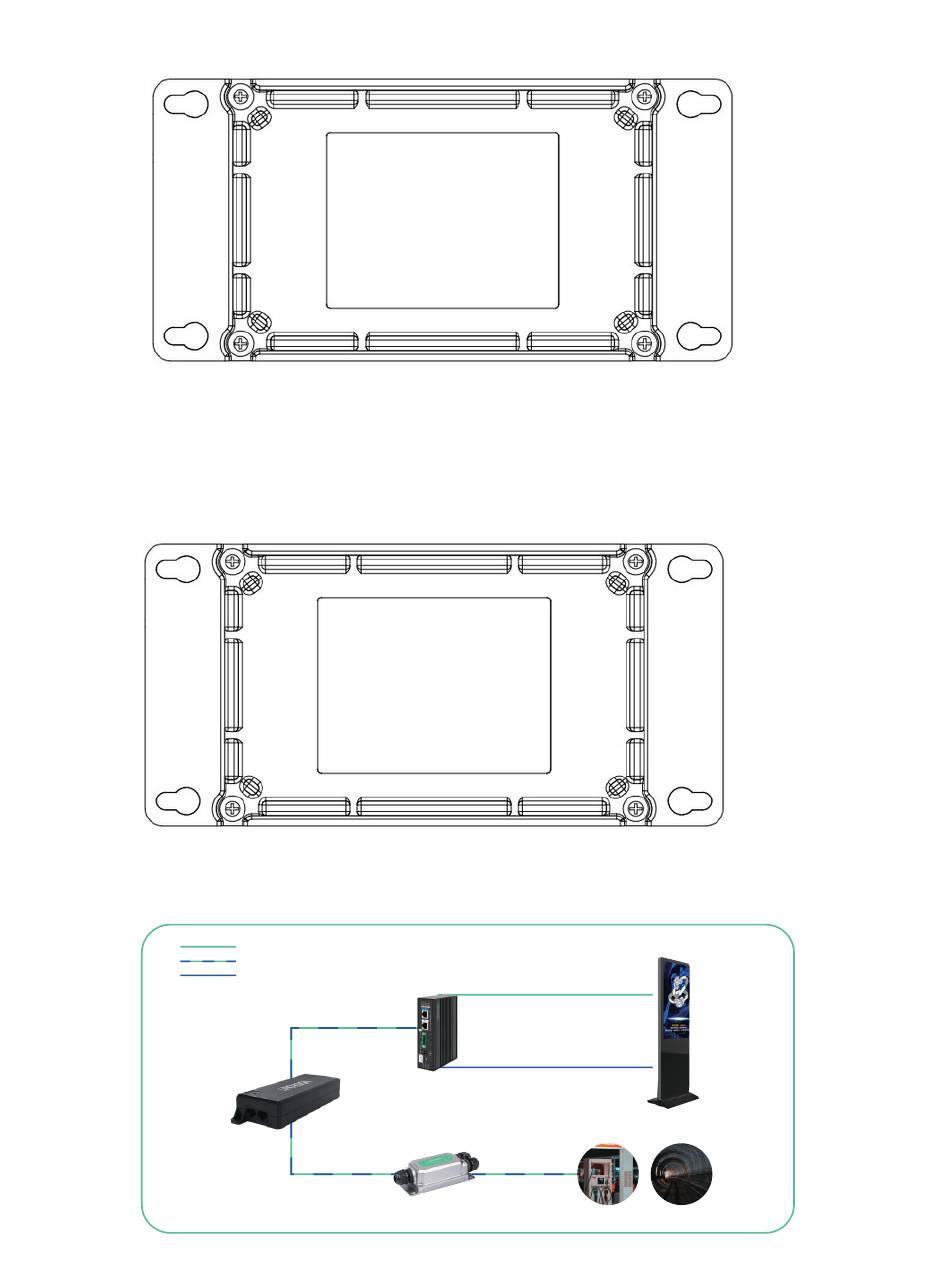

Install the machine on a desktop, place the machine carefully on the counter, the bottom is as follows:

Wall-mounted installation

Please follow these steps to install the machine:
First fix the four screws on the wall (screw cap diameter recommended 5.5-6.5mm) and turn the machine upside
down. Align the four fixing holes of the machine as shown below and hang the machine smoothly on the screws.
Application diagram of PoE injector
90W PoE Injector
POE-IN90W
Power
Power+Data
Data
PoE
PoE
Waterproof PoE Extender
POE-EXT6002GP
en
Power
90W PoE Splitter
POE-SP02BT
Data
PoE
Gas Station
3
Advertising
Machine
Mine
