Table of Contents
Summary of Contents for fidek FLA-102H

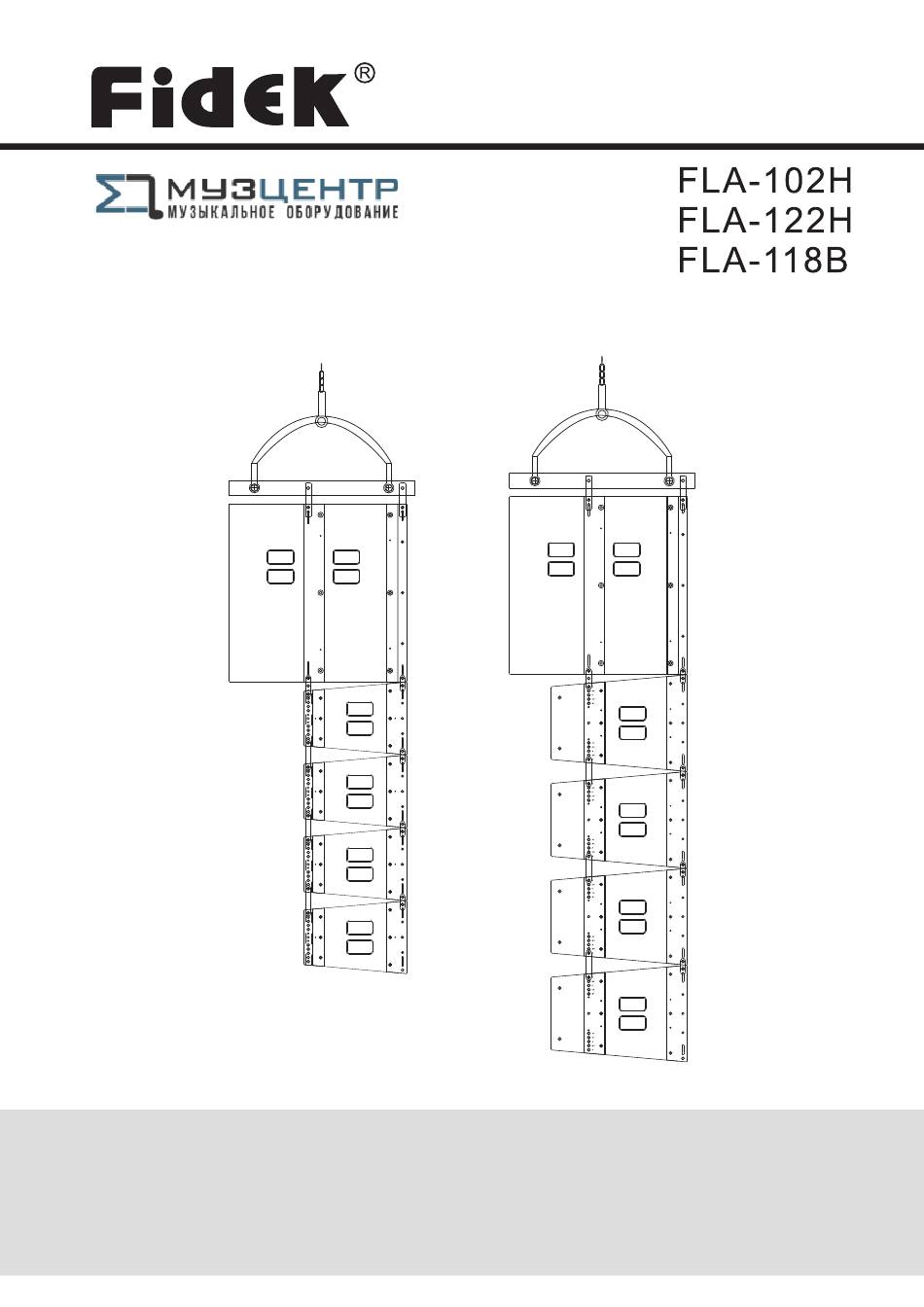

- Page 1 Linear array series product https://muzcentre.ru Manual Thank you for purchasing First Audio products. To enjoy more comprehensive services, please go to the following website to register your product information: www.fidek.com.cn...
-
Page 2: Table Of Contents
Contents 1. Safety warning... 2. Introduction..3. Product feature 4.Power amplifier back panel function description 5. Cabinet structure size description 6. Installation description1 7. Installation description2/3 8. Technical parameter... -
Page 3: Safety Warning
2. FIDEK was founded in 1981. The headquarters of FIDEK International Industrial Group is located in Hong Kong. It is responsible for overseas business and has a modern garden- style industrial park of 92,000 square meters in China. -
Page 4: Power Amplifier Back Panel Function Description

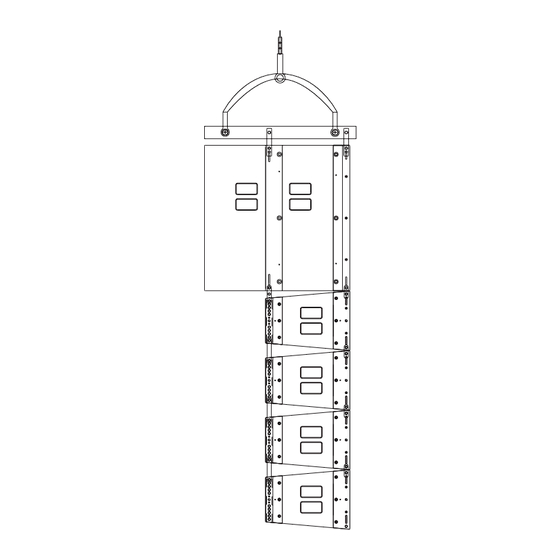

10" active line array full range speaker system First Audio Manufacturing(Guangzhou)Ltd. China Produce Base: FIDEK Industrial, Tanbu, Huadu district, Guangzhou, Guanggong, China Power Attention Caution: To avoid electric shock, do not open the case and do not attempt to repair it yourself. - Page 5 First Audio Manufacturing(Guangzhou)Ltd. China Produce Base: FIDEK Industrial, Tanbu, Huadu district, Guangzhou, Guanggong, China 1. Power indicator. 2. Standby indicator light: a few minutes after the power amplifier is turned on, no signal input will enter the standby state, standby indicator light on.
-
Page 6: Cabinet Structure Size Description
5. Cabinet structure size description FLA-102H cabinet structure and size diagram FLA-122H cabinet structure and size diagram FLA-118B cabinet structure and size diagram... -
Page 7: Installation Description1
6. Installation description 1 Step 1: Load the lock ring, rope and connecting rod into the top hanger. The connecting rod is fixed by screws, and then the hanger is lifted up to the same height as the sound (Figure 1). Big lock ring rope Small lock ring... -
Page 8: Installation Description2/3
6. Installation description 1 Step 5: Lift the subwoofer to an appropriate height, and then load the connecting rod into the lower part of the box with the bolt (Figure 5) Figure 5 Step 6: Raise the hanger in the original position by about 300mm, and then put the main box under the bass box (as shown in Figure 6);... - Page 9 6. Installation description 1 Step 7: After matching the lifting hole of the front end with OK, insert the front-end bolt horizontally into the lifting hole, and then insert the bolt after matching the lifting hole of the back end with OK (as shown in Figure 7). Step 8: Repeat the above steps to complete the lifting of the whole set of speakers (Figure 8).
- Page 10 7. Installation description 2/3 1. Lift the first main box (with the boom facing down), insert the front and rear booms into the front and rear booms of the subwoofer, and then secure them with bolt: (Figure 1) 2. Insert the front and rear booms of the second main box into the front and rear booms of the first main box, then fix them with bolt respectively, and assemble the remaining speakers accordingly;...
-
Page 11: Technical Parameter
8. Technical parameter Model: Unit configuration Bass: 1*10" Treble:2*1.75" Frequency response Impedance Sensitivity Peak power Maximum sound pressure level Directivity Horizontal: 100° Vertical: 12° Input Hanging angle Model: Bass: 1*12" Treble:2*1.75" Unit configuration Frequency response Impedance Sensitivity Peak power Maximum sound pressure level Horizontal: 100°... - Page 12 Toll-free service hotline: 8008303013 400 customer service hotline: 4008308282 Website: www.fidek.com.cn No responsibility is assumed for the correctness of the information in this document. The possibility of technical changes, typographical errors and ongoing product upgrades is reserved.
