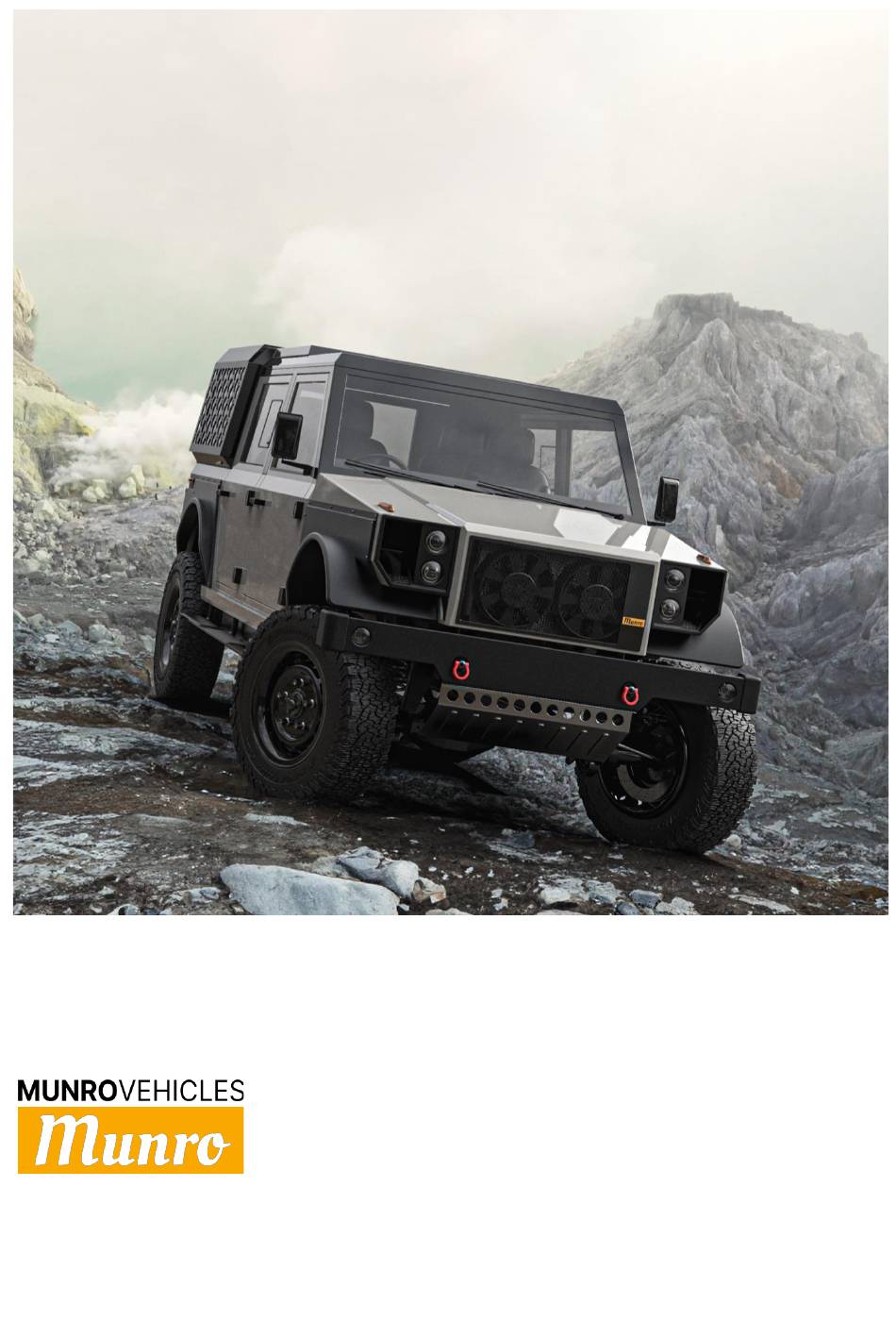

Page 1 SERIES-M OWNERS MANUAL...
Page 2: Table Of Contents
Munro Vehicles: Series-M Owners Manual INDEX Cabin Climate Control Central Locking Charging De-mist and Heated Screens Drive Select Driver Display Electronic Centre Locking Differential Electronic Parking Brake (EPB) Exterior Light Controls Fuses High and Low-range Transmission Horn Infotainment Jump Starting...
Page 3: Maximum Vehicle Weights
Munro Vehicles: Series-M Owners Manual “Thank you for choosing Munro. The Series-M is a rugged, fully electric truck with permanent four-wheel- drive and unmatched off-road performance. Designed to move people and equipment across difficult terrain, in all conditions. Daily operation of your vehicle is covered here. If you would like to ask a question, or contribute feedback to the development of the platform, please scan the QR code present in your vehicle.
Page 4: Low Voltage Isolation Switch
Munro Vehicles: Series-M Owners Manual Low Voltage Isolation Switch Your vehicle is equipped with a low voltage isolation switch, located on the vehicle bulkhead. Turn the switch to disconnect auxiliary power. Please be aware that the DCDC converter output is connected to the battery side of the isolator and will remain live.
Page 5: Seating And Steering Adjustment
Munro Vehicles: Series-M Owners Manual Switchgear Grab handles are located on the dashboard for the front passenger, and A-pillar for the driving position. Additional grab handles are provided on the B-pillar for the rear. Pull the door lever to exit the vehicle. A separate handle is provided for opening and closing the door.
Page 6: Driver Display
Munro Vehicles: Series-M Owners Manual Driver Display The driver display provides all necessary information to the driver for safe operation of the vehicle. In the event of a fault, a warning icon will illuminate. In some cases, this will be accompanied by further information or instructions.
Page 7: Drive Select
Munro Vehicles: Series-M Owners Manual Starting the Vehicle Your vehicle is equipped with an immobilizing device. An LED indicator is located next to the steering column. To start the vehicle, press the ON/OFF switch, located on the center console. The immobiliser LED will flash rapidly.
Page 8: Mist And Heated Screens
Munro Vehicles: Series-M Owners Manual Electronic Parking Brake (EPB) Your vehicle is equipped with an electronic parking brake. The status of the parking brake is indicated on the driver display. To engage the electronic parking brake, press the button on the center console. To disengage the parking brake, depress the brake pedal and press the button on the center console.
Page 9: Exterior Light Controls
Munro Vehicles: Series-M Owners Manual Window Wipers and Washers The window wipers are controlled via the right-hand stalk. Move the stalk upwards for a single stroke of the wiper blades. Move the stalk down to select the desired function, there are three operating modes: Intermittent ▪...
Page 10: Horn
Munro Vehicles: Series-M Owners Manual Horn Your vehicle is equipped with an audible warning device to alert other road users. Press the bottom section of the steering wheel cover to sound the horn. Mirrors Your vehicle is equipped with a central rear-view mirror and two side mirrors.
Page 11: Electronic Centre Locking Differential
Munro Vehicles: Series-M Owners Manual High and Low-range Transmission Your vehicle is equipped with a high and low range transmission. Low range provides additional torque in exchange for lower maximum speed. To change between high and low range, ensure the vehicle is rolling slowly between 0 and 5mph.
Page 12: Central Locking
Munro Vehicles: Series-M Owners Manual Infotainment Your vehicle is equipped with an infotainment and navigation system. The central display supports Android Auto and wireless Apple Carplay. A wireless charging pad is located inside the front tray on the center console.
Page 13: Rear Cargo Area
Munro Vehicles: Series-M Owners Manual Rear Cargo Area With the doors unlocked, press the button to open the cargo door. Ensure the door is firmly closed with both latches engaged before driving. Your vehicle is equipped with canvas storage on the rear cargo door, suitable for lightweight items. We recommend storing your charging cable, locking wheel nut and other accessories here.
Page 14: Charging
Munro Vehicles: Series-M Owners Manual Charging Your vehicle is equipped with a CCS socket for combined AC and DC charging. The charge port is located on the rear near side of the vehicle. Depending on vehicle configuration, you can charge on an AC supply at either 7kW or 22kW: ▪...
Page 15: Towing
24V feed for powering auxiliaries. Auxiliary feeds are rated for maximum 16 amps. Your vehicle is equipped with a 24V auxiliary power system. If you specify a Munro towing kit, this will include a 24-12V adapter for use with 12V trailers.
Page 16: Parking Sensors And Reversing Camera
Owners Manual Regenerative Braking Munro vehicles are capable of regenerative braking. The electric motor is used as a generator to slow the vehicle and recharge the high voltage battery. Lift off the accelerator whilst in motion to begin regenerative braking.
Page 17: Cabin Climate Control
Munro Vehicles: Series-M Owners Manual Cabin Climate Control Your vehicle is equipped with an electric heating and air conditioning system. HVAC controls are located at the center of the dashboard. To operate the heater, select temperature 1, 2 or 3 on the heating control knob. Select stage 1, 2 or 3 for cabin fan speed.
Page 18: Tyre Pressures And Spare Wheel
Munro Vehicles: Series-M Owners Manual Tyre Pressures and Spare Wheel Recommended tyre pressures are provided on the driver’s door. Optimal pressures may vary, for example lower pressures may be desirable for off-highway operation. On vehicles equipped with a spare wheel, the carrier is located on the rear cargo door. Ensure the supplied cover remains in place to preserve the condition of the tyre.
Page 19: Fuses
Munro Vehicles: Series-M Owners Manual Jump Starting Your vehicle is equipped with a 24V lithium auxiliary power system. In the event of complete power loss, the system can be re-energised with an external power source. The power source should supply 12-28V and have reverse current and over current protection. Automatic battery starters may not detect the presence of a battery when starting the vehicle;...
