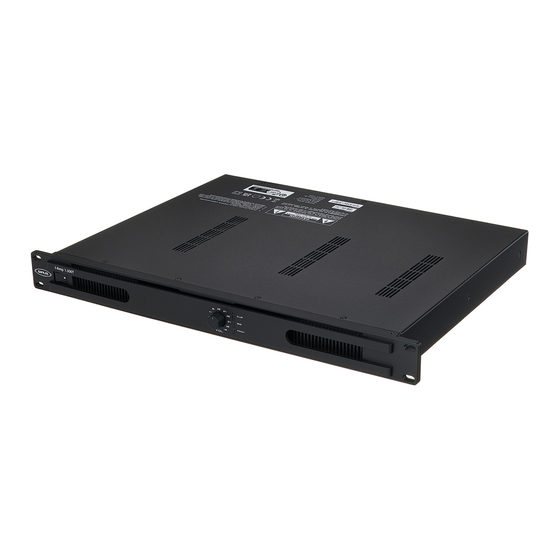

- Page 1 I-Amp 1.300T Power Amplifier...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 21.06.2024, ID: 570052 (V2)
-
Page 3: Table Of Contents
General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features............................... 10 Installation and starting up........................ 11 Connections and controls........................15 Technical specifications........................17 Plug and connection assignment....................19 Cleaning............................... 20 Protecting the environment......................21 I-Amp 1.300T Power Amplifier... - Page 4 I-Amp 1.300T Power Amplifier...
-
Page 5: General Information
Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. I-Amp 1.300T Power Amplifier... - Page 6 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. I-Amp 1.300T Power Amplifier...
-
Page 7: Safety Instructions
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device when covers, safety equipment or optical components are missing or damaged. I-Amp 1.300T Power Amplifier... - Page 8 Never subject the device to liquids or moisture. Never move the device to another location while it is in operation. In environments with increased dirt levels (for example due to dust, smoke, nicotine or mist): Have the device cleaned by qualified specialists at reg‐ ular intervals to prevent damage due to overheating and other malfunctions. I-Amp 1.300T Power Amplifier...
- Page 9 Using fuses of a different type than compatible with the device may cause a fire and seriously damage the device. Only use fuses of the same type. Observe the labelling on the device casing and the information in the "Technical data” chapter. I-Amp 1.300T Power Amplifier...
-
Page 10: Features
Class D amplifier Protection circuits such as thermal, short circuit, on/off muting Euroblock input and Euroblock output Volume control and mains switch installed on the front Signal, clip, protect and power LED 19-inch rack size (1 RU) I-Amp 1.300T Power Amplifier... -
Page 11: Installation And Starting Up
Take care when running the cables to prevent tripping hazards. DANGER! Risk of death from electrical current! The output voltages of modern high-performance amplifiers may result in death or serious injury. Never touch the bare ends of loudspeaker cables when the amplifier is on. I-Amp 1.300T Power Amplifier... - Page 12 Power Amplifier. When placing the Power Amplifier in a rack, you should place it at the bottom thereof, and place any other equipment at the top of the rack. I-Amp 1.300T Power Amplifier...
- Page 13 We rec‐ ommend a power reserve of 20%. In the example, three 100-V speakers connected in parallel are connected to two speaker con‐ nections that form two speaker zones. I-Amp 1.300T Power Amplifier...
- Page 14 Installation and starting up SPEAKER OUTPUT INPUT PRE-SET 100V I-Amp 1.300T Power Amplifier...
-
Page 15: Connections And Controls
Reduce the volume on the device. Once the problem is resolved, the protection circuit is automatically reset and the device is ready for use. 6 Channel LED lights up green when the device is on. I-Amp 1.300T Power Amplifier... - Page 16 3 [SPEAKER OUTPUT] | Euroblock terminals as speaker output 4 Rubber panel plug for power supply with fuse holder. Before connecting to the power supply, check that the voltage selector on the bottom of the unit is in the correct position. I-Amp 1.300T Power Amplifier...
-
Page 17: Technical Specifications
Sensitivity 0.9 V … 1.1 V (0 /–1 dBv) Gain 40 dB (100 V) Power consumption 400 W Supply voltage 230 V 50 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, slow blow I-Amp 1.300T Power Amplifier... - Page 18 Technical specifications Dimensions (W × H × D) 483 mm × 44 mm × 360 mm Weight 5.2 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) I-Amp 1.300T Power Amplifier...
-
Page 19: Plug And Connection Assignment
‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers the signal, but phase-shifted by 180°. Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. I-Amp 1.300T Power Amplifier... -
Page 20: Cleaning
The fan grids of the device must be cleaned of any contamination, such as dust, etc. on a reg‐ ular basis. Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. I-Amp 1.300T Power Amplifier... -
Page 21: Protecting The Environment
Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the instructions and markings on the packaging. Observe the disposal note regarding documentation in France. I-Amp 1.300T Power Amplifier... - Page 22 Also note that waste avoidance is a valuable contribution to environmental protection. Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. If your old device contains personal data, delete those data before disposing of it. I-Amp 1.300T Power Amplifier...
